- Net volume
- 11L
- Tuning
- 95Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.

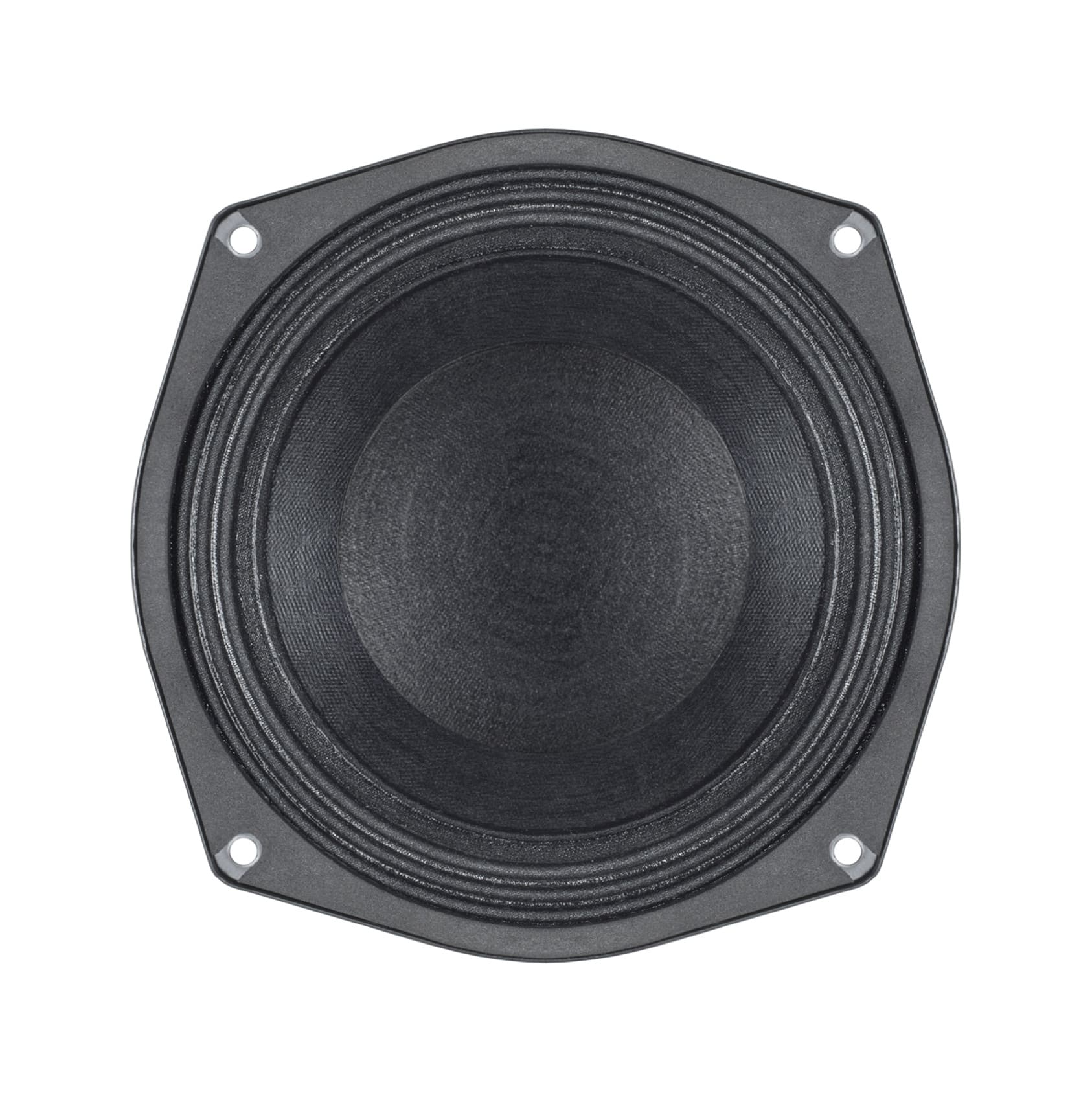

6.5-inch LF driver · 6CLA series · 51 mm voice coil · 250 W
B&C 6CLA51 16Ω
90–5000 Hz
No current price
- Fs
- 89Hz
- Xmax
- 5.5mm
- SPL
- 91dB
- Pe
- 250W
- BL
- 12.8T·m
- Vd
- 73cm³
- Qts
- 0.41
- Vas
- 6L
Published graphs
B&C 6CLA51 is a 6.5-inch 16 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 89 Hz, Qts 0.41, Vas 5.7 L, Xmax 5.5 mm, sensitivity 91.4 dB, plus 73 cm³ Vd and 193 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 89Hz
- Qts
- 0.41
- Qes
- 0.46
- Qms
- 3.9
- Vas
- 5.7L
- Re
- 9.7Ω
- Le
- 1.25mH
Motor and cone
- BL
- 12.8T·m
- Sd
- 132cm²
- Mms
- 14g
- Xmax
- 5.5mm
- Vd †
- 73cm³
- Voice coil
- 51mm
- Flux density
- 1.05T
Power and response
- Sensitivity †
- 91.4dB
- Manufacturer sensitivity
- 93.5dB
- Power
- 250W
- Nominal power
- 250W
- Impedance
- 16Ω
- Min. impedance
- 11.2Ω
- Range
- 90–5000Hz
- EBP †
- 193 · Leans vented
Size and mounting
- Diameter
- 180mm
- Cutout
- 146mm
- Bolt circle
- 165mm
- Depth
- 80mm
- Weight
- 1.2kg
Sensitivity shows 91.4 dB, calculated from the T/S values. B&C publishes 93.5 dB, 2.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 12.8T·m
- Fs
- 89Hz
- Le
- 1.25mH
- Re
- 9.7Ω
- Sd
- 132cm²
- Mms
- 14g
- Qes
- 0.46
- Qms
- 3.9
- Qts
- 0.41
- SPL
- 91.4dB
- Vas
- 5.7L
- Xmax
- 5.5mm
- Power
- 250W
- Impedance
- 16Ω
- Flux density
- 1.05T
- Sensitivity
- 93.5dB
- Low limit
- 90Hz
- Nominal power
- 250W
- Calculated sensitivity †
- 91.4dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 93.5dB
- Min. impedance
- 11.2Ω
- Voice coil
- 51mm
- Weight
- 1.2kg
- Diameter
- 180mm
- Depth
- 80mm
- Cutout
- 146mm
- Bolt circle
- 165mm
- Bl
- 12.8 Tm
- Fs
- 89 Hz
- Le
- 1.25 mH
- Re
- 9.7 Ω
- Sd
- 132 cm² (20.5 in²)
- Ebp
- 193 Hz
- Mms
- 14 g
- Qes
- 0.46
- Qms
- 3.9
- Qts
- 0.41
- Vas
- 5.7 dm³ (0.2 ft³)
- Η0
- 0.9 %
- Cone
- RCK06CLA5116
- Xmax
- 5.5 mm
- Xvar
- 4.6 mm
- Depth
- 80 mm (4.45 in)
- Spider
- Single
- Cone shape
- Radial
- Net weight
- 1.2 kg (2.65 lb)
- Pole design
- T-Pole
- Sensitivity
- 93.5 dB
- Flux density
- 1.05 T
- Shipping box
- 210x210x125 mm (8.27x8.27x4.92 in)
- Winding depth
- 15 mm (0.53 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Polyimide
- Frequency range
- 90 Hz - 5000 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 1.45 kg (3.2 lb)
- Nominal diameter
- 170 mm (6.5 in)
- Overall diameter
- 180 mm (7.09 in)
- Winding material
- Aluminium
- Minimum impedance
- 11.2 Ω
- Nominal impedance
- 16 Ω
- Magnetic gap depth
- 8 mm (0.31 in)
- Recommended tuning
- 95 Hz
- Recommended loading
- Vented Box
- Voice coil diameter
- 51 mm (2 in)
- Bolt circle diameter
- 165 mm (6.5 in)
- Recommended enclosure
- 11 dm³ (0.39 ft³)
- Woofer cone treatment
- WP Waterproof Front Side
- Baffle cutout diameter
- 146 mm (5.75 in)
- Nominal power handling
- 250 W
- Continuous power handling
- 500 W
- Flange and gasket thickness
- 7 mm (0.28 in)
B&C’s suggested box
From B&C’s 6CLA51 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 6CLA51. Clear differences are green when better and red when worse.
This driver6CLA51
Best price
–
Fs
89 Hz
Qts
0.41
Vas
5.7 L
BL
12.8 T·m
Xmax
5.5 mm
Sensitivity
91.4 dB
Power
250 W
PeerlessSLS-P830946
£37.48Fs47 Hz −47%, better
Qts0.43 +5%
Vas6.0 L +6%
BL8.5 T·m −34%, worse
Xmax10.9 mm +98%, better
Sensitivity83.4 dB −8, worse
Beyma6CMV2
£40.92Fs90 Hz –
Qts0.34 −17%, better
Vas6.5 L +14%, worse
BL9.4 T·m −27%, worse
Xmax5.7 mm +4%
Sensitivity92.3 dB +0.9
CelestionTFX0615
£59.20Fs97 Hz +9%
Qts0.38 −8%
Vas7.2 L +26%, worse
BL9.8 T·m −23%, worse
Xmax5.3 mm −5%
Sensitivity93.8 dB +2.4, better
LavoceWAF061.80
£64.36Fs65 Hz −27%, better
Qts0.42 –
Vas7.3 L +27%, worse
BL9.5 T·m −26%, worse
Xmax4.9 mm −11%, worse
Sensitivity88.6 dB −2.8, worse
MonacorSPH-175HQ
£69.45Fs39 Hz −56%, better
Qts0.42 –
Vas33 L +479%, worse
BL6.4 T·m −50%, worse
Xmax5.5 mm –
Sensitivity88 dB −3.4, worse
CelestionCF0617M
£74.00Fs117 Hz +31%, worse
Qts0.45 +10%, worse
Vas5.4 L −5%
BL9.7 T·m −24%, worse
Xmax2.7 mm −51%, worse
Sensitivity94.5 dB +3.1, better
FaitalPRO6PR160
£83.85Fs90 Hz –
Qts0.33 −20%, better
Vas5.9 L +4%
BL11 T·m −14%, worse
Xmax5 mm −9%
Sensitivity92.9 dB +1.5
FaitalPRO6PR122
£84.13Fs110 Hz +24%, worse
Qts0.39 −5%
Vas4.7 L −18%, better
BL10.5 T·m −18%, worse
Xmax2.8 mm −50%, worse
Sensitivity93.6 dB +2.2, better
FaitalPRO6RS140
£87.80Fs65 Hz −27%, better
Qts0.36 −12%, better
Vas9.9 L +74%, worse
BL14.2 T·m +11%, better
Xmax5.5 mm –
Sensitivity90.6 dB −0.8
WavecorSW146WA01
£95.96Fs51 Hz −43%, better
Qts0.48 +17%, worse
Vas5.5 L −4%
BL5.9 T·m −54%, worse
Xmax6 mm +9%
Sensitivity83.7 dB −7.7, worse
B&C6NDL38
£98.16Fs72 Hz −19%, better
Qts0.42 –
Vas7 L +23%, worse
BL9.5 T·m −26%, worse
Xmax6 mm +9%
Sensitivity89.8 dB −1.6
B&C6FHX51
£129.07Fs85 Hz −4%
Qts0.37 −10%
Vas5 L −12%, better
BL11.3 T·m −12%, worse
Xmax5.7 mm +4%
Sensitivity90.9 dB −0.5
CIARECMI160ND
£130.61Fs73 Hz −18%, better
Qts0.41 –
Vas6 L +5%
BL7.8 T·m −39%, worse
Xmax4.5 mm −18%, worse
Sensitivity89.2 dB −2.2, worse
PRV Audio6MR500-NDY-4
£138.01Fs100 Hz +12%, worse
Qts0.43 +5%
Vas5.1 L −10%
BL8.8 T·m −31%, worse
Xmax4.4 mm −20%, worse
Sensitivity92.4 dB +1
FaitalPRO6HX150
£155.14Fs88 Hz –
Qts0.34 −17%, better
Vas6.3 L +11%, worse
BL12 T·m −6%
Xmax4.3 mm −21%, worse
Sensitivity92.9 dB +1.5
Eighteen Sound6NTLW2000
£159.74Fs86 Hz −3%
Qts0.38 −7%
Vas4.8 L −16%, better
BL14.1 T·m +10%, better
Xmax4.9 mm −11%, worse
Sensitivity90.5 dB −0.9
B&C6HCX51
£175.82Fs89 Hz –
Qts0.38 −7%
Vas5 L −12%, better
BL10.9 T·m −15%, worse
Xmax5.5 mm –
Sensitivity91.5 dB –
MonacorTFX0615/8
No current priceFs97 Hz +9%
Qts0.38 −8%
Vas7.2 L +26%, worse
BL9.8 T·m −23%, worse
Xmax5.3 mm −5%
Sensitivity93.9 dB +2.5, better
Oberton6M150
No current priceFs115 Hz +29%, worse
Qts0.42 –
Vas5.3 L −6%
BL10.0 T·m −22%, worse
Xmax2.3 mm −59%, worse
Sensitivity94.5 dB +3.1, better
HiViD5.8B
No current priceFs52 Hz −42%, better
Qts0.37 −10%
Vas5.6 L –
BL9 T·m −30%, worse
Xmax4.8 mm −13%, worse
Sensitivity84.8 dB −6.6, worse
Tang BandW6-1914S
No current priceFs65 Hz −27%, better
Qts0.44 +7%
Vas6.8 L +19%, worse
BL11.6 T·m −9%
Xmax0.5 mm −91%, worse
Sensitivity88 dB −3.4, worse
BMS6S117
No current priceFs80 Hz −10%, better
Qts0.43 +5%
Vas10.4 L +82%, worse
BL11.3 T·m −12%, worse
Xmax5 mm −9%
Sensitivity92.4 dB +1
FaitalPRO6FE400
No current priceFs100 Hz +12%, worse
Qts0.50 +22%, worse
Vas5.5 L −4%
BL13 T·m –
Xmax4.8 mm −13%, worse
Sensitivity91.9 dB +0.5
BMS6C150
No current priceFs88 Hz –
Qts0.46 +12%, worse
Vas7.6 L +33%, worse
BL11.4 T·m −11%, worse
Xmax5 mm −9%
Sensitivity92 dB +0.6
LavoceWSN061.52
No current priceFs90 Hz –
Qts0.39 −5%
Vas5.9 L +4%
BL9.9 T·m −23%, worse
Xmax3.8 mm −31%, worse
Sensitivity92.1 dB +0.7
WavecorWF182BD11
No current priceFs34 Hz −62%, better
Qts0.42 –
Vas24.3 L +326%, worse
BL8.2 T·m −36%, worse
Xmax5.5 mm –
Sensitivity85.4 dB −6, worse
WavecorWF182BD19
No current priceFs34 Hz −62%, better
Qts0.42 –
Vas24.3 L +326%, worse
BL8.2 T·m −36%, worse
Xmax5.5 mm –
Sensitivity85.4 dB −6, worse
PeerlessFSL-0615R01-08
No current priceFs84 Hz −6%
Qts0.45 +10%
Vas6.7 L +18%, worse
BL8.5 T·m −34%, worse
Xmax6 mm +9%
Sensitivity91 dB –
CIARECMI160
No current priceFs70 Hz −21%, better
Qts0.41 –
Vas7.8 L +37%, worse
BL7.2 T·m −44%, worse
Xmax4.5 mm −18%, worse
Sensitivity89.8 dB −1.6
HiViS6.5
No current priceFs47 Hz −47%, better
Qts0.42 –
Vas18.4 L +223%, worse
BL6.4 T·m −50%, worse
Xmax5.8 mm +5%
Sensitivity88.1 dB −3.3, worse
