Overview
LF Driver
Tang Band

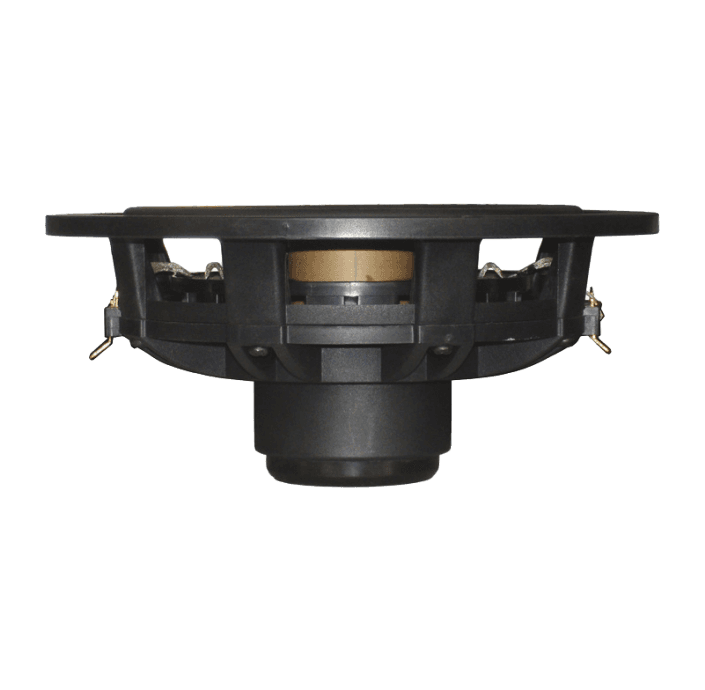

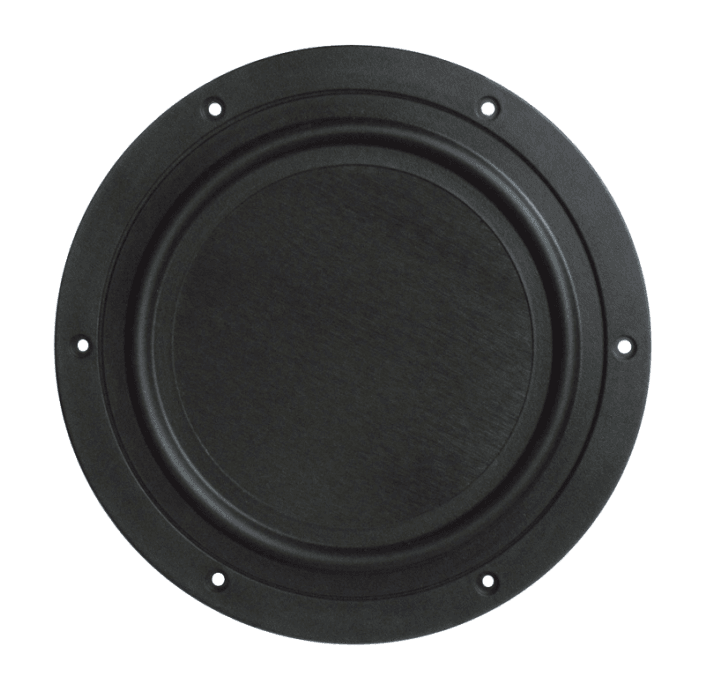

Tang Band W6-1936S
Tang Band W6-1936S is a 6" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 30Hz, Qts 0.36, Vas 4.7L, Xmax 7.4mm, sensitivity 76.9dB, plus 104cm³ Vd and 73 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
80W
Sensitivity
76.9dB
78.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
73
Either alignment
Vd
104cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,438 selected pixels of 3,237 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,214 selected pixels of 2,214
T/S Parameters
Valid
Fs30Hz
Qts0.36
Qes0.41
Qms3.1
Vas4.7L
Re6.5Ω
Le0.55mH
BL21.6Tm
Sd140cm²
Mms142g
Xmax7.4mm
SPL77dB
Power80W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Tang Band
W6-1936S
6"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
62%
Similarity

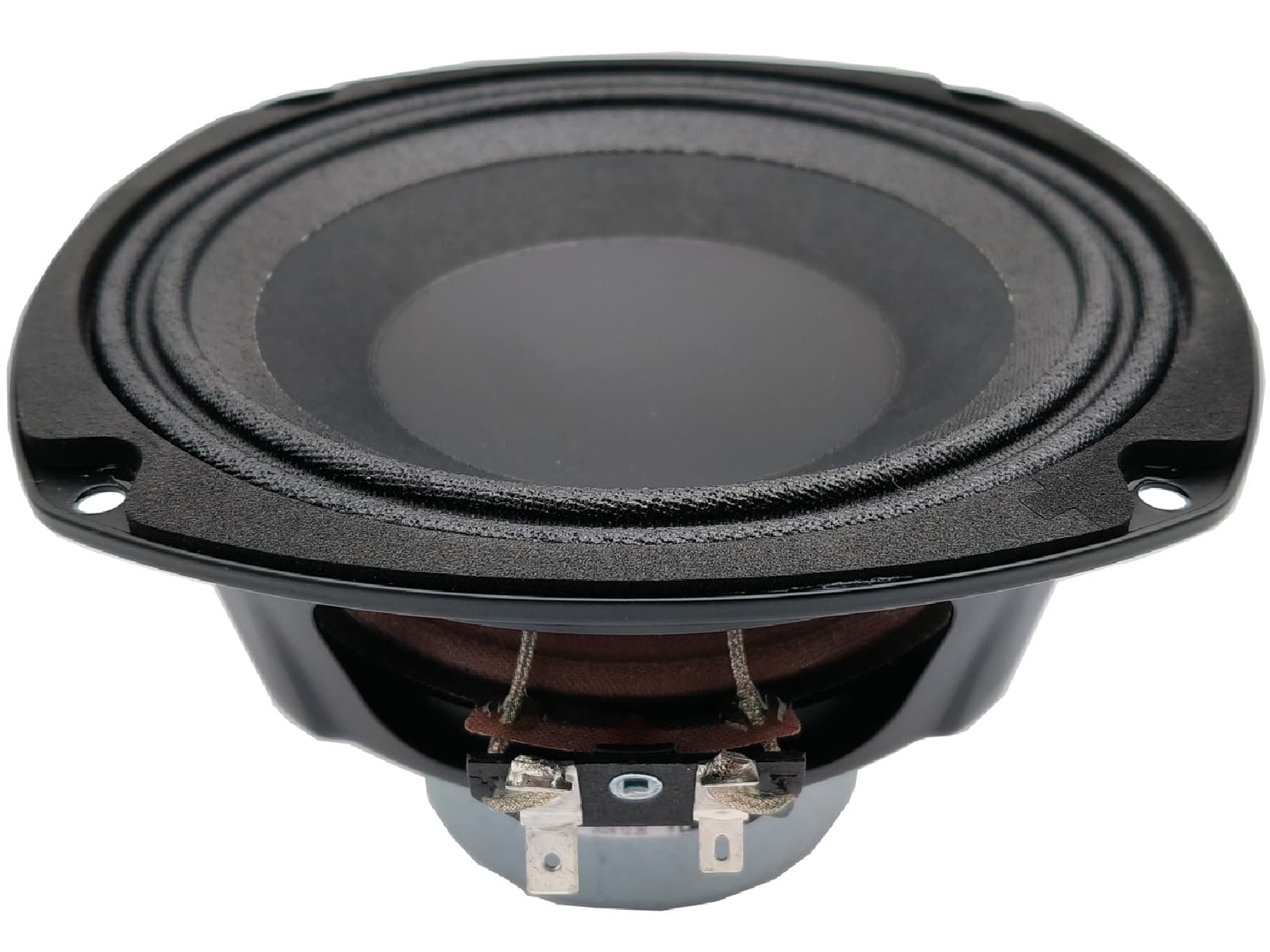

Peerless
NSM-0620R00-16
6.5"
Xmax6.5mm-11%
Qts0.32-11%
BL21.9Tm+2%
Vas3.3L-29%
Qes0.34-16%
