Overview
LF DriverAluminium Sandwich series
Accuton

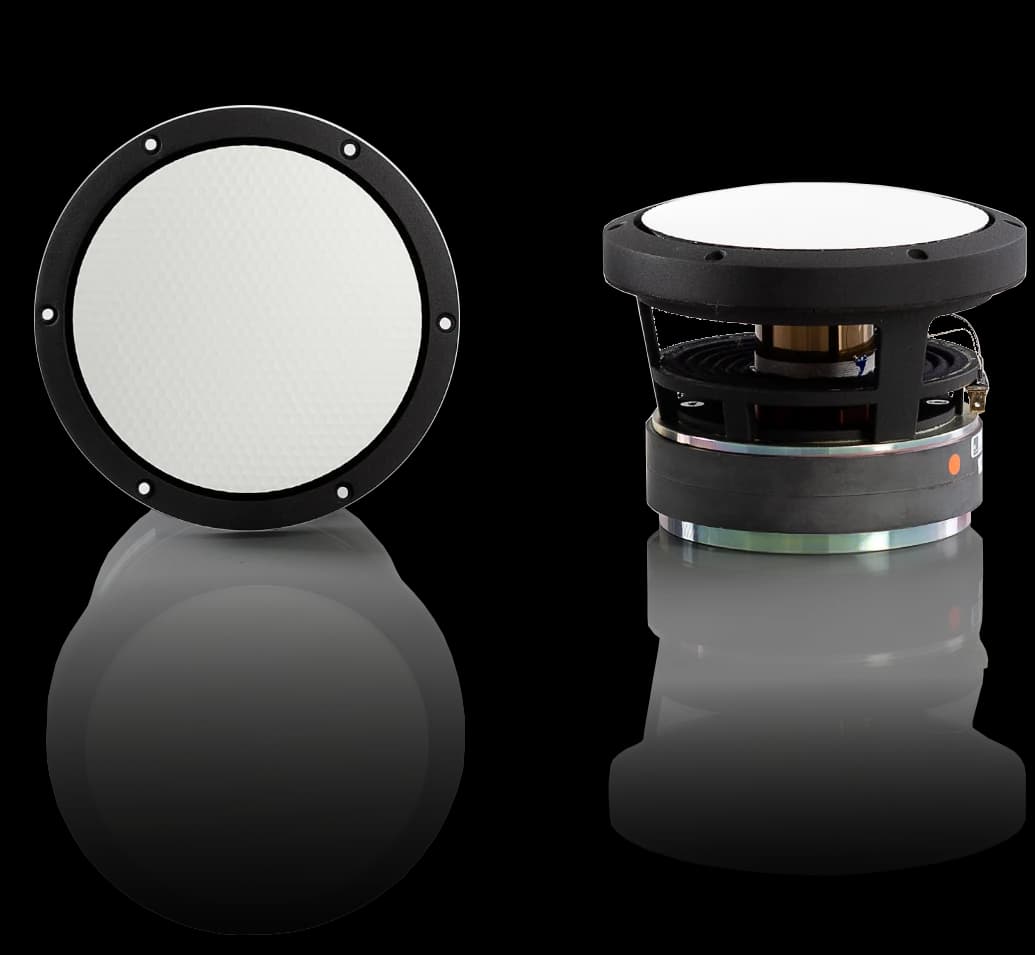

Accuton AS168-9-470
Accuton AS168-9-470 is a 6.5" 9 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 27Hz, Qts 0.35, Vas 35.5L, Xmax 8mm, sensitivity 84.7dB, plus 129cm³ Vd and 71 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
9Ω
RMS Power
250W
Sensitivity
84.7dB
EBP
71
Either alignment
Vd
129cm³
T/S Parameters
Valid
Fs27Hz
Qts0.35
Qes0.38
Qms4.3
Vas35.5L
Re9.0Ω
Le1.00mH
BL12.1Tm
Sd161cm²
Mms36g
Xmax8.0mm
SPL85dB
Power250W
Impedance9Ω
F Low35Hz
F High1000Hz
Voice Coil47mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

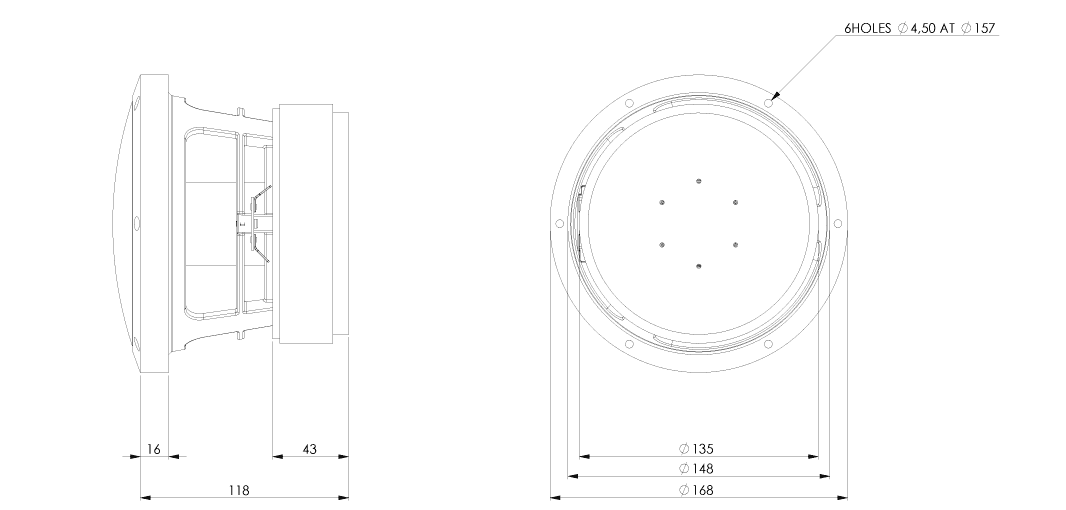

Dimensions & Physical
Diameter168.0mm
Overall Depth118.0mm
Cutout Diameter148.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Accuton
AS168-9-470
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
64%
Similarity
Purifi
PTT6.5W08-NAA-08
6.5"
Xmax5.9mm-26%
Qts0.350%
BL9.4Tm-22%
Vas23.8L-33%
Qes0.37-3%
63%
Similarity
£300.67

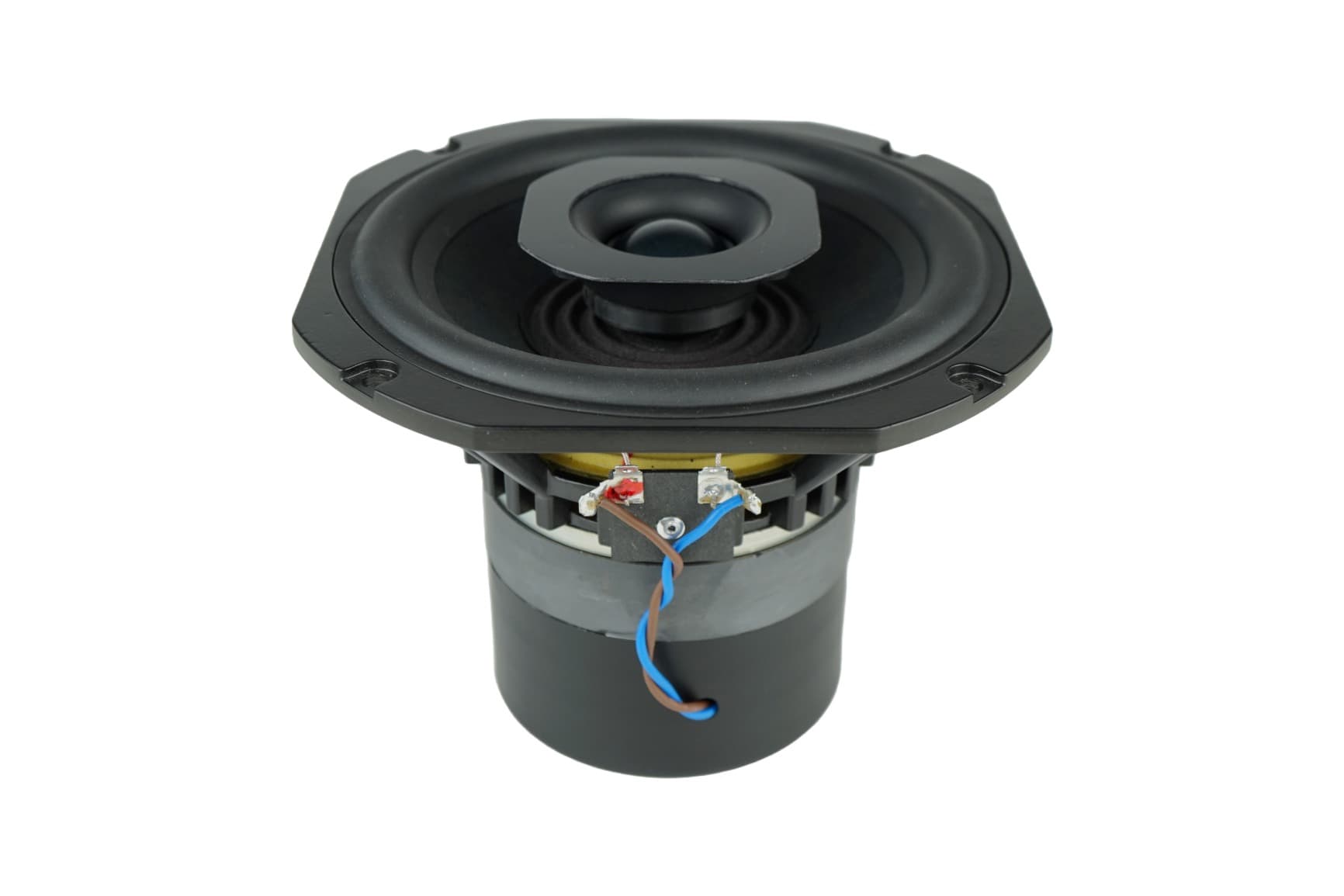

Volt
CX160.1
6.5"
Xmax6mm-25%
Qts0.350%
BL9.5Tm-21%
Vas22.6L-36%
Qes0.36-5%
63%
Similarity
Purifi
PTT6.5X08-NFA-06
6.5"
Xmax9.8mm+23%
Qts0.34-3%
BL8.9Tm-26%
Vas26L-27%
Qes0.36-5%
63%
Similarity
Audio Technology
6 A 77 20 06 SD
6"
Xmax8mm0%
Qts0.32-9%
BL8Tm-34%
Vas44L+24%
Qes0.380%
59%
Similarity

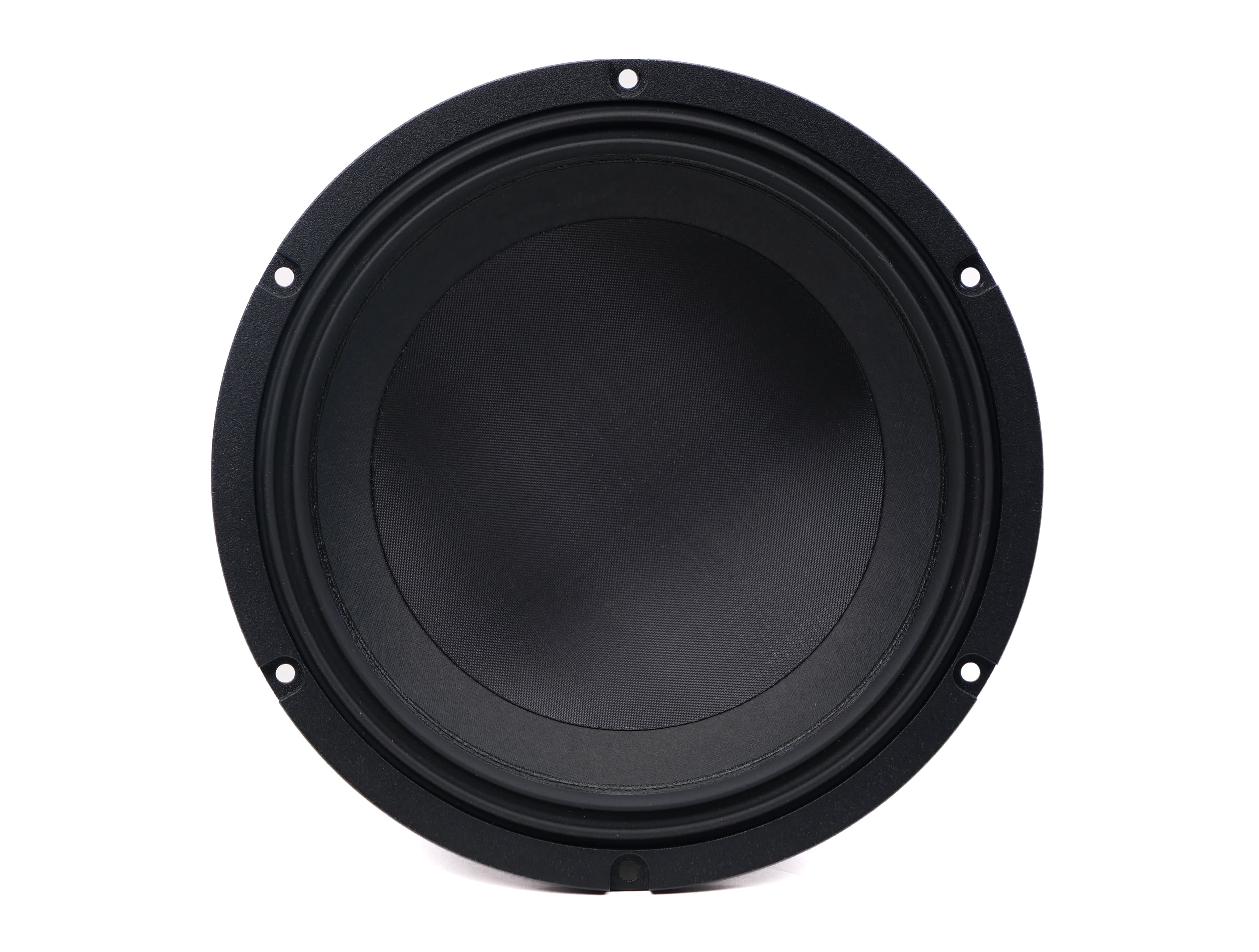

Kartesian
Bom185_vKi
7.25"
Xmax10mm+25%
Qts0.32-9%
BL11.6Tm-4%
Vas32.2L-9%
Qes0.34-11%
59%
Similarity
Purifi
PTT6.5W08-NFA-06
6.5"
Xmax5.9mm-26%
Qts0.33-6%
BL9.5Tm-21%
Vas22.5L-37%
Qes0.36-5%
58%
Similarity
HiVi
E6.5
6.5"
Xmax5.8mm-28%
Qts0.32-9%
BL8.1Tm-33%
Vas31L-13%
Qes0.37-3%
58%
Similarity
£171.79

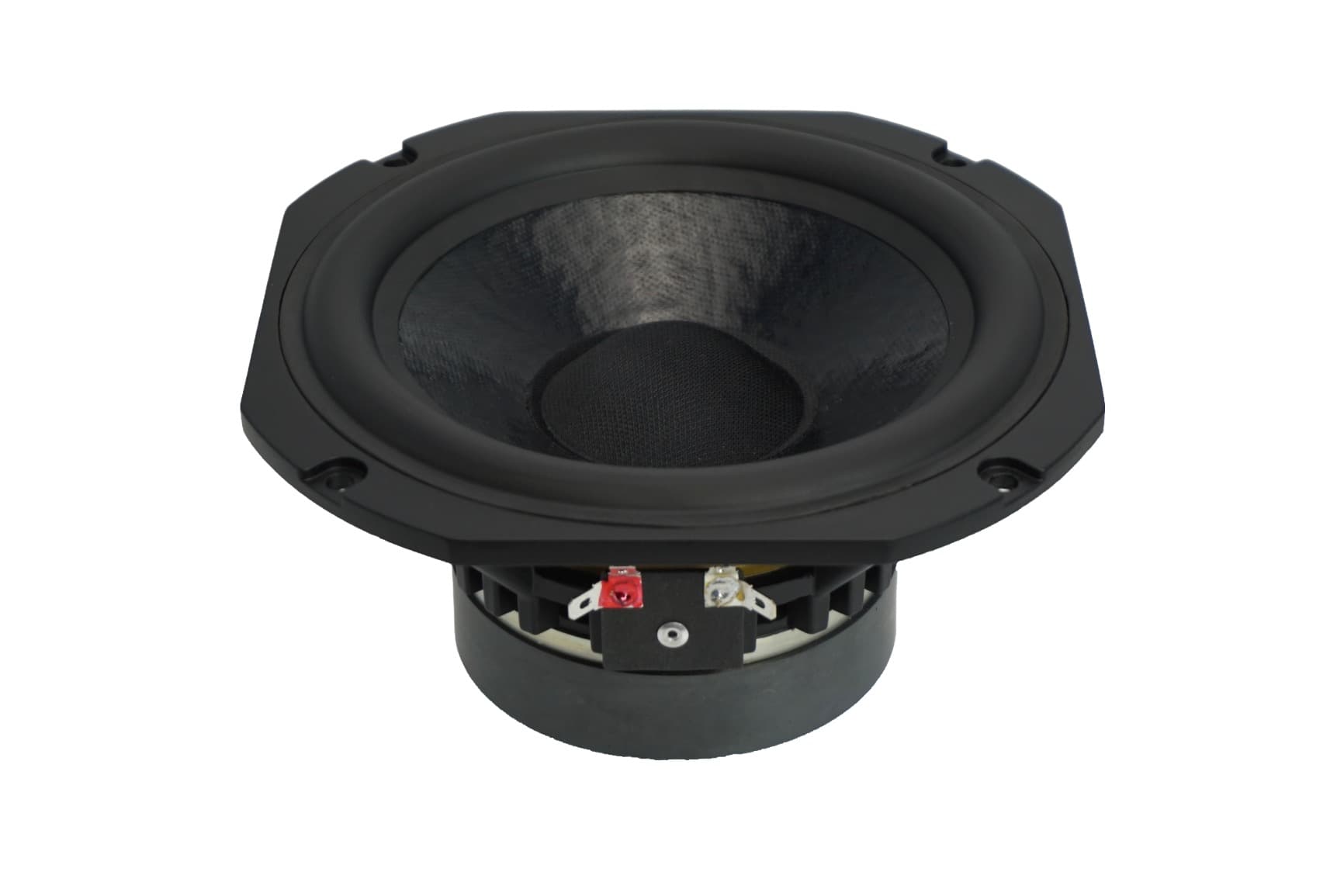

Volt
BM165.4
6.5"
Xmax6mm-25%
Qts0.3-14%
BL9.6Tm-21%
Vas32.3L-9%
Qes0.32-16%
55%
Similarity
£969.95

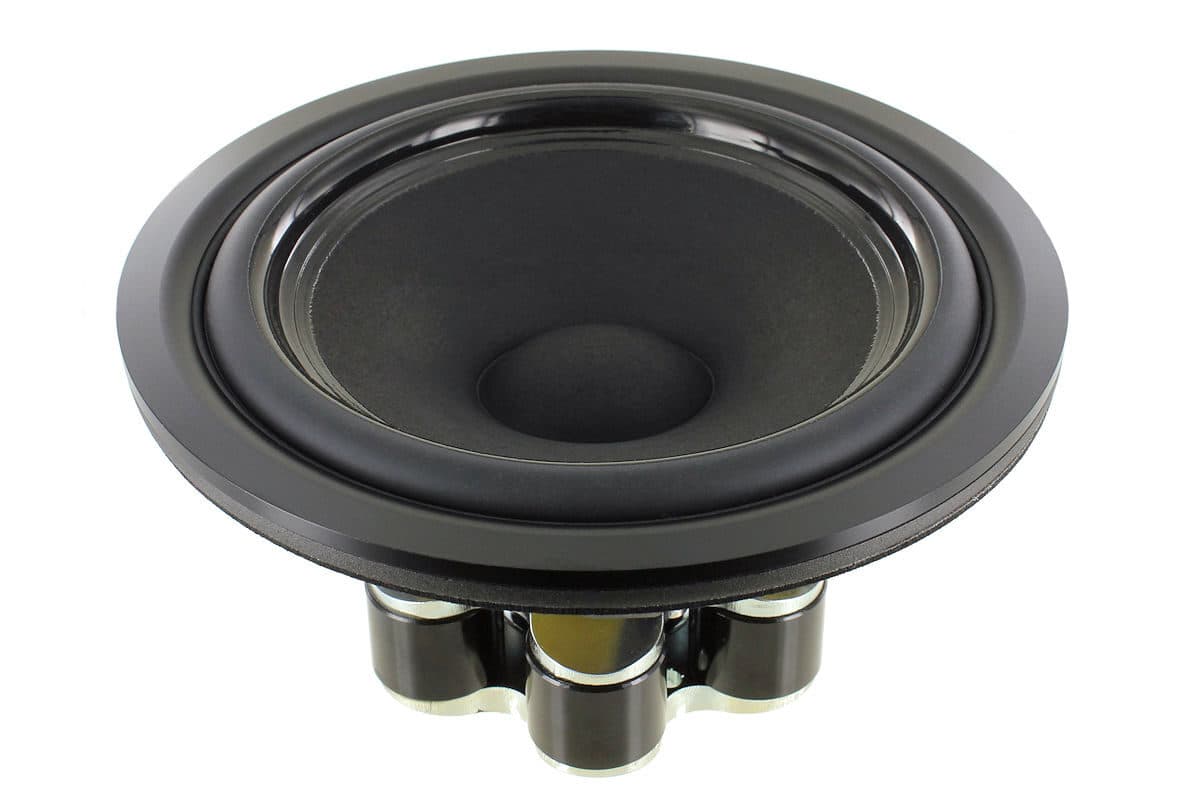

Scanspeak
18WE/8542T00
7"
Xmax7.7mm-4%
Qts0.32-9%
BL9.7Tm-20%
Vas16L-55%
Qes0.34-11%
54%
Similarity
£56.87

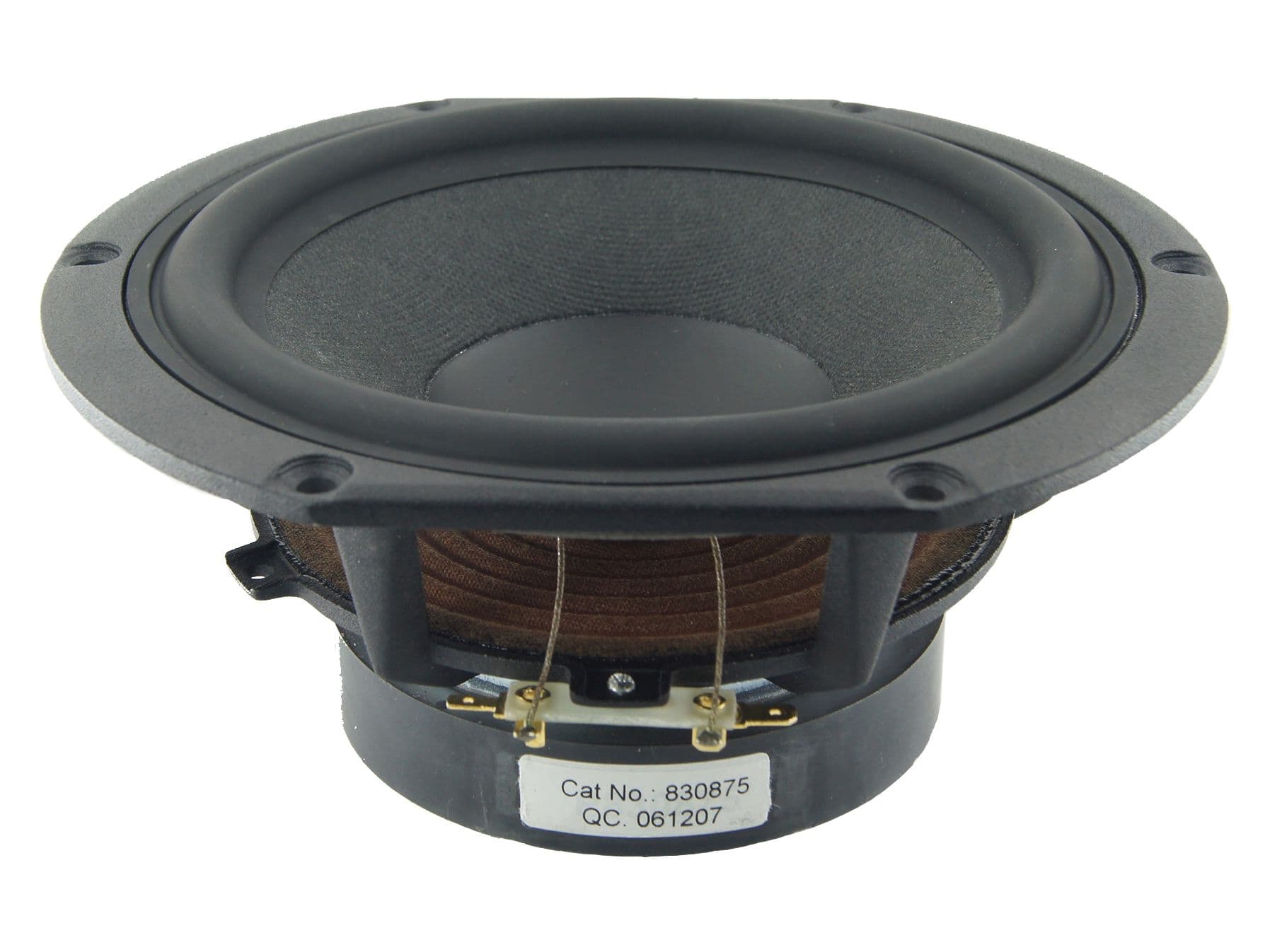

Peerless
HDS-P830875
6.5"
Xmax7.3mm-8%
Qts0.39+11%
BL8.7Tm-29%
Vas18.6L-48%
Qes0.45+17%
52%
Similarity
£109.00

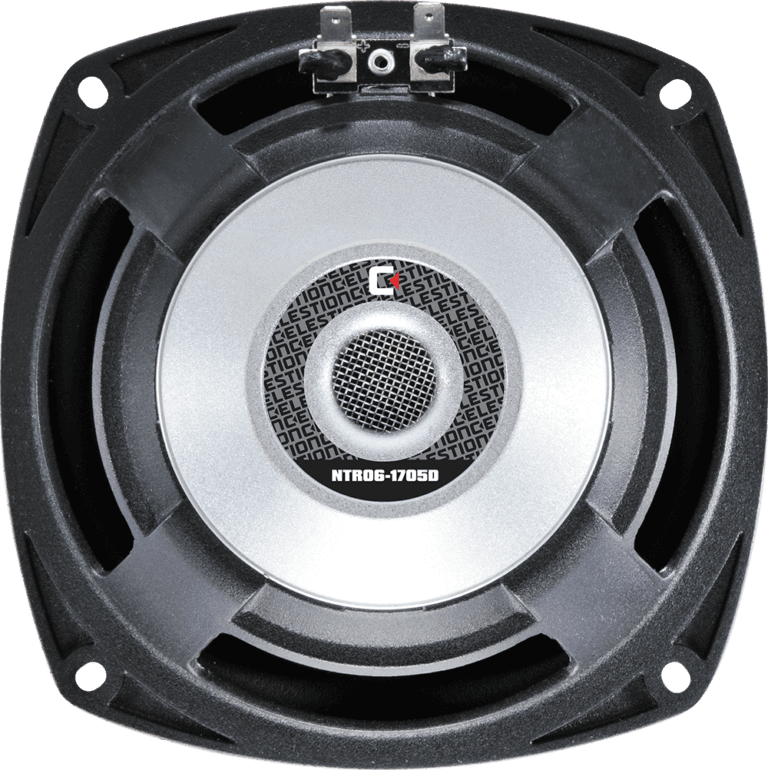

Celestion
NTR06-1705D
6.5"
Xmax6mm-25%
Qts0.38+8%
BL8.2Tm-32%
Vas21.4L-40%
Qes0.4+6%
50%
Similarity
Purifi
PTT6.5X08-NAA-08
6.5"
Xmax9.8mm+23%
Qts0.4+14%
BL9Tm-26%
Vas20.4L-43%
Qes0.42+11%
