5.25-inch LF driver · NSM series · 130 W

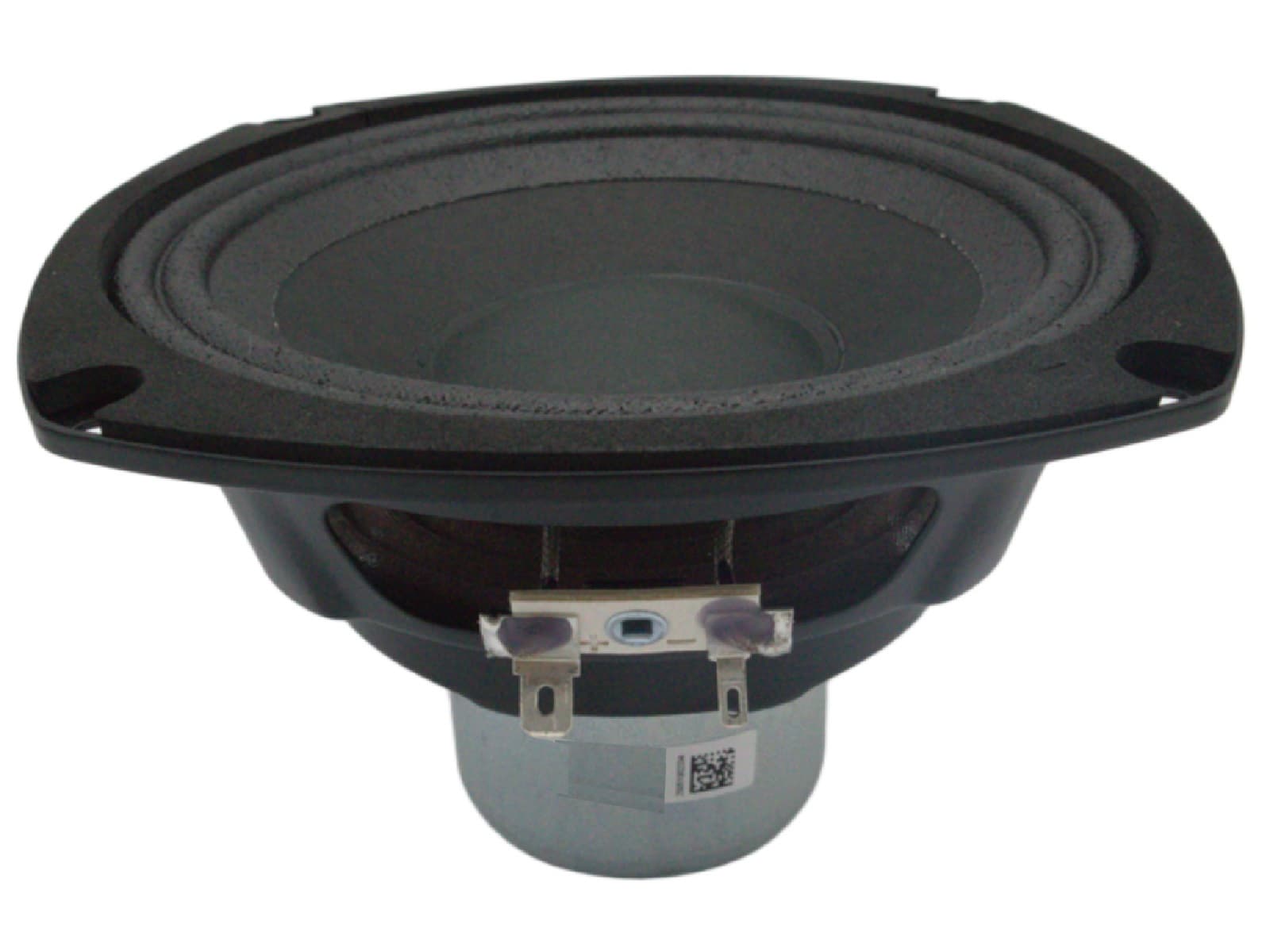

Peerless NSM-0515R02-16 16Ω

Name: Peerless NSM-0515R02-16 16 Ohm
Brand: Peerless
SKU: NSM-0515R02-16

16 Ω

No current price

View offers

Open in 00 Simulator

Fs: 110Hz
Xmax: 5.5mm
SPL: 91dB
Pe: 130W
BL: 18.5T·m
Vd: 53cm³
Qts: 0.36
Vas: 2L

See all 19 specs

Specifications

Published by Peerless

Manufacturer page

Datasheet PDF

Peerless NSM-0515R02-16 is a 5.25-inch 16 ohm LF driver rated at 130 W RMS. The validated T/S data includes Fs 110 Hz, Qts 0.36, Vas 2.4 L, Xmax 5.5 mm, sensitivity 91.3 dB, plus 53 cm³ Vd and 293 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 110Hz
Qts: 0.36
Qes: 0.38
Qms: 7.1
Vas: 2.4L
Re: 16Ω
Le: 0.35mH

Motor and cone

BL: 18.5T·m
Sd: 95cm²
Mms: 12g
Xmax: 5.5mm
Vd †: 53cm³

Power and response

Sensitivity †: 91.3dB
Manufacturer sensitivity: 89.2dB
Power: 130W
Impedance: 16Ω
EBP †: 293 · Leans vented

Size and mounting

Weight: 0.74kg

Other published values

Cms: 0.19mm/N

Sensitivity shows 91.3 dB, calculated from the T/S values. Peerless publishes 89.2 dB, 2.1 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Peerless lists

LF · Primary · 5.236220472440945″

BL: 18.5T·m
Fs: 110Hz
Le: 0.35mH
Re: 16Ω
Sd: 95cm²
Cms: 0.19mm/N
Mms: 12g
Qes: 0.38
Qms: 7.1
Qts: 0.36
SPL: 91.3dB
Vas: 2.4L
Xmax: 5.5mm
Power: 130W
Impedance: 16Ω
Sensitivity: 89.2dB
Calculated sensitivity †: 91.3dB
Manufacturer sensitivity: 89.2dB
Weight: 0.74kg

Compare

Same-size drivers, compared with the NSM-0515R02-16. Clear differences are green when better and red when worse.

This driverNSM-0515R02-16

Best price

–

110 Hz

Qts

0.36

Vas

2.4 L

18.5 T·m

Xmax

5.5 mm

Sensitivity

91.3 dB

Power

130 W

FaitalPRO5FE100

£21.36

Fs65 Hz −41%

Qts0.33 −8%

Vas6.1 L +155%

BL6 T·m −68%

Xmax5.2 mm −6%

Sensitivity88.8 dB −2.5

SB AcousticsSB15SFCR39-4

£39.77

Fs31 Hz −72%

Qts0.32 −11%

Vas49.9 L +1988%

BL6.9 T·m −63%

Xmax5.5 mm –

Sensitivity88.4 dB −2.9

SB AcousticsSB15MFC30-8

£48.66

Fs39 Hz −65%

Qts0.37 –

Vas17.7 L +641%

BL5.6 T·m −70%

Xmax5 mm −10%

Sensitivity86.2 dB −5.1

SB AcousticsSB15NRX2C30-8

£49.12

Fs37 Hz −67%

Qts0.34 −6%

Vas20 L +737%

BL5.8 T·m −69%

Xmax5 mm −10%

Sensitivity86.2 dB −5.1

SB AcousticsSB17MFC35-8

£54.89

Fs33 Hz −70%

Qts0.37 –

Vas39 L +1532%

BL5.9 T·m −68%

Xmax5.5 mm –

Sensitivity87.5 dB −3.8

Sica6 H 1.5 CP

£55.24

Fs46 Hz −58%

Qts0.35 –

Vas16.6 L +595%

BL8.4 T·m −55%

Xmax6 mm +8%

Sensitivity88.3 dB −3

SB AcousticsSB17NRX2C35-4

£55.41

Fs36 Hz −67%

Qts0.37 –

Vas27.6 L +1055%

BL4.9 T·m −74%

Xmax5.5 mm –

Sensitivity87 dB −4.3

SB AcousticsSB17NRXC35-4

£58.25

Fs35 Hz −68%

Qts0.32 −11%

Vas35.2 L +1373%

BL4.8 T·m −74%

Xmax5.5 mm –

Sensitivity88.5 dB −2.8

SB AcousticsSB17NRXC35-8

£58.67

Fs32 Hz −71%

Qts0.34 −6%

Vas44.5 L +1762%

BL5.9 T·m −68%

Xmax5.5 mm –

Sensitivity88.1 dB −3.2

SB AcousticsSB15NBAC30-8

£62.57

Fs36 Hz −68%

Qts0.37 –

Vas17 L +611%

BL5.7 T·m −69%

Xmax5 mm −10%

Sensitivity84.7 dB −6.6

Beyma5P200FE

£63.23

Fs72 Hz −35%

Qts0.33 −8%

Vas5.7 L +138%

BL8.5 T·m −54%

Xmax5.7 mm –

Sensitivity89.9 dB −1.4

SB AcousticsSB17NBAC35-8

£65.93

Fs32 Hz −71%

Qts0.35 –

Vas45 L +1783%

BL5.9 T·m −68%

Xmax5.5 mm –

Sensitivity87.7 dB −3.6

PRV Audio6MB550FT

£67.09

Fs85 Hz −23%

Qts0.34 −6%

Vas8.2 L +244%

BL9.8 T·m −47%

Xmax5.4 mm –

Sensitivity93.3 dB +2

SB AcousticsSB15NAC30-8

£69.53

Fs36 Hz −68%

Qts0.37 –

Vas17.7 L +641%

BL5.9 T·m −68%

Xmax5 mm −10%

Sensitivity85.1 dB −6.2

SB AcousticsSB17NAC35-4

£71.21

Fs32 Hz −71%

Qts0.32 −11%

Vas33 L +1281%

BL5.2 T·m −72%

Xmax5.5 mm –

Sensitivity87.1 dB −4.2

SB AcousticsSB15CRC30-4

£81.08

Fs37 Hz −66%

Qts0.32 −11%

Vas17.3 L +624%

BL4.5 T·m −75%

Xmax5.5 mm –

Sensitivity85.9 dB −5.4

SB AcousticsSB17CRC35-8

£85.53

Fs28 Hz −75%

Qts0.34 −6%

Vas48 L +1908%

BL6 T·m −68%

Xmax5.5 mm –

Sensitivity86.6 dB −4.7

SB AcousticsSB17CRC35-4

£85.53

Fs32 Hz −71%

Qts0.32 −11%

Vas35.5 L +1385%

BL5 T·m −73%

Xmax5.5 mm –

Sensitivity87 dB −4.3

FaitalPRO6RS140

£87.80

Fs65 Hz −41%

Qts0.36 –

Vas9.9 L +314%

BL14.2 T·m −23%

Xmax5.5 mm –

Sensitivity90.6 dB −0.7

SB AcousticsSB17CAC35-8

£87.97

Fs28 Hz −75%

Qts0.36 –

Vas42 L +1657%

BL6.2 T·m −66%

Xmax5.5 mm –

Sensitivity85.7 dB −5.6

SB AcousticsMW16P-12

£146.65

Fs31 Hz −72%

Qts0.37 –

Vas47.3 L +1879%

BL7.4 T·m −60%

Xmax6.2 mm +12%

Sensitivity87.3 dB −4

BMS5CN160

£179.77

Fs100 Hz −9%

Qts0.36 –

Vas2.1 L −12%

BL10 T·m −46%

Xmax5 mm −10%

Sensitivity89.1 dB −2.2

Scanspeak12M/4631G00

£243.04

Fs75 Hz −32%

Qts0.33 −8%

Vas2.3 L −4%

BL5.3 T·m −71%

Xmax3 mm −46%

Sensitivity86.5 dB −4.8

AccutonC158-8-085

£326.87

Fs37 Hz −66%

Qts0.36 –

Vas27.3 L +1042%

BL7.7 T·m −58%

Xmax5 mm −10%

Sensitivity87.5 dB −3.8

PRV Audio6MB550FT-4

No current price

Fs86 Hz −22%

Qts0.34 −6%

Vas6.6 L +176%

BL8.6 T·m −53%

Xmax5.4 mm –

Sensitivity92.9 dB +1.6

SB AcousticsMW16PF-4

No current price

Fs28 Hz −75%

Qts0.33 −8%

Vas49 L +1950%

BL4.7 T·m −75%

Xmax5.5 mm –

Sensitivity86.9 dB −4.4

SB AcousticsMW16PF-8

No current price

Fs29 Hz −74%

Qts0.38 +6%

Vas48.4 L +1925%

BL5.8 T·m −69%

Xmax5.5 mm –

Sensitivity86.5 dB −4.8

PeerlessNSM-0515R00-04

No current price

Fs110 Hz –

Qts0.30 −17%

Vas2.1 L −12%

BL8.7 T·m −53%

Xmax6.0 mm +8%

Sensitivity91.6 dB –

Audio Technology15 J 52 15 06 SD

No current price

Fs45 Hz −59%

Qts0.32 −11%

Vas15 L +528%

BL5.5 T·m −70%

Xmax5.2 mm −6%

Sensitivity87.7 dB −3.6

Tang BandW6-1936S

No current price

Fs30 Hz −73%

Qts0.36 –

Vas4.7 L +95%

BL21.6 T·m +17%

Xmax7.4 mm +34%

Sensitivity76.9 dB −14.4

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax
