6-inch LF driver · MW16 series · 36 mm voice coil · 60 W

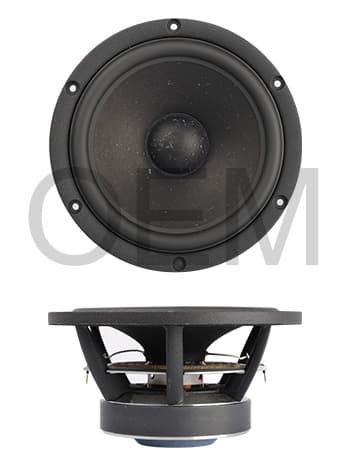

SB Acoustics MW16PF-4 4Ω

Name: SB Acoustics MW16PF-4 4 Ohm
Brand: SB Acoustics
SKU: MW16PF-4

4 Ω

No current price

View offers

Open in 00 Simulator

Fs: 28Hz
Xmax: 5.5mm
SPL: 87dB
Pe: 60W
BL: 4.7T·m
Vd: 65cm³
Qts: 0.33
Vas: 49L

See all 21 specs

Curve provenanceInspect 3 traces

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

30 degrees
Frequency response
Trace datasheet-response-trace-poc/v2
240 plotted pointsSource file SHA-256 e402fb6c5b8a…Medium confidence1,007 selected pixels of 2,164
Manufacturer datasheet, page 1
60 degrees
Frequency response
Trace datasheet-response-trace-poc/v2
240 plotted pointsSource file SHA-256 e402fb6c5b8a…Medium confidence1,173 selected pixels of 2,176
Manufacturer datasheet, page 1
impedance
Impedance response
Trace datasheet-response-trace-poc/v2
240 plotted pointsSource file SHA-256 e402fb6c5b8a…Medium confidence2,090 selected pixels of 4,630
Manufacturer datasheet, page 1

Published graphs

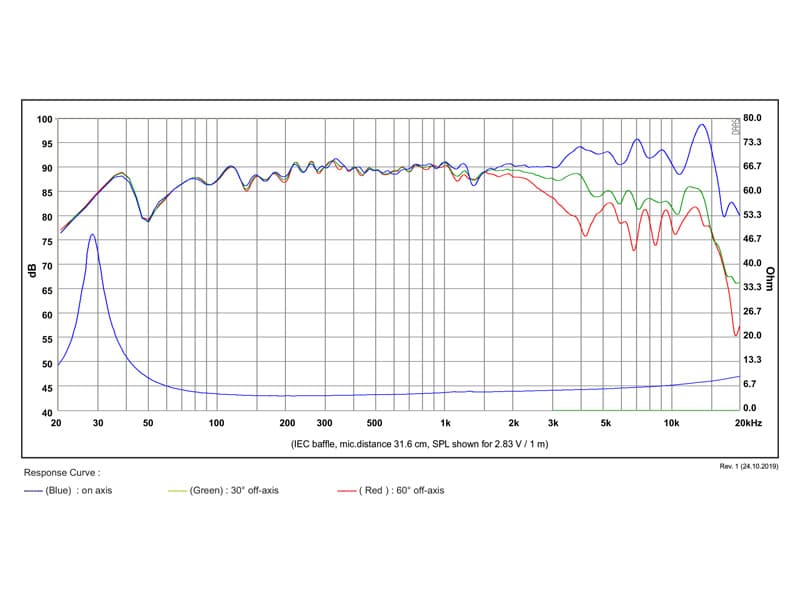

SB Acoustics MW16PF-4 manufacturer graph 1

Specifications

Published by SB Acoustics

Manufacturer page

Datasheet PDF

SB Acoustics MW16PF-4 is a 6-inch 4 ohm LF driver rated at 60 W RMS. The validated T/S data includes Fs 28 Hz, Qts 0.33, Vas 49 L, Xmax 5.5 mm, sensitivity 86.9 dB, plus 65 cm³ Vd and 80 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 28Hz
Qts: 0.33
Qes: 0.35
Qms: 4.6
Vas: 49L
Re: 3.3Ω
Le: 0.20mH

Motor and cone

BL: 4.7T·m
Sd: 119cm²
Mms: 13g
Xmax: 5.5mm
Vd †: 65cm³
Voice coil: 36mm
Flux density: 0.90T

Power and response

Sensitivity †: 86.9dB
Manufacturer sensitivity: 90dB
Power: 60W
Impedance: 4Ω
EBP †: 80 · Sealed or vented

Size and mounting

Weight: 1.4kg

Other published values

Cms: 2.50mm/N

Sensitivity shows 86.9 dB, calculated from the T/S values. SB Acoustics publishes 90.0 dB, 3.1 dB apart.

† Calculated by bits from the published values
