Overview
LF Driver
Beyma
Beyma 5P200FE
Beyma 5P200FE is a 5" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 72Hz, Qts 0.33, Vas 5.7L, Xmax 5.7mm, sensitivity 89.9dB, plus 54cm³ Vd and 206 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £63.23.
Size
5"
Impedance
8Ω
RMS Power
150W
Sensitivity
89.9dB
92.0dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
206
Vented alignment
Vd
54cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence3,578 selected pixels of 3,578 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,349 selected pixels of 3,349
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs72Hz
Qts0.33
Qes0.35
Qms7.5
Vas5.7L
Re5.2Ω
Le0.60mH
BL8.5Tm
Sd95cm²
Mms10g
Xmax5.7mm
SPL90dB
Power150W
Impedance8Ω
F Low70Hz
F High10000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£63.23
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.2kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
5P200FE
5"
Best current price
£63.23
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
23%
Similarity
69% cheaper£19.46
Dayton Audio
DS115-8
4"
Lower price
Xmax4.1mm-28%
Qts0.38+15%
BL5.9Tm-31%
Vas4.3L-24%
Qes0.46+31%
44%
Similarity
56% cheaper£27.70
Dayton Audio
DSA135-8
5"
Lower price
Xmax4.9mm-14%
Qts0.38+15%
BL6.2Tm-27%
Vas7.9L+39%
Qes0.47+34%
43%
Similarity
56% cheaper£27.70
Dayton Audio
DS135-8
5"
Lower price
Xmax4.8mm-15%
Qts0.39+18%
BL6.2Tm-27%
Vas7.3L+28%
Qes0.48+37%
47%
Similarity
41% cheaper£37.20
FaitalPRO
6FE400
6"
Lower price
Xmax4.8mm-16%
Qts0.36+9%
BL10.5Tm+24%
Vas5L-12%
Qes0.4+14%
44%
Similarity
25% cheaper£47.39
Peerless
SLS-P830945
5"
Lower price
Xmax7mm+23%
Qts0.4+21%
BL6.2Tm-27%
Vas4.7L-18%
Qes0.44+26%
72%
Similarity
5% more£66.18
FaitalPRO
5PR160
5"
Higher price
Xmax5.1mm-11%
Qts0.31-6%
BL9.6Tm+13%
Vas3.7L-35%
Qes0.33-6%
55%
Similarity
6% more£67.34
PRV Audio
6MB550FT
6"
Higher price
Xmax5.4mm-5%
Qts0.34+3%
BL9.8Tm+15%
Vas8.2L+44%
Qes0.38+9%
62%
Similarity
35% more£85.36
FaitalPRO
6PR160
6"
Higher price
Xmax5mm-12%
Qts0.330%
BL11Tm+29%
Vas5.9L+4%
Qes0.350%
Image unavailable
40%
Similarity
74% more£110.10
Wavecor
WF152BD09
6"
Higher price
Xmax4.5mm-21%
Qts0.34+3%
BL5.8Tm-32%
Vas8.6L+51%
Qes0.350%
51%
Similarity
78% more£112.82
FaitalPRO
5HX140
5"
Higher price
Xmax5.1mm-11%
Qts0.41+24%
BL8Tm-6%
Vas3.4L-40%
Qes0.45+29%
66%
Similarity
99% more£126.11
Beyma
5CX200FE
5"
Higher price
Xmax5.7mm0%
Qts0.41+24%
BL7.4Tm-13%
Vas5.3L-7%
Qes0.43+23%
47%
Similarity
104% more£129.00

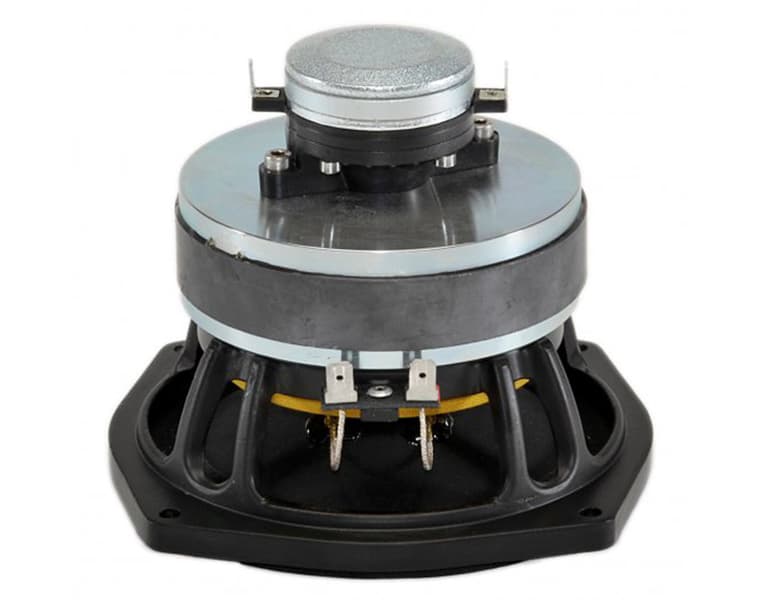

B&C
5FCX44
5"
Higher price
Xmax5mm-12%
Qts0.25-24%
BL10.5Tm+24%
Vas7L+23%
Qes0.25-29%
