Visaton W 130 X 8Ω
8 Ω
£76.74
SteadyImpact Audio · In stock · All 1 offer
- Fs
- 40Hz
- Xmax
- 5.8mm
- SPL
- 82dB
- Pe
- 60W
- BL
- 13.2T·m
- Vd
- 55cm³
- Qts
- 0.37
- Vas
- 6L

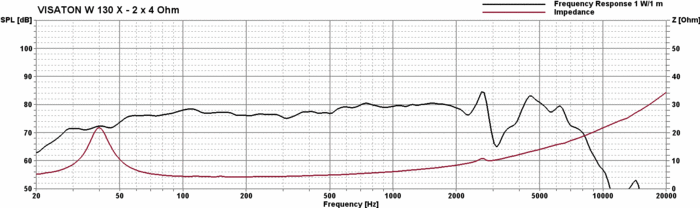

Published graphs
Visaton W 130 X is a 5-inch 8 ohm LF driver rated at 60 W RMS. The validated T/S data includes Fs 40 Hz, Qts 0.37, Vas 5.6 L, Xmax 5.8 mm, sensitivity 81.5 dB, plus 55 cm³ Vd and 98 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £76.74.
The published T/S values agree with each other
Thiele/Small
- Fs
- 40Hz
- Qts
- 0.37
- Qes
- 0.41
- Qms
- 4.4
- Vas
- 5.6L
- Re
- 7.9Ω
- Le
- 2.75mH
Motor and cone
- BL
- 13.2T·m
- Sd
- 94cm²
- Mms
- 37g
- Xmax
- 5.8mm
- Vd †
- 55cm³
- Voice coil
- 40mm
- Flux density
- 0.92T
Power and response
- Sensitivity †
- 81.5dB
- Manufacturer sensitivity
- 78dB
- Power
- 60W
- Impedance
- 8Ω
- High limit
- 6000Hz
- EBP †
- 98 · Sealed or vented
Size and mounting
- Diameter
- 130mm
- Cutout
- 123mm
- Weight
- 1.5kg
Other published values
- Xmech
- 11.5
- Power Peak
- 90
Sensitivity shows 81.5 dB, calculated from the T/S values. Visaton publishes 78.0 dB, 3.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
LF · Primary · 5″
- BL
- 13.2T·m
- Fs
- 40Hz
- Le
- 2.75mH
- Re
- 7.9Ω
- Sd
- 94cm²
- Mms
- 37g
- Qes
- 0.41
- Qms
- 4.4
- Qts
- 0.37
- SPL
- 81.5dB
- Vas
- 5.6L
- Xmax
- 5.8mm
- Xmech
- 11.5
- Power
- 60W
- Impedance
- 8Ω
- Power Peak
- 90
- Flux density
- 0.92T
- Sensitivity
- 78dB
- Calculated sensitivity †
- 81.5dB
- High limit
- 6000Hz
- Manufacturer sensitivity
- 78dB
- Voice coil
- 40mm
- Weight
- 1.5kg
- Diameter
- 130mm
- Cutout
- 123mm
