4.75-inch LF driver

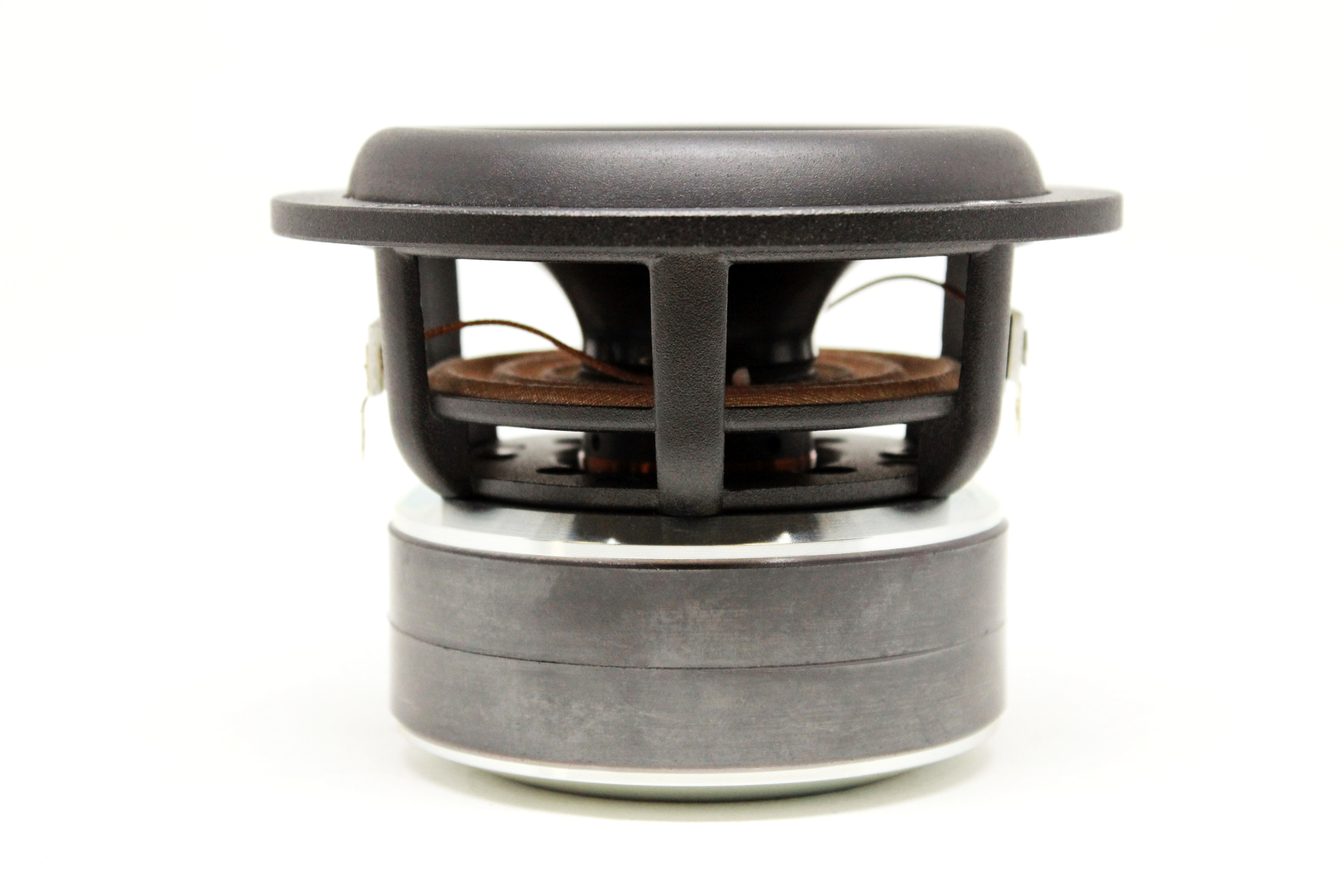

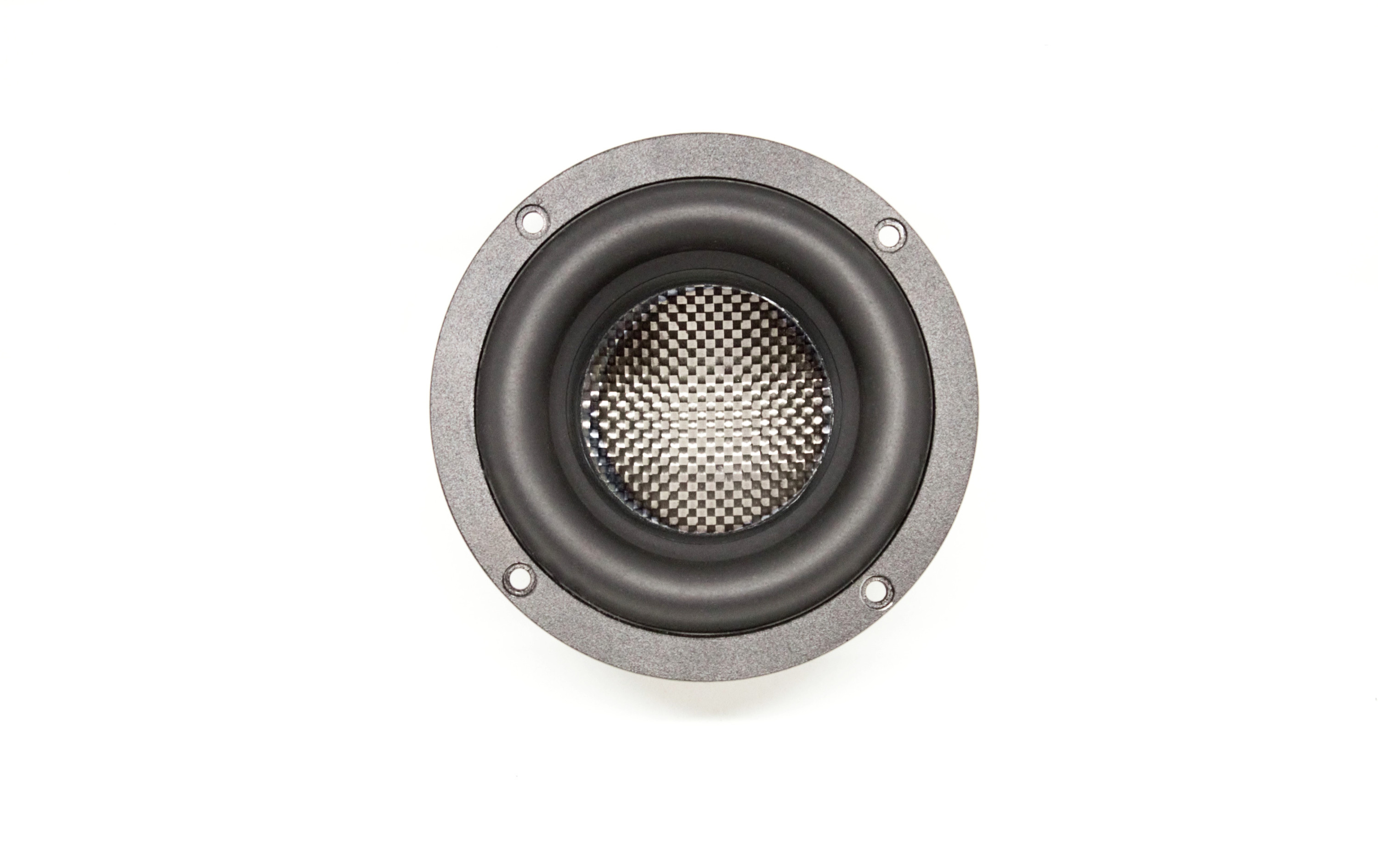

Kartesian SUB120_VHP 8Ω

Name: Kartesian SUB120_VHP 8 Ohm
Brand: Kartesian
SKU: SUB120_VHP

8 Ω · 48–3000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 46Hz
Xmax: 6mm
SPL: 82dB
Pe: –
BL: 8.6T·m
Vd: 32cm³
Qts: 0.33
Vas: 3L

See all 14 specs

Specifications

Published by Kartesian

Manufacturer page

Datasheet PDF

Kartesian SUB120_VHP is a 4.75-inch 8 ohm LF driver. The validated T/S data includes Fs 46 Hz, Qts 0.33, Vas 3.4 L, Xmax 6 mm, sensitivity 82 dB, plus 32 cm³ Vd. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Partial source evidence

Automated T/S checks passed, but some material low-frequency parameters are not published for this record.

Material fields not published: Qes

Manufacturer page linked
Datasheet linked
Canonical units normalized for comparison
Vd can be derived from Sd and Xmax

Manufacturer source Datasheet Validation methodology

Thiele/Small

Fs: 46Hz
Qts: 0.33
Qms: 2.5
Vas: 3.4L
Re: 6.8Ω

Motor and cone

BL: 8.6T·m
Sd: 53cm²
Mms: 14g
Xmax: 6mm
Vd †: 32cm³

Power and response

Sensitivity: 82dB
Impedance: 8Ω
Range: 48–3000Hz

Size and mounting

Diameter: 120mm

† Calculated by bits from the published values

What this validation status means

Everything else Kartesian lists

LF · Primary · 4.724409448818898″

BL: 8.6T·m
Fs: 46Hz
Re: 6.8Ω
Sd: 53cm²
Mms: 14g
Qms: 2.5
Qts: 0.33
SPL: 82dB
Vas: 3.4L
Xmax: 6mm
Impedance: 8Ω
Sensitivity: 82dB
Low limit: 48Hz
High limit: 3000Hz
Manufacturer sensitivity: 82dB
Diameter: 120mm
