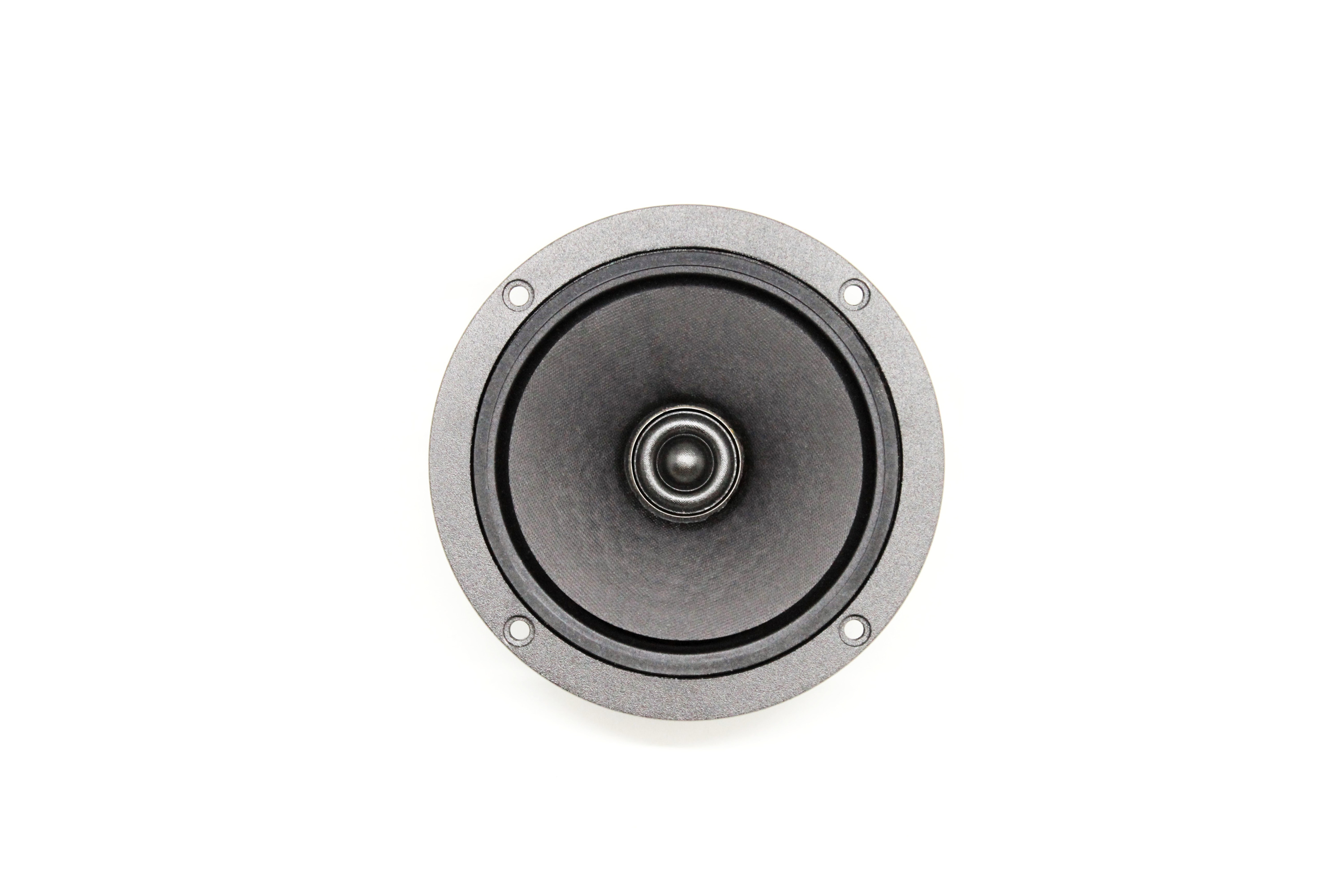

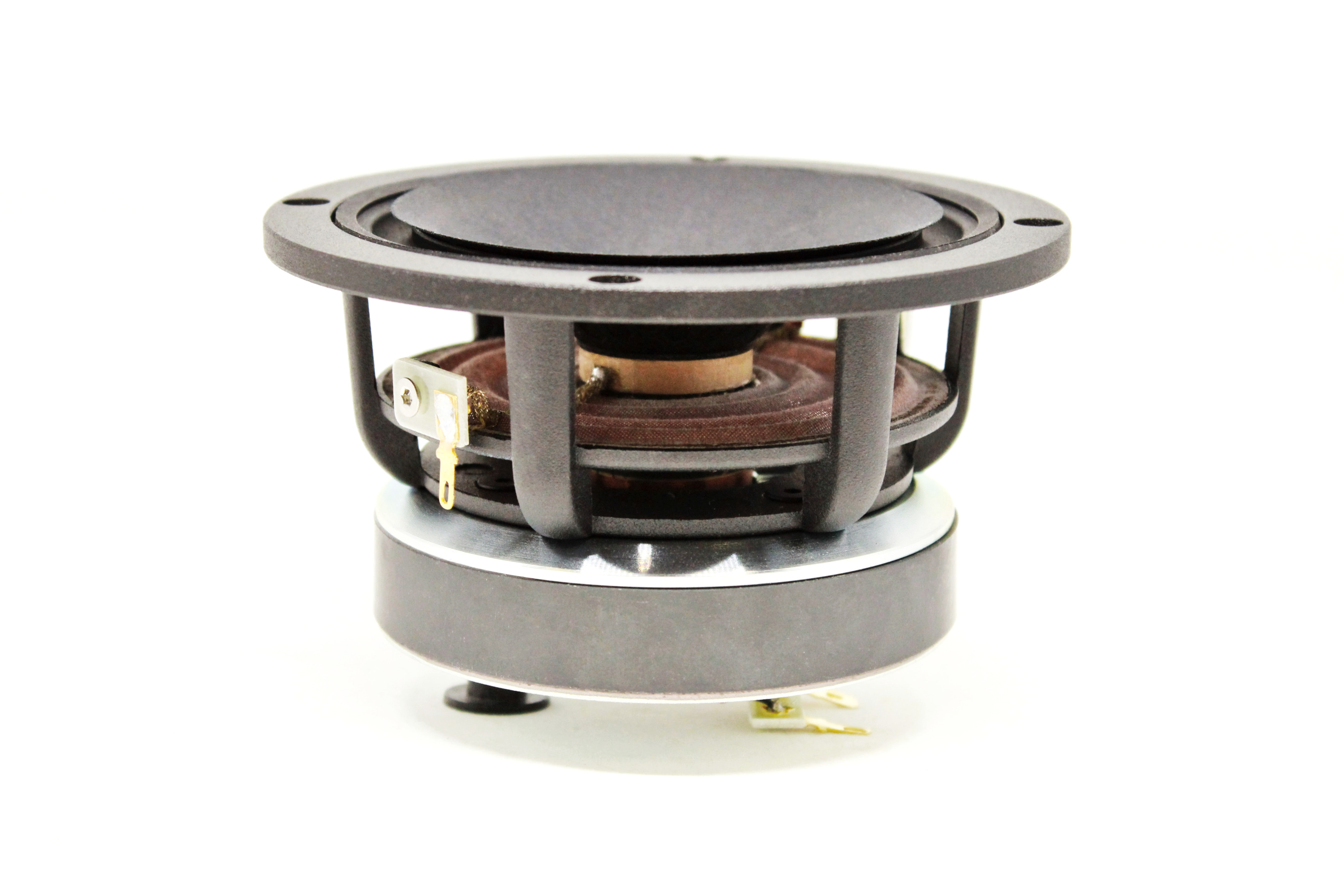

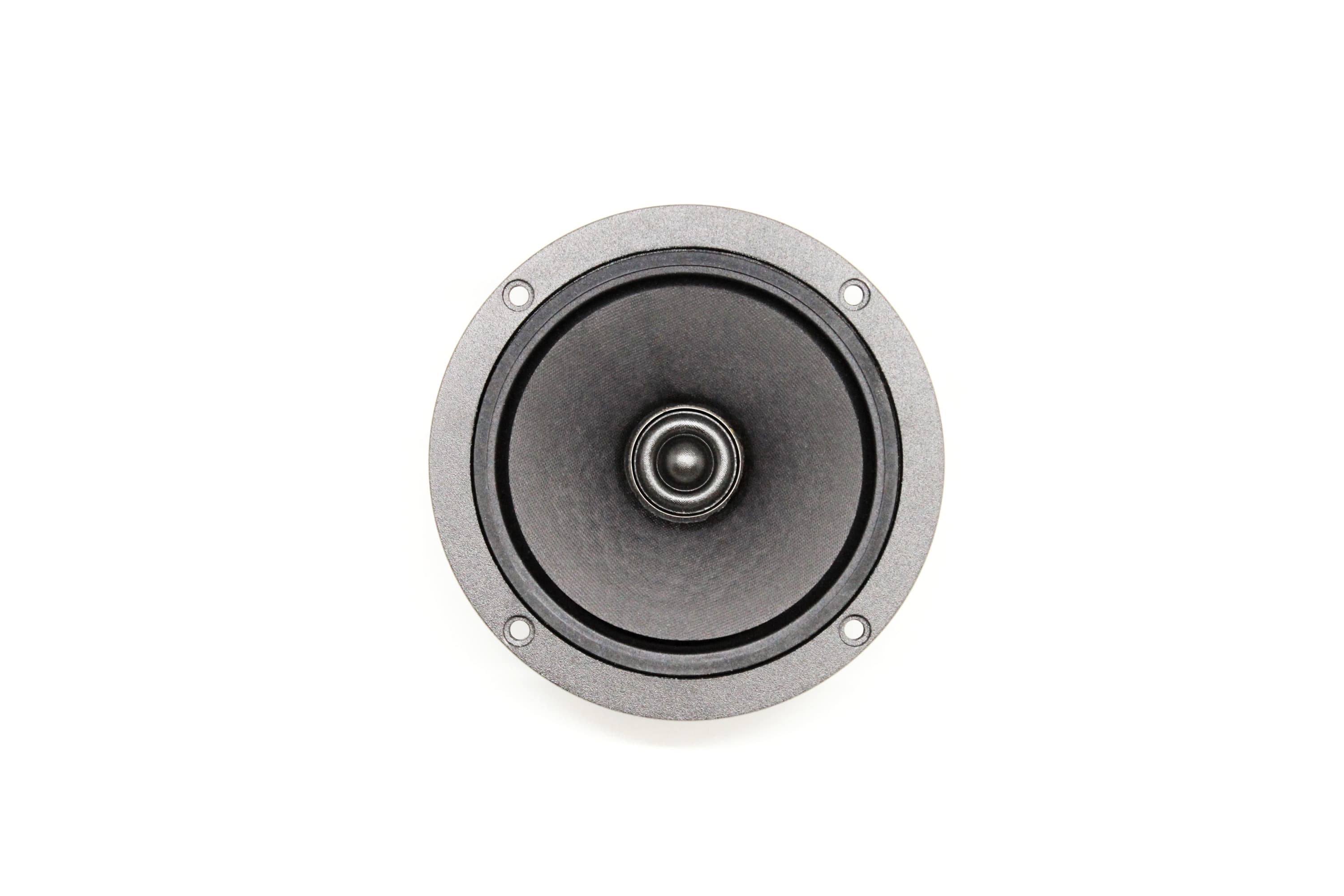

4.75-inch LF driver

Kartesian COX120_VHP 6Ω

Name: Kartesian COX120_VHP 6 Ohm
Brand: Kartesian
SKU: COX120_VHP

6 Ω · 60–22000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 68Hz
Xmax: 3.5mm
SPL: 88dB
Pe: –
BL: 5.9T·m
Vd: 17cm³
Qts: 0.34
Vas: 3L

See all 14 specs

Specifications

Published by Kartesian

Manufacturer page

Datasheet PDF

Kartesian COX120_VHP is a 4.75-inch 6 ohm LF driver. The validated T/S data includes Fs 68 Hz, Qts 0.34, Vas 3.1 L, Xmax 3.5 mm, sensitivity 88 dB, plus 17 cm³ Vd. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Partial source evidence

Automated T/S checks passed, but some material low-frequency parameters are not published for this record.

Material fields not published: Qes

Manufacturer page linked
Datasheet linked
Canonical units normalized for comparison
Vd can be derived from Sd and Xmax

Manufacturer source Datasheet Validation methodology

Thiele/Small

Fs: 68Hz
Qts: 0.34
Qms: 4.2
Vas: 3.1L
Re: 5.3Ω

Motor and cone

BL: 5.9T·m
Sd: 48cm²
Mms: 6g
Xmax: 3.5mm
Vd †: 17cm³

Power and response

Sensitivity: 88dB
Impedance: 6Ω
Range: 60–22000Hz

Size and mounting

Diameter: 120mm

Excursion and motor values come from the LF section; the frequency range spans every section.

† Calculated by bits from the published values

What this validation status means

Components and manufacturer details

LF · Primary · 4.724409448818898″

BL: 5.9T·m
Fs: 68Hz
Re: 5.3Ω
Sd: 48cm²
Mms: 6g
Qms: 4.2
Qts: 0.34
SPL: 88dB
Vas: 3.1L
Xmax: 3.5mm
Impedance: 6Ω
Sensitivity: 88dB
Low limit: 60Hz
High limit: 22000Hz
Manufacturer sensitivity: 88dB
Diameter: 120mm
