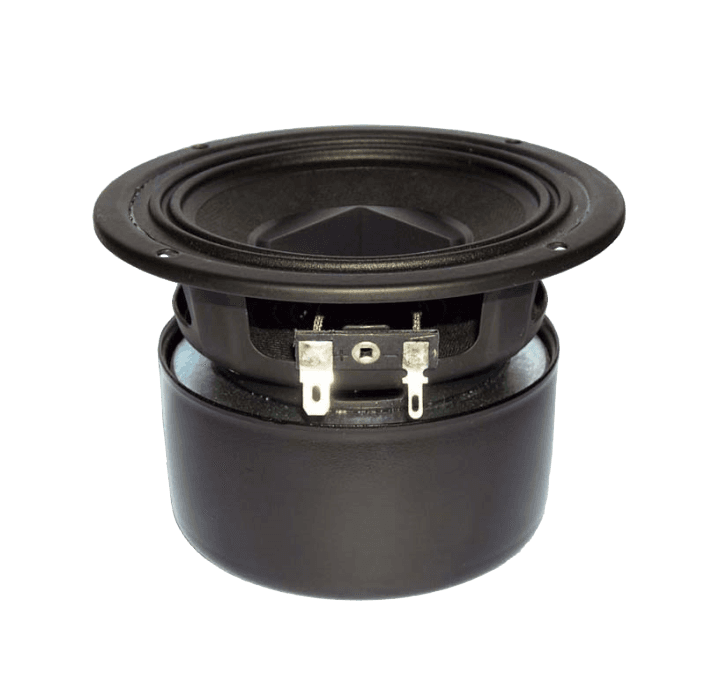

REDCATT 5FHW 4Ω
4 Ω
£16.17
Lautsprecherteile · 4 in stock · All 1 offer
- Fs
- 50Hz
- Xmax
- 3.2mm
- SPL
- 85dB
- Pe
- 30W
- BL
- 6.5T·m
- Vd
- 28cm³
- Qts
- 0.35
- Vas
- 7L
REDCATT 5FHW is a 5-inch 4 ohm LF driver rated at 30 W RMS. The validated T/S data includes Fs 50 Hz, Qts 0.35, Vas 6.5 L, Xmax 3.2 mm, sensitivity 85.4 dB, plus 28 cm³ Vd and 132 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £16.17.
The published T/S values agree with each other
Thiele/Small
- Fs
- 50Hz
- Qts
- 0.35
- Qes
- 0.38
- Qms
- 4.9
- Vas
- 6.5L
- Re
- 3.2Ω
- Le
- 0.66mH
Motor and cone
- BL
- 6.5T·m
- Sd
- 87cm²
- Mms
- 16g
- Xmax
- 3.2mm
- Vd †
- 28cm³
- Voice coil
- 25mm
Power and response
- Sensitivity †
- 85.4dB
- Manufacturer sensitivity
- 86.4dB
- Power
- 30W
- Impedance
- 4Ω
- EBP †
- 132 · Leans vented
Size and mounting
- Diameter
- 131mm
- Cutout
- 112mm
- Bolt circle
- 123mm
- Weight
- 1.2kg
Other published values
- Xmech
- 9.2
- Power Peak
- 120
Other dimensions
- Mounting Depth
- 60
Sensitivity shows 85.4 dB, calculated from the T/S values. REDCATT publishes 86.4 dB, 1.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 5″
- BL
- 6.5T·m
- Fs
- 50Hz
- Le
- 0.66mH
- Re
- 3.2Ω
- Sd
- 87cm²
- Mms
- 16g
- Qes
- 0.38
- Qms
- 4.9
- Qts
- 0.35
- SPL
- 85.4dB
- Vas
- 6.5L
- Xmax
- 3.2mm
- Xmech
- 9.2
- Power
- 30W
- Impedance
- 4Ω
- Power Peak
- 120
- Sensitivity
- 86.4dB
- Calculated sensitivity †
- 85.4dB
- Manufacturer sensitivity
- 86.4dB
- Voice coil
- 25mm
- Weight
- 1.2kg
- Diameter
- 131mm
- Mounting Depth
- 60
- Cutout
- 112mm
- Bolt circle
- 123mm
02
Compare
Same-size drivers, compared with the 5FHW. Clear differences are green when better and red when worse.
This driver5FHW
Best price
£16.17
Fs
50 Hz
Qts
0.35
Vas
6.5 L
BL
6.5 T·m
Xmax
3.2 mm
Sensitivity
85.4 dB
Power
30 W
HiViF5
£23.41 · 45% more, worseFs52 Hz +4%
Qts0.33 −6%
Vas7.3 L +11%, worse
BL8.3 T·m +27%, better
Xmax2.7 mm −16%, worse
Sensitivity86.6 dB +1.2

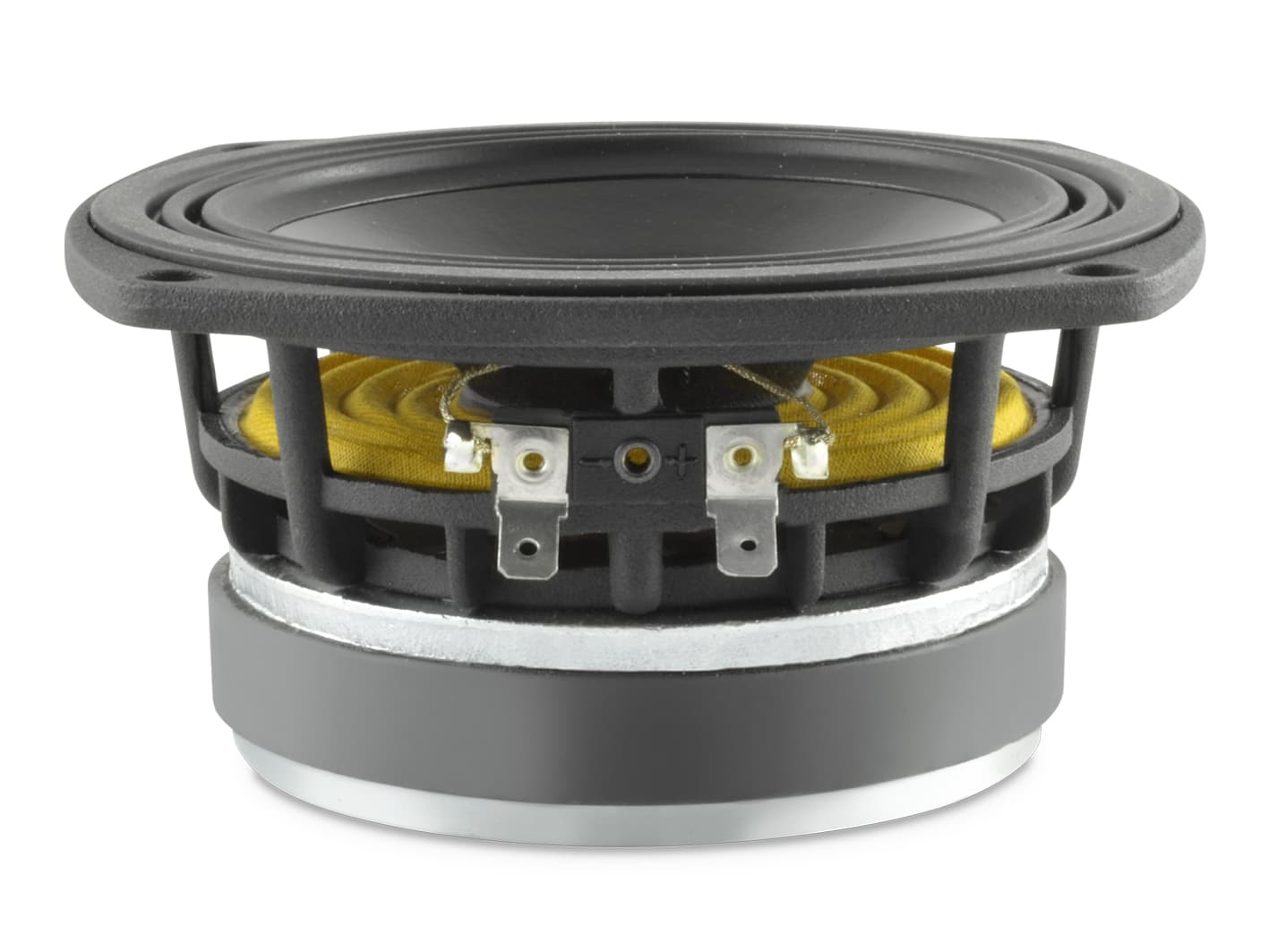

Sica5 F 1.5 CP
£39.26 · 143% more, worseFs61 Hz +22%, worse
Qts0.30 −14%, better
Vas6.8 L +4%
BL7.6 T·m +16%, better
Xmax3.5 mm +9%
Sensitivity88.7 dB +3.3, better
WavecorWF146WA06
£53.65 · 232% more, worseFs40 Hz −20%, better
Qts0.36 –
Vas16.6 L +153%, worse
BL6.3 T·m −4%
Xmax3 mm −6%
Sensitivity86.5 dB +1.1
Scanspeak12W/8524G00
£54.93 · 240% more, worseFs52 Hz +4%
Qts0.32 −9%
Vas8.2 L +25%, worse
BL5.4 T·m −18%, worse
Xmax3 mm −6%
Sensitivity87.2 dB +1.8
SB AcousticsSB12CACS25-8
£58.31 · 261% more, worseFs51 Hz –
Qts0.37 +6%
Vas6.5 L –
BL5.2 T·m −21%, worse
Xmax10 mm +213%, better
Sensitivity85.4 dB –
Tang BandW4-1320SIF
£58.91 · 264% more, worseFs75 Hz +50%, worse
Qts0.36 –
Vas5.2 L −20%, better
BL5.3 T·m −19%, worse
Xmax3 mm −6%
Sensitivity89.2 dB +3.8, better
Tang BandW4-2142
£58.91 · 264% more, worseFs60 Hz +20%, worse
Qts0.33 −6%
Vas6.4 L –
BL5.4 T·m −17%, worse
Xmax2.4 mm −25%, worse
Sensitivity87.5 dB +2.1, better

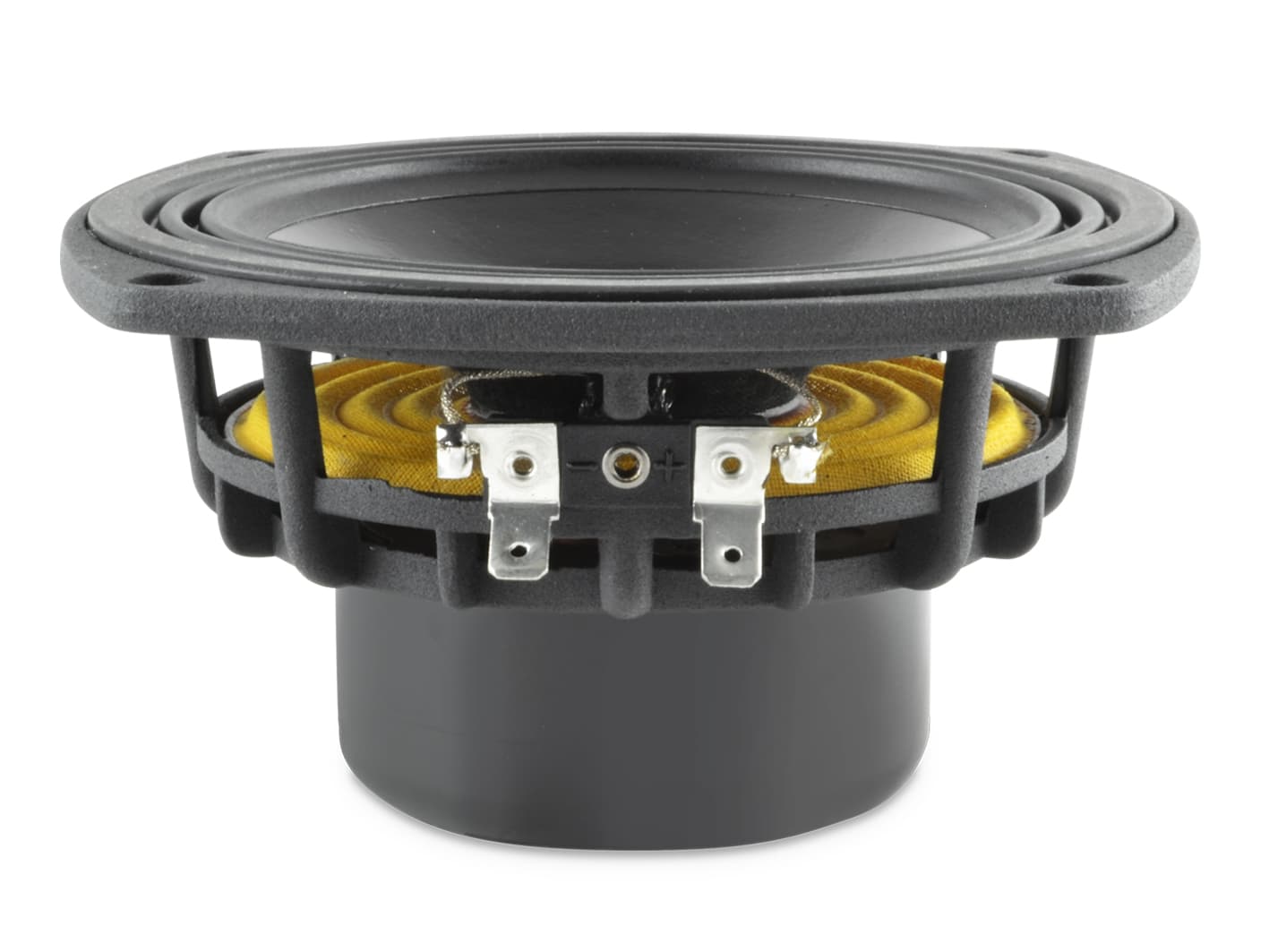

Sica5 NR 1.5 PL
£65.06 · 302% more, worseFs61 Hz +22%, worse
Qts0.35 –
Vas7.4 L +13%, worse
BL6.7 T·m –
Xmax3.5 mm +9%
Sensitivity88.4 dB +3, better
Tang BandW4-1337SDF
£72.57 · 349% more, worseFs70 Hz +40%, worse
Qts0.34 –
Vas5.6 L −14%, better
BL5.3 T·m −19%, worse
Xmax2.5 mm −22%, worse
Sensitivity88.9 dB +3.5, better
WavecorWF118WA01
£77.95 · 382% more, worseFs64 Hz +28%, worse
Qts0.36 –
Vas4.3 L −34%, better
BL4.6 T·m −30%, worse
Xmax3 mm −6%
Sensitivity86.8 dB +1.4
SEASH1152-08 CA12RCY
£93.87 · 481% more, worseFs57 Hz +14%, worse
Qts0.31 −11%, better
Vas5 L −24%, better
BL6.3 T·m −3%
Xmax3 mm −6%
Sensitivity86.1 dB +0.7
Scanspeak15M/8631G00
£170.71 · 956% more, worseFs42 Hz −16%, better
Qts0.35 –
Vas16.2 L +147%, worse
BL6.8 T·m +4%
Xmax3 mm −6%
Sensitivity87.1 dB +1.7
£204.86 · 1167% more, worse
Fs60 Hz +20%, worse
Qts0.36 –
Vas4 L −39%, better
BL5.5 T·m −16%, worse
Xmax3 mm −6%
Sensitivity85 dB –
PurifiPTT4.0M08-NAC-03
£256.08 · 1484% more, worseFs50 Hz –
Qts0.32 −9%
Vas4.9 L −25%, better
BL7 T·m +7%
Xmax2.9 mm −9%
Sensitivity84.6 dB −0.8
Scanspeak12MU/8731T00
£268.89 · 1563% more, worseFs66 Hz +32%, worse
Qts0.29 −17%, better
Vas5.8 L −11%, better
BL6.1 T·m −7%
Xmax3.4 mm +6%
Sensitivity89.3 dB +3.9, better
£341.46 · 2012% more, worse
Fs45 Hz −10%, better
Qts0.36 –
Vas6 L −8%
BL5.4 T·m −18%, worse
Xmax3 mm −6%
Sensitivity83.2 dB −2.2, worse
£384.15 · 2276% more, worse
Fs48 Hz −4%
Qts0.38 +9%
Vas4.6 L −30%, better
BL5.9 T·m −10%
Xmax3 mm −6%
Sensitivity83 dB −2.4, worse
Tang BandW4-992SD
No current priceFs55 Hz +10%, worse
Qts0.35 –
Vas5.7 L −13%, better
BL6.4 T·m –
Xmax3.5 mm +9%
Sensitivity85.8 dB –
Tang BandW4-657D
No current priceFs70 Hz +40%, worse
Qts0.32 −9%
Vas5.6 L −14%, better
BL5.6 T·m −14%, worse
Xmax3.3 mm +3%
Sensitivity89.4 dB +4, better
Tang BandW4-1798S
No current priceFs60 Hz +20%, worse
Qts0.30 −14%, better
Vas7.4 L +13%, worse
BL5.8 T·m −12%, worse
Xmax3 mm −6%
Sensitivity88.4 dB +3, better
Tang BandW4-1749S
No current priceFs60 Hz +20%, worse
Qts0.34 –
Vas6.3 L −3%
BL5.8 T·m −11%, worse
Xmax0.9 mm −72%, worse
Sensitivity87.5 dB +2.1, better
PurifiPTT4.0M08-NFC-01
No current priceFs48 Hz −4%
Qts0.31 −11%, better
Vas5.3 L −19%, better
BL7 T·m +7%
Xmax2.9 mm −9%
Sensitivity84.5 dB −0.9
HiViBG5N
No current priceFs60 Hz +20%, worse
Qts0.33 −6%
Vas7.1 L +8%
BL7.4 T·m +13%, better
Xmax2.5 mm −22%, worse
Sensitivity87.8 dB +2.4, better
Tang BandW4-1320SJ
No current priceFs75 Hz +50%, worse
Qts0.35 –
Vas6.4 L –
BL4.7 T·m −28%, worse
Xmax3 mm −6%
Sensitivity89.4 dB +4, better
PurifiPTT4.0X08-NFC-01
No current priceFs41 Hz −18%, better
Qts0.37 +6%
Vas5.7 L −13%, better
BL6.9 T·m +5%
Xmax8.8 mm +175%, better
Sensitivity81.8 dB −3.6, worse
HiViMY5N
No current priceFs57 Hz +14%, worse
Qts0.32 −9%
Vas7 L +7%
BL7.7 T·m +18%, better
Xmax2.5 mm −22%, worse
Sensitivity87.1 dB +1.7
HiViS5N
No current priceFs49 Hz –
Qts0.34 –
Vas8.9 L +36%, worse
BL7.7 T·m +18%, better
Xmax2.7 mm −16%, worse
Sensitivity86.8 dB +1.4
Audio Technology4 H 52 06 13 SD
No current priceFs48 Hz −4%
Qts0.33 −6%
Vas16 L +144%, worse
BL6.1 T·m −7%
Xmax3.5 mm +9%
Sensitivity88.4 dB +3, better
Tang BandW4-1320SJF
No current priceFs75 Hz +50%, worse
Qts0.38 +9%
Vas5.2 L −20%, better
BL5.1 T·m −22%, worse
Xmax3 mm −6%
Sensitivity88.9 dB +3.5, better
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lautsprecherteile | £16.17, the lowest price | 4 in stock | Visit shop at Lautsprecherteile |
