Overview
LF Driver
Tang Band

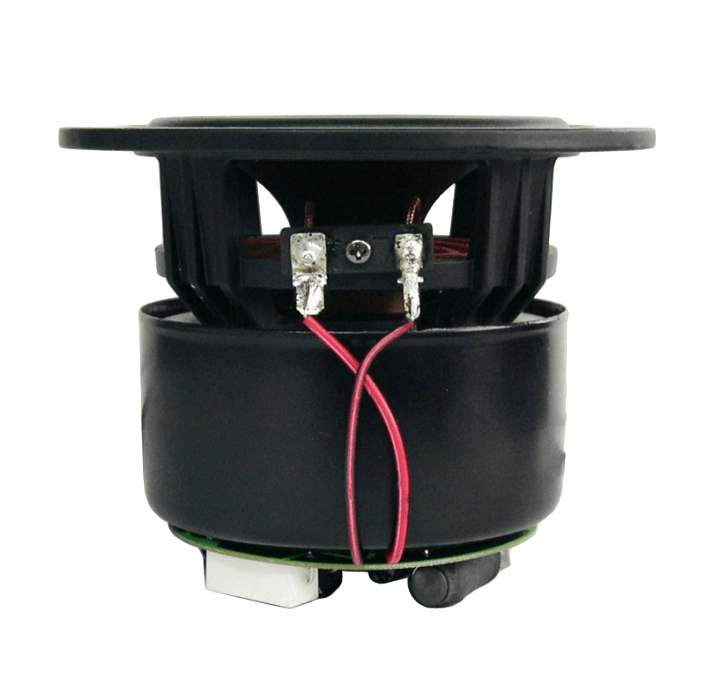

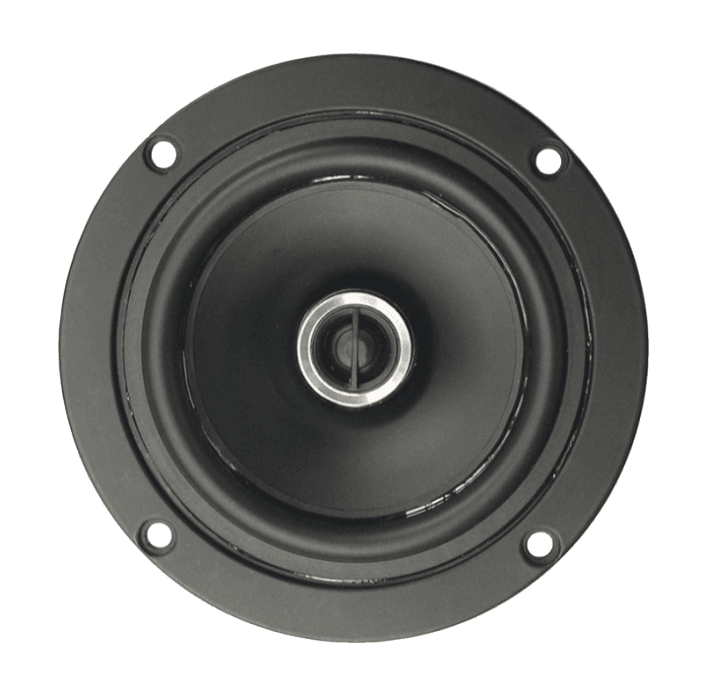

Tang Band W4-1749S
Tang Band W4-1749S is a 4" 8 ohm LF driver rated at 25W RMS. The validated T/S data includes Fs 60Hz, Qts 0.34, Vas 6.3L, Xmax 0.9mm, sensitivity 87.5dB, plus 5cm³ Vd and 154 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
RMS Power
25W
Sensitivity
87.5dB
EBP
154
Vented alignment
Vd
5cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence608 selected pixels of 1,338 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,404 selected pixels of 2,405
Overall Parameters
Valid
Fs60Hz
Qts0.34
Qes0.39
Qms3.0
Vas6.3L
Re6.8Ω
Le0.05mH
BL5.8Tm
Sd57cm²
Mms5g
Xmax0.9mm
SPL88dB
Power25W
Impedance8Ω
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFPrimary
4"Fs60 Hz
Qts0.34
Qes0.39
Qms3.0
Vas6.3 L
Re6.8 Ω
Le0.05 mH
BL5.8 Tm
Sd57 cm²
Mms5 g
Xmax0.9 mm
SPL88 dB
Power25 W
Impedance8 Ω
Power Peak50
