Overview
LF Driver
Tang Band

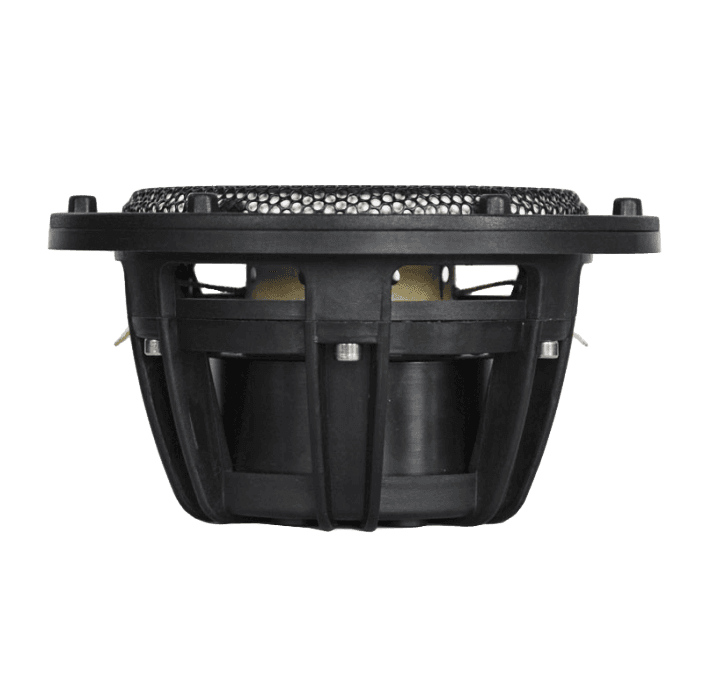

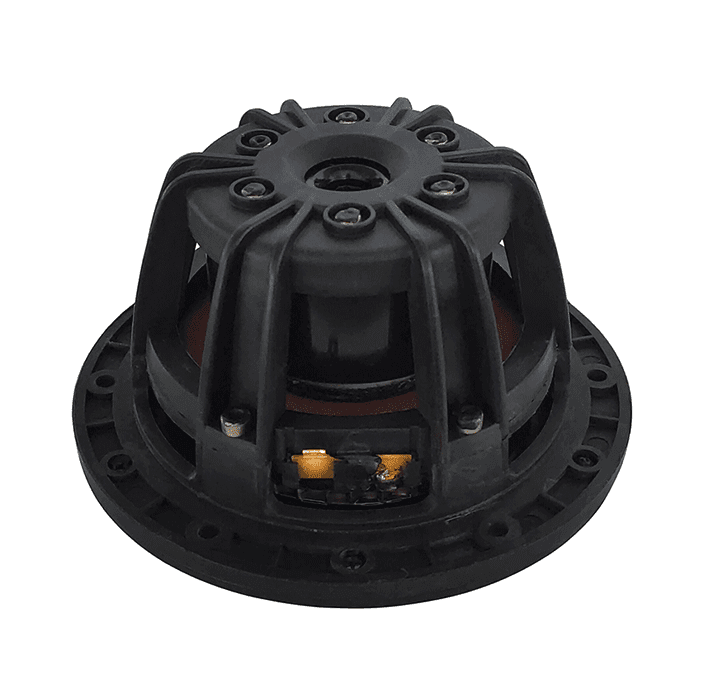

Tang Band W4-1798S
Tang Band W4-1798S is a 4" 4 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 60Hz, Qts 0.30, Vas 7.4L, Xmax 3mm, sensitivity 88.4dB, plus 23cm³ Vd and 162 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
RMS Power
40W
Sensitivity
88.4dB
87.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
162
Vented alignment
Vd
23cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,395 selected pixels of 2,538 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,250 selected pixels of 2,250
T/S Parameters
Valid
Fs60Hz
Qts0.30
Qes0.37
Qms1.6
Vas7.4L
Re3.6Ω
Le0.01mH
BL5.8Tm
Sd78cm²
Mms10g
Xmax3.0mm
SPL88dB
Power40W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Tang Band
W4-1798S
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Tang Band
W4-1798S
4"
Xmax3mm0%
Qts0.30%
BL5.8Tm0%
Vas7.4L0%
Qes0.370%
80%
Similarity

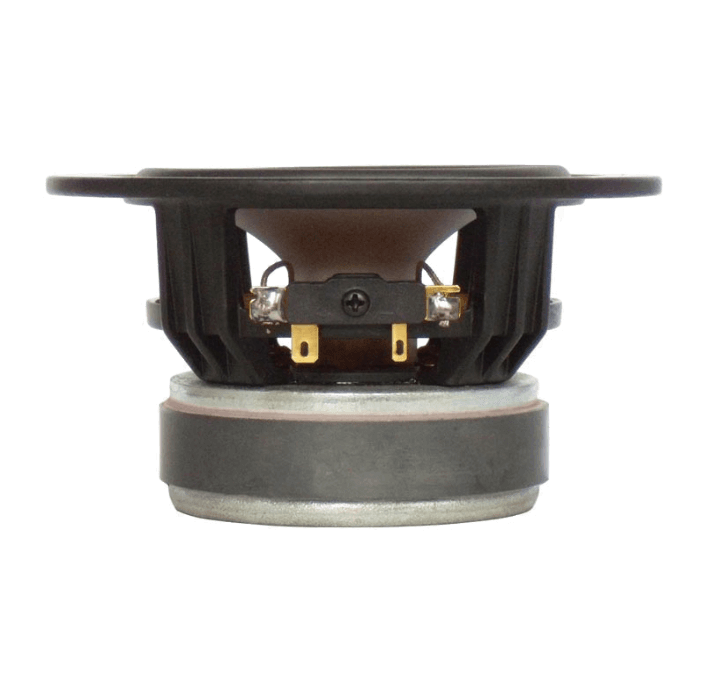

Tang Band
W4-657D
4"
Xmax3.3mm+10%
Qts0.32+7%
BL5.6Tm-2%
Vas5.6L-24%
Qes0.35-5%
76%
Similarity
Purifi
PTT4.0M04-NAC-03
4"
Xmax2.9mm-3%
Qts0.28-7%
BL5.9Tm+3%
Vas5L-33%
Qes0.3-19%
75%
Similarity

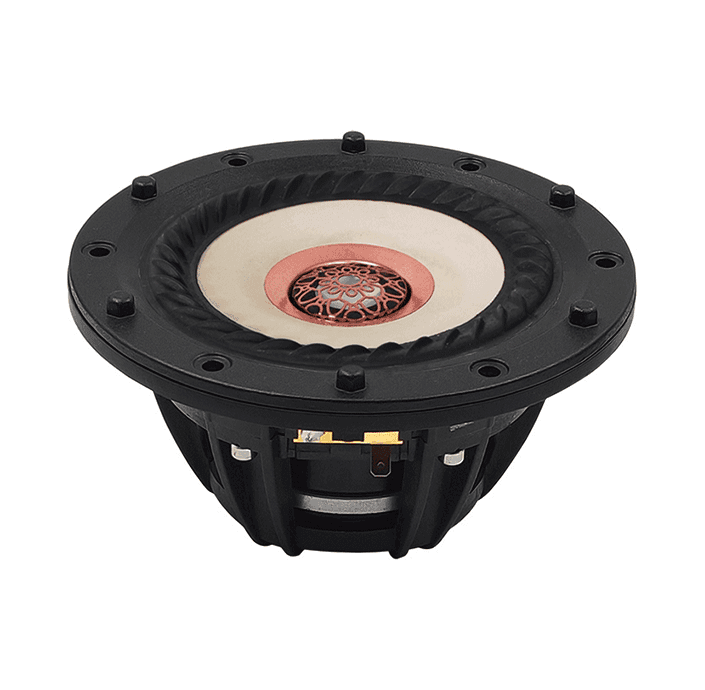

Tang Band
W4-2315
4"
Xmax2.8mm-7%
Qts0.29-3%
BL6.2Tm+8%
Vas5L-33%
Qes0.31-16%
74%
Similarity
SEAS
H1152-08 CA12RCY
4.5"
Xmax3mm0%
Qts0.31+3%
BL6.3Tm+10%
Vas5L-33%
Qes0.36-3%
74%
Similarity

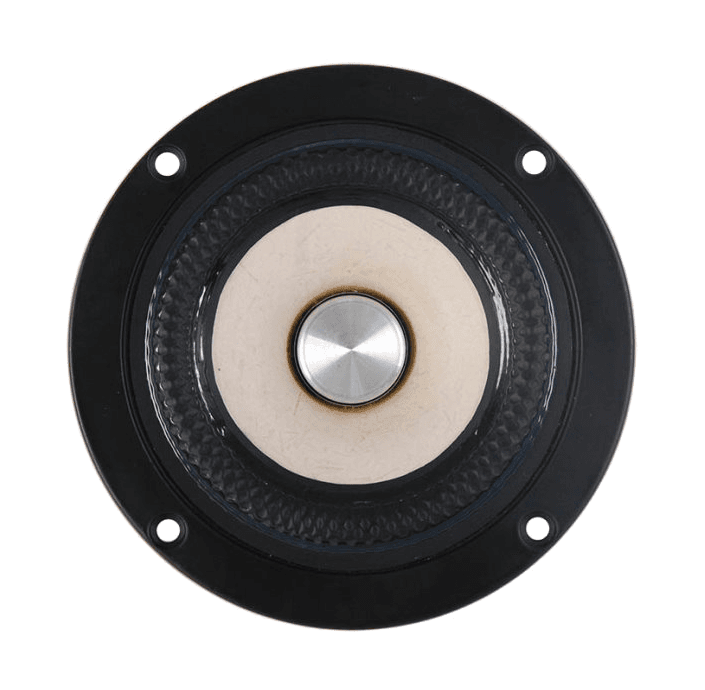

Tang Band
W4-2142
4"
Xmax2.4mm-20%
Qts0.33+10%
BL5.4Tm-6%
Vas6.4L-14%
Qes0.39+5%
73%
Similarity
Purifi
PTT4.0M08-NFC-01
4"
Xmax2.9mm-3%
Qts0.31+3%
BL7Tm+22%
Vas5.3L-29%
Qes0.33-11%
71%
Similarity
£54.93
Scanspeak
12W/8524G00
5"
Xmax3mm0%
Qts0.32+7%
BL5.4Tm-6%
Vas8.2L+11%
Qes0.35-5%
71%
Similarity
Purifi
PTT4.0M08-NAC-03
4"
Xmax2.9mm-3%
Qts0.32+7%
BL7Tm+22%
Vas4.9L-34%
Qes0.34-8%
70%
Similarity

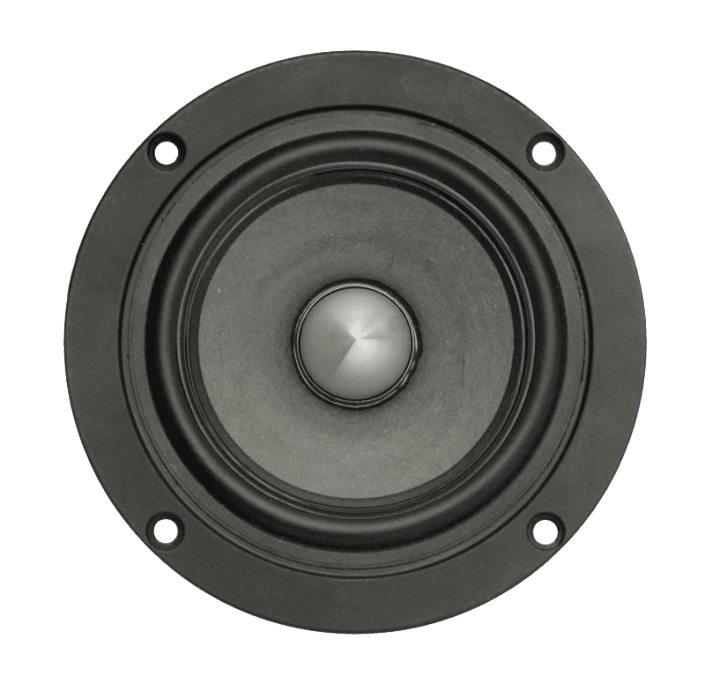

Tang Band
W4-1320SIF
4"
Xmax3mm0%
Qts0.36+20%
BL5.3Tm-8%
Vas5.2L-30%
Qes0.42+14%
69%
Similarity
£82.80

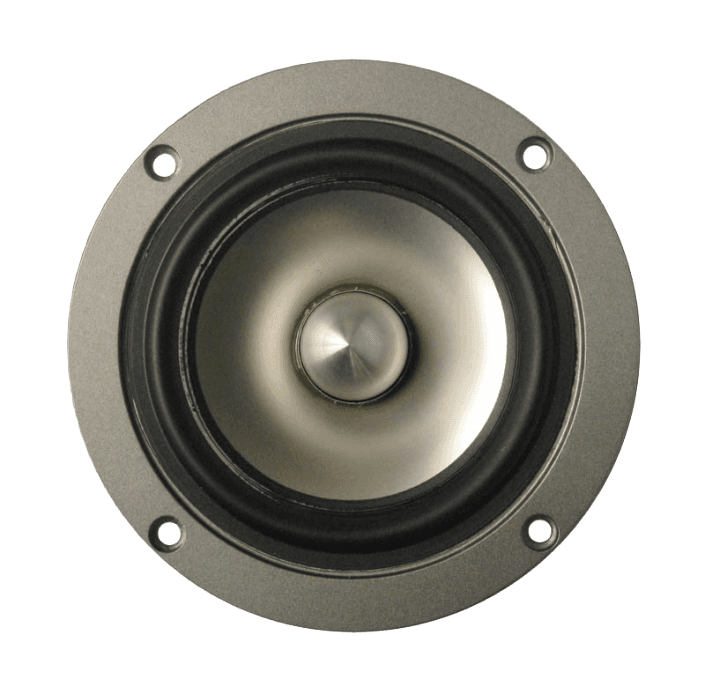

Tang Band
W4-1337SDF
4"
Xmax2.5mm-17%
Qts0.34+13%
BL5.3Tm-7%
Vas5.6L-24%
Qes0.4+8%
69%
Similarity
SEAS
H1602-04/06 L12RE/XFC
4.5"
Xmax3mm0%
Qts0.30%
BL5.5Tm-4%
Vas3L-60%
Qes0.33-11%
