LF DriverMR16 series
SB Acoustics
SB Acoustics MR16PNW-8
SB Acoustics MR16PNW-8 is a 6" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 31Hz, Qts 0.32, Vas 44.8L, Xmax 6.2mm, sensitivity 88dB, plus 74cm³ Vd and 91 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £164.28.
Size
6"
Impedance
8Ω
RMS Power
30W
Sensitivity
88.0dB
EBP
91
Either alignment
Vd
74cm³

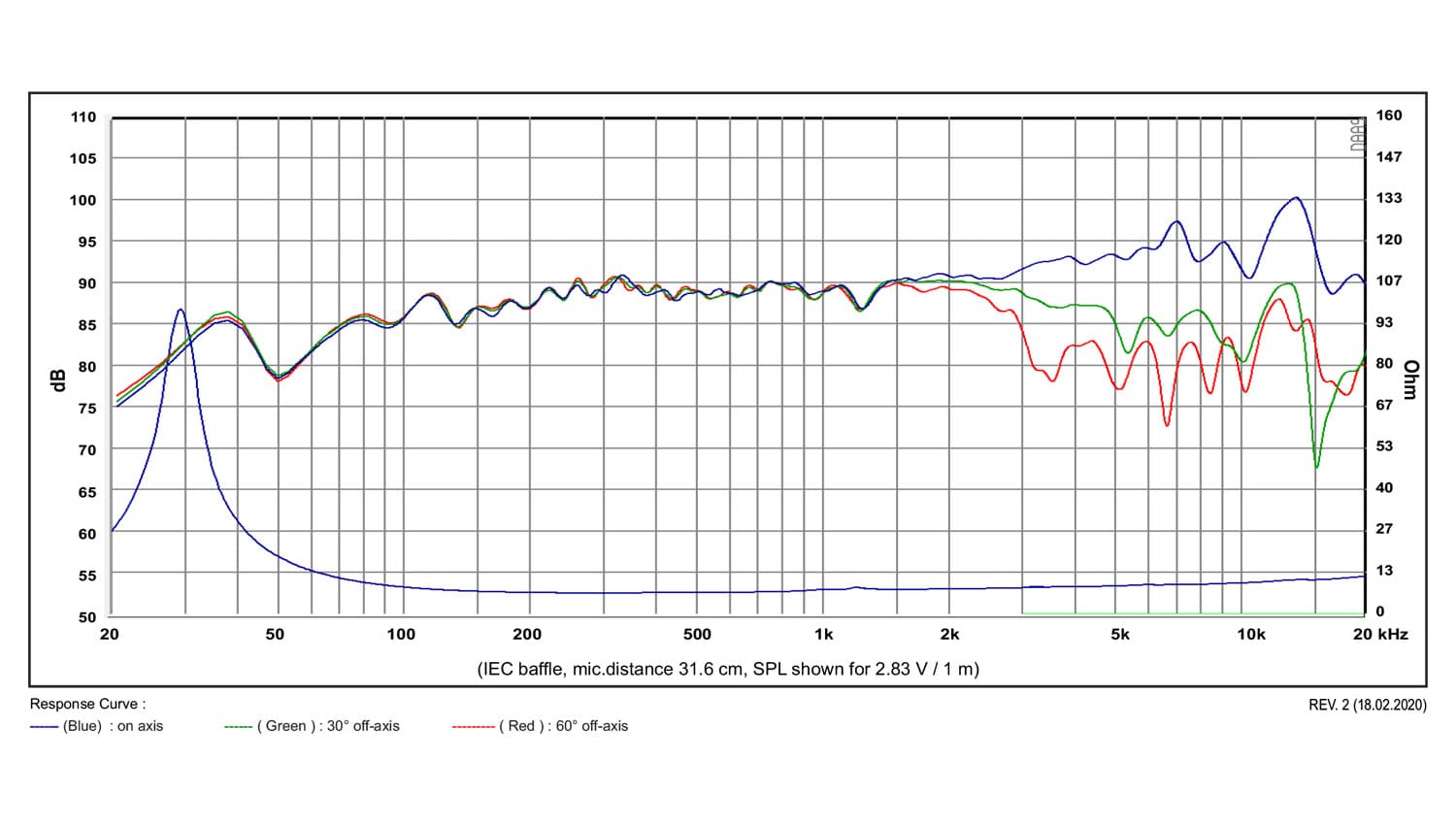

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,211 selected pixels of 2,486 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence1,004 selected pixels of 2,171 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,257 selected pixels of 4,261
T/S Parameters
Valid
Fs31Hz
Qts0.32
Qes0.34
Qms5.8
Vas44.8L
Re6.2Ω
Le0.11mH
BL6.5Tm
Sd119cm²
Mms12g
Xmax6.2mm
SPL88dB
Power30W
Impedance8Ω
Voice Coil36mm
Flux Density1.17T
Pricing & availability
Price definitionsPrice movement
Best current price
£164.28
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.0kg
