Overview
LF Driver
Tang Band

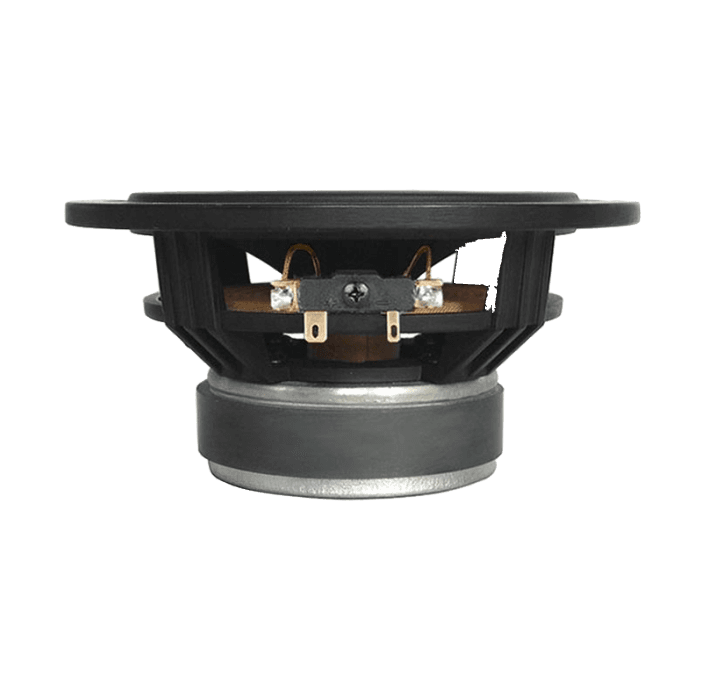

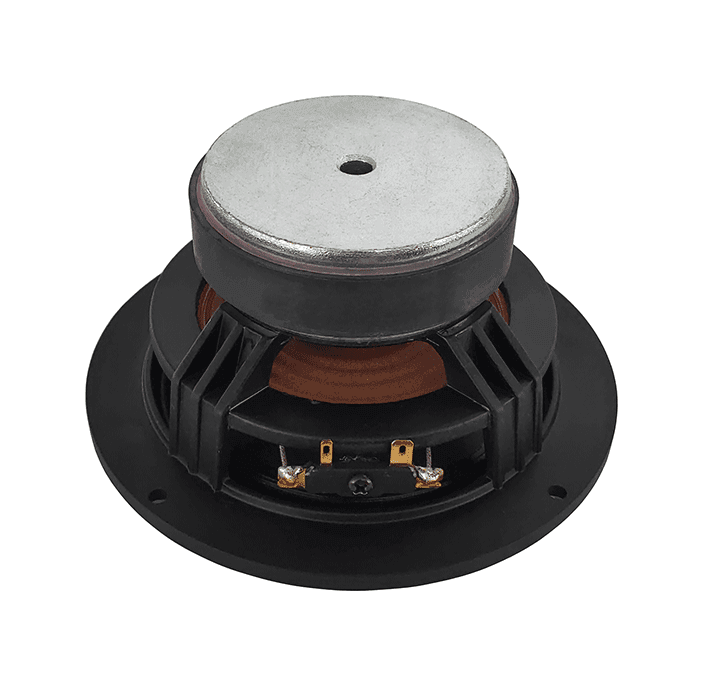

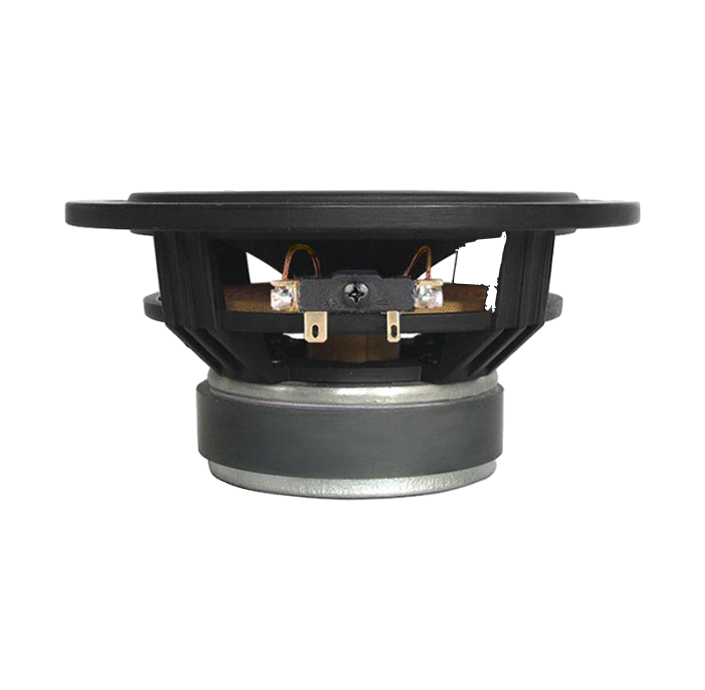

Tang Band W5-704D
Tang Band W5-704D is a 5" 8 ohm LF driver rated at 28W RMS. The validated T/S data includes Fs 55Hz, Qts 0.38, Vas 11.6L, Xmax 3.3mm, sensitivity 88.2dB, plus 31cm³ Vd and 120 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
28W
Sensitivity
88.2dB
EBP
120
Vented alignment
Vd
31cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence726 selected pixels of 1,242 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,485 selected pixels of 2,505
T/S Parameters
Valid
Fs55Hz
Qts0.38
Qes0.46
Qms2.1
Vas11.6L
Re6.0Ω
Le0.06mH
BL6.2Tm
Sd94cm²
Mms8g
Xmax3.3mm
SPL88dB
Power28W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Tang Band
W5-704D
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
84%
Similarity
£49.95
Monacor
SPH-5M
5"
Xmax3.5mm+6%
Qts0.41+8%
BL6.4Tm+4%
Vas13.5L+17%
Qes0.47+2%
75%
Similarity
CIARE
HWL130
5"
Xmax4mm+21%
Qts0.43+13%
BL5.8Tm-6%
Vas11.2L-3%
Qes0.460%
73%
Similarity
Tang Band
W5-1611SAF
5"
Xmax3mm-9%
Qts0.44+16%
BL5.5Tm-10%
Vas11.7L+1%
Qes0.52+13%
73%
Similarity

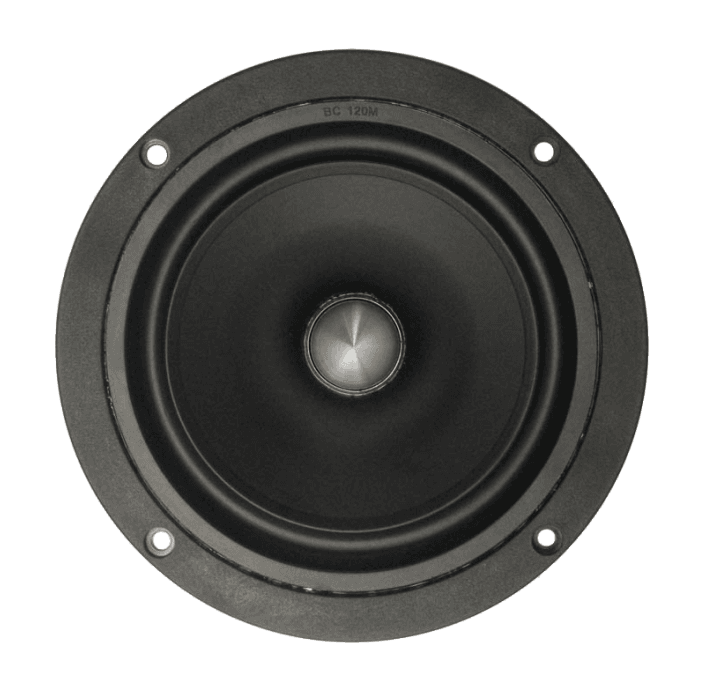

Tang Band
W5-1611SAF
5"
Xmax3mm-9%
Qts0.44+16%
BL5.5Tm-10%
Vas11.7L+1%
Qes0.52+13%
71%
Similarity
Sica
5 NR 1.5 PL
5"
Xmax3.5mm+6%
Qts0.35-8%
BL6.7Tm+8%
Vas7.4L-36%
Qes0.39-15%
69%
Similarity
£76.20
Monacor
SPH-145HQ
5"
Xmax3.5mm+6%
Qts0.44+16%
BL5.3Tm-14%
Vas9.4L-19%
Qes0.51+11%
67%
Similarity

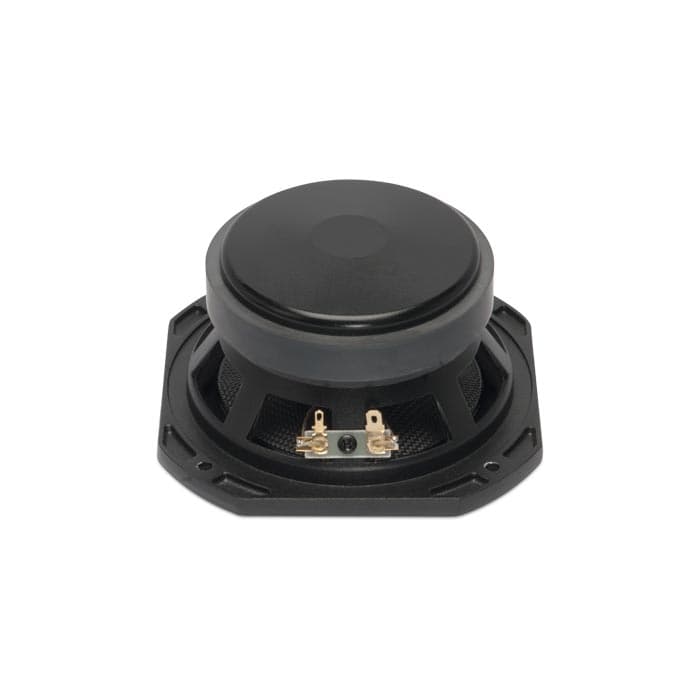

Fane
