Overview
LF Driver
Dayton Audio
Dayton Audio DC130BS-8
Dayton Audio DC130BS-8 is a 4" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 51Hz, Qts 0.39, Vas 13.8L, Xmax 2.5mm, sensitivity 87.6dB, plus 23cm³ Vd and 103 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £21.70.
Size
4"
Impedance
8Ω
RMS Power
30W
Sensitivity
87.6dB
88.9dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
103
Vented alignment
Vd
23cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
45 degrees240 ptsp1medium
on-axis240 ptsp1medium
Curve provenanceInspect 4 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence701 selected pixels of 797 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence757 selected pixels of 1,111 - Trace datasheet-response-trace-poc/v1
on-axis
Frequency response
240 plotted pointsMedium confidence1,358 selected pixels of 1,358 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,124 selected pixels of 1,124
T/S Parameters
Valid
Fs51Hz
Qts0.39
Qes0.49
Qms1.8
Vas13.8L
Re5.8Ω
Le0.82mH
BL5.7Tm
Sd92cm²
Mms9g
Xmax2.5mm
SPL88dB
Power30W
Impedance8Ω
F Low55Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£21.70
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.2kg
Diameter145.0mm
Overall Depth77.4mm
Cutout Diameter120.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
DC130BS-8
4"
Best current price
£21.70
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
73%
Similarity
3% cheaper£20.96
Dayton Audio
DC130AS-8
4"
Lower price
Xmax2.5mm0%
Qts0.45+15%
BL5.8Tm+2%
Vas9.7L-29%
Qes0.58+18%
93%
Similarity
£21.70
Dayton Audio
DC130B-8
4"
Xmax2.5mm0%
Qts0.38-3%
BL5.9Tm+4%
Vas12.4L-10%
Qes0.48-2%
77%
Similarity
£21.70
Dayton Audio
DC130B-4
4"
Xmax2.5mm0%
Qts0.35-10%
BL4.9Tm-14%
Vas12.3L-11%
Qes0.41-16%
80%
Similarity
7% more£23.20
Dayton Audio
DC130BS-4
4"
Higher price
Xmax2.5mm0%
Qts0.35-10%
BL4.8Tm-16%
Vas13.2L-4%
Qes0.44-10%
90%
Similarity
121% more£48.00
Dayton Audio
DC130A-8
4"
Higher price
Xmax2.5mm0%
Qts0.41+5%
BL5.9Tm+3%
Vas11.8L-14%
Qes0.51+4%
32%
Similarity
138% more£51.60

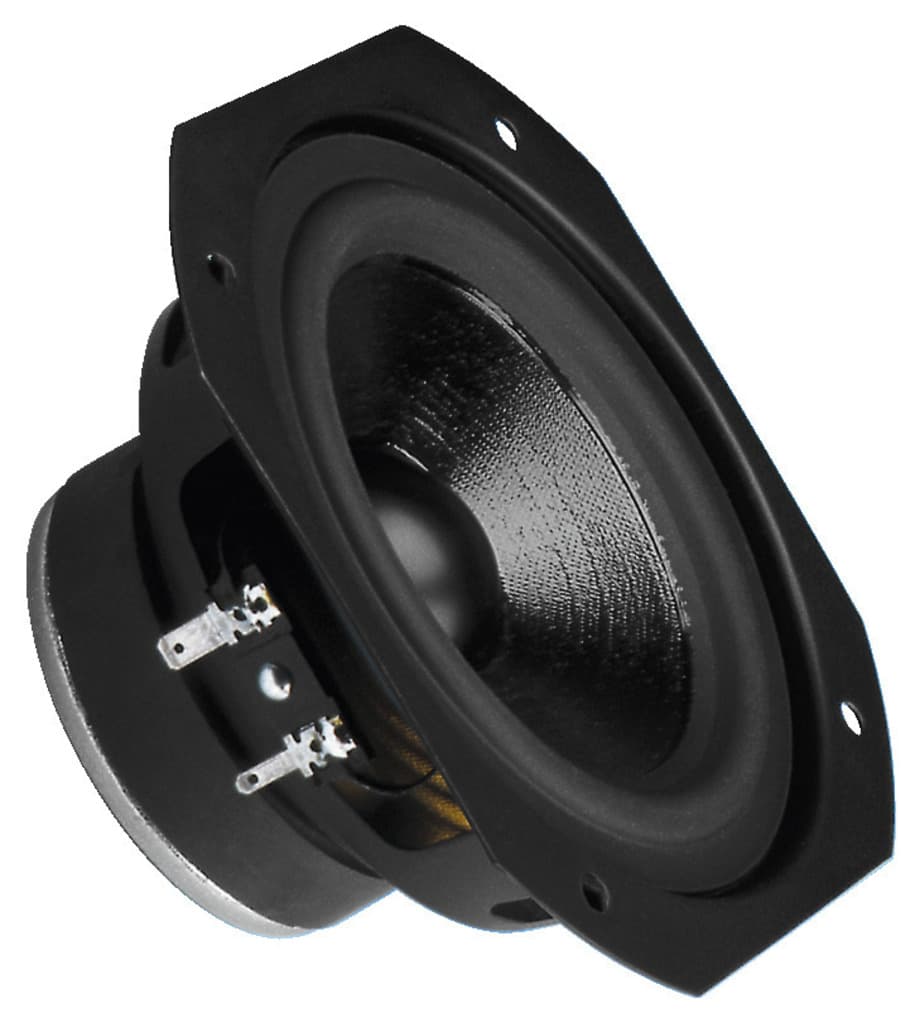

Monacor
SPH-130
5"
Higher price
Xmax2mm-20%
Qts0.32-18%
BL5.4Tm-5%
Vas22L+59%
Qes0.39-20%
36%
Similarity
195% more£63.95
Scanspeak
12W/8524G00
5"
Higher price
Xmax3mm+20%
Qts0.32-18%
BL5.4Tm-5%
Vas8.2L-41%
Qes0.35-29%
49%
Similarity
628% more£157.95
Morel
CAW 538
3"
Higher price
Xmax3mm+20%
Qts0.38-3%
BL6.9Tm+21%
Vas8.2L-41%
Qes0.48-2%
64%
Similarity
Tang Band
W4-1337SDF
4"
Xmax2.5mm0%
Qts0.34-13%
BL5.3Tm-7%
Vas5.6L-59%
Qes0.4-18%
64%
Similarity
Tang Band
W5-2143
5"
Xmax2.5mm0%
Qts0.38-3%
BL5.4Tm-5%
Vas19L+38%
Qes0.43-12%
62%
Similarity
Tang Band
W4-2142
4"
Xmax2.4mm-4%
Qts0.33-15%
BL5.4Tm-5%
Vas6.4L-54%
Qes0.39-20%
60%
Similarity
Tang Band
W4-1320SJ
4"
Xmax3mm+20%
Qts0.35-10%
BL4.7Tm-18%
Vas6.4L-54%
Qes0.490%
