Monacor SPH-5M 8Ω
8 Ω · 3–4000 Hz
£48.25
3.4%Willys-Hifi · All 4 offers
- Fs
- 45Hz
- Xmax
- 3.5mm
- SPL
- 86dB
- Pe
- 40W
- BL
- 6.4T·m
- Vd
- 33cm³
- Qts
- 0.41
- Vas
- 14L
Monacor SPH-5M is a 5-inch 8 ohm LF driver rated at 40 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.41, Vas 13.5 L, Xmax 3.5 mm, sensitivity 86.2 dB, plus 33 cm³ Vd and 96 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £37.72.
The published T/S values agree with each other
Thiele/Small
- Fs
- 45Hz
- Qts
- 0.41
- Qes
- 0.47
- Qms
- 2.9
- Vas
- 13.5L
- Re
- 6.3Ω
- Le
- 0.54mH
Motor and cone
- BL
- 6.4T·m
- Sd
- 95cm²
- Mms
- 12g
- Xmax
- 3.5mm
- Vd †
- 33cm³
- Voice coil
- 25mm

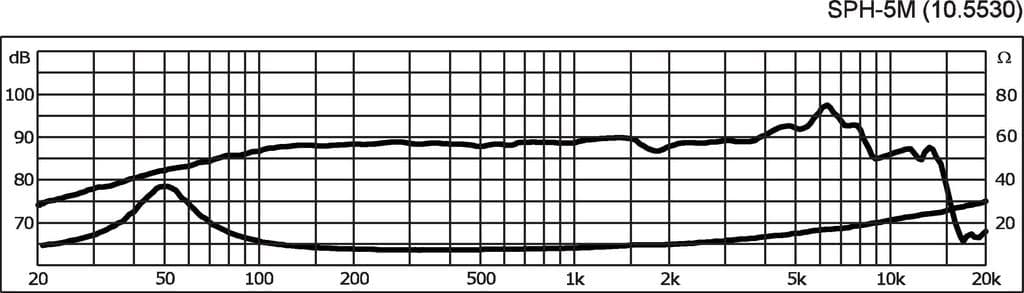

Power and response
- Sensitivity †
- 86.2dB
- Manufacturer sensitivity
- 88dB
- Power
- 40W
- Impedance
- 8Ω
- Range
- 3–4000Hz
- EBP †
- 96 · Sealed or vented

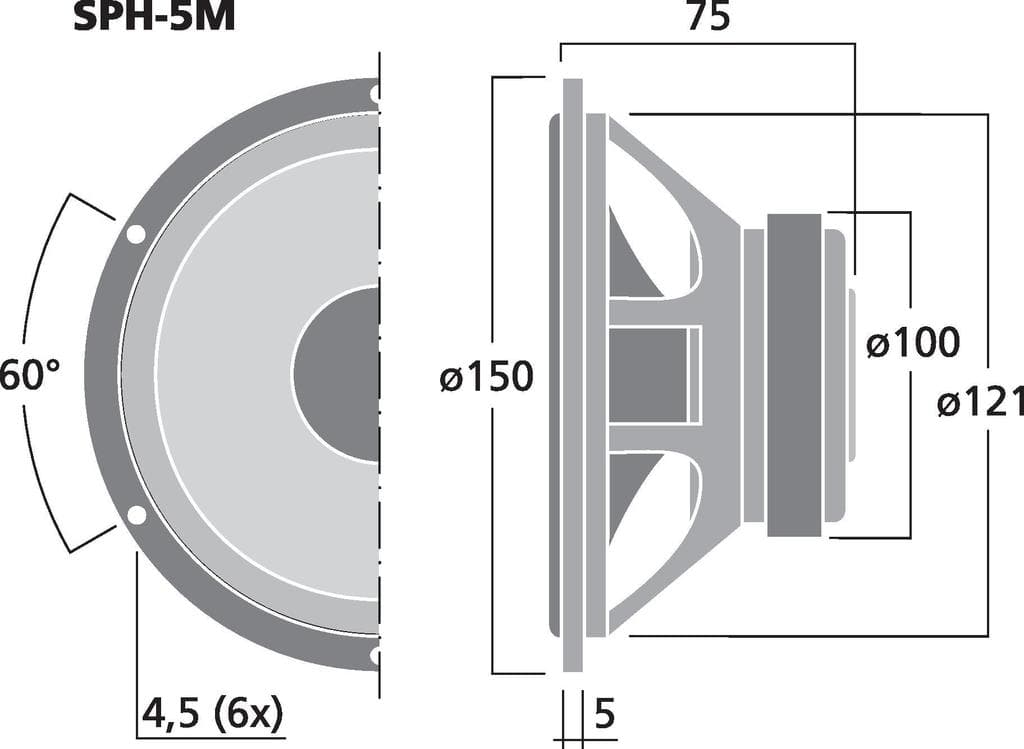

Size and mounting
- Diameter
- 150mm
- Cutout
- 121mm
- Depth
- 75mm
- Weight
- 1.3kg
Other published values
- Cms
- 1.06mm/N
- Power Peak
- 80
Other dimensions
- Mounting Depth
- 70
Sensitivity shows 86.2 dB, calculated from the T/S values. Monacor publishes 88.0 dB, 1.8 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
MF · Primary · 5″
- BL
- 6.4T·m
- Fs
- 45Hz
- Le
- 0.54mH
- Re
- 6.3Ω
- Sd
- 95cm²
- Cms
- 1.06mm/N
- Mms
- 12g
- Qes
- 0.47
- Qms
- 2.9
- Qts
- 0.41
- SPL
- 86.2dB
- Vas
- 13.5L
- Xmax
- 3.5mm
- Power
- 40W
- Impedance
- 8Ω
- Power Peak
- 80
- Sensitivity
- 88dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 86.2dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 88dB
- Voice coil
- 25mm
- Weight
- 1.3kg
- Diameter
- 150mm
- Depth
- 75mm
- Mounting Depth
- 70
- Cutout
- 121mm
