Kartesian Sub120_vHE 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Kartesian

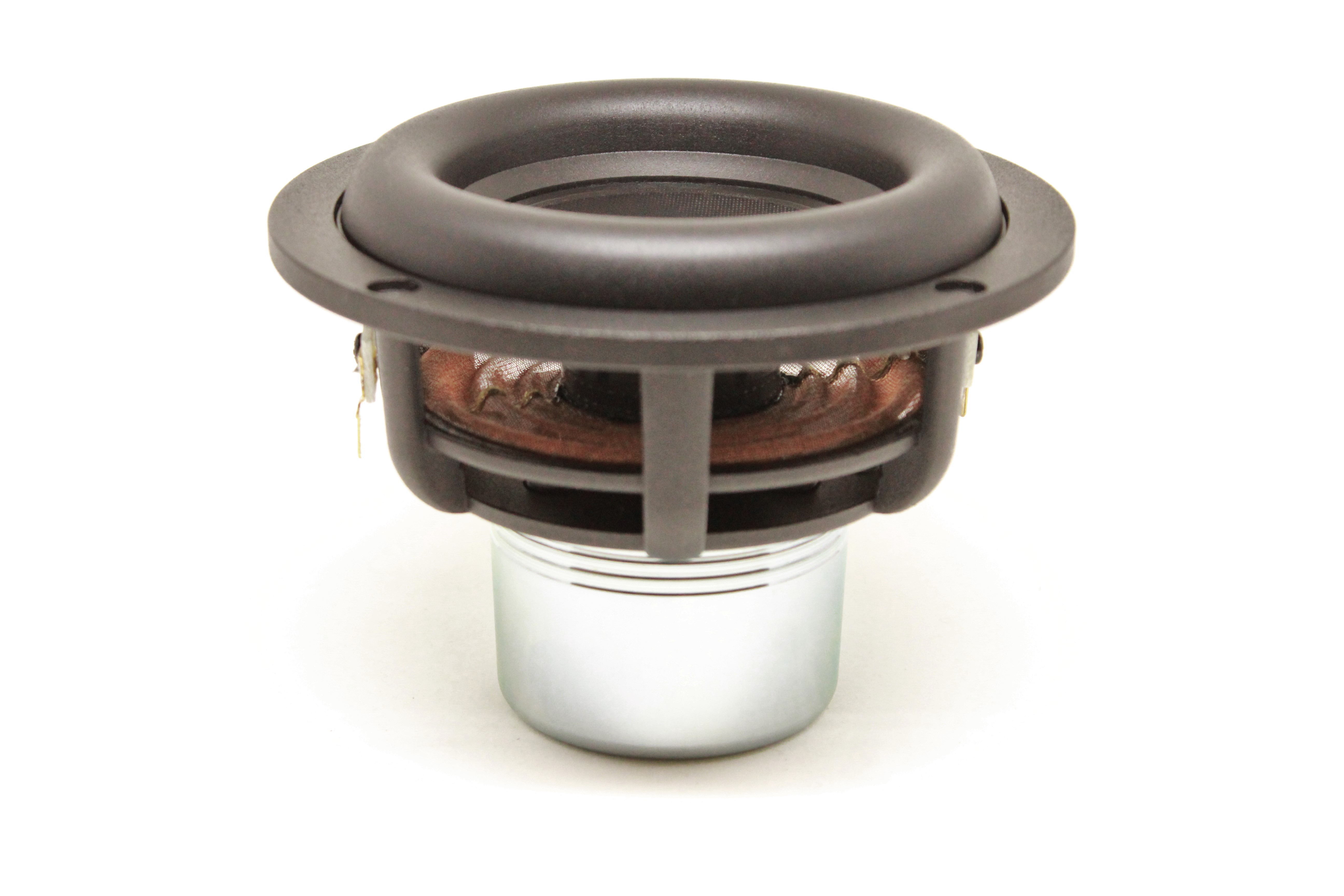

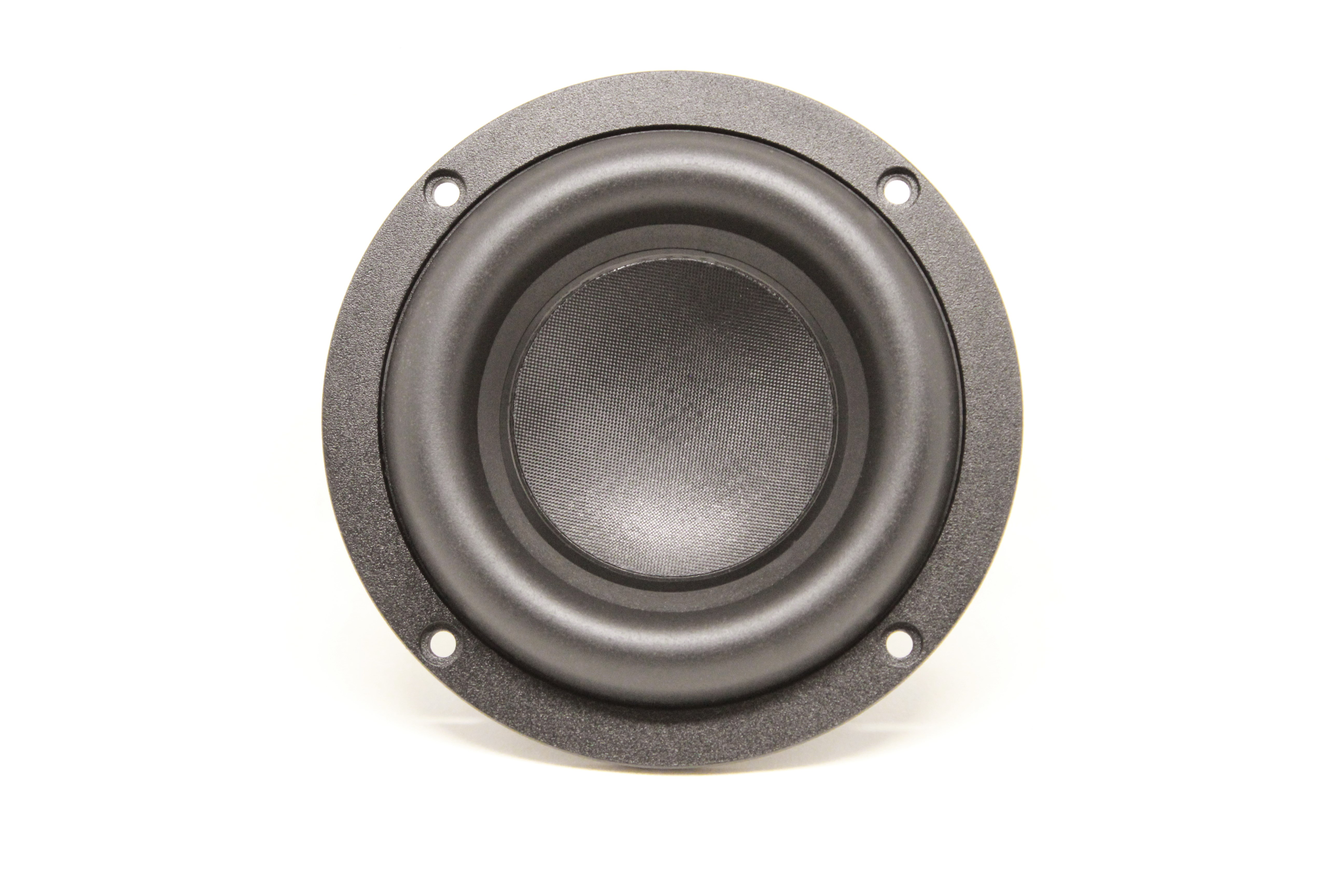

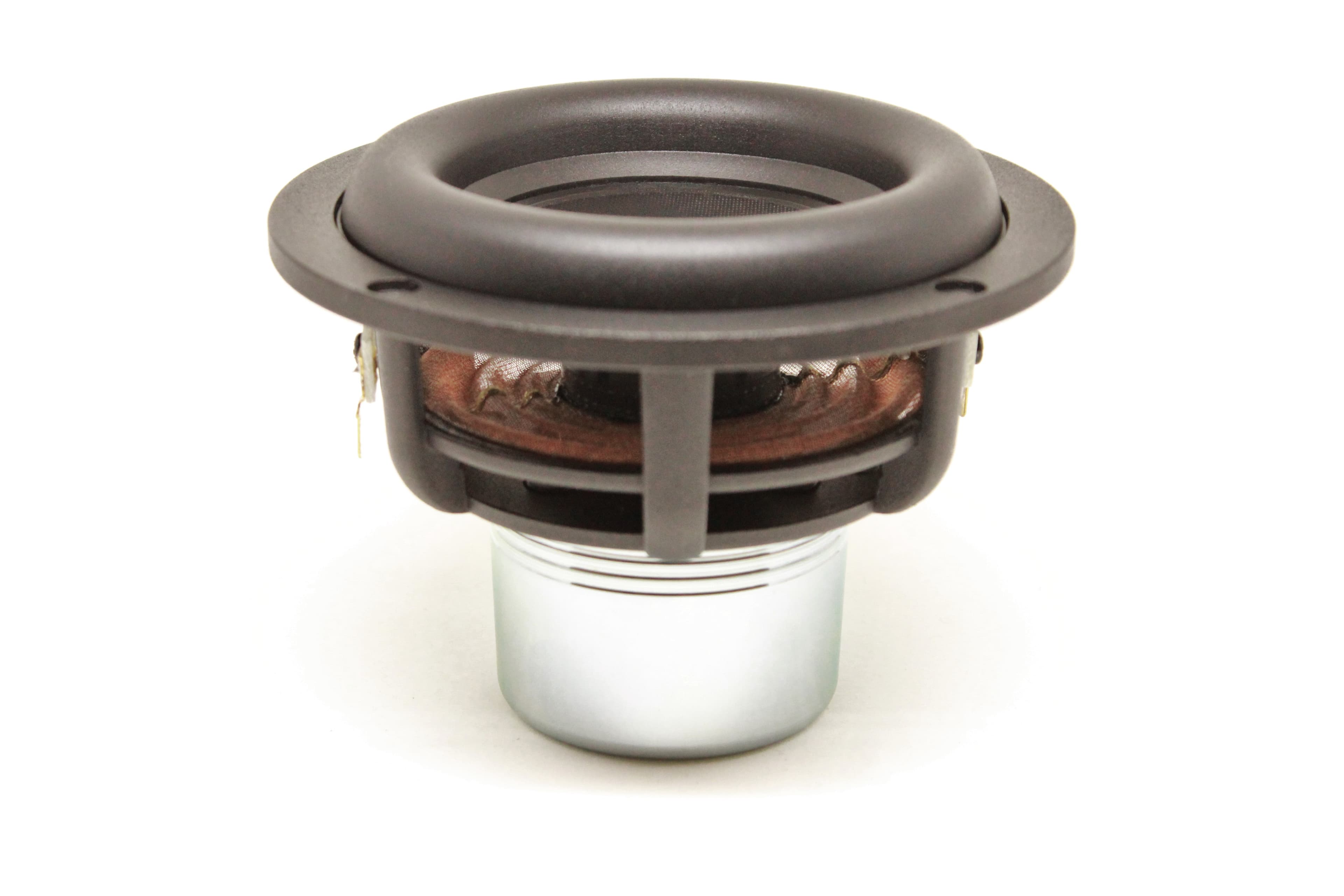

Kartesian Sub120_vHE
Kartesian Sub120_vHE is a 4.75" 8 ohm LF driver. The validated T/S data includes Fs 46Hz, Qts 0.42, Vas 3.9L, Xmax 6.5mm, sensitivity 81.5dB, plus 35cm³ Vd. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Partial source evidence
Automated T/S checks passed, but some material low-frequency parameters are not published for this record.
Material fields not published: Qes
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
Size
4.75"
Impedance
8Ω
Sensitivity
81.5dB
Vd
35cm³
T/S Parameters
Valid
Fs46Hz
Qts0.42
Qms5.4
Vas3.9L
Re6.6Ω
BL7.3Tm
Sd54cm²
Mms13g
Xmax6.5mm
SPL82dB
Impedance8Ω
F Low30Hz
F High3500Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Qes, Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Qes, Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter120.0mm
