Overview
LF Driver
Dayton Audio
Dayton Audio MX5-22
Dayton Audio MX5-22 is a 4" 2 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 45Hz, Qts 0.43, Vas 4.9L, Xmax 9.3mm, sensitivity 81.5dB, plus 78cm³ Vd and 90 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
2Ω
RMS Power
50W
Sensitivity
81.5dB
84.3dBmanufacturer; using T/S-derived value (2.8dB delta).
EBP
90
Either alignment
Vd
78cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
15 degrees196 ptsp1medium
on-axis240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
15 degrees
Frequency response
196 plotted pointsMedium confidence1,424 selected pixels of 1,927 - Trace datasheet-response-trace-poc/v1
on-axis
Frequency response
240 plotted pointsMedium confidence4,745 selected pixels of 4,745
T/S Parameters
Valid
Fs45Hz
Qts0.43
Qes0.50
Qms3.0
Vas4.9L
Re4.3Ω
Le1.10mH
BL8.0Tm
Sd84cm²
Mms26g
Xmax9.3mm
SPL82dB
Power50W
Impedance2Ω
F Low30Hz
F High1000Hz
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£51.51
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter154.0mm
Overall Depth87.2mm
Cutout Diameter120.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
MX5-22
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
11 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
77%
Similarity
Purifi
PTT4.0X08-NAC-03
4"
Xmax8.8mm-5%
Qts0.39-9%
BL7Tm-12%
Vas5.3L+8%
Qes0.43-14%
75%
Similarity

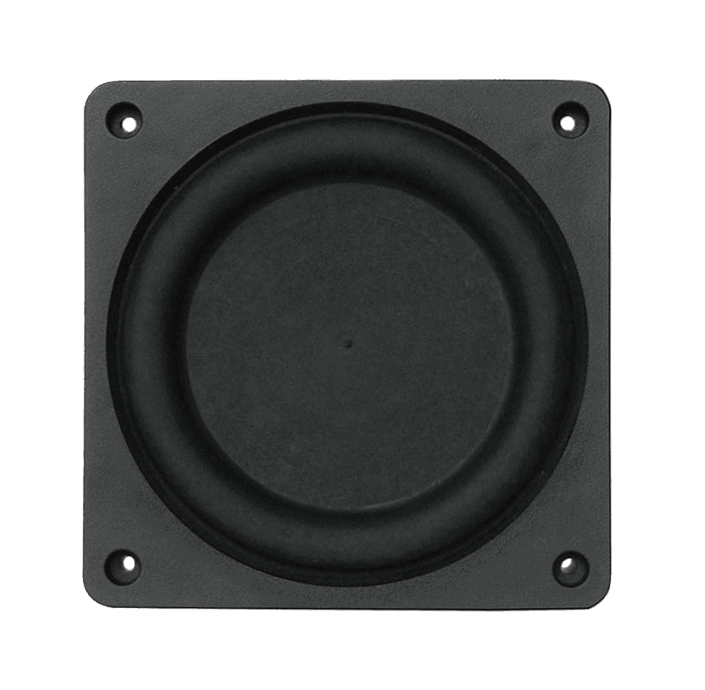

Tang Band
W4-2089
4"
Xmax8mm-14%
Qts0.42-2%
BL8.7Tm+9%
Vas3.4L-31%
Qes0.46-8%
69%
Similarity
Purifi
PTT4.0X08-NFC-01
4"
Xmax8.8mm-5%
Qts0.37-14%
BL6.9Tm-14%
Vas5.7L+16%
Qes0.41-18%
63%
Similarity

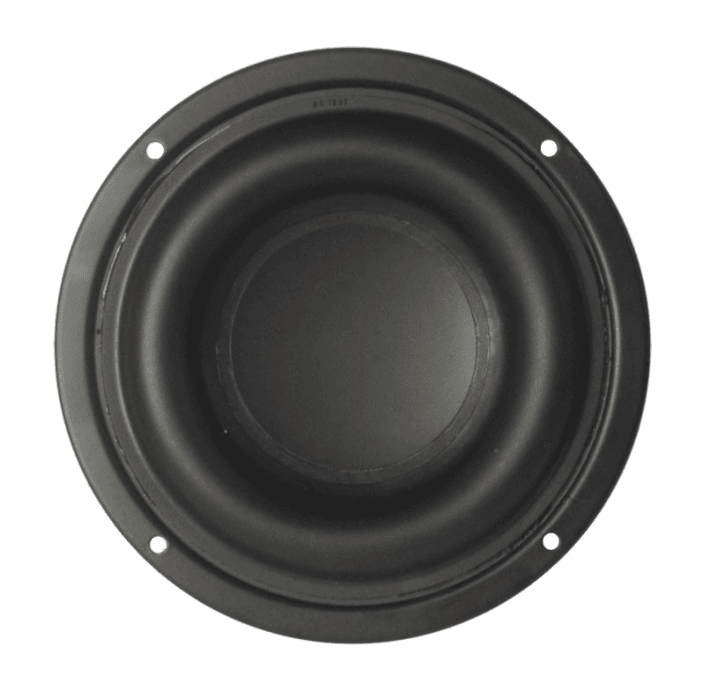

Tang Band
W5-1138SMF
5"
Xmax9.3mm-1%
Qts0.49+14%
BL7.2Tm-10%
Vas4.8L-1%
Qes0.57+14%
61%
Similarity
£45.28
SB Acoustics
SB12NRX25-8
4"
Xmax10mm+8%
Qts0.37-14%
BL5.4Tm-32%
Vas5.3L+8%
Qes0.41-18%
58%
Similarity

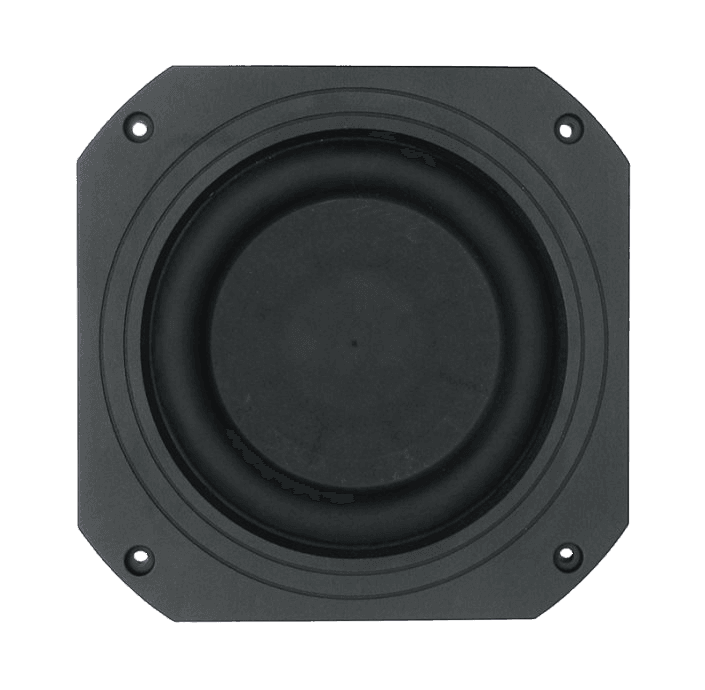

Tang Band
W5-2053
5"
Xmax8mm-14%
Qts0.4-7%
BL8.3Tm+4%
Vas3.9L-21%
Qes0.44-12%
54%
Similarity

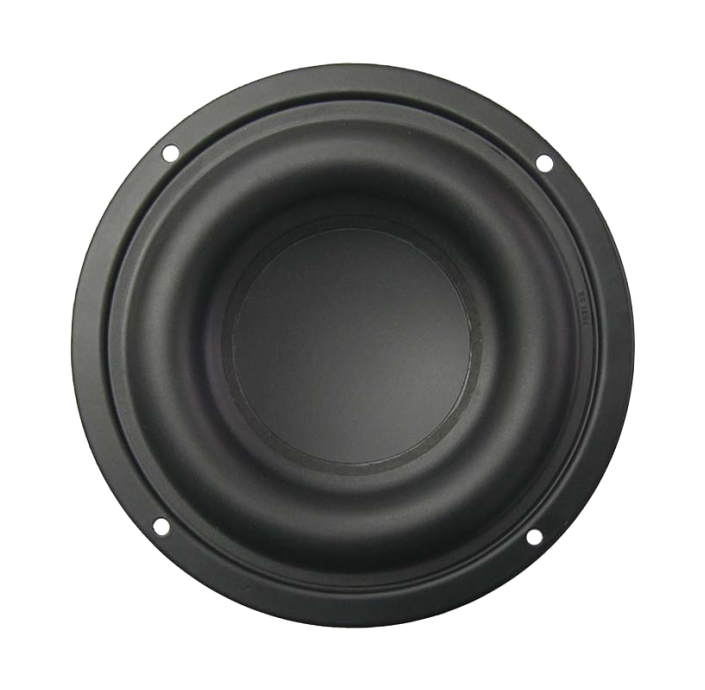

Tang Band
W5-1138SM
5"
Xmax9.3mm-1%
Qts0.5+16%
BL6.6Tm-17%
Vas4.9L0%
Qes0.62+24%
54%
Similarity

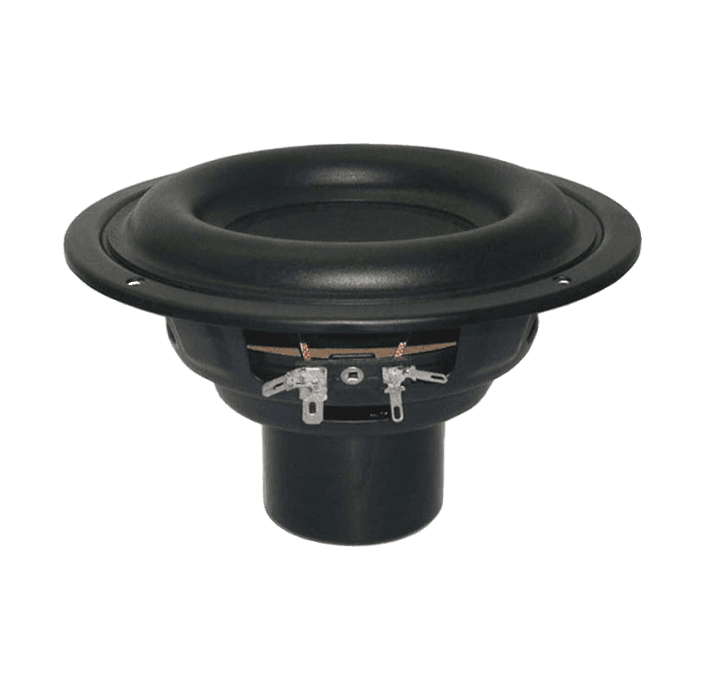

Tang Band
W5-1138SM
5"
Xmax9.3mm-1%
Qts0.5+16%
BL6.6Tm-17%
Vas4.9L0%
Qes0.62+24%
53%
Similarity
£58.31
SB Acoustics
SB12CACS25-8
4"
Xmax10mm+8%
Qts0.37-14%
BL5.2Tm-35%
Vas6.5L+33%
Qes0.4-20%
48%
Similarity
£47.39
Peerless
SLS-P830945
5"
Xmax7mm-25%
Qts0.4-7%
BL6.2Tm-23%
Vas4.7L-4%
Qes0.44-12%
28%
Similarity

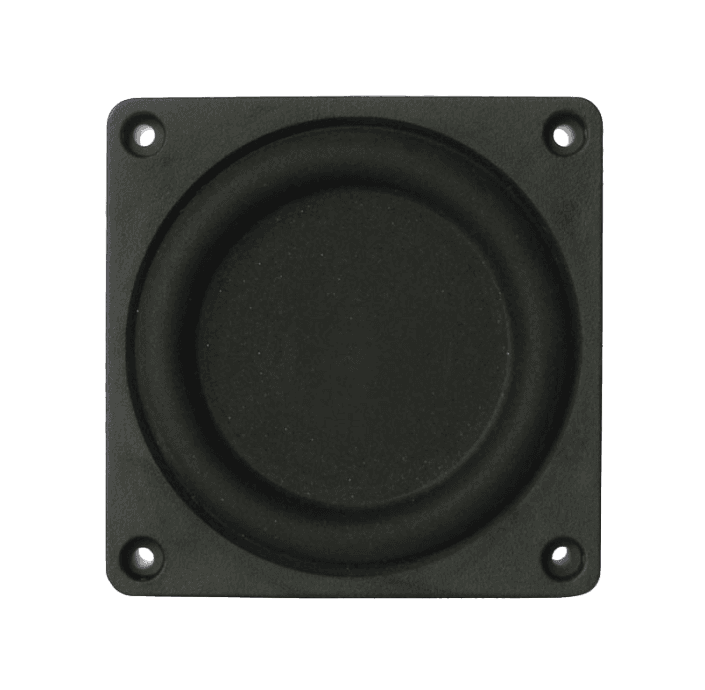

Tang Band
