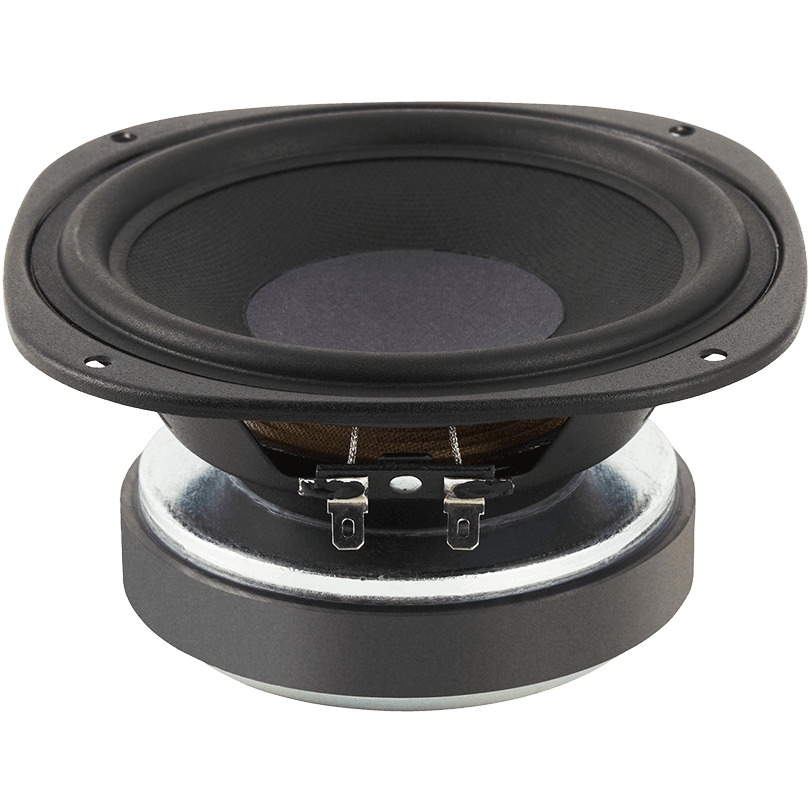

Celestion TF0512HE
Celestion TF0512HE is a 5" 8 ohm LF driver rated at 75W RMS. The validated T/S data includes Fs 85Hz, Qts 0.54, Vas 3.5L, Xmax 4.8mm, sensitivity 87.7dB, plus 37cm³ Vd and 149 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
75W
Sensitivity
87.7dB
89.5dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
149
Vented alignment
Vd
37cm³
Datasheet traces

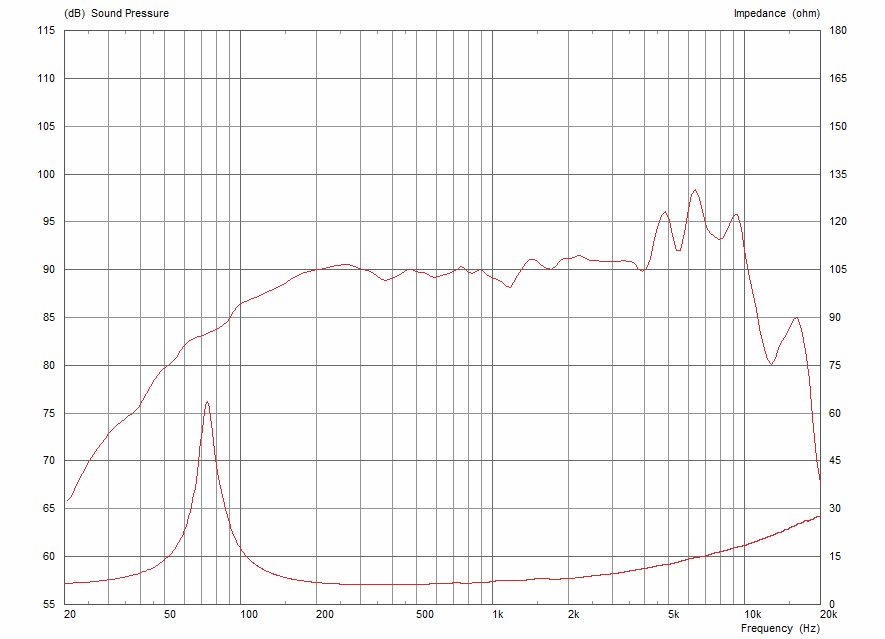

Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response126 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
126 plotted pointsMedium confidence127 selected pixels of 288
T/S Parameters
Valid
Fs85Hz
Qts0.54
Qes0.57
Qms9.2
Vas3.5L
Re5.4Ω
Le0.28mH
BL6.7Tm
Sd79cm²
Mms9g
Xmax4.8mm
SPL88dB
Power75W
Impedance8Ω
Voice Coil32mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.4kg
Diameter151.0mm
Overall Depth72.0mm
Cutout Diameter117.0mm
Bolt Circle Diameter140.0mm
