4-inch LF driver · SB12 series · 25 mm voice coil · 30 W
SB Acoustics SB12PFC25-8 8Ω
8 Ω
£22.25
4.4%RumoH · Ships from Netherlands · All 2 offers
- Fs
- 64Hz
- Xmax
- 5mm
- SPL
- 84dB
- Pe
- 30W
- BL
- 4.5T·m
- Vd
- 25cm³
- Qts
- 0.56
- Vas
- 4L

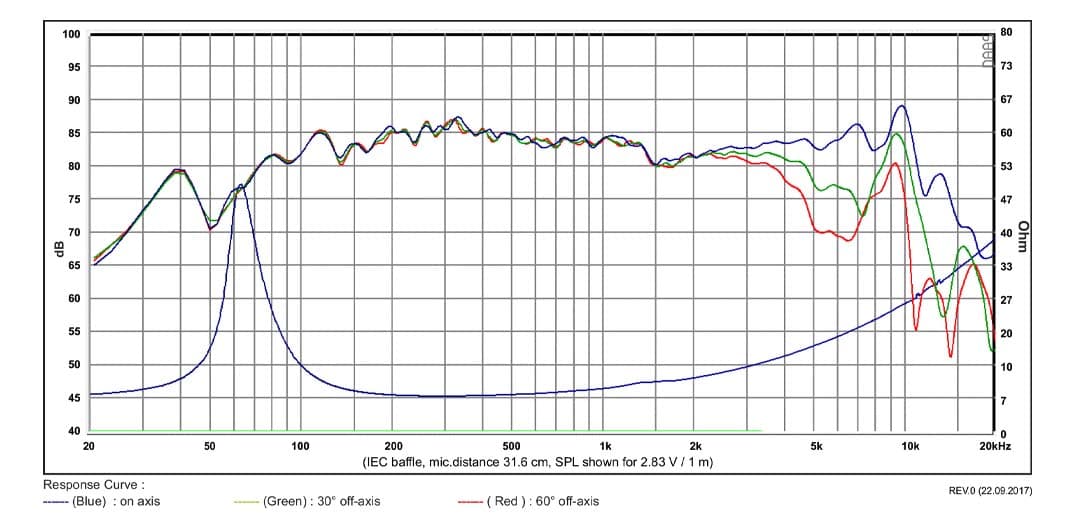

Published graphs
SB Acoustics SB12PFC25-8 is a 4-inch 8 ohm LF driver rated at 30 W RMS. The validated T/S data includes Fs 64 Hz, Qts 0.56, Vas 4.3 L, Xmax 5 mm, sensitivity 84.4 dB, plus 25 cm³ Vd and 98 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £22.25.
The published T/S values agree with each other
Thiele/Small
- Fs
- 64Hz
- Qts
- 0.56
- Qes
- 0.65
- Qms
- 4.1
- Vas
- 4.3L
- Re
- 6.4Ω
- Le
- 0.36mH
Motor and cone
- BL
- 4.5T·m
- Sd
- 50cm²
- Mms
- 5g
- Xmax
- 5mm
- Vd †
- 25cm³
- Voice coil
- 25mm
- Flux density
- 0.84T
Power and response
- Sensitivity †
- 84.4dB
- Manufacturer sensitivity
- 84.5dB
- Power
- 30W
- Impedance
- 8Ω
- EBP †
- 98 · Sealed or vented
Size and mounting
- Weight
- 0.7kg
Other published values
- Cms
- 1.21mm/N
† Calculated by bits from the published values
What this validation status means
Everything else SB Acoustics lists
LF · Primary · 4″
- BL
- 4.5T·m
- Fs
- 64Hz
- Le
- 0.36mH
- Re
- 6.4Ω
- Sd
- 50cm²
- Cms
- 1.21mm/N
- Mms
- 5g
- Qes
- 0.65
- Qms
- 4.1
- Qts
- 0.56
- SPL
- 84.4dB
- Vas
- 4.3L
- Xmax
- 5mm
- Power
- 30W
- Impedance
- 8Ω
- Flux density
- 0.84T
- Sensitivity
- 84.5dB
- Calculated sensitivity †
- 84.4dB
- Manufacturer sensitivity
- 84.5dB
- Voice coil
- 25mm
- Weight
- 0.7kg
