Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespVisaton W 100 S 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverW series
Visaton

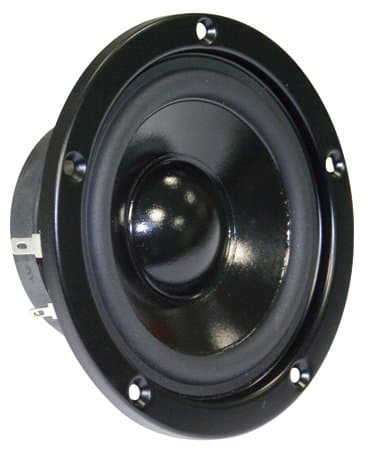

Visaton W 100 S
Rated 4.0 out of 51 rating at 1 shopVisaton W 100 S is a 4" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 63Hz, Qts 0.54, Vas 5.4L, Xmax 4mm, sensitivity 85.1dB, plus 21cm³ Vd and 94 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £30.93.
Size
4"
Impedance
8Ω
RMS Power
30W
Sensitivity
85.1dB
EBP
94
Either alignment
Vd
21cm³
T/S Parameters
Valid
Fs63Hz
Qts0.54
Qes0.67
Qms2.7
Vas5.4L
Re6.7Ω
Le0.90mH
BL4.3Tm
Sd53cm²
Mms5g
Xmax4.0mm
SPL85dB
Power30W
Impedance8Ω
F High15000Hz
Voice Coil20mm
Flux Density1.00T
Pricing & availability
Price definitionsPrice movement
Other offers
3 vendorsSoundImports
Updated 28 Sept 2026· 8Ω
Source: inc VAT
£30.93
inc VAT
5 in stock
RumoH
Updated 28 Sept 2026· 8Ω
Source: inc VAT
£31.58
inc VAT
Impact Audio
Updated 28 Sept 2026· 8Ω
Source: ex VAT · 20%
£34.74
inc VAT
In stock
Best current price
Updated 28 Sept 2026
Speaker en Co
£30.93
Avg £32.05£1.11 below avg (-3.5%)
inc VAT
Reviews
How ratings workRated 4.0 out of 5from 1 rating at 1 shop
- Read reviews on SoundImportsSoundImportsRated 4.0 out of 5 · 1 rating · Checked 28 Sep 2026
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.5kg
Diameter100.0mm
Cutout Diameter94.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
W 100 S
4"
Best current price
£30.93
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
69%
Similarity
61% cheaper£12.07
GRS
4SMP-8
4"
Lower price
Xmax4mm0%
Qts0.65+20%
BL4.2Tm-2%
Vas4L-26%
Qes0.83+24%
79%
Similarity
55% cheaper£13.85
Visaton
FR 10 - 4 OHM
4"
Lower price
Xmax4mm0%
Qts0.540%
BL4.6Tm+7%
Vas2.3L-57%
Qes0.7+4%
49%
Similarity
54% cheaper£14.15
Peerless
SDS-P830855
4"
Lower price
Xmax5mm+25%
Qts0.48-11%
BL5.2Tm+22%
Vas3.3L-40%
Qes0.54-20%
70%
Similarity
38% cheaper£19.32
HiVi
B4N
4"
Lower price
Xmax3.2mm-20%
Qts0.52-4%
BL5.1Tm+19%
Vas4.5L-17%
Qes0.63-6%
45%
Similarity
35% cheaper£20.22
Sica
5 D 1 CS
5"
Lower price
Xmax3mm-25%
Qts0.52-4%
BL5.7Tm+34%
Vas5.5L+2%
Qes0.58-13%
64%
Similarity
32% cheaper£21.11
Dayton Audio
DA135-8
4"
Lower price
Xmax3mm-25%
Qts0.540%
BL5.3Tm+24%
Vas7.4L+37%
Qes0.68+1%
41%
Similarity
20% cheaper£24.89
Dayton Audio
SIG120-4
4.75"
Lower price
Xmax4mm0%
Qts0.43-20%
BL5Tm+17%
Vas3.1L-43%
Qes0.47-30%
61%
Similarity
19% cheaper£24.95
CIARE
HW129
5"
Lower price
Xmax3.9mm-3%
Qts0.55+2%
BL5.2Tm+22%
Vas6.1L+13%
Qes0.76+13%
54%
Similarity
£30.90
Dayton Audio
DSA115-8
4"
Xmax4.1mm+2%
Qts0.42-22%
BL5.4Tm+27%
Vas4L-27%
Qes0.53-21%
70%
Similarity
£30.93
Visaton
W 100 S - 4 Ohm
4"
Xmax4mm0%
Qts0.46-15%
BL3.7Tm-14%
Vas4.5L-17%
Qes0.54-19%
56%
Similarity
1% more£31.36
Dayton Audio
ND105-8
4"
Higher price
Xmax4mm0%
Qts0.66+22%
BL5.4Tm+27%
Vas3L-45%
Qes0.74+10%
73%
Similarity
7% more£33.08
Dayton Audio
ND140-4
4"
Higher price
Xmax4mm0%
Qts0.63+17%
BL3.9Tm-9%
Vas7.2L+33%
Qes0.72+7%
