Overview
LF DriverSP series
Monacor
Monacor SP-60/4
Monacor SP-60/4 is a 4" 4 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 65Hz, Qts 0.49, Vas 6L, Xmax 2mm, sensitivity 86.1dB, plus 11cm³ Vd and 102 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
RMS Power
30W
Sensitivity
86.1dB
90.0dBmanufacturer; using T/S-derived value (3.9dB delta).
EBP
102
Vented alignment
Vd
11cm³
T/S Parameters
Valid
Fs65Hz
Qts0.49
Qes0.64
Qms2.1
Vas6.0L
Re3.3Ω
Le0.20mH
BL2.9Tm
Sd55cm²
Mms4g
Xmax2.0mm
SPL86dB
Power30W
Impedance4Ω
F Low3Hz
F High8000Hz
Voice Coil26mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

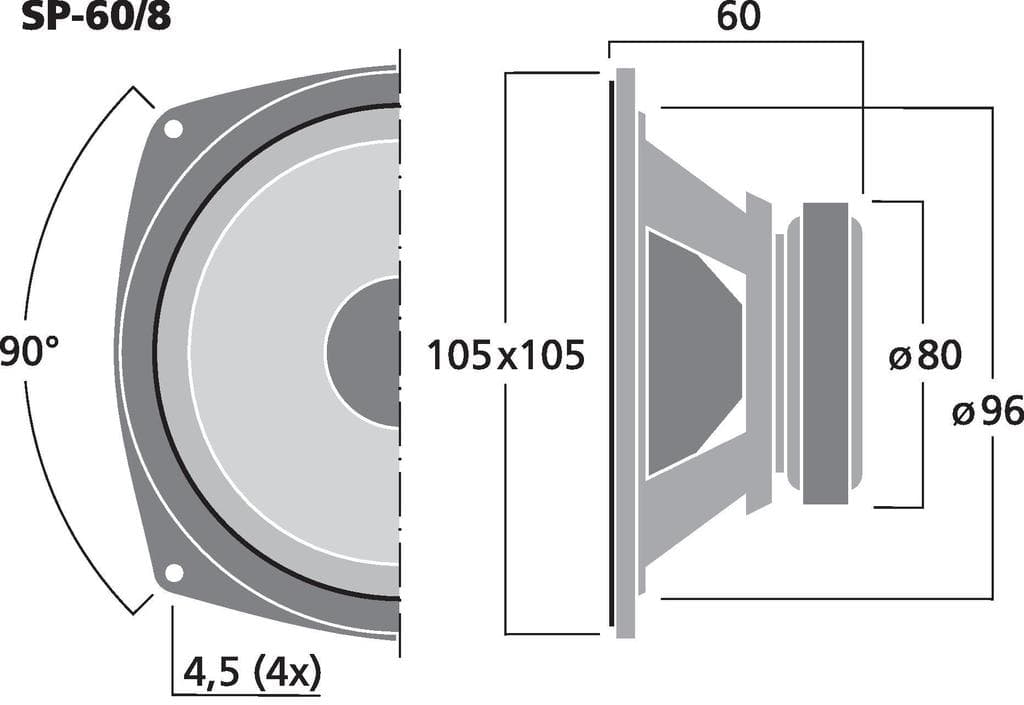

Dimensions & Physical
Weight0.7kg
Diameter105.0mm
Overall Depth60.0mm
Cutout Diameter96.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
SP-60/4
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
Image unavailable
68%
Similarity
Wavecor
WF118OM01
4.5"
Xmax1.9mm-5%
Qts0.53+8%
BL3.4Tm+17%
Vas5.5L-8%
Qes0.56-12%
22%
Similarity

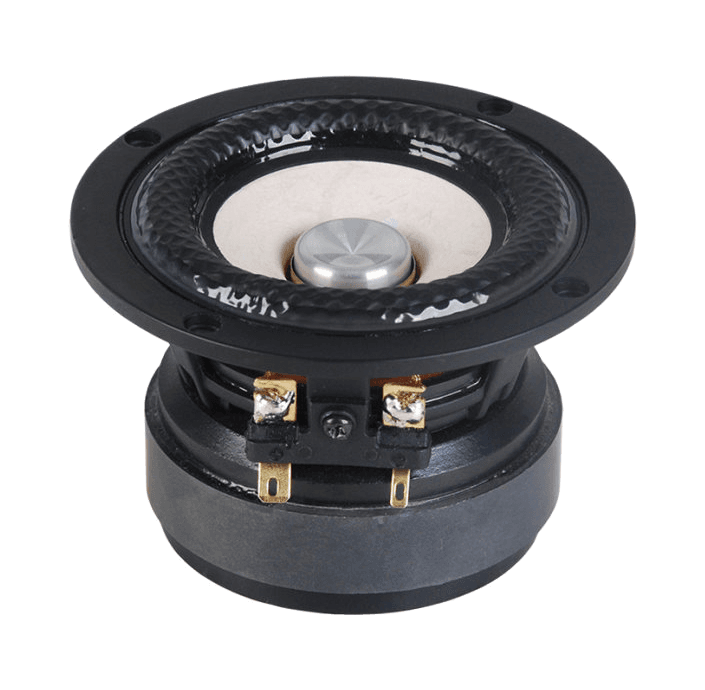

Tang Band
W3-2141
3"
Xmax1.6mm-20%
Qts0.39-20%
BL3.6Tm+26%
Vas3.3L-45%
Qes0.46-28%
