LF Driver
Sica

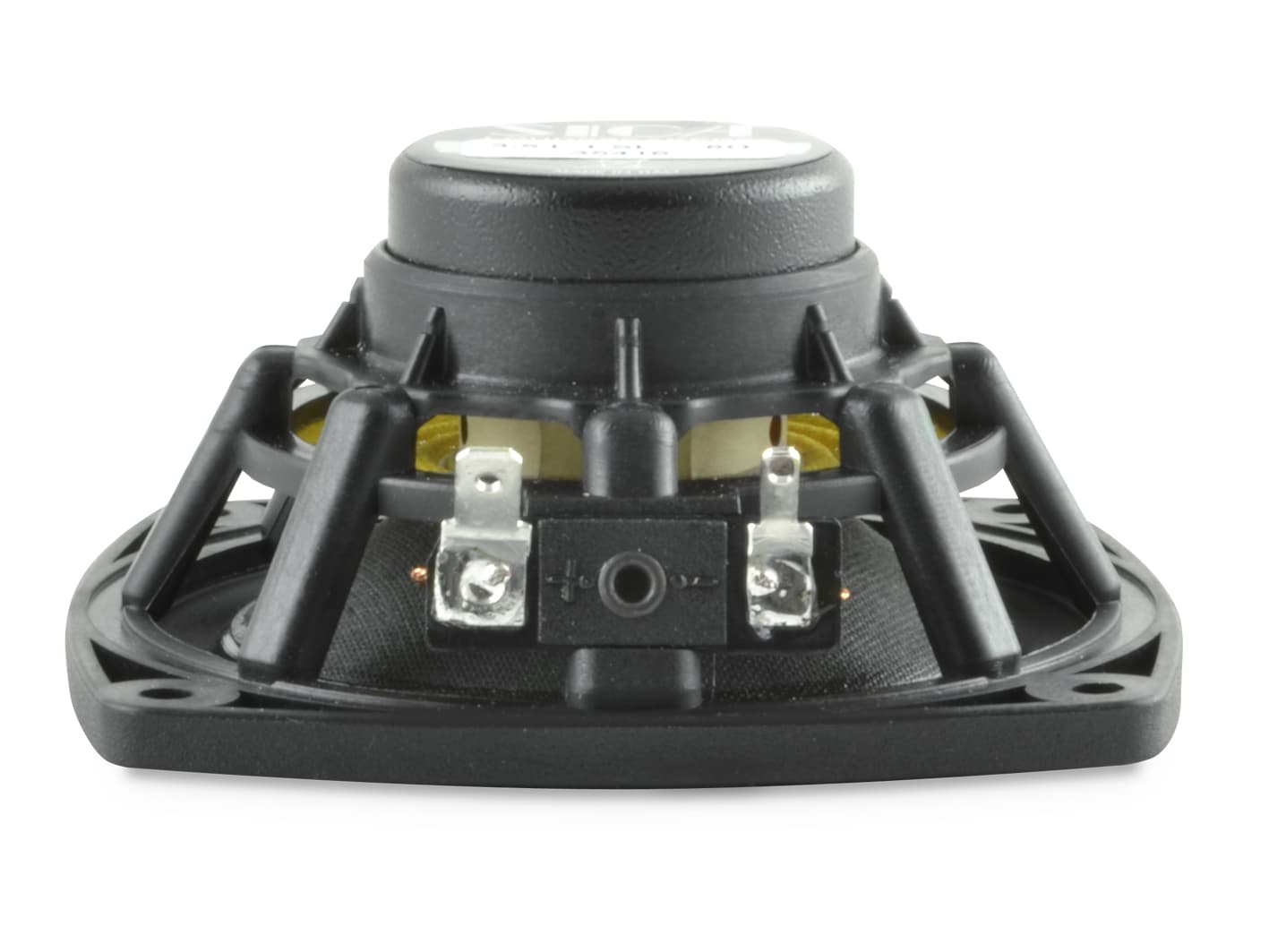

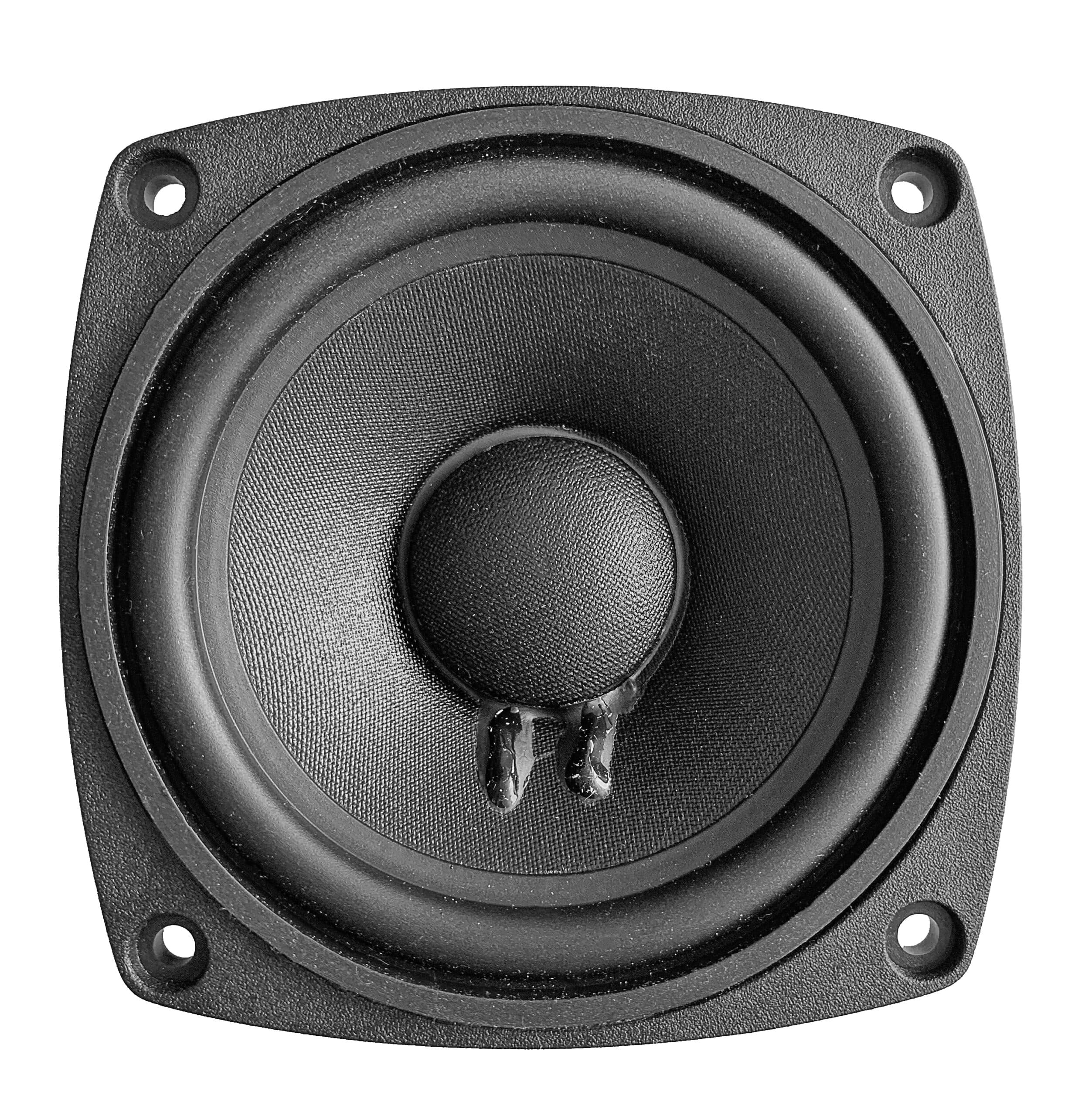

Sica 3.5 L 1 SL
Sica 3.5 L 1 SL is a 3.5" 8 ohm LF driver rated at 45W RMS. The validated T/S data includes Fs 108Hz, Qts 0.57, Vas 1.4L, Xmax 1.5mm, sensitivity 86.6dB, plus 6cm³ Vd and 177 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3.5"
Impedance
8Ω
RMS Power
45W
Sensitivity
86.6dB
88.6dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
177
Vented alignment
Vd
6cm³
T/S Parameters
Valid
Fs108Hz
Qts0.57
Qes0.61
Qms7.8
Vas1.4L
Re5.0Ω
Le0.12mH
BL4.3Tm
Sd39cm²
Mms3g
Xmax1.5mm
SPL87dB
Power45W
Impedance8Ω
Voice Coil25mm
Flux Density1.20T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.2kg
Diameter88.0mm
Overall Depth42.2mm
Cutout Diameter81.0mm
Bolt Circle Diameter98.0mm
