Monacor SP-45/8 8Ω
8 Ω · 3–16000 Hz
No current price
- Fs
- 120Hz
- Xmax
- 0.75mm
- SPL
- 88dB
- Pe
- 20W
- BL
- 3.4T·m
- Vd
- 2cm³
- Qts
- 0.55
- Vas
- 2L

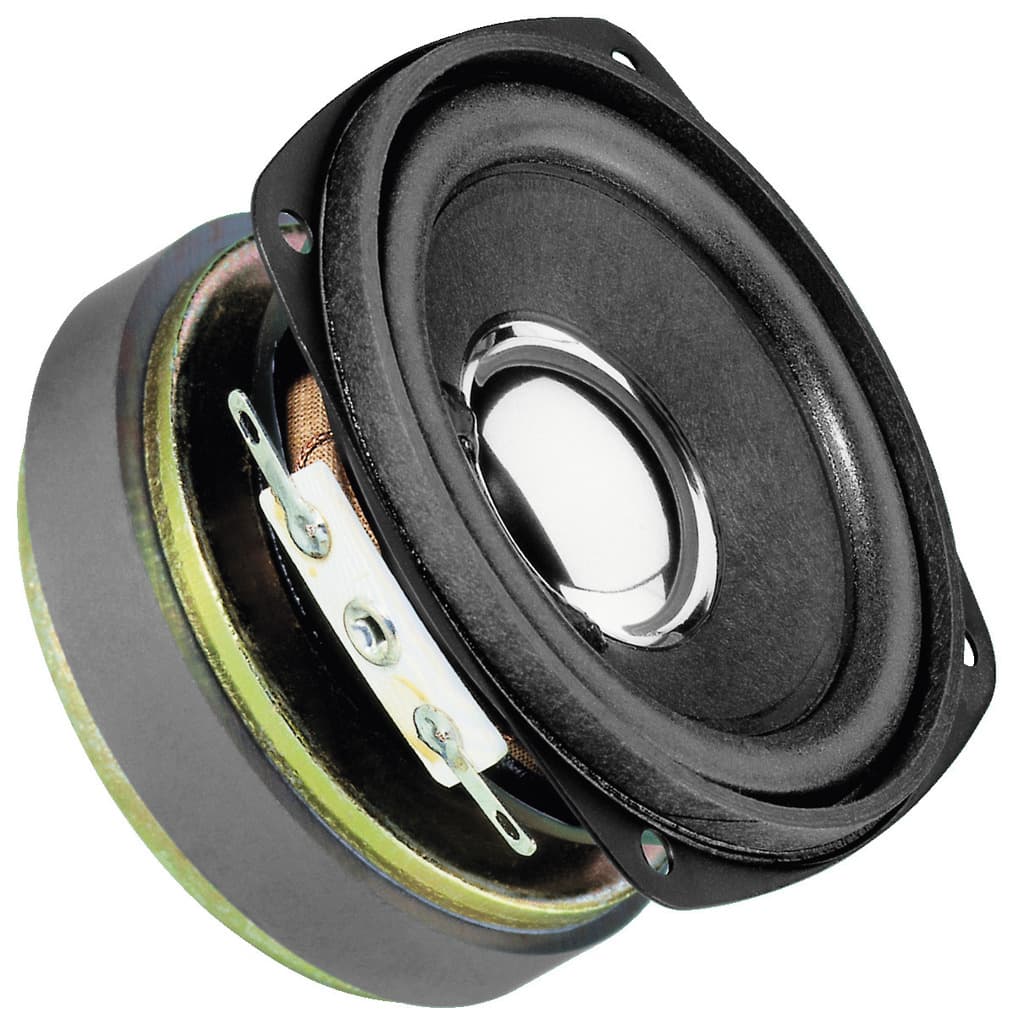

Monacor SP-45/8 is a 3-inch 8 ohm LF driver rated at 20 W RMS. The validated T/S data includes Fs 120 Hz, Qts 0.55, Vas 1.5 L, Xmax 0.75 mm, sensitivity 87.8 dB, plus 2 cm³ Vd and 176 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 120Hz
- Qts
- 0.55
- Qes
- 0.68
- Qms
- 2.8
- Vas
- 1.5L
- Re
- 6.5Ω
- Le
- 0.15mH
Motor and cone
- BL
- 3.4T·m
- Sd
- 31cm²
- Mms
- 2g
- Xmax
- 0.75mm
- Vd †
- 2cm³
- Voice coil
- 19mm
Power and response
- Sensitivity †
- 87.8dB
- Manufacturer sensitivity
- 88dB
- Power
- 20W
- Impedance
- 8Ω
- Range
- 3–16000Hz
- EBP †
- 176 · Leans vented

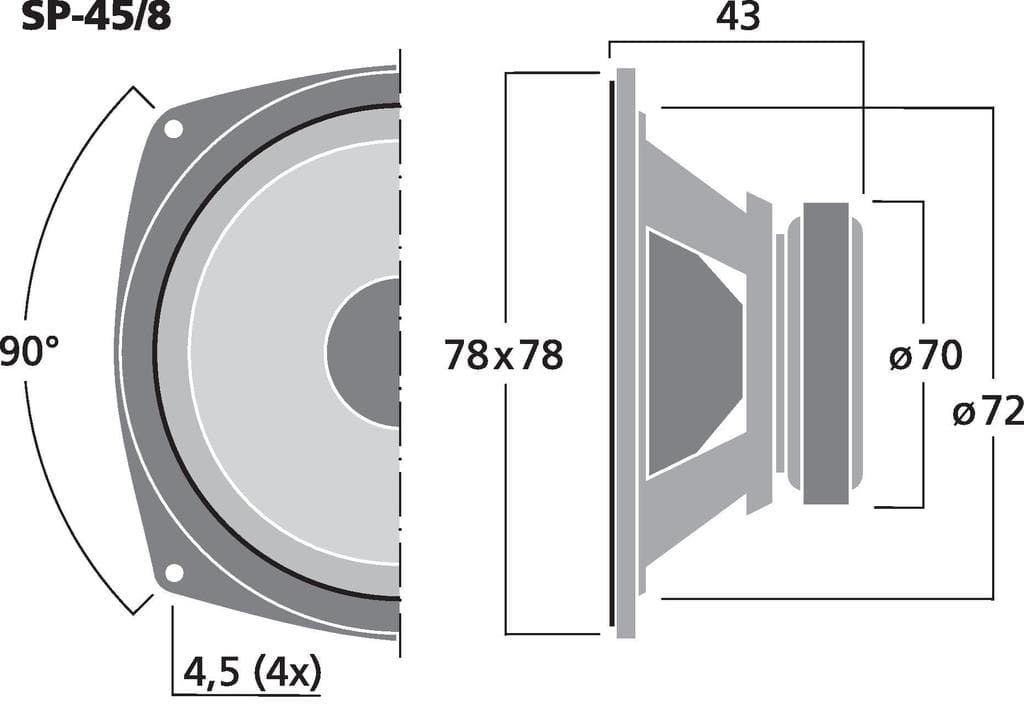

Size and mounting
- Diameter
- 93mm
- Cutout
- 72mm
- Depth
- 43mm
- Weight
- 0.4kg
Other published values
- Cms
- 1.10mm/N
- Power Peak
- 40
Other dimensions
- Mounting Depth
- 43
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
MF · Primary · 3″
- BL
- 3.4T·m
- Fs
- 120Hz
- Le
- 0.15mH
- Re
- 6.5Ω
- Sd
- 31cm²
- Cms
- 1.10mm/N
- Mms
- 2g
- Qes
- 0.68
- Qms
- 2.8
- Qts
- 0.55
- SPL
- 87.8dB
- Vas
- 1.5L
- Xmax
- 0.75mm
- Power
- 20W
- Impedance
- 8Ω
- Power Peak
- 40
- Sensitivity
- 88dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 87.8dB
- High limit
- 16000Hz
- Manufacturer sensitivity
- 88dB
- Voice coil
- 19mm
- Weight
- 0.4kg
- Diameter
- 93mm
- Depth
- 43mm
- Mounting Depth
- 43
- Cutout
- 72mm
02
Compare
Same-size drivers, compared with the SP-45/8. Clear differences are green when better and red when worse.
This driverSP-45/8
Best price
–
Fs
120 Hz
Qts
0.55
Vas
1.5 L
BL
3.4 T·m
Xmax
0.75 mm
Sensitivity
87.8 dB
Power
20 W
Dayton AudioPC83-8
£13.10Fs82 Hz −32%, better
Qts0.63 +15%, worse
Vas1.7 L +13%, worse
BL3.5 T·m –
Xmax2 mm +167%, better
Sensitivity83 dB −4.8, worse
Sica3.5 F 1 CS
£16.66Fs107 Hz −11%, better
Qts0.57 +4%
Vas1.4 L −7%
BL4.2 T·m +24%, better
Xmax1.5 mm +100%, better
Sensitivity86.4 dB −1.4
MonacorSPX-32M
£18.42Fs110 Hz −8%
Qts0.56 –
Vas1.6 L +7%
BL3.7 T·m +9%
Xmax1.1 mm +47%, better
Sensitivity87.5 dB –
MonacorSPX-31M
£19.26Fs110 Hz −8%
Qts0.58 +5%
Vas1.3 L −13%, better
BL3.6 T·m +7%
Xmax1.1 mm +47%, better
Sensitivity86 dB −1.8
Sica3.5 L 1 SL
£23.36Fs108 Hz −10%, better
Qts0.57 +4%
Vas1.4 L −7%
BL4.3 T·m +26%, better
Xmax1.5 mm +100%, better
Sensitivity86.6 dB −1.2
VisatonKT 100 V
£24.24Fs42 Hz −65%, better
Qts0.56 –
Vas7.5 L +400%, worse
BL3.3 T·m –
Xmax2 mm +167%, better
Sensitivity81.1 dB −6.7, worse
CIAREPA087
£24.28Fs74 Hz −38%, better
Qts0.62 +13%, worse
Vas2.2 L +47%, worse
BL3.5 T·m –
Xmax2 mm +167%, better
Sensitivity83 dB −4.8, worse
Dayton AudioND90-4
£25.04Fs90 Hz −25%, better
Qts0.63 +15%, worse
Vas1.1 L −29%, better
BL3.5 T·m –
Xmax4 mm +433%, better
Sensitivity82.4 dB −5.4, worse
Tang BandW3-871B
£27.63Fs110 Hz −8%
Qts0.52 −5%
Vas1.2 L −22%, better
BL3.7 T·m +9%
Xmax0.5 mm −33%, worse
Sensitivity86.1 dB −1.7
Dayton AudioRS100-4
£29.91Fs85 Hz −29%, better
Qts0.53 −4%
Vas1.4 L −3%
BL3.2 T·m −6%
Xmax4 mm +433%, better
Sensitivity83.3 dB −4.5, worse
Dayton AudioRS100P-4
£29.91Fs85 Hz −29%, better
Qts0.54 –
Vas1.9 L +24%, worse
BL3.0 T·m −13%, worse
Xmax4 mm +433%, better
Sensitivity84.3 dB −3.5, worse
Dayton AudioRS100P-8
£29.91Fs96 Hz −20%, better
Qts0.54 –
Vas1.8 L +21%, worse
BL4.0 T·m +16%, better
Xmax3.7 mm +393%, better
Sensitivity85.5 dB −2.3, worse
Dayton AudioRS100-8
£29.91Fs92 Hz −23%, better
Qts0.58 +5%
Vas1.4 L −5%
BL4.2 T·m +24%, better
Xmax3.5 mm +367%, better
Sensitivity83.7 dB −4.1, worse
Dayton AudioDMA105-4
£30.10Fs73 Hz −39%, better
Qts0.51 −7%
Vas4.2 L +183%, worse
BL3.4 T·m –
Xmax2.5 mm +233%, better
Sensitivity86.2 dB −1.6
Tang BandW3-881SJ
£30.14Fs100 Hz −17%, better
Qts0.58 +5%
Vas2.3 L +54%, worse
BL3.3 T·m –
Xmax0.2 mm −73%, worse
Sensitivity87.7 dB –
Tang BandW3-871SC
£30.90Fs110 Hz −8%
Qts0.59 +7%
Vas1.6 L +10%
BL3.5 T·m +3%
Xmax0.5 mm −33%, worse
Sensitivity86.9 dB −0.9
Tang BandW3-315E
£32.19Fs100 Hz −17%, better
Qts0.52 −5%
Vas1.7 L +12%, worse
BL3.9 T·m +14%, better
Xmax1.3 mm +67%, better
Sensitivity86.7 dB −1.1
FountekFR58EX
£37.60Fs134 Hz +12%, worse
Qts0.55 –
Vas0.01 L −99%, better
BL3.4 T·m –
Xmax2.9 mm +287%, better
Sensitivity67.5 dB −20.3, worse
WavecorWF095WA02
£41.14Fs86 Hz −28%, better
Qts0.62 +13%, worse
Vas1.6 L +7%
BL3.6 T·m +6%
Xmax2.7 mm +260%, better
Sensitivity83.7 dB −4.1, worse
WavecorWF095WA01
£41.14Fs89 Hz −26%, better
Qts0.64 +16%, worse
Vas1.5 L –
BL3 T·m −12%, worse
Xmax2.7 mm +260%, better
Sensitivity83.8 dB −4, worse
Tang BandW3-1364SA
£50.24Fs105 Hz −13%, better
Qts0.59 +7%
Vas1.9 L +25%, worse
BL3.1 T·m −7%
Xmax0.5 mm −33%, worse
Sensitivity86.5 dB −1.3
Scanspeak10F/8414G10
£66.31Fs100 Hz −17%, better
Qts0.51 −7%
Vas1.6 L +5%
BL4.3 T·m +26%, better
Xmax2.3 mm +207%, better
Sensitivity85.9 dB −1.9
MonacorSP-45/4
No current priceFs120 Hz –
Qts0.55 –
Vas1.5 L –
BL2.4 T·m −29%, worse
Xmax0.75 mm –
Sensitivity87.8 dB –

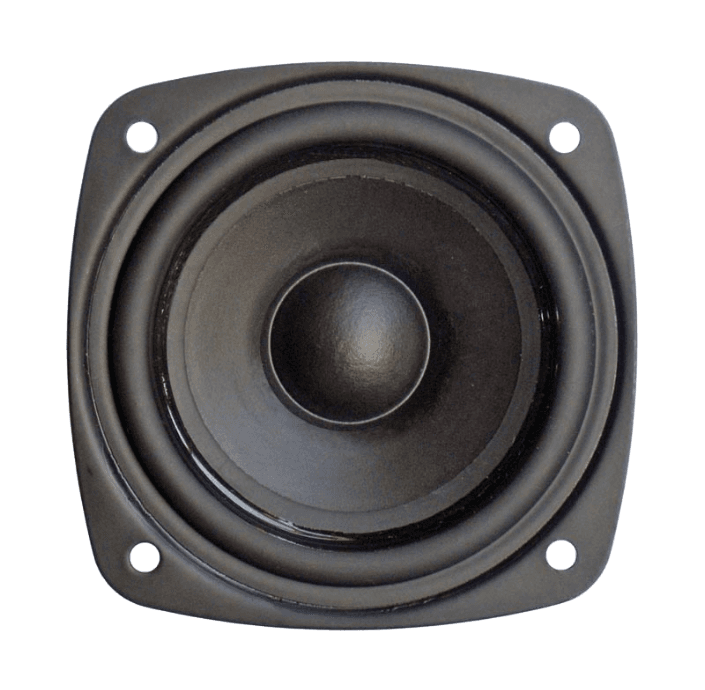

Tang BandW3-1053SC
No current priceFs100 Hz −17%, better
Qts0.52 −5%
Vas1.8 L +18%, worse
BL3.7 T·m +9%
Xmax0.75 mm –
Sensitivity87 dB −0.8
Tang BandW3-1319SA
No current priceFs110 Hz −8%
Qts0.55 –
Vas1.8 L +18%, worse
BL3.5 T·m +4%
Xmax0.5 mm −33%, worse
Sensitivity87.4 dB –

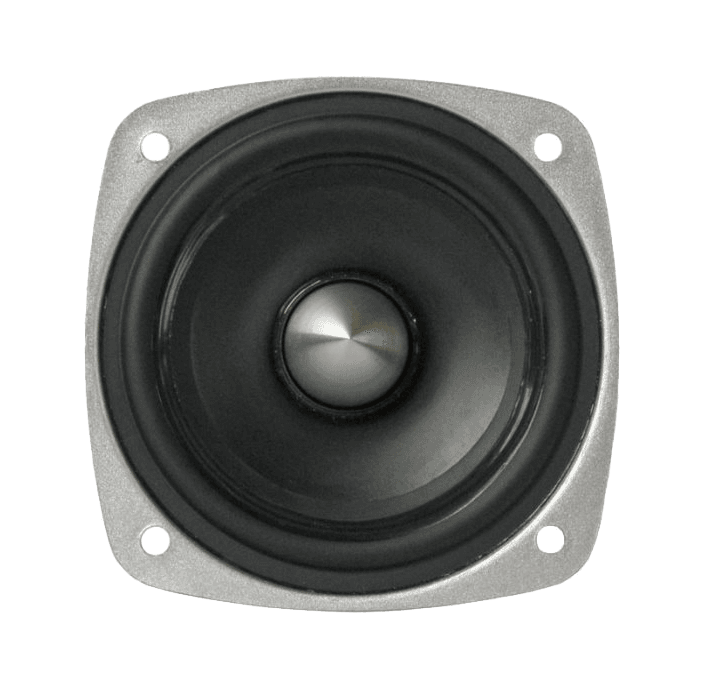

Tang BandW3-926SDF
No current priceFs100 Hz −17%, better
Qts0.49 −11%, better
Vas1.9 L +26%, worse
BL3.7 T·m +9%
Xmax0.75 mm –
Sensitivity87.5 dB –
Tang BandW3-532SQ
No current priceFs100 Hz −17%, better
Qts0.61 +11%, worse
Vas1.7 L +12%, worse
BL3.5 T·m +4%
Xmax0.2 mm −73%, worse
Sensitivity85.9 dB −1.9
Tang BandW3-582A
No current priceFs100 Hz −17%, better
Qts0.60 +9%
Vas1.8 L +18%, worse
BL3.6 T·m +5%
Xmax0.25 mm −67%, worse
Sensitivity86.2 dB −1.6

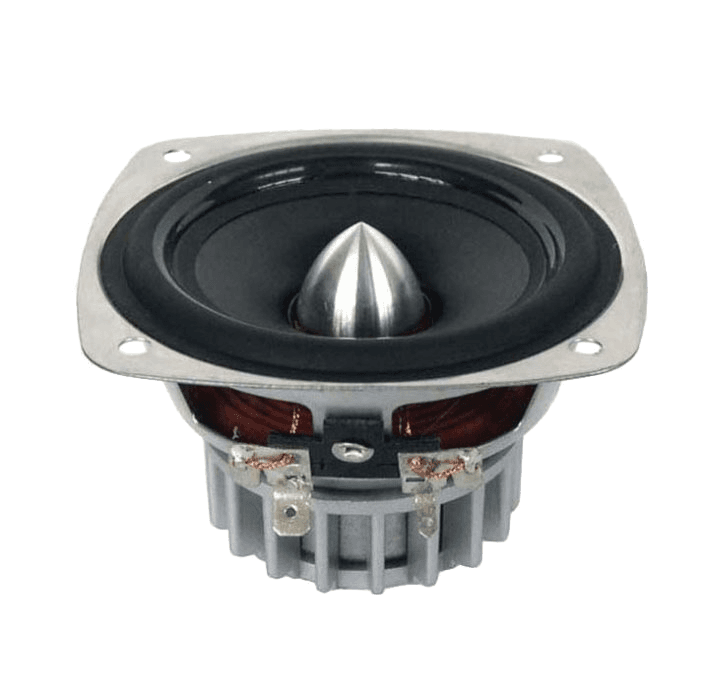

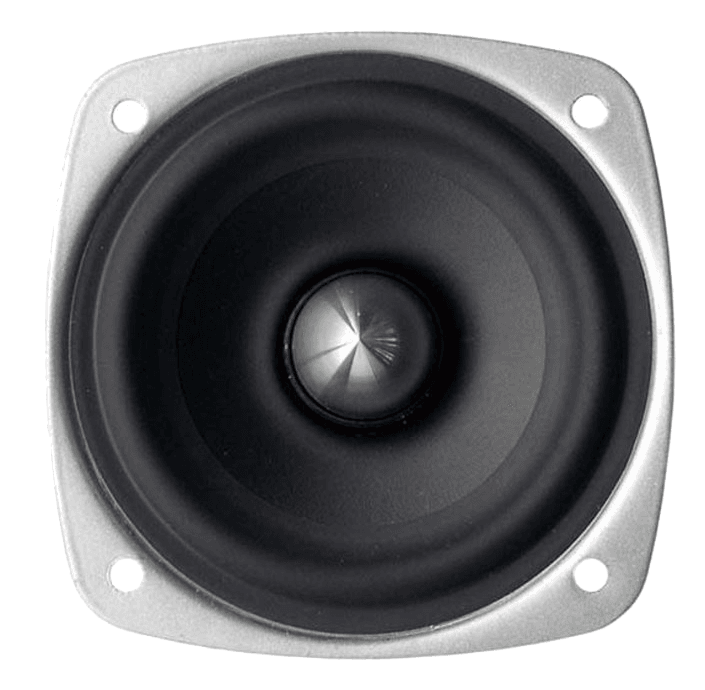

Tang BandW3-926SD
