Overview
LF Driver
PHL Audio
PHL Audio 930
PHL Audio 930 is a 5" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 130Hz, Qts 0.50, Vas 2.5L, Xmax 4.5mm, sensitivity 91.9dB, plus 48cm³ Vd and 228 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
100W
Sensitivity
91.9dB
EBP
228
Vented alignment
Vd
48cm³
T/S Parameters
Valid
Fs130Hz
Qts0.50
Qes0.57
Qms4.0
Vas2.5L
Re5.7Ω
Le0.62mH
BL8.7Tm
Sd106cm²
Mms9g
Xmax4.5mm
SPL92dB
Power100W
Power Nominal100W
Impedance8Ω
F Low110Hz
F High4000Hz
Voice Coil38mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.0kg
Diameter163.0mm
Overall Depth75.0mm
Cutout Diameter124.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
PHL Audio
930
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
11 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
Image unavailable
94%
Similarity
PHL Audio
930ND
5"
Xmax4.5mm0%
Qts0.48-4%
BL8.8Tm+1%
Vas2.6L+4%
Qes0.55-4%
84%
Similarity
£188.67
FaitalPRO
5HX220
5"
Xmax4.6mm+2%
Qts0.56+12%
BL7.7Tm-11%
Vas2.5L0%
Qes0.6+5%
71%
Similarity
Celestion
TF0512HE
5"
Xmax4.8mm+6%
Qts0.54+7%
BL6.7Tm-23%
Vas3.5L+38%
Qes0.570%
65%
Similarity
£118.33
PRV Audio
5MR450-NDY-4
5"
Xmax3.3mm-27%
Qts0.49-2%
BL7.9Tm-9%
Vas1.6L-38%
Qes0.5-12%
62%
Similarity
BMS
5C150
5"
Xmax5mm+11%
Qts0.43-14%
BL11.4Tm+31%
Vas2.4L-4%
Qes0.48-16%
58%
Similarity
£11.96
Dayton Audio
TCP115-8
4"
Xmax4mm-11%
Qts0.43-14%
BL7.4Tm-15%
Vas2.5L+1%
Qes0.54-5%
58%
Similarity
£112.82
FaitalPRO
5HX140
5"
Xmax5.1mm+13%
Qts0.41-18%
BL8Tm-8%
Vas3.4L+36%
Qes0.45-21%
55%
Similarity
£64.09
Eminence
BETA-6A
6"
Xmax4.5mm0%
Qts0.56+12%
BL8.1Tm-7%
Vas3.5L+40%
Qes0.66+16%
54%
Similarity

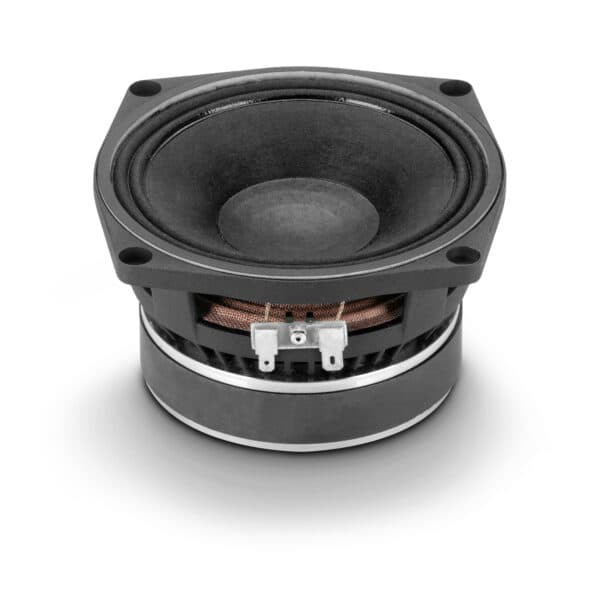

BMS
