6.5-inch LF driver · MAN061 series · 45 mm voice coil · 150 W
Lavoce MAN061.80 8Ω
8 Ω · 170–6000 Hz
No price for delivery to the UK
- Fs
- 172Hz
- Xmax
- 3mm
- SPL
- 93dB
- Pe
- 150W
- BL
- 11.0T·m
- Vd
- 40cm³
- Qts
- 0.57
- Vas
- 2L
Lavoce MAN061.80 is a 6.5-inch 8 ohm LF driver rated at 150 W RMS. The validated T/S data includes Fs 172 Hz, Qts 0.57, Vas 1.6 L, Xmax 3 mm, sensitivity 93 dB, plus 40 cm³ Vd and 265 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 172Hz
- Qts
- 0.57
- Qes
- 0.65
- Qms
- 4.7
- Vas
- 1.6L
- Re
- 5.6Ω
- Le
- 0.09mH
Motor and cone
- BL
- 11.0T·m
- Sd
- 132cm²
- Mms
- 13g
- Xmax
- 3mm
- Vd †
- 40cm³
- Voice coil
- 45mm
Power and response
- Sensitivity †
- 93dB
- Manufacturer sensitivity
- 94.5dB
- Power
- 150W
- Impedance
- 8Ω
- Min. impedance
- 6.8Ω
- Range
- 170–6000Hz
- EBP †
- 265 · Leans vented
Size and mounting
- Weight
- 1.2kg
Other published values
- Cms
- 0.065mm/N
- Xmech
- 5.5
- Power Program
- 300
Sensitivity shows 93.0 dB, calculated from the T/S values. Lavoce publishes 94.5 dB, 1.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Lavoce lists
LF · Primary · 6.5″
- BL
- 11.0T·m
- Fs
- 172Hz
- Le
- 0.09mH
- Re
- 5.6Ω
- Sd
- 132cm²
- Cms
- 0.065mm/N
- Mms
- 13g
- Qes
- 0.65
- Qms
- 4.7
- Qts
- 0.57
- SPL
- 93dB
- Vas
- 1.6L
- Xmax
- 3mm
- Xmech
- 5.5
- Power
- 150W
- Impedance
- 8Ω
- Sensitivity
- 94.5dB
- Low limit
- 170Hz
- Power Program
- 300
- Calculated sensitivity †
- 93dB
- High limit
- 6000Hz
- Manufacturer sensitivity
- 94.5dB
- Min. impedance
- 6.8Ω
- Voice coil
- 45mm
- Weight
- 1.2kg
02
Compare
Same-size drivers, compared with the MAN061.80. Clear differences are green when better and red when worse.
This driverMAN061.80
Best price
–
Fs
172 Hz
Qts
0.57
Vas
1.6 L
BL
11.0 T·m
Xmax
3 mm
Sensitivity
93 dB
Power
150 W
MonacorSPM-165/8
£27.63Fs49 Hz −72%, better
Qts0.55 −4%
Vas33 L +1975%, worse
BL5.8 T·m −47%, worse
Xmax3 mm –
Sensitivity89.7 dB −3.3, worse
MonacorSPH-174KE
£29.31Fs42 Hz −76%, better
Qts0.51 −11%, better
Vas26 L +1535%, worse
BL5.9 T·m −46%, worse
Xmax3 mm –
Sensitivity86.8 dB −6.2, worse
FaneSOVEREIGN 6-100
£41.00Fs115 Hz −33%, better
Qts0.64 +12%, worse
Vas2.2 L +38%, worse
BL13.3 T·m +20%, better
Xmax2.5 mm −17%, worse
Sensitivity89 dB −4, worse
LavoceMAF061.50
£42.73Fs177 Hz –
Qts0.52 −9%
Vas1.9 L +19%, worse
BL10.5 T·m −4%
Xmax3.6 mm +20%, better
Sensitivity94.7 dB +1.7
PRV Audio6MR400-4
£48.52Fs144 Hz −16%, better
Qts0.60 +5%
Vas4.4 L +177%, worse
BL6.4 T·m −42%, worse
Xmax3.3 mm +8%
Sensitivity95.2 dB +2.2, better
WavecorWF146WA02
£57.60Fs58 Hz −66%, better
Qts0.51 −11%, better
Vas10 L +529%, worse
BL6.4 T·m −42%, worse
Xmax3 mm –
Sensitivity87.6 dB −5.4, worse
WavecorWF168WA06
£57.60Fs41 Hz −76%, better
Qts0.50 −12%, better
Vas27.7 L +1642%, worse
BL6.4 T·m −42%, worse
Xmax3 mm –
Sensitivity87.5 dB −5.5, worse
EminenceALPHA-6A
£59.00Fs103 Hz −40%, better
Qts0.54 −5%
Vas5.8 L +265%, worse
BL8 T·m −27%, worse
Xmax3.5 mm +17%, better
Sensitivity92.3 dB −0.7
WavecorWF168WA02
£60.59Fs49 Hz −72%, better
Qts0.52 −9%
Vas24.6 L +1447%, worse
BL6.4 T·m −42%, worse
Xmax3 mm –
Sensitivity89.2 dB −3.8, worse
FaitalPRO6PR110
£62.80Fs100 Hz −42%, better
Qts0.53 −7%
Vas5.6 L +252%, worse
BL8.5 T·m −23%, worse
Xmax2.8 mm −8%
Sensitivity91.7 dB −1.3
EminenceBETA-6A
£64.09Fs123 Hz −28%, better
Qts0.56 –
Vas3.5 L +121%, worse
BL8.1 T·m −26%, worse
Xmax4.5 mm +50%, better
Sensitivity92 dB −1
Beyma6MI100
£67.06Fs128 Hz −26%, better
Qts0.51 −11%, better
Vas3.1 L +95%, worse
BL10.8 T·m –
Xmax3 mm –
Sensitivity92.8 dB –
B&C6MD38
£80.57Fs150 Hz −13%, better
Qts0.50 −12%, better
Vas2.3 L +45%, worse
BL14.5 T·m +31%, better
Xmax3.5 mm +17%, better
Sensitivity93.1 dB –
Beyma6G40ND
£96.25Fs100 Hz −42%, better
Qts0.38 −33%, better
Vas3.7 L +133%, worse
BL10.6 T·m −4%
Xmax3 mm –
Sensitivity91.2 dB −1.8
PRV Audio6MR500-NDY
£136.44Fs105 Hz −39%, better
Qts0.53 −7%
Vas5.1 L +223%, worse
BL9.8 T·m −11%, worse
Xmax4.2 mm +41%, better
Sensitivity92.4 dB −0.6
Tang BandW6-2144
£141.51Fs45 Hz −74%, better
Qts0.45 −21%, better
Vas34.6 L +2076%, worse
BL5.5 T·m −51%, worse
Xmax3 mm –
Sensitivity89.1 dB −3.9, worse

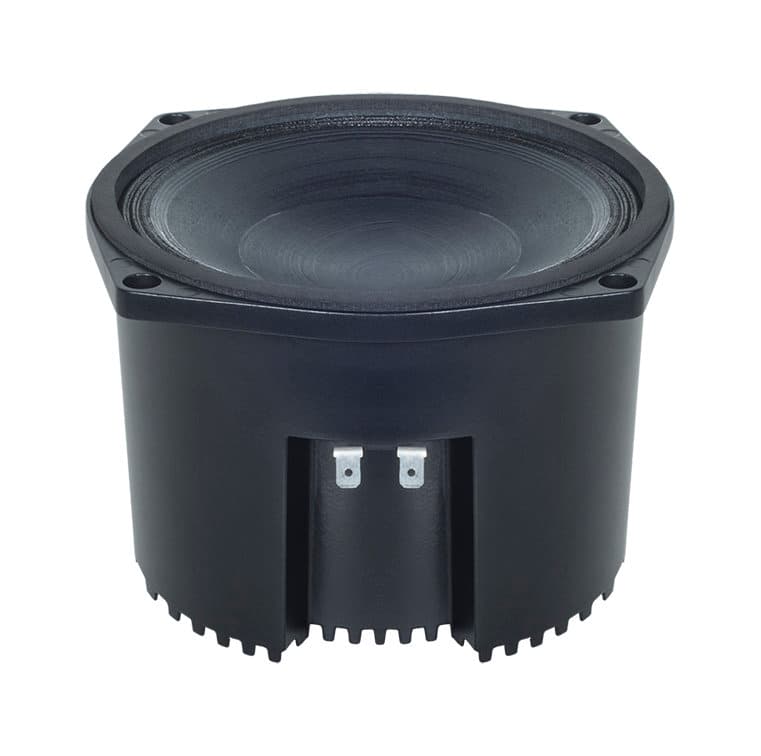

B&C6NSM51
