Overview
LF DriverMAF061 series
Lavoce
Lavoce MAF061.50
Lavoce MAF061.50 is a 6.5" 8 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 177Hz, Qts 0.52, Vas 1.9L, Xmax 3.6mm, sensitivity 94.7dB, plus 48cm³ Vd and 311 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £42.73.
Size
6.5"
Impedance
8Ω
RMS Power
120W
Sensitivity
94.7dB
96.5dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
311
Vented alignment
Vd
48cm³

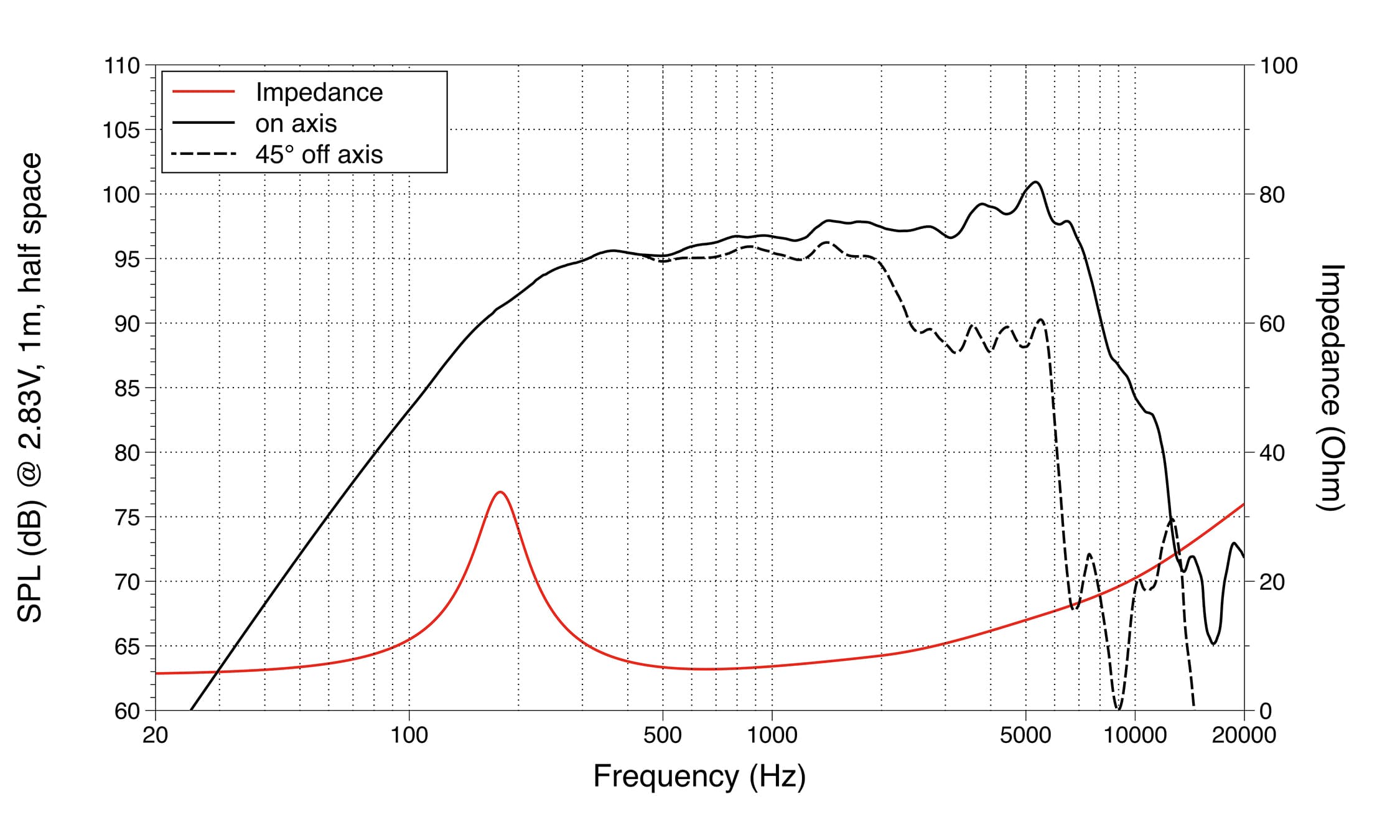

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs177Hz
Qts0.52
Qes0.57
Qms5.8
Vas1.9L
Re5.5Ω
Le0.29mH
BL10.5Tm
Sd132cm²
Mms10g
Xmax3.6mm
SPL95dB
Power120W
Impedance8Ω
Min Impedance6.4Ω
F Low150Hz
F High6000Hz
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 11 Sept 2026
bluearan
£42.73
inc VAT·8 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.3kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Lavoce
MAF061.50
6.5"
Best current price
£42.73
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
72%
Similarity
18% more£50.51
CIARE
NDI6
6.5"
Higher price
Xmax3mm-17%
Qts0.46-12%
BL10.5Tm0%
Vas2.5L+32%
Qes0.54-5%
72%
Similarity
91% more£81.62
Lavoce
MAN061.80
6.5"
Higher price
Xmax3mm-17%
Qts0.57+10%
BL11Tm+5%
Vas1.6L-16%
Qes0.65+14%
59%
Similarity
SB Audience
NERO-6MRN150D
6"
Xmax3.4mm-5%
Qts0.48-8%
BL13.1Tm+24%
Vas1.1L-42%
Qes0.58+2%
