Overview
LF Driver6MD series
B&C
B&C 6MD38
B&C 6MD38 is a 6.5" 16 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 150Hz, Qts 0.50, Vas 2.3L, Xmax 3.5mm, sensitivity 93.1dB, plus 46cm³ Vd and 246 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £80.57.
Size
6.5"
Impedance
16Ω
RMS Power
120W
Sensitivity
93.1dB
95.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
246
Vented alignment
Vd
46cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
free-air SPL240 ptsp3medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 5a3011ead1b2…Medium confidence5,729 selected pixels of 5,729 - Trace datasheet-response-trace-poc/v2

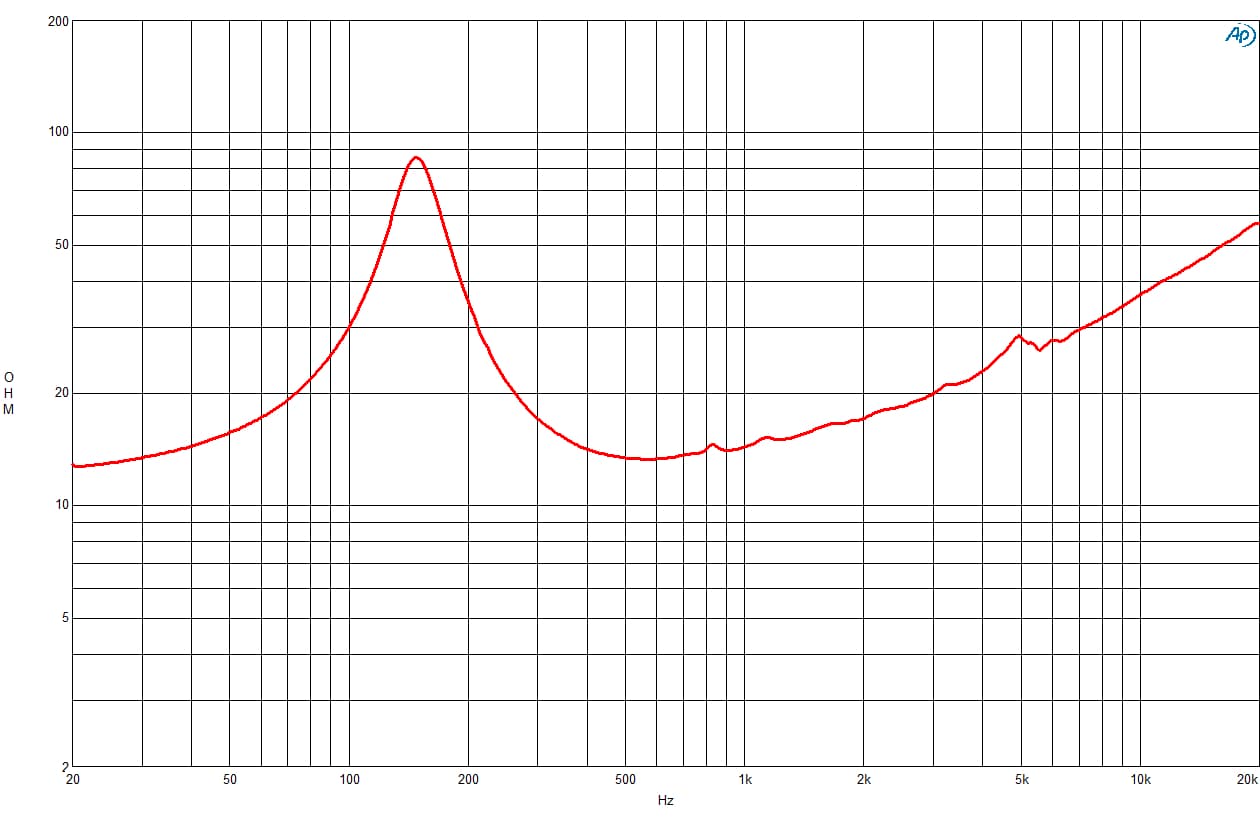

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 5a3011ead1b2…Medium confidence3,483 selected pixels of 3,483
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs150Hz
Qts0.50
Qes0.61
Qms2.8
Vas2.3L
Re11.7Ω
Le0.40mH
BL14.5Tm
Sd132cm²
Mms11g
Xmax3.5mm
SPL93dB
Power120W
Power Nominal120W
Impedance16Ω
Min Impedance13.3Ω
F Low150Hz
F High6000Hz
Voice Coil38mm
Flux Density1.40T
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorsjpleisure
Updated 11 Sept 2026· 16Ω
Source: ex VAT · 20%
£80.57
inc VAT
In stock
partsexpress
Updated 11 Sept 2026· 16Ω
Source: ex VAT
£94.57
inc VAT
1 in stock
Best current price
Updated 7 Aug 2026
jpleisure
£80.57
Avg £85.24£4.67 below avg (-5.5%)
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.3kg
Diameter187.0mm
Overall Depth82.0mm
Cutout Diameter145.0mm
Bolt Circle Diameter172.0mm
Additional Manufacturer Specs
Bl14.5 Tm
Fs150 Hz
Le0.4 mH
Re11.7 Ω
Sd132 cm² (20.5 in²)
Ebp246 Hz
Mms11 g
Qes0.61
Qms2.8
Qts0.5
Vas2.3 dm³ (0.08 ft³)
η01.4 %
ConeRCK06MD3816
Xmax3.5 mm
Xvar2 mm
SpiderSingle
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth9 mm (0.35 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter170 mm (6.5 in)
Winding MaterialAluminium
Magnetic Gap Depth6 mm (0.25 in)
Bolt Circle Diameter172 mm (6.7 in)
Woofer Cone TreatmentNone
Baffle Cutout Diameter145 mm (5.7 in)
Flange And Gasket Thickness9 mm (0.35 in)
Air Volume Occupied By Driver0.8 dm³ (0.03 ft³)
