- Fs
- 38Hz
- Xmax
- 13mm
- SPL
- 83dB
- Pe
- 50W
- BL
- 8.7T·m
- Vd
- 182cm³
- Qts
- 0.40
- Vas
- 12L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
187 plotted pointsMedium confidence486 selected pixels of 1,791 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,905 selected pixels of 1,905

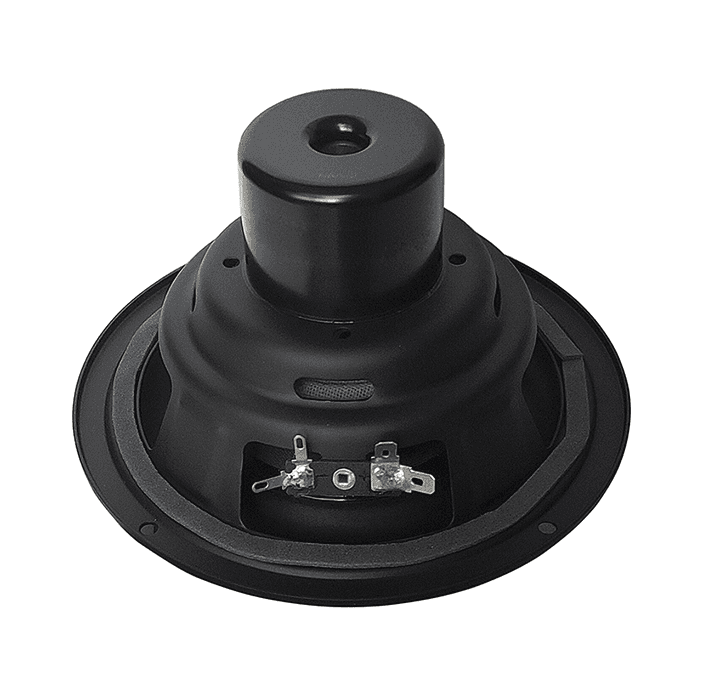

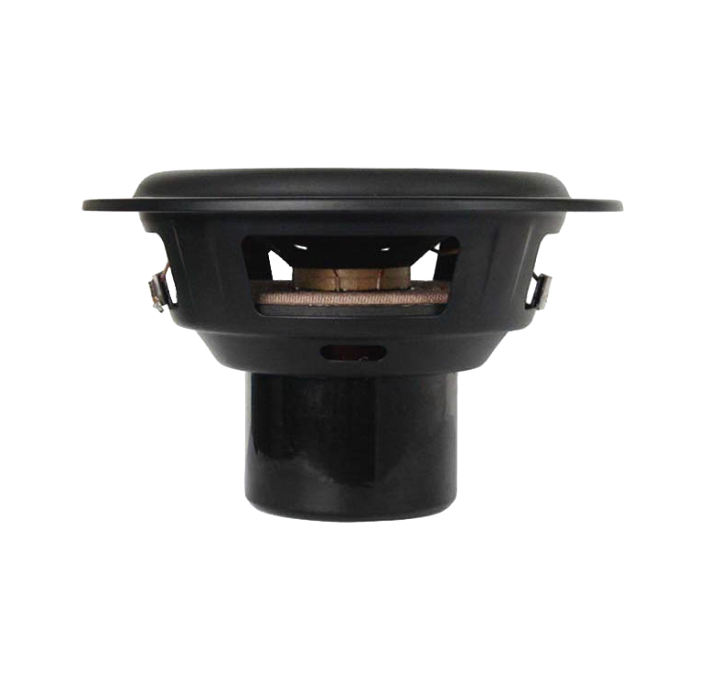

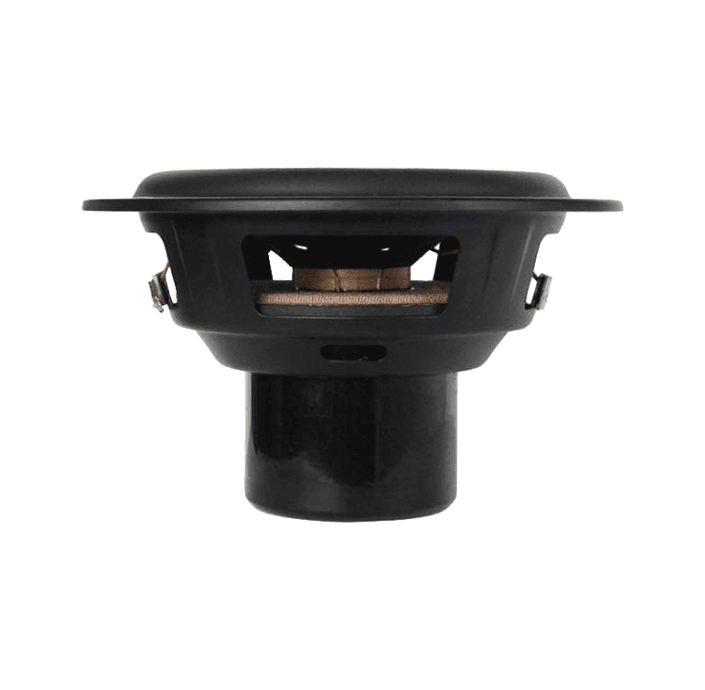

Tang Band W6-1139SI is a 6-inch 4 ohm LF driver rated at 50 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.40, Vas 11.8 L, Xmax 13 mm, sensitivity 83.4 dB, plus 182 cm³ Vd and 81 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.40
- Qes
- 0.47
- Qms
- 2.6
- Vas
- 11.8L
- Re
- 3.6Ω
- Le
- 0.34mH
Motor and cone
- BL
- 8.7T·m
- Sd
- 140cm²
- Mms
- 40g
- Xmax
- 13mm
- Vd †
- 182cm³
Power and response
- Sensitivity †
- 83.4dB
- Manufacturer sensitivity
- 83dB
- Power
- 50W
- Impedance
- 4Ω
- EBP †
- 81 · Sealed or vented
Other published values
- Power Peak
- 100
† Calculated by bits from the published values
What this validation status means
Everything else Tang Band lists
LF · Primary · 6″
- BL
- 8.7T·m
- Fs
- 38Hz
- Le
- 0.34mH
- Re
- 3.6Ω
- Sd
- 140cm²
- Mms
- 40g
- Qes
- 0.47
- Qms
- 2.6
- Qts
- 0.40
- SPL
- 83.4dB
- Vas
- 11.8L
- Xmax
- 13mm
- Power
- 50W
- Impedance
- 4Ω
- Power Peak
- 100
- Sensitivity
- 83dB
- Calculated sensitivity †
- 83.4dB
- Manufacturer sensitivity
- 83dB
