LF DriverRevelator series
Scanspeak
Scanspeak 15W/8531K00

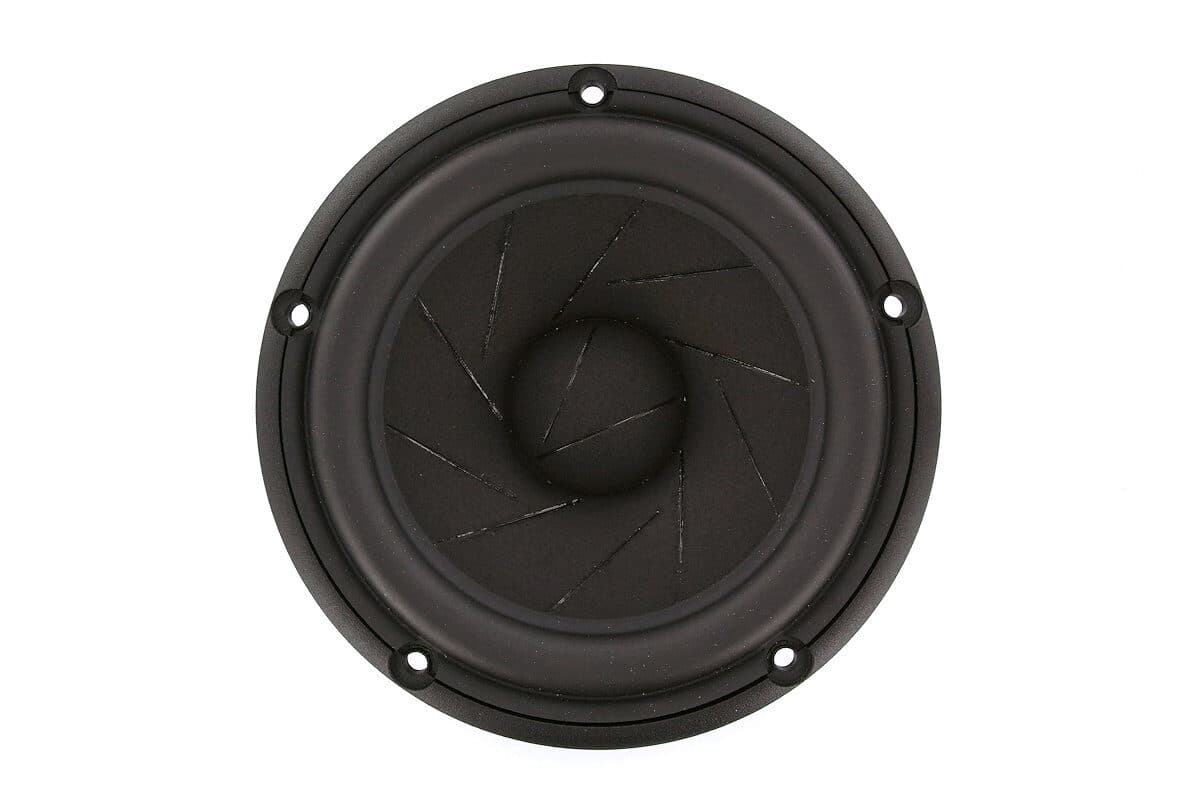

Scanspeak 15W/8531K00 is a 6" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 39Hz, Qts 0.38, Vas 16.7L, Xmax 6.5mm, sensitivity 85.8dB, plus 62cm³ Vd and 93 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £185.95.
Size
6"
Impedance
8Ω
RMS Power
60W
Sensitivity
85.8dB
EBP
93
Either alignment
Vd
62cm³
T/S Parameters
Valid
Fs39Hz
Qts0.38
Qes0.42
Qms49.0
Vas16.7L
Re5.8Ω
Le0.29mH
BL6.6Tm
Sd95cm²
Xmax6.5mm
SPL86dB
Power60W
Impedance8Ω
Min Impedance6.7Ω
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
£185.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Mms
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Mms
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter150.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
15W/8531K00
6"
Best current price
£185.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
48%
Similarity
85% cheaper£27.70
Dayton Audio
DSA135-8
5"
Lower price
Xmax4.9mm-25%
Qts0.380%
BL6.2Tm-6%
Vas7.9L-53%
Qes0.47+12%
43%
Similarity
85% cheaper£27.70
Dayton Audio
DS135-8
5"
Lower price
Xmax4.8mm-25%
Qts0.39+3%
BL6.2Tm-6%
Vas7.3L-56%
Qes0.48+14%
57%
Similarity
76% cheaper£44.95
Eighteen Sound
5W430
5"
Lower price
Xmax6mm-8%
Qts0.32-16%
BL6.3Tm-5%
Vas15L-10%
Qes0.36-14%
57%
Similarity
72% cheaper£52.41
Dayton Audio
RS180P-8
7"
Lower price
Xmax6mm-8%
Qts0.34-11%
BL7.2Tm+8%
Vas22L+32%
Qes0.44+5%
53%
Similarity
70% cheaper£56.16
Dayton Audio
RS180S-8
7"
Lower price
Xmax6mm-8%
Qts0.36-5%
BL7.3Tm+10%
Vas23L+38%
Qes0.49+17%
62%
Similarity
69% cheaper£56.87
Peerless
HDS-P830875
6.5"
Lower price
Xmax7.3mm+13%
Qts0.39+3%
BL8.7Tm+31%
Vas18.6L+11%
Qes0.45+6%
54%
Similarity
59% cheaper£76.74
Peerless
HDS-P835025
6.5"
Lower price
Xmax7.4mm+14%
Qts0.42+11%
BL8.6Tm+30%
Vas19L+14%
Qes0.47+12%
51%
Similarity
58% cheaper£77.96
CIARE
HWG130
5"
Lower price
Xmax6.5mm0%
Qts0.34-11%
BL5Tm-24%
Vas12.5L-25%
Qes0.36-14%
59%
Similarity
47% cheaper£98.16
B&C
6NDL38
6.5"
Lower price
Xmax6mm-8%
Qts0.39+3%
BL7.8Tm+18%
Vas7.1L-57%
Qes0.4-5%
48%
Similarity
42% cheaper£107.95
Fountek
FW168K
6.5"
Lower price
Xmax5mm-23%
Qts0.43+12%
BL7.9Tm+20%
Vas15.1L-10%
Qes0.52+25%
66%
Similarity
41% cheaper£109.00
Celestion
NTR06-1705D
6.5"
Lower price
Xmax6mm-8%
Qts0.38-1%
BL8.2Tm+24%
Vas21.4L+28%
Qes0.4-4%
45%
Similarity
38% cheaper£115.00
SB Acoustics
MR13PNW-8
5"
Lower price
Xmax6mm-8%
Qts0.3-21%
BL6.2Tm-6%
Vas12.9L-23%
Qes0.32-24%
