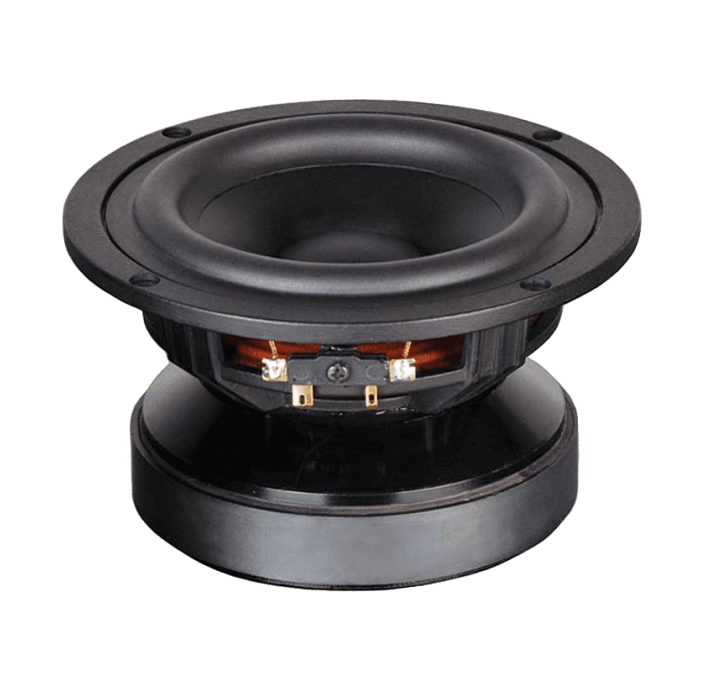

REDCATT 61FHM-1 4Ω
No current price
- Fs
- 35Hz
- Xmax
- 6.4mm
- SPL
- 86dB
- Pe
- 60W
- BL
- 5.0T·m
- Vd
- 85cm³
- Qts
- 0.53
- Vas
- 29L
REDCATT 61FHM-1 is a 6-inch 4 ohm LF driver rated at 60 W RMS. The validated T/S data includes Fs 35 Hz, Qts 0.53, Vas 28.6 L, Xmax 6.4 mm, sensitivity 85.5 dB, plus 85 cm³ Vd and 64 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.53
- Qes
- 0.55
- Qms
- 14.7
- Vas
- 28.6L
- Re
- 3.4Ω
- Le
- 0.10mH
Motor and cone
- BL
- 5.0T·m
- Sd
- 133cm²
- Mms
- 18g
- Xmax
- 6.4mm
- Vd †
- 85cm³
- Voice coil
- 38mm
Power and response
- Sensitivity †
- 85.5dB
- Manufacturer sensitivity
- 86dB
- Power
- 60W
- Impedance
- 4Ω
- EBP †
- 64 · Sealed or vented
Size and mounting
- Diameter
- 181.5mm
- Cutout
- 151mm
- Bolt circle
- 169.5mm
- Weight
- 1.6kg
Other published values
- Xmech
- 11.4
- Power Peak
- 240
Other dimensions
- Mounting Depth
- 78.6
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 6″
- BL
- 5.0T·m
- Fs
- 35Hz
- Le
- 0.10mH
- Re
- 3.4Ω
- Sd
- 133cm²
- Mms
- 18g
- Qes
- 0.55
- Qms
- 14.7
- Qts
- 0.53
- SPL
- 85.5dB
- Vas
- 28.6L
- Xmax
- 6.4mm
- Xmech
- 11.4
- Power
- 60W
- Impedance
- 4Ω
- Power Peak
- 240
- Sensitivity
- 86dB
- Calculated sensitivity †
- 85.5dB
- Manufacturer sensitivity
- 86dB
- Voice coil
- 38mm
- Weight
- 1.6kg
- Diameter
- 181.5mm
- Mounting Depth
- 78.6
- Cutout
- 151mm
- Bolt circle
- 169.5mm
