LF DriverTF0510 series
Celestion

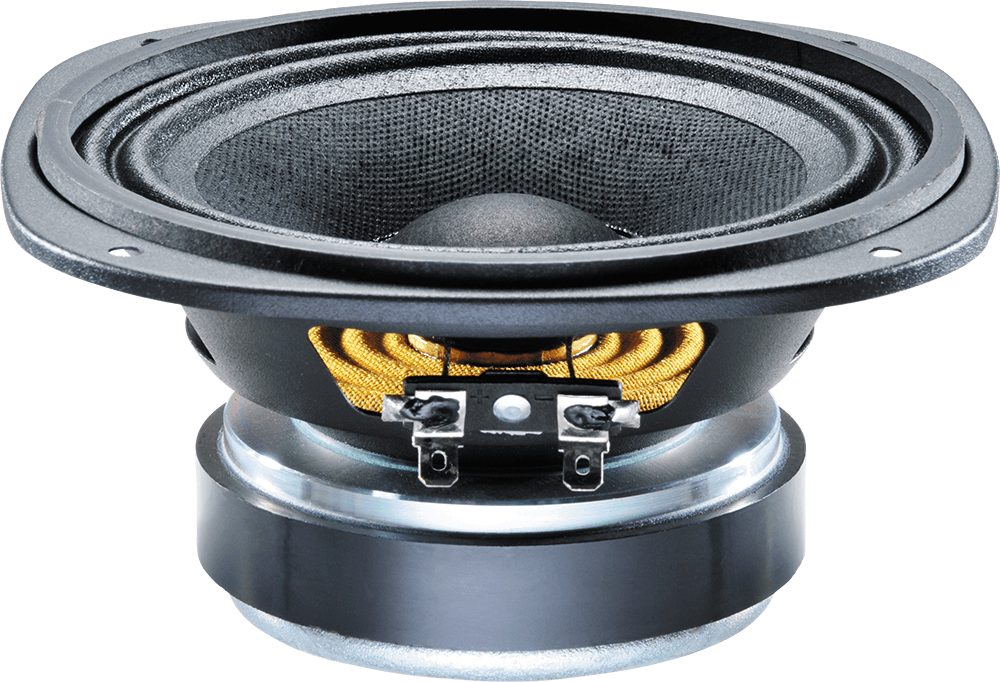

Celestion TF0510
Celestion TF0510 is a 5" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 128Hz, Qts 0.58, Vas 7.4L, Xmax 2.4mm, sensitivity 95.1dB, plus 19cm³ Vd and 167 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £30.00.
Size
5"
Impedance
8Ω
RMS Power
30W
Sensitivity
95.1dB
91.0dBmanufacturer; using T/S-derived value (4.1dB delta).
EBP
167
Vented alignment
Vd
19cm³

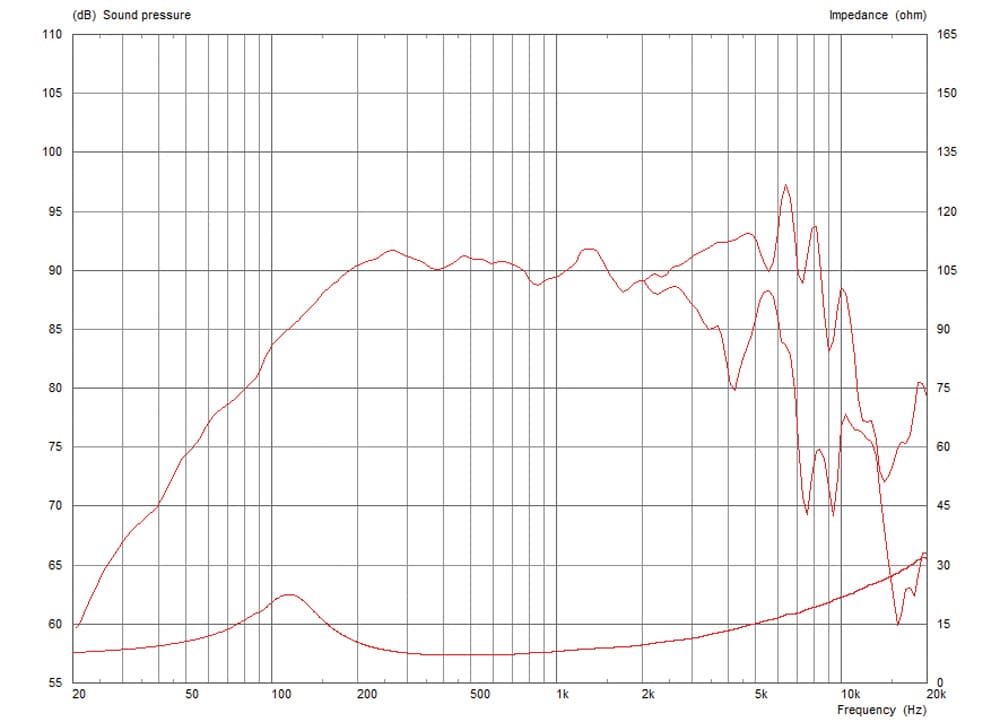

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence184 selected pixels of 350
T/S Parameters
Valid
Fs128Hz
Qts0.58
Qes0.77
Qms2.4
Vas7.4L
Re6.3Ω
Le0.33mH
BL6.8Tm
Sd79cm²
Mms7g
Xmax2.4mm
SPL95dB
Power30W
Impedance8Ω
Voice Coil25mm
Pricing & availability
Price definitionsPrice movement
Best current price
£30.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.0kg
Diameter151.0mm
Overall Depth68.0mm
Cutout Diameter117.0mm
Bolt Circle Diameter140.0mm
