Overview
LF Driver
Dayton Audio
Dayton Audio ND140-4
Dayton Audio ND140-4 is a 4" 4 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 59Hz, Qts 0.63, Vas 7.2L, Xmax 4mm, sensitivity 85.2dB, plus 35cm³ Vd and 82 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
RMS Power
40W
Sensitivity
85.2dB
88.4dBmanufacturer; using T/S-derived value (3.2dB delta).
EBP
82
Either alignment
Vd
35cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
15 degrees193 ptsp1medium
30 degrees220 ptsp1medium
45 degrees192 ptsp1medium
on-axis240 ptsp1medium
Curve provenanceInspect 5 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
15 degrees
Frequency response
193 plotted pointsMedium confidence890 selected pixels of 1,337 - Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
220 plotted pointsMedium confidence661 selected pixels of 1,060 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
192 plotted pointsMedium confidence762 selected pixels of 1,446 - Trace datasheet-response-trace-poc/v1
on-axis
Frequency response
240 plotted pointsMedium confidence1,675 selected pixels of 1,675 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,454 selected pixels of 1,454
T/S Parameters
Valid
Fs59Hz
Qts0.63
Qes0.72
Qms5.3
Vas7.2L
Re3.7Ω
Le0.79mH
BL3.9Tm
Sd87cm²
Mms10g
Xmax4.0mm
SPL85dB
Power40W
Impedance4Ω
F Low54Hz
F High8000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.5kg
Diameter138.0mm
Overall Depth70.5mm
Cutout Diameter120.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
ND140-4
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
8 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
76%
Similarity

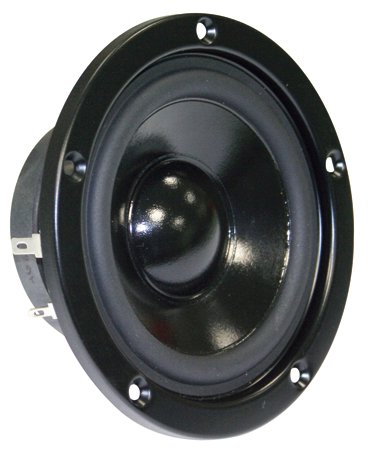

Visaton
W 100 S - 8 Ohm
4"
Xmax4mm0%
Qts0.54-14%
BL4.3Tm+10%
Vas5.4L-25%
Qes0.67-7%
76%
Similarity

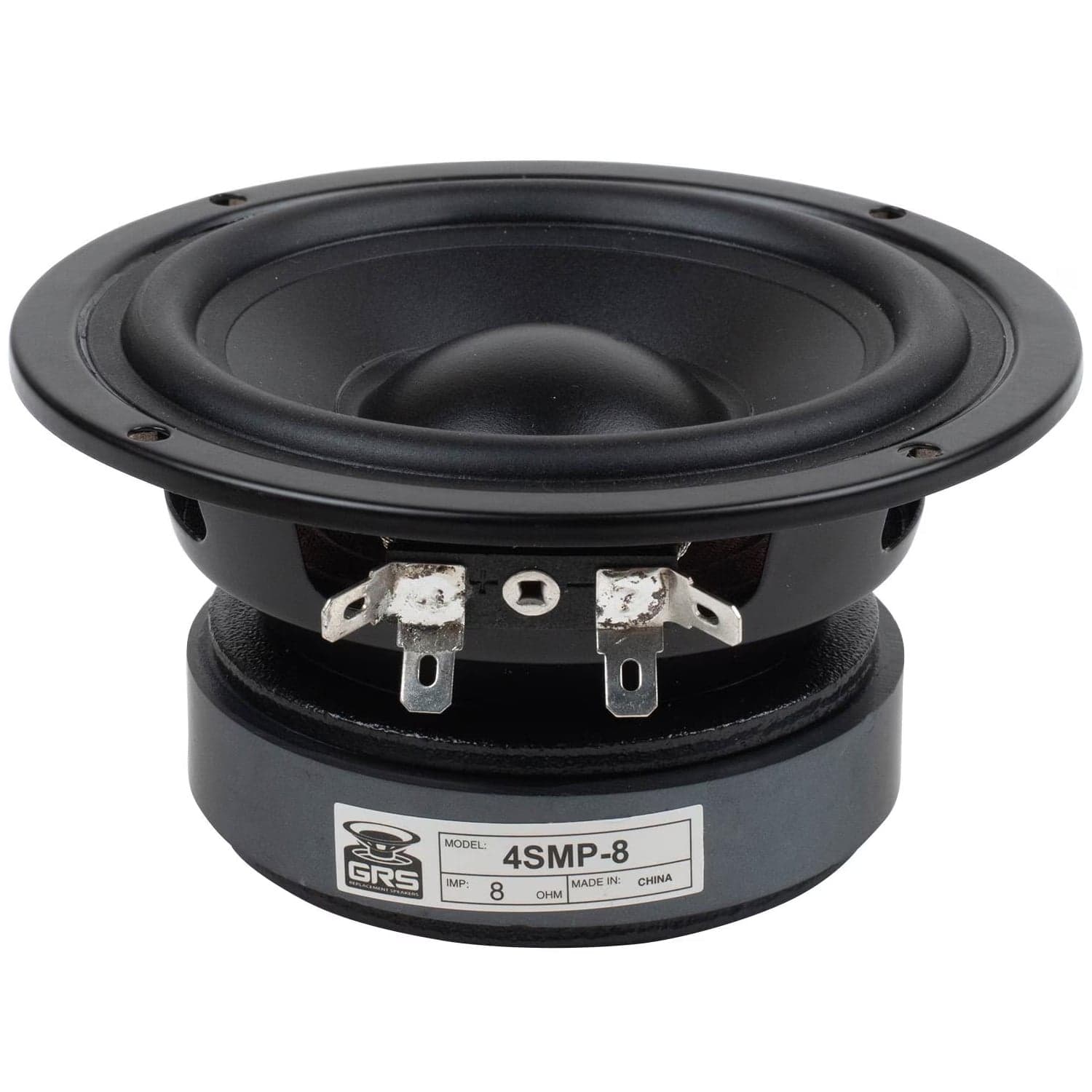

GRS
4SMP-8
4"
Xmax4mm0%
Qts0.65+3%
BL4.2Tm+8%
Vas4L-45%
Qes0.83+15%
56%
Similarity
PRV Audio
4MR60-4
4"
Xmax2.9mm-28%
Qts0.68+8%
BL3.4Tm-12%
Vas3.3L-55%
Qes0.75+4%
51%
Similarity
CIARE
HW129
5"
Xmax3.9mm-3%
Qts0.55-13%
BL5.2Tm+34%
Vas6.1L-16%
Qes0.76+6%
48%
Similarity
HiVi
B4N
4"
Xmax3.2mm-20%
Qts0.52-17%
BL5.1Tm+31%
Vas4.5L-37%
Qes0.63-12%
Image unavailable
45%
Similarity
Wavecor
WF120BD09
4.5"
Xmax4mm0%
Qts0.5-21%
BL5.2Tm+33%
Vas5.3L-27%
Qes0.54-25%
42%
Similarity
£36.68
Dayton Audio
RS125P-4
5"
Xmax4mm0%
Qts0.48-24%
BL3.5Tm-11%
Vas4L-45%
Qes0.57-21%
29%
Similarity
£14.04
Peerless
SDS-P830855
4"
Xmax5mm+25%
Qts0.48-24%
BL5.2Tm+34%
Vas3.3L-55%
Qes0.54-25%
