LF Driver
Kartesian

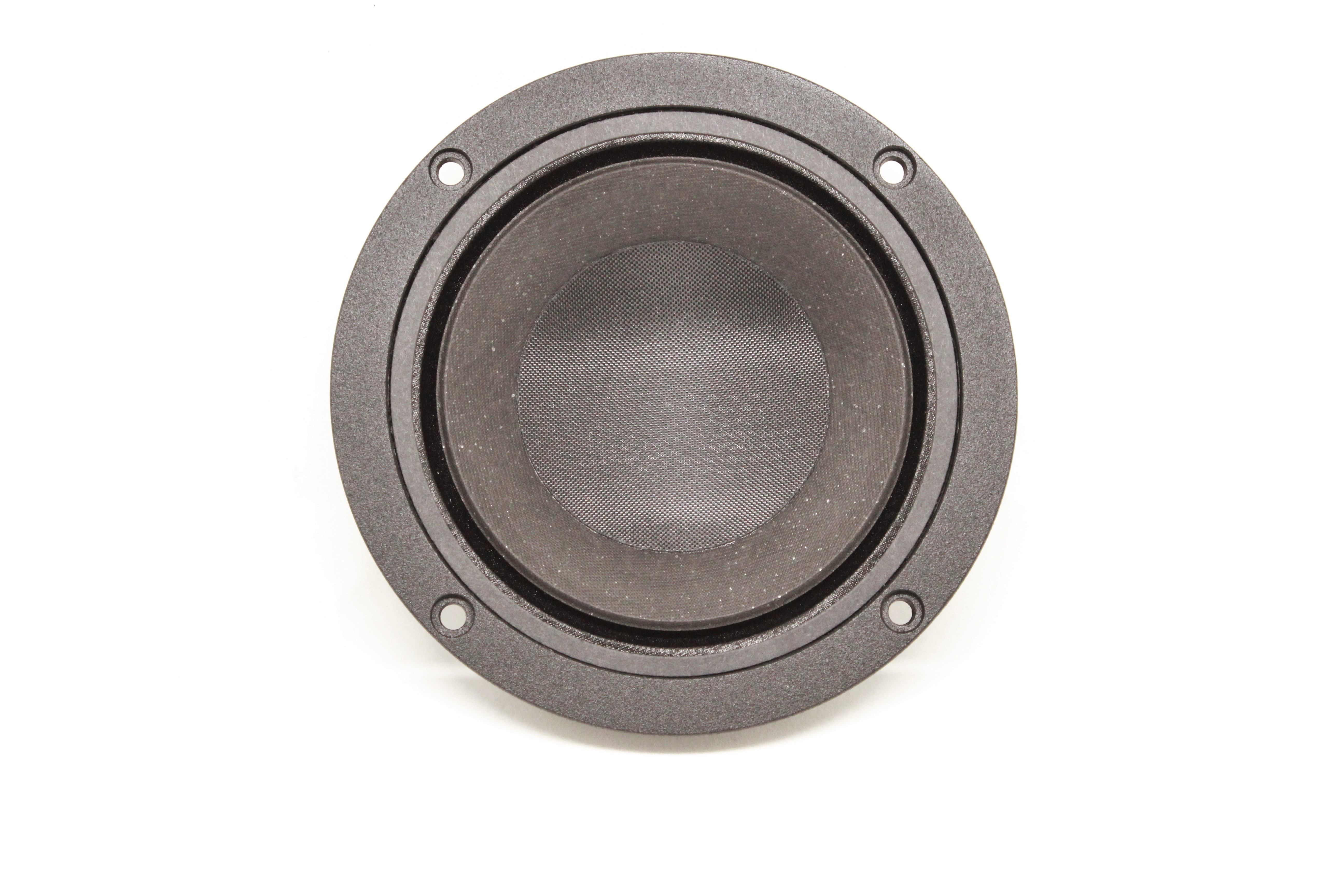

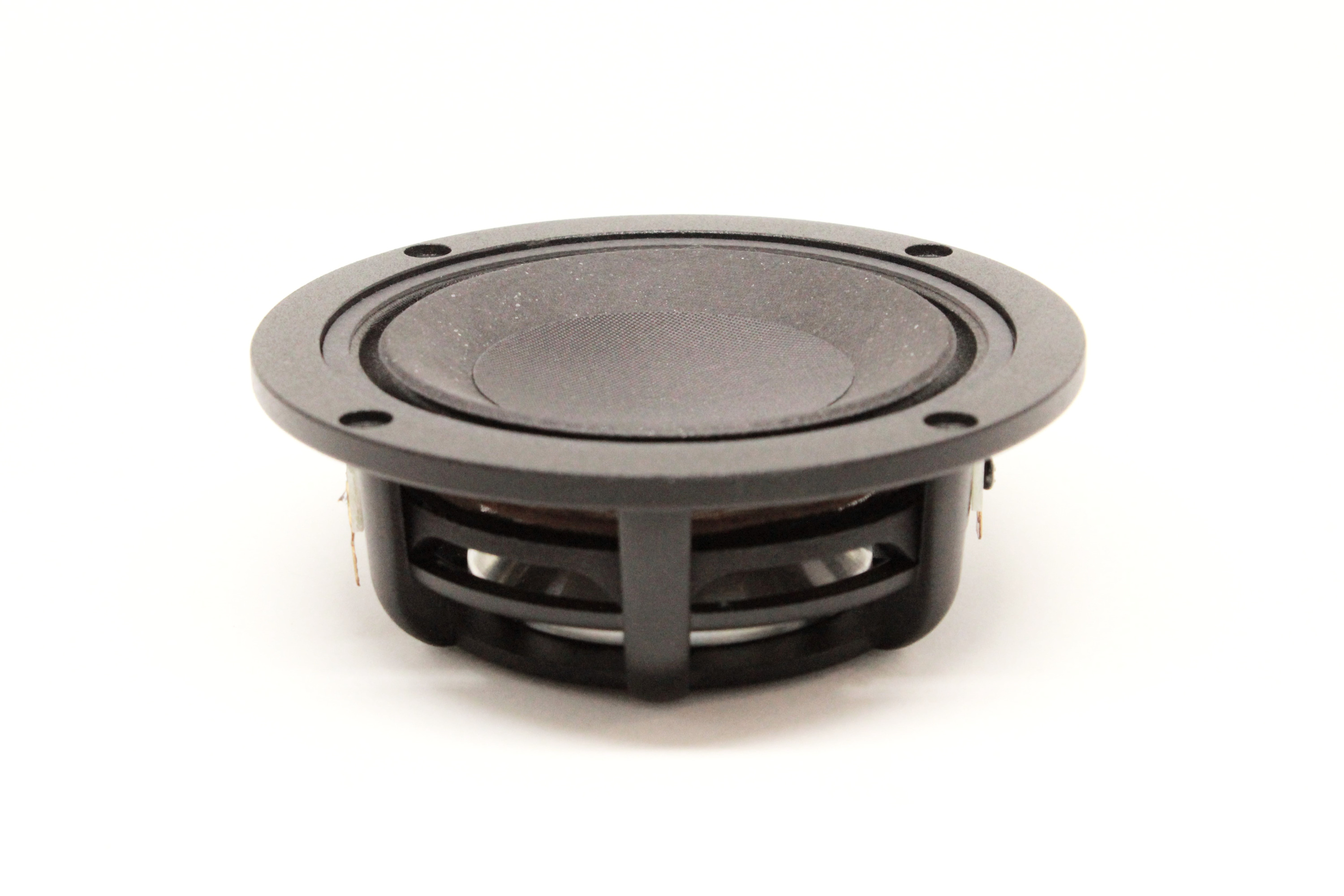

Kartesian Mid120_vHE
Kartesian Mid120_vHE is a 4.75" 6 ohm LF driver. The validated T/S data includes Fs 105Hz, Qts 0.41, Vas 2.8L, Xmax 2mm, sensitivity 91.5dB, plus 11cm³ Vd. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4.75"
Impedance
6Ω
Sensitivity
91.5dB
Vd
11cm³
T/S Parameters
Valid
Fs105Hz
Qts0.41
Qms2.3
Vas2.8L
Re5.6Ω
BL5.1Tm
Sd54cm²
Mms4g
Xmax2.0mm
SPL92dB
Impedance6Ω
F Low180Hz
F High3000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Qes, Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Qes, Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter120.0mm
