Monacor SPH-130 8Ω
8 Ω · 3–6000 Hz
£51.60
SteadyWilmslow Audio · All 3 offers
- Fs
- 38Hz
- Xmax
- 2mm
- SPL
- 87dB
- Pe
- 55W
- BL
- 5.4T·m
- Vd
- 16cm³
- Qts
- 0.32
- Vas
- 22L
Monacor SPH-130 is a 5-inch 8 ohm LF driver rated at 55 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.32, Vas 22 L, Xmax 2 mm, sensitivity 86.9 dB, plus 16 cm³ Vd and 97 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £46.81.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.32
- Qes
- 0.39
- Qms
- 1.9
- Vas
- 22L
- Re
- 5.7Ω
- Le
- 0.50mH
Motor and cone
- BL
- 5.4T·m
- Sd
- 80cm²
- Mms
- 8g
- Xmax
- 2mm
- Vd †
- 16cm³
- Voice coil
- 25mm

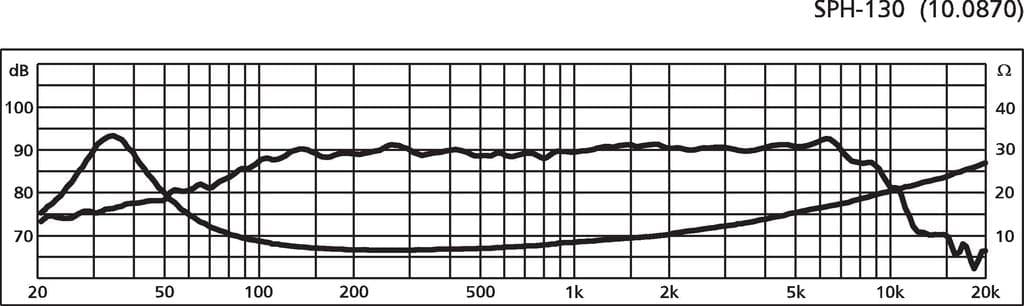

Power and response
- Sensitivity †
- 86.9dB
- Manufacturer sensitivity
- 89dB
- Power
- 55W
- Impedance
- 8Ω
- Range
- 3–6000Hz
- EBP †
- 97 · Sealed or vented

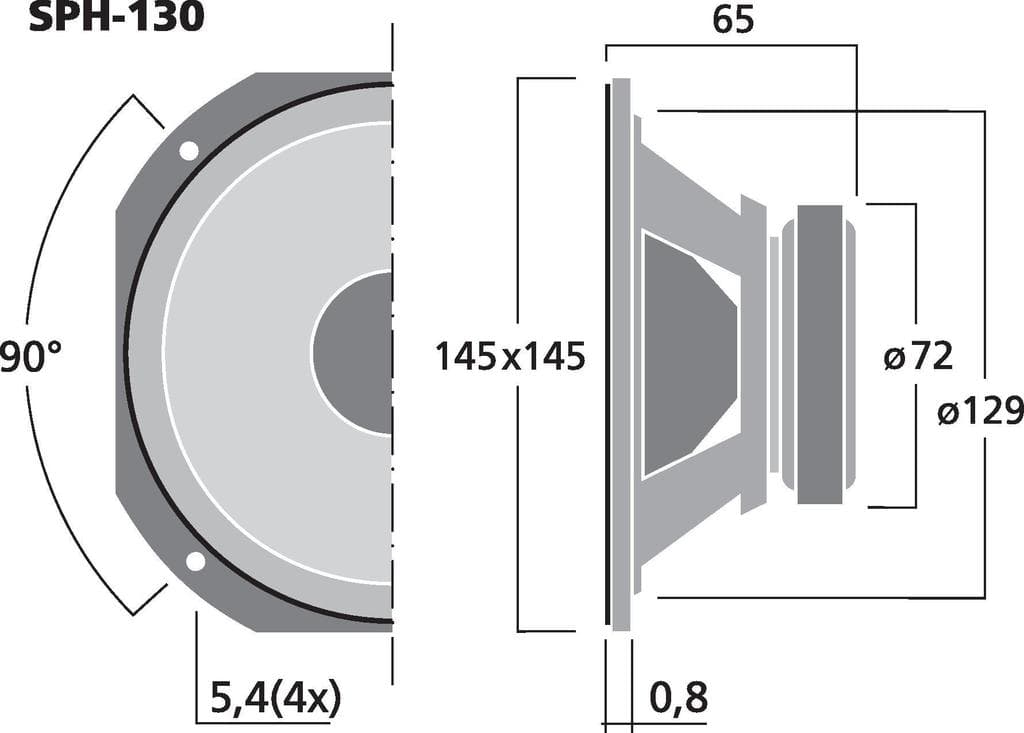

Size and mounting
- Diameter
- 145mm
- Cutout
- 129mm
- Depth
- 65mm
- Weight
- 0.76kg
Other published values
- Cms
- 2.14mm/N
- Power Peak
- 80
Other dimensions
- Mounting Depth
- 64.2
Sensitivity shows 86.9 dB, calculated from the T/S values. Monacor publishes 89.0 dB, 2.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
MF · Primary · 5″
- BL
- 5.4T·m
- Fs
- 38Hz
- Le
- 0.50mH
- Re
- 5.7Ω
- Sd
- 80cm²
- Cms
- 2.14mm/N
- Mms
- 8g
- Qes
- 0.39
- Qms
- 1.9
- Qts
- 0.32
- SPL
- 86.9dB
- Vas
- 22L
- Xmax
- 2mm
- Power
- 55W
- Impedance
- 8Ω
- Power Peak
- 80
- Sensitivity
- 89dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 86.9dB
- High limit
- 6000Hz
- Manufacturer sensitivity
- 89dB
- Voice coil
- 25mm
- Weight
- 0.76kg
- Diameter
- 145mm
- Depth
- 65mm
- Mounting Depth
- 64.2
- Cutout
- 129mm
