Overview
LF DriverAF4010 series
Celestion

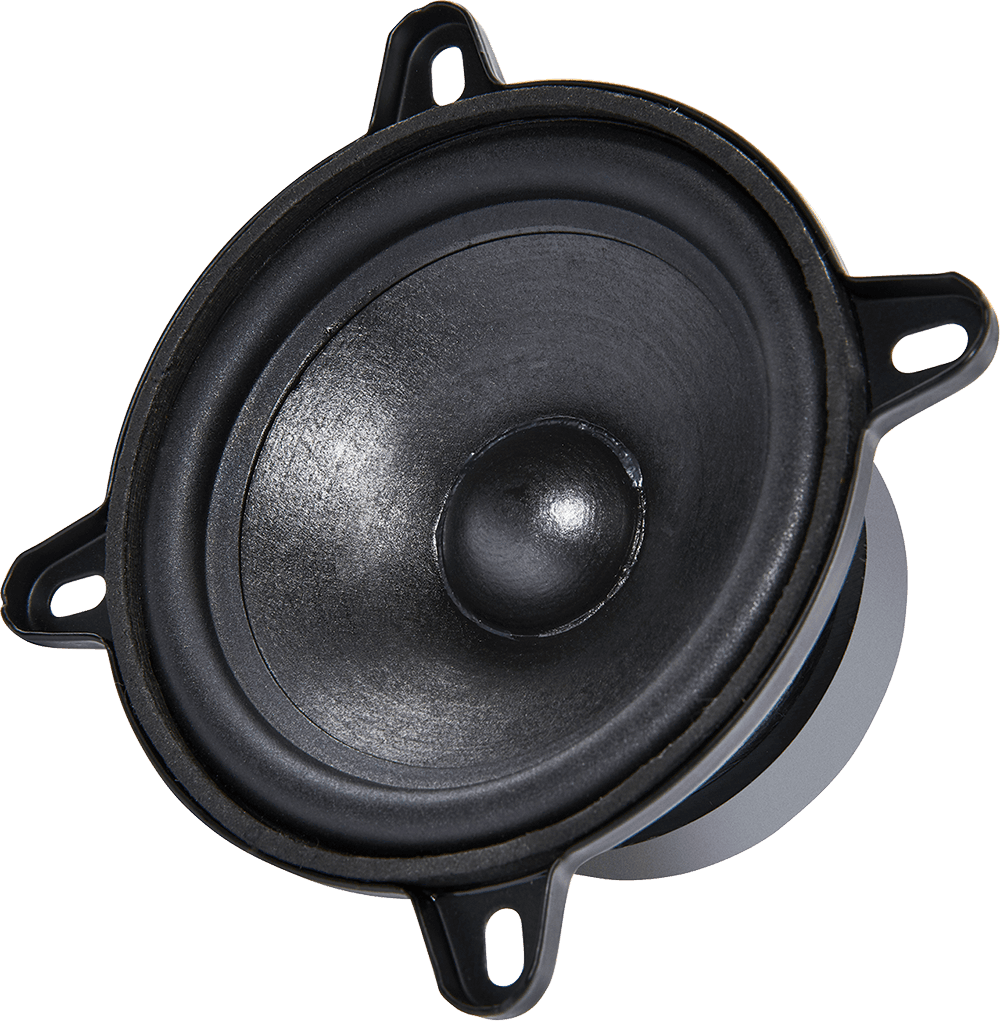

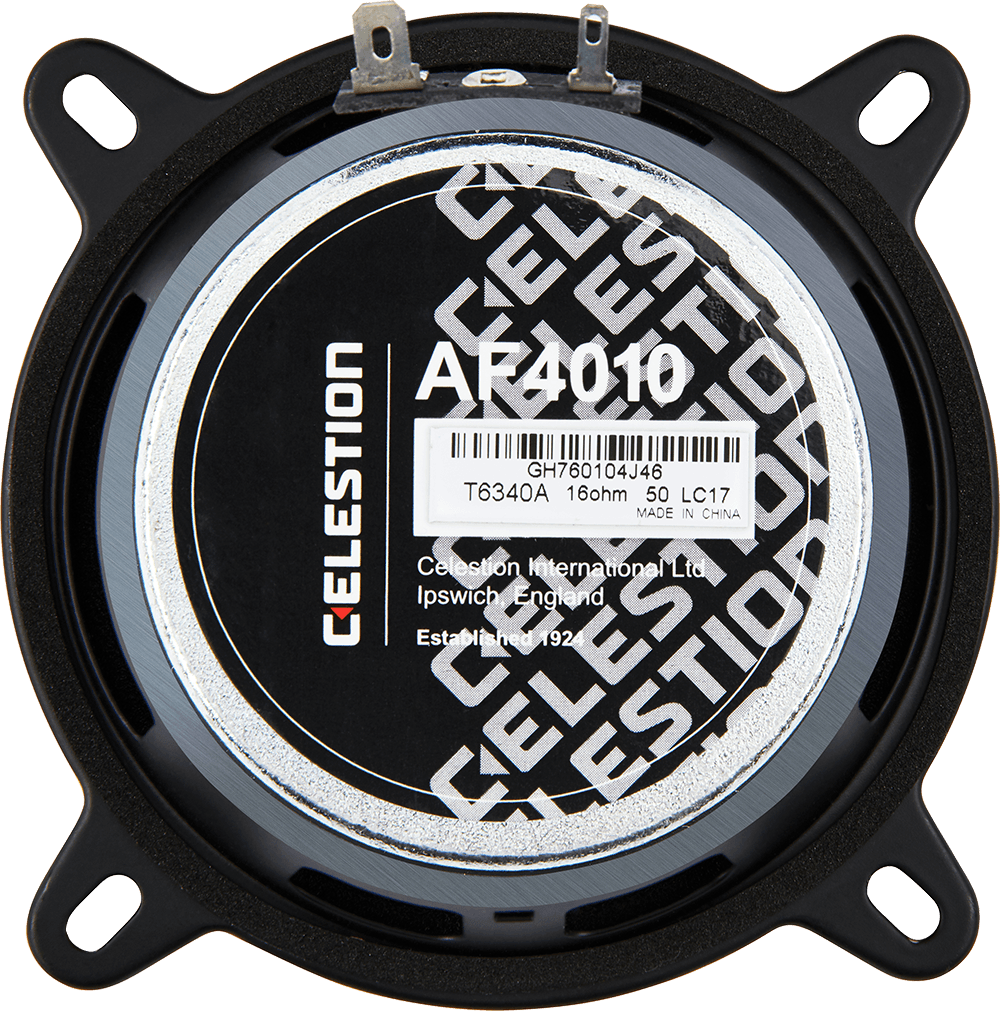

Celestion AF4010
Celestion AF4010 is a 4" 16 ohm LF driver rated at 35W RMS. The validated T/S data includes Fs 105Hz, Qts 0.81, Vas 2.1L, Xmax 2.8mm, sensitivity 86.1dB, plus 16cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
16Ω
RMS Power
35W
Sensitivity
86.1dB
88.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
110
Vented alignment
Vd
16cm³

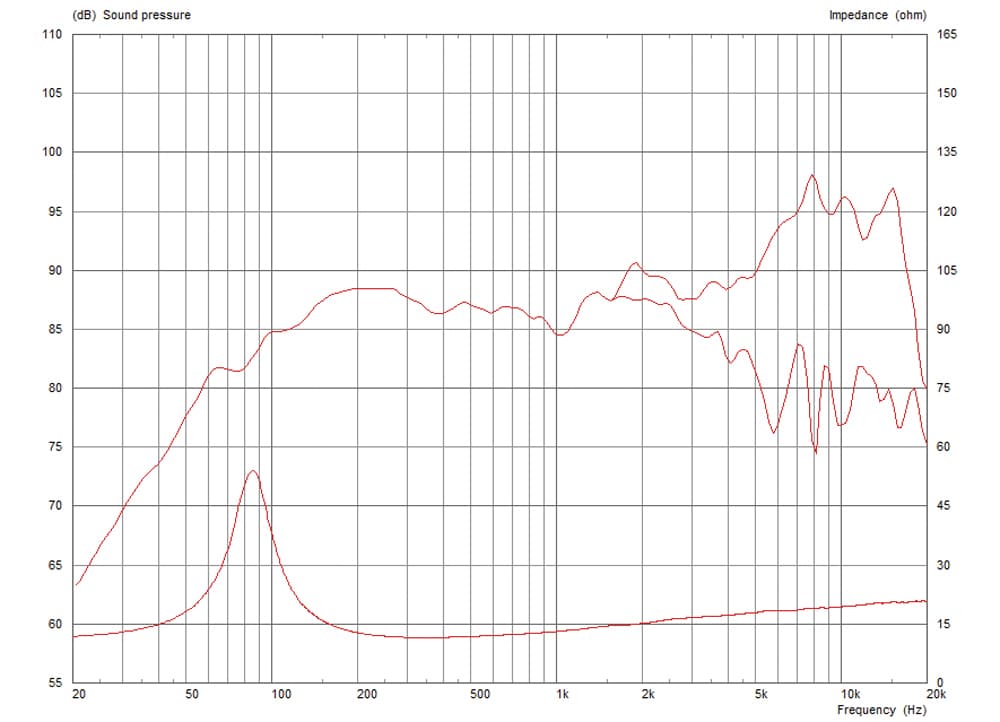

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence159 selected pixels of 367
T/S Parameters
Valid
Fs105Hz
Qts0.81
Qes0.95
Qms5.3
Vas2.1L
Re10.4Ω
Le0.37mH
BL6.0Tm
Sd57cm²
Mms5g
Xmax2.8mm
SPL86dB
Power35W
Impedance16Ω
Voice Coil25mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.6kg
Diameter100.5mm
Overall Depth62.0mm
Cutout Diameter92.0mm
Bolt Circle Diameter115.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
AF4010
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
77%
Similarity
£42.77

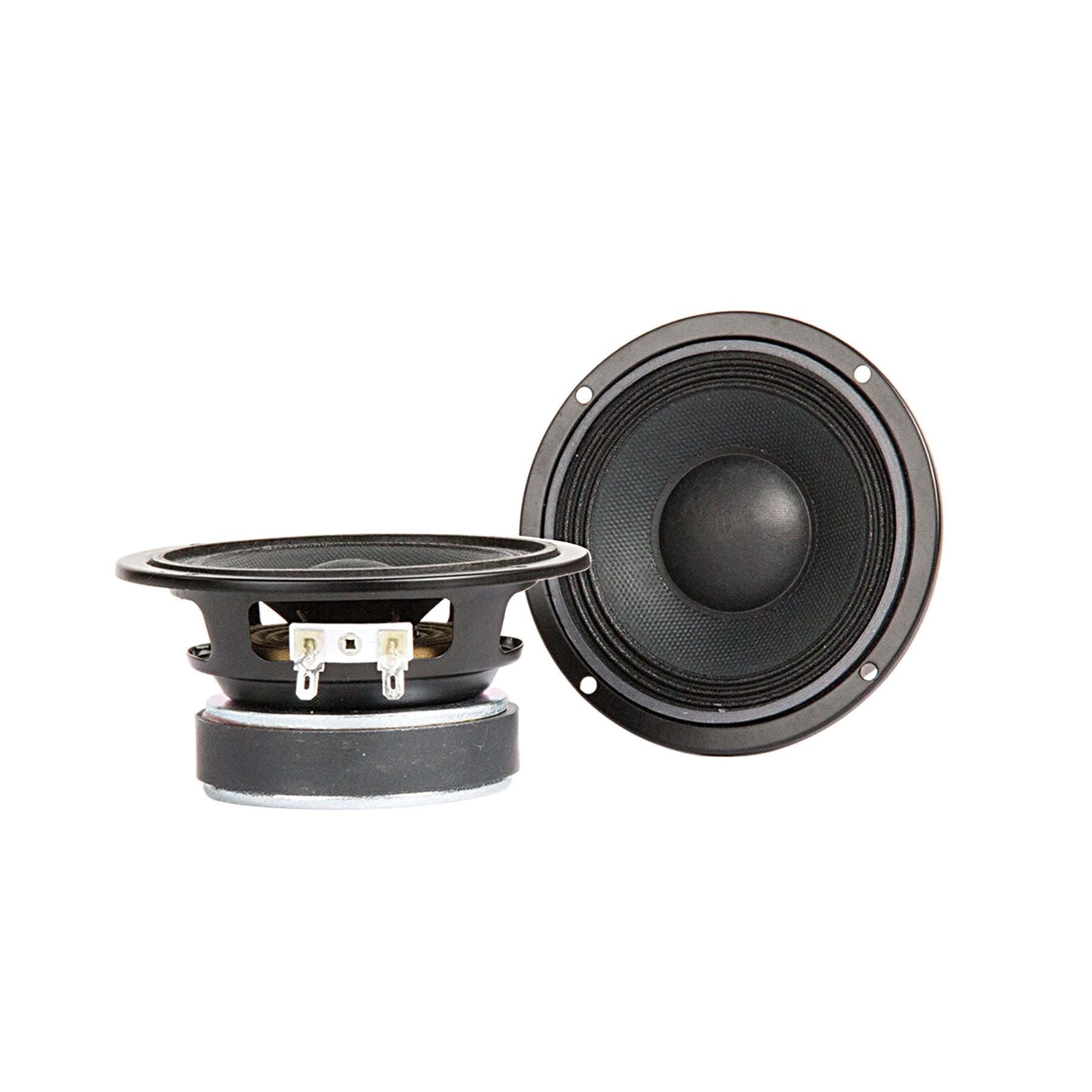

Eminence
ALPHA 4-8
4"
Xmax2.6mm-5%
Qts0.75-7%
BL4.9Tm-17%
Vas1.9L-9%
Qes0.84-12%
74%
Similarity
£16.00
FaitalPRO
4FE35
4"
Xmax2.7mm-1%
Qts0.83+3%
BL3.9Tm-35%
Vas2.4L+13%
Qes1.04+9%
60%
Similarity
£21.94
FaitalPRO
4FE32
4"
Xmax2.7mm-1%
Qts0.61-24%
BL4.8Tm-19%
Vas2.3L+8%
Qes0.7-26%
59%
Similarity
£12.18

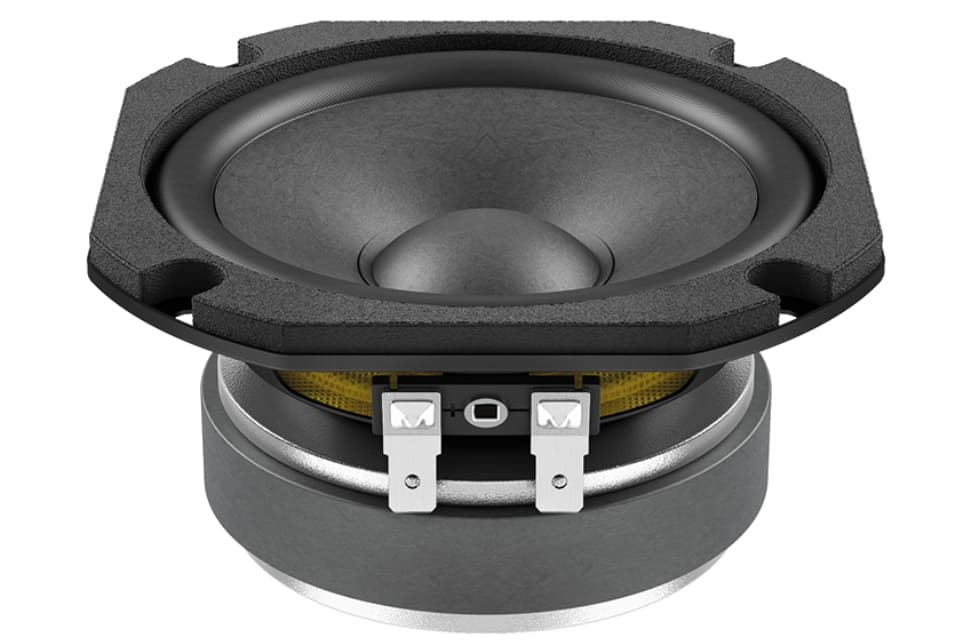

Lavoce
FSF041.00
4"
Xmax2.2mm-20%
Qts0.85+5%
BL4.3Tm-28%
Vas1.6L-26%
Qes1.07+13%
58%
Similarity

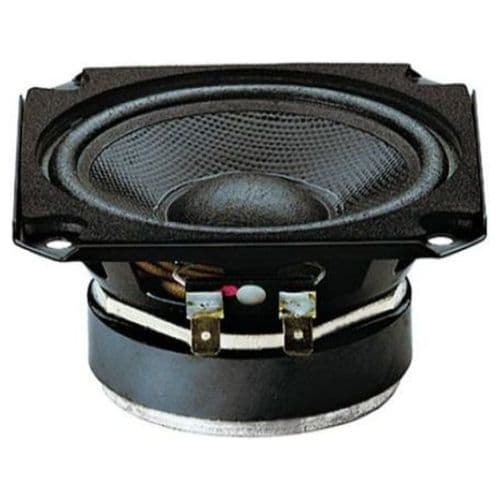

CIARE
HM100
4"
Xmax2.2mm-20%
Qts0.7-13%
BL5.1Tm-15%
Vas1.1L-48%
Qes0.98+3%
57%
Similarity

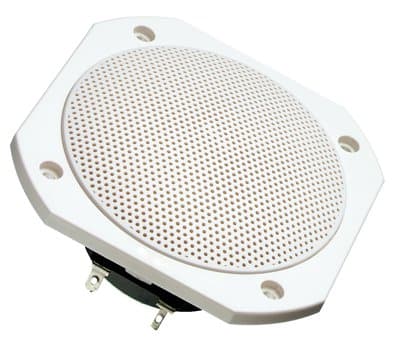

Visaton
FRS 10 WP - 8 OHM
4"
Xmax3mm+9%
Qts0.98+21%
BL4.3Tm-28%
Vas1.9L-11%
Qes1.12+18%
51%
Similarity
£32.88
Eminence
ALPHA 4-4
4"
Xmax2.6mm-5%
Qts0.63-22%
BL4.1Tm-31%
Vas1.8L-17%
Qes0.7-26%
51%
Similarity
Sica
4 L 1 SL
4"
Xmax2.4mm-13%
Qts0.63-22%
BL5.1Tm-14%
Vas1.2L-44%
Qes0.78-18%
51%
Similarity
£20.53
Eminence
ALPHA 3-32
3"
Xmax2.6mm-5%
Qts0.74-8%
BL6.5Tm+8%
Vas1L-54%
Qes0.85-11%
44%
Similarity
£43.50

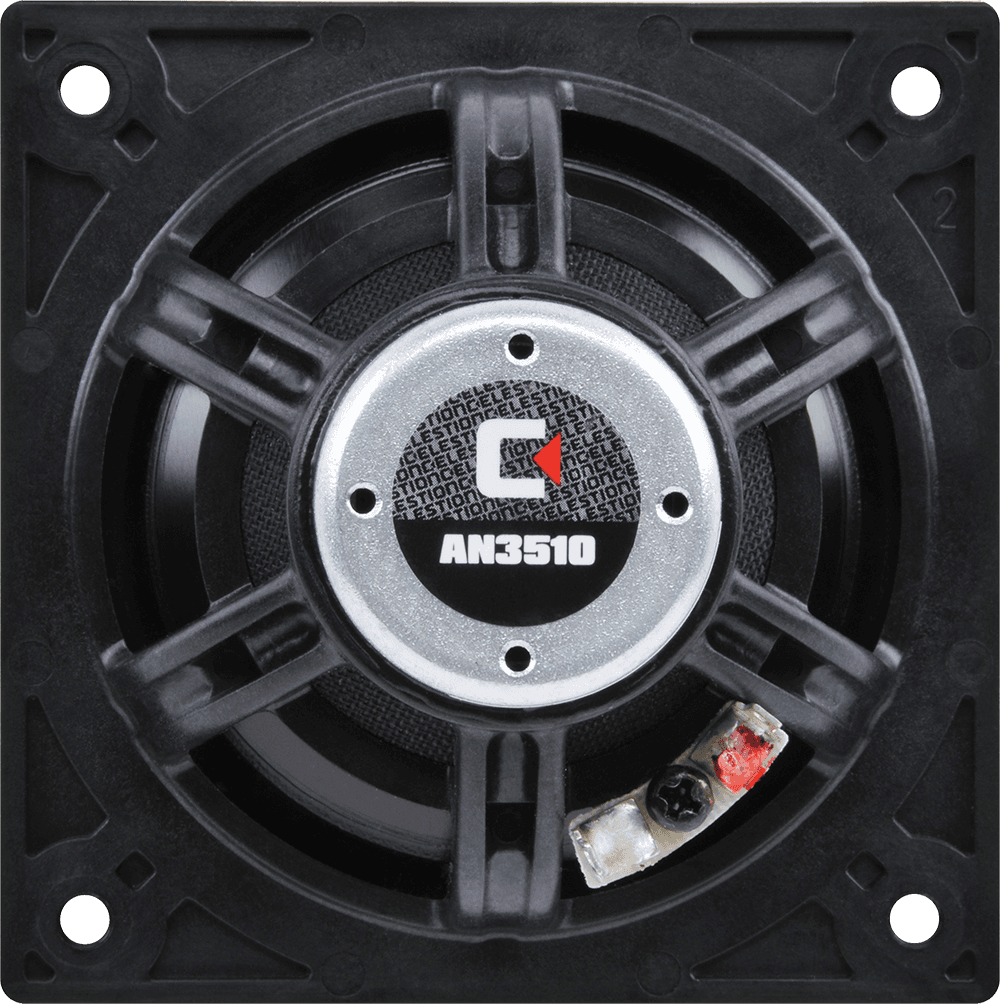

Celestion
AN3510
3.5"
Xmax2.3mm-18%
Qts0.65-20%
BL4.6Tm-23%
Vas1.9L-12%
Qes0.74-22%
41%
Similarity

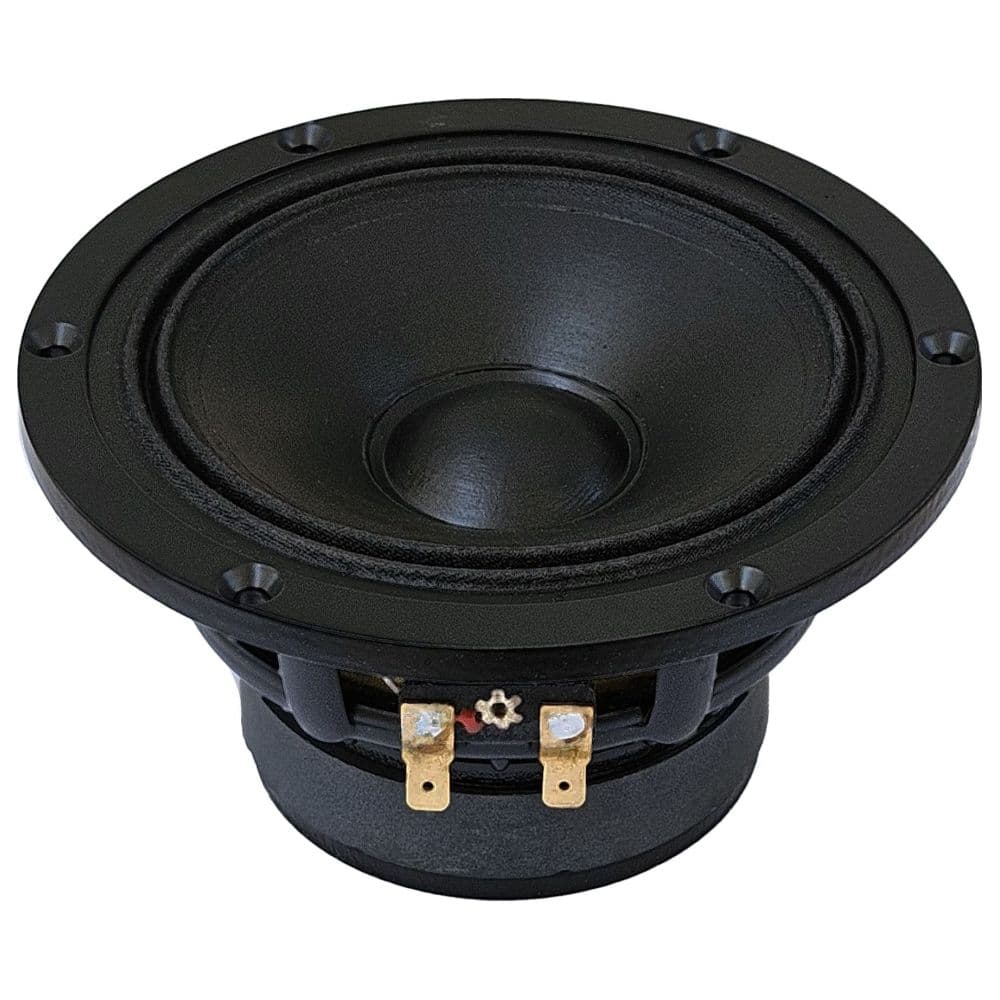

CIARE
HMB135
5"
Xmax3mm+9%
Qts0.79-2%
BL4.5Tm-24%
Vas2.9L+36%
Qes1.28+35%
36%
Similarity

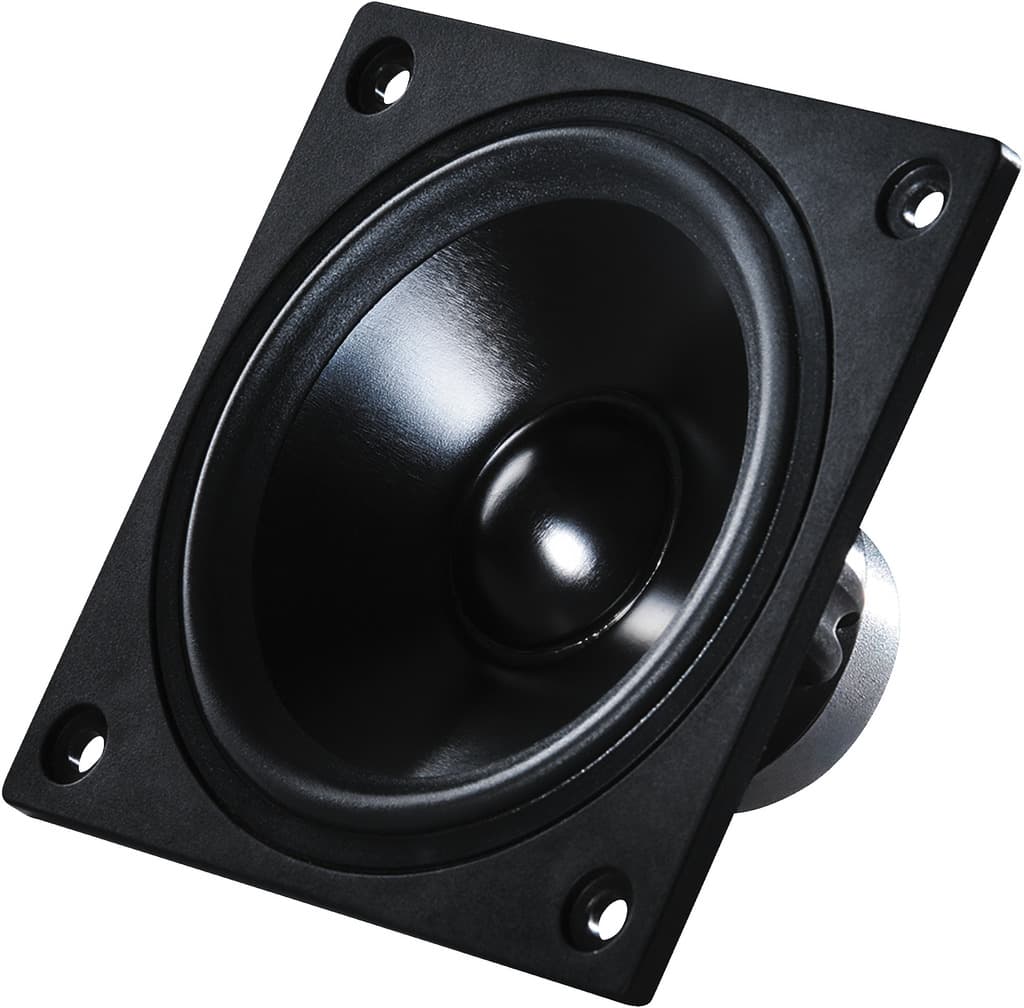

Monacor
