3.5-inch LF driver · FR090WA series · 22 mm voice coil

Wavecor FR090WA02 8Ω

Name: Wavecor FR090WA02 8 Ohm
Brand: Wavecor
SKU: FR090WA02
Availability: InStock

8 Ω

£61.74

Lautsprechershop · Ships from Germany · All 2 offers

Open in 00 Simulator

Fs: 109Hz
Xmax: 2.3mm
SPL: 84dB
Pe: –
BL: 3.4T·m
Vd: 8cm³
Qts: 0.85
Vas: 1L

See all 18 specs

Specifications

Published by Wavecor

Manufacturer page

Datasheet PDF

Wavecor FR090WA02 is a 3.5-inch 8 ohm LF driver. The validated T/S data includes Fs 109 Hz, Qts 0.85, Vas 1.1 L, Xmax 2.3 mm, sensitivity 83.7 dB, plus 8 cm³ Vd and 109 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £61.15.

The published T/S values agree with each other

Thiele/Small

Fs: 109Hz
Qts: 0.85
Qes: 1
Qms: 5.9
Vas: 1.1L
Re: 6.1Ω

Motor and cone

BL: 3.4T·m
Sd: 36cm²
Mms: 3g
Xmax: 2.3mm
Vd †: 8cm³
Voice coil: 22mm

Power and response

Sensitivity †: 83.7dB
Impedance: 8Ω
EBP †: 109 · Leans vented

Size and mounting

Diameter: 88.9mm

Other published values

Cms: 0.62mm/N
Rms: 0.40kg/s

† Calculated by bits from the published values

What this validation status means

Everything else Wavecor lists

LF · Primary · 3.5″

BL: 3.4T·m
Fs: 109Hz
Re: 6.1Ω
Sd: 36cm²
Cms: 0.62mm/N
Mms: 3g
Qes: 1
Qms: 5.9
Qts: 0.85
Rms: 0.40kg/s
SPL: 83.7dB
Vas: 1.1L
Xmax: 2.3mm
Impedance: 8Ω
Calculated sensitivity †: 83.7dB
Voice coil: 22mm
Diameter: 88.9mm

Compare

Same-size drivers, compared with the FR090WA02. Clear differences are green when better and red when worse.

This driverFR090WA02

Best price

£61.15

109 Hz

Qts

0.85

Vas

1.1 L

3.4 T·m

Xmax

2.3 mm

Sensitivity

83.7 dB

Power

–

REDCATT30FF

£9.01 · 85% less

Fs119 Hz +9%

Qts0.78 −8%

Vas0.8 L −29%

BL3.3 T·m −4%

Xmax19 mm +744%

Sensitivity83.5 dB –

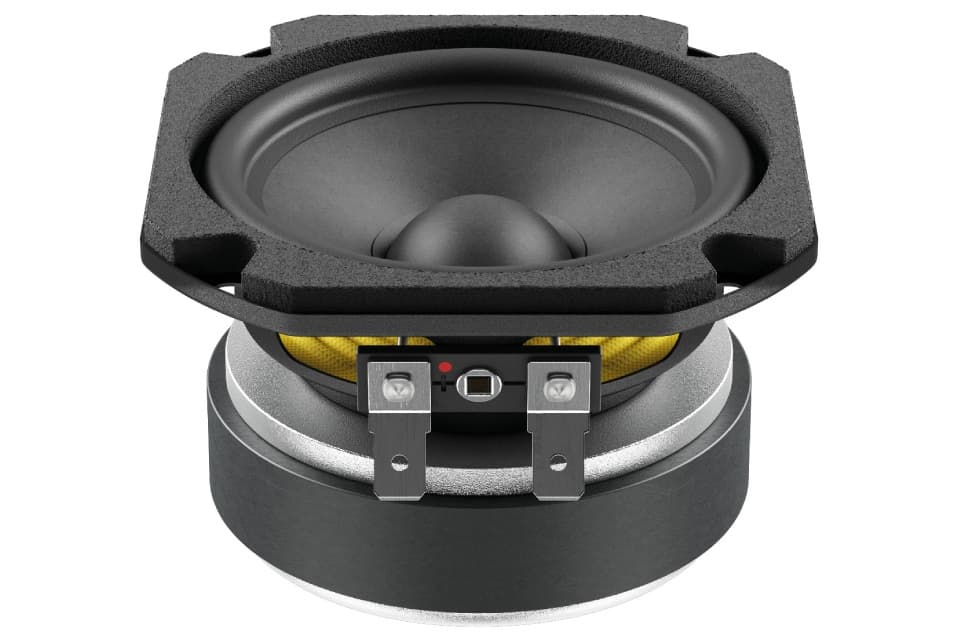

LavoceFSF030.70

£9.23 · 85% less

Fs123 Hz +13%

Qts0.77 −9%

Vas1.2 L –

BL3.5 T·m –

Xmax2.1 mm −7%

Sensitivity85.9 dB +2.2

Dayton AudioPCS115-4

£9.70 · 84% less

Fs88 Hz −19%

Qts0.79 −7%

Vas1.8 L +55%

BL3.6 T·m +6%

Xmax2.8 mm +22%

Sensitivity82.6 dB −1.1

Dayton AudioPC68-8

£11.27 · 82% less

Fs109 Hz –

Qts0.64 −25%

Vas1.3 L +14%

BL3.3 T·m –

Xmax2 mm −11%

Sensitivity84.8 dB +1.1

Dayton AudioCE81PF-8

£12.52 · 80% less

Fs97 Hz −11%

Qts0.81 −5%

Vas1.0 L −12%

BL3.7 T·m +9%

Xmax2.7 mm +20%

Sensitivity82.1 dB −1.6

SB AcousticsSB10PGC21-4

£14.24 · 77% less

Fs89 Hz −18%

Qts0.92 +8%

Vas1.2 L +5%

BL2.3 T·m −32%

Xmax2.3 mm –

Sensitivity81.3 dB −2.4

PeerlessPLS-P830986

£14.58 · 76% less

Fs110 Hz –

Qts0.80 −6%

Vas0.8 L −27%

BL3.5 T·m –

Xmax3.4 mm +50%

Sensitivity82.7 dB −1

REDCATT31NFR

£15.46 · 75% less

Fs115 Hz +6%

Qts0.88 +4%

Vas0.85 L −25%

BL3.5 T·m –

Xmax1.7 mm −24%

Sensitivity83.4 dB –

HiViB3N

£15.46 · 75% less

Fs77 Hz −29%

Qts0.86 –

Vas1.7 L +49%

BL3.1 T·m −9%

Xmax3 mm +33%

Sensitivity80.6 dB −3.1

FaitalPRO3FE26

£18.84 · 69% less

Fs150 Hz +38%

Qts0.79 −7%

Vas0.9 L −21%

BL3.3 T·m –

Xmax2 mm −11%

Sensitivity86.4 dB +2.7

LavoceFSF041.00

£20.19 · 67% less

Fs132 Hz +21%

Qts0.85 –

Vas1.6 L +38%

BL4.3 T·m +26%

Xmax2.2 mm –

Sensitivity87.3 dB +3.6

Dayton AudioPS95-8

£22.12 · 64% less

Fs120 Hz +10%

Qts0.72 −15%

Vas0.9 L −18%

BL3.8 T·m +13%

Xmax2.5 mm +11%

Sensitivity85.1 dB +1.4

CIAREHM100

£27.65 · 55% less

Fs160 Hz +47%

Qts0.70 −18%

Vas1.1 L −4%

BL5.1 T·m +50%

Xmax2.2 mm –

Sensitivity88.7 dB +5

WavecorFR070WA04

£33.47 · 45% less

Fs114 Hz +5%

Qts0.87 –

Vas0.6 L −46%

BL2.9 T·m −15%

Xmax2 mm −11%

Sensitivity81.9 dB −1.8

CelestionAN2775

£35.00 · 43% less

Fs123 Hz +13%

Qts0.96 +13%

Vas3.6 L +213%

BL3.1 T·m −10%

Xmax2.3 mm –

Sensitivity89.6 dB +5.9

WavecorWF090WA01

£41.12 · 33% less

Fs115 Hz +6%

Qts0.81 −5%

Vas1.0 L −11%

BL2.9 T·m −15%

Xmax2.8 mm +22%

Sensitivity84.3 dB +0.6

WavecorWF090WA02

£57.13 · 7% less

Fs109 Hz –

Qts0.76 −11%

Vas1.1 L –

BL3.5 T·m –

Xmax2.8 mm +22%

Sensitivity84.3 dB +0.6

WavecorFR090WA01

£61.15 · Same price

Fs113 Hz +4%

Qts0.88 +4%

Vas1.1 L −6%

BL2.8 T·m −19%

Xmax2.3 mm –

Sensitivity83.8 dB –

WavecorFR084WA01

£61.74 · Same price

Fs113 Hz +4%

Qts0.82 −4%

Vas1.1 L −6%

BL2.9 T·m −15%

Xmax2 mm −11%

Sensitivity84.1 dB –

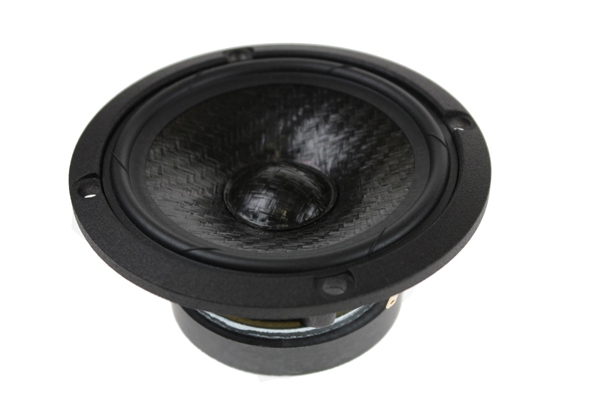

SEASH1658-04 MU10RB-SL

£73.65 · 20% more

Fs100 Hz −8%

Qts0.67 −21%

Vas1.1 L −4%

BL2.9 T·m −15%

Xmax2 mm −11%

Sensitivity81.8 dB −1.9

SEASH1600-08 FU10RB

£80.34 · 31% more

Fs102 Hz −6%

Qts0.96 +13%

Vas1 L −12%

BL3.6 T·m +5%

Xmax2 mm −11%

Sensitivity81 dB −2.7

SEASH1600-04 FU10RB

£80.34 · 31% more

Fs102 Hz −6%

Qts0.91 +7%

Vas1 L −12%

BL2.7 T·m −20%

Xmax2 mm −11%

Sensitivity81.2 dB −2.5

WavecorFR084OM01

No current price

Fs115 Hz +6%

Qts0.92 +8%

Vas1.1 L −5%

BL2.8 T·m −19%

Xmax2.3 mm –

Sensitivity84.1 dB –

WavecorFR084WA02

No current price

Fs109 Hz –

Qts0.79 −7%

Vas1.1 L –

BL3.6 T·m +7%

Xmax2.5 mm +11%

Sensitivity84 dB –

WavecorFR084OM02

No current price

Fs117 Hz +7%

Qts1.06 +25%

Vas1.1 L −5%

BL3.4 T·m –

Xmax2.3 mm –

Sensitivity83.6 dB –

Dayton AudioCFC100-8

No current price

Fs107 Hz –

Qts0.78 −8%

Vas0.75 L −34%

BL3.9 T·m +15%

Xmax2.5 mm +11%

Sensitivity81.6 dB −2.1

CIARECW100Z

No current price

Fs107 Hz –

Qts0.78 −8%

Vas1.9 L +67%

BL3.0 T·m −12%

Xmax2.1 mm −7%

Sensitivity85.3 dB +1.6

PeerlessPLS-75F25AL02-08

No current price

Fs100 Hz −8%

Qts0.74 −13%

Vas1.1 L −5%

BL3.6 T·m +5%

Xmax3.4 mm +50%

Sensitivity83.1 dB −0.6

HiViM3N

No current price

Fs91 Hz −17%

Qts0.80 −6%

Vas1.5 L +32%

BL3 T·m −12%

Xmax3 mm +33%

Sensitivity82.4 dB −1.3

LavoceFSN030.71

No current price

Fs134 Hz +23%

Qts0.67 −21%

Vas1.0 L −9%

BL3.8 T·m +12%

Xmax2.1 mm −7%

Sensitivity87.3 dB +3.6

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax

Where to buy

Prices for delivery to the UK, including VAT. How prices work

Watch price

Shop	Price	Against the lowest	Stock	Link
Lautsprechershop Checked 23 Oct 2026 · Ships from Germany · 8 Ω · Source: inc VAT · 19% Import VAT and duty may apply	£61.74, the lowest price		Stock not listed	Visit shop at Lautsprechershop

Best price over time

Tracked since 28 Sep
