HiVi B3N 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverB series
HiVi

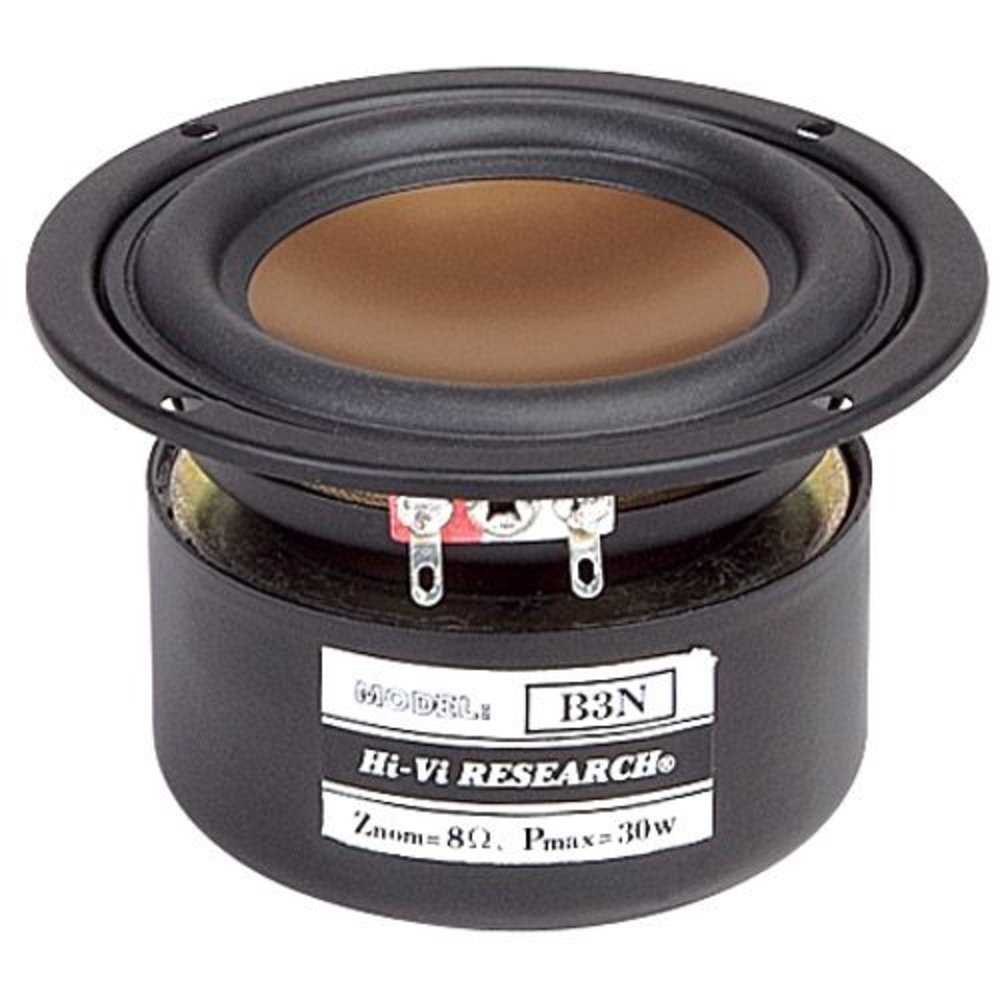

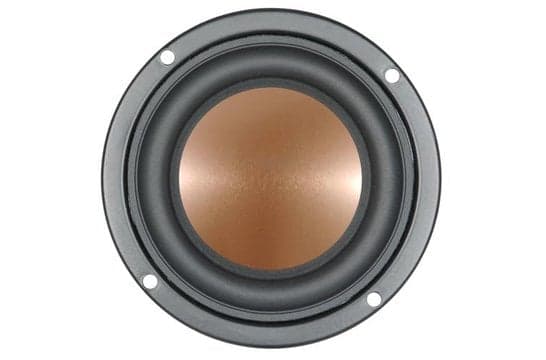

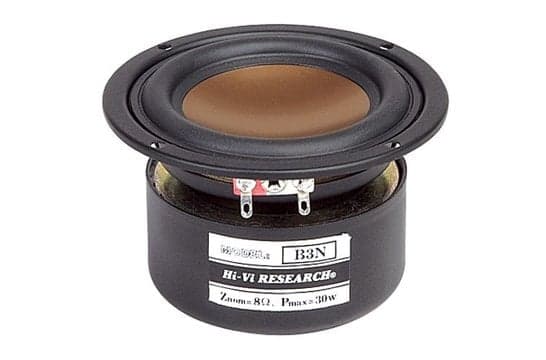

HiVi B3N
HiVi B3N is a 3" 8 ohm LF driver rated at 10W RMS. The validated T/S data includes Fs 77Hz, Qts 0.86, Vas 0.1L, Xmax 3mm, sensitivity 66.1dB, plus 9cm³ Vd and 72 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
8Ω
RMS Power
10W
Sensitivity
66.1dB
81.0dBmanufacturer; using T/S-derived value (14.9dB delta).
EBP
72
Either alignment
Vd
9cm³
T/S Parameters
Valid
Fs77Hz
Qts0.86
Qes1.07
Qms4.5
Vas0.1L
Re6.5Ω
BL3.1Tm
Sd30cm²
Mms3g
Xmax3.0mm
SPL66dB
Power10W
Impedance8Ω
F Low80Hz
F High12000Hz
Voice Coil19mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£15.85
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter88.9mm
Overall Depth54.0mm
Cutout Diameter73.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
HiVi
B3N
3"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
89%
Similarity

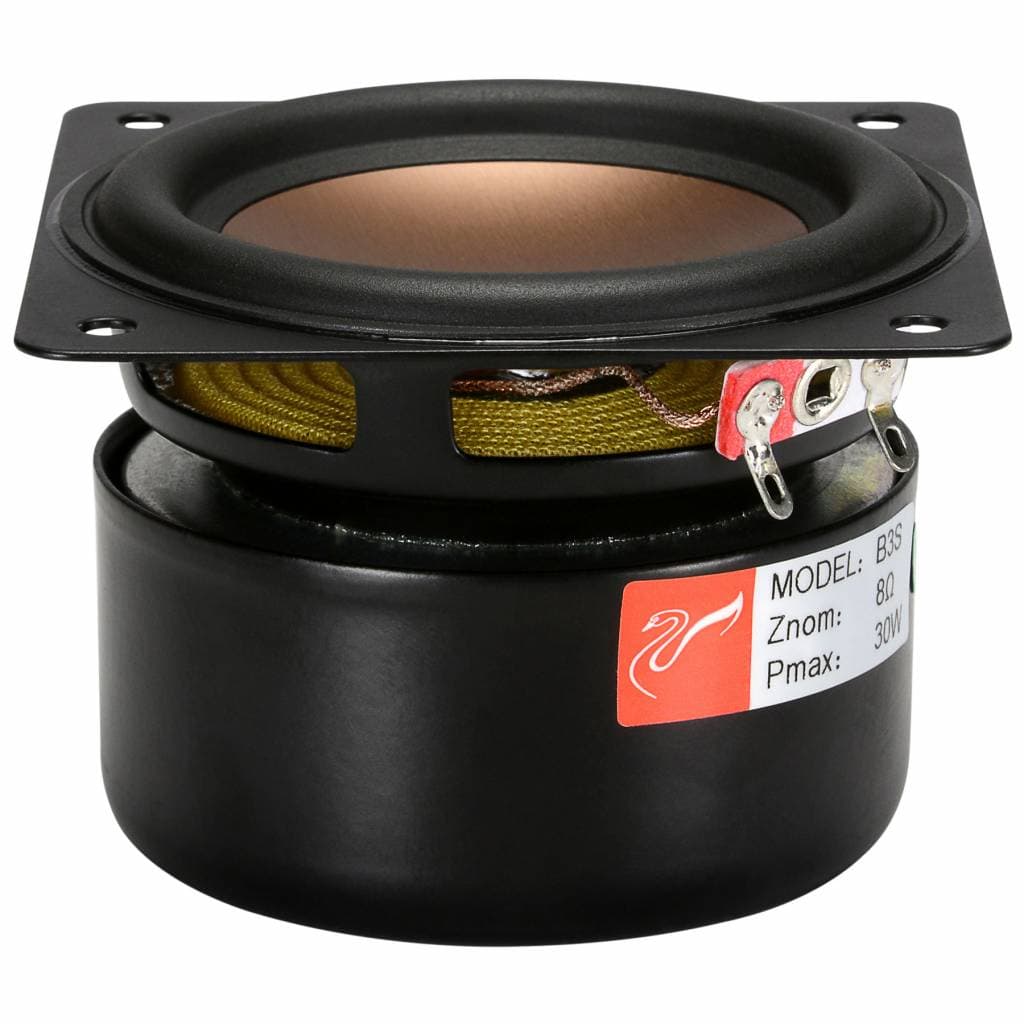

HiVi
B3S
3"
Xmax3mm0%
Qts0.88+2%
BL3.1Tm-1%
Vas0L-33%
Qes1.15+7%
