3-inch LF driver · FR070OM series · 22 mm voice coil
Wavecor FR070OM02 8Ω
8 Ω
No current price
- Fs
- 120Hz
- Xmax
- 2.5mm
- SPL
- 82dB
- Pe
- –
- BL
- 2.9T·m
- Vd
- 6cm³
- Qts
- 1
- Vas
- 0.6L
Wavecor FR070OM02 is a 3-inch 8 ohm LF driver. The validated T/S data includes Fs 120 Hz, Qts 1, Vas 0.6 L, Xmax 2.5 mm, sensitivity 81.9 dB, plus 6 cm³ Vd and 111 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 120Hz
- Qts
- 1
- Qes
- 1.08
- Qms
- 13.7
- Vas
- 0.6L
- Re
- 6Ω
Motor and cone
- BL
- 2.9T·m
- Sd
- 22cm²
- Mms
- 2g
- Xmax
- 2.5mm
- Vd †
- 6cm³
- Voice coil
- 22mm
Power and response
- Sensitivity †
- 81.9dB
- Impedance
- 8Ω
- EBP †
- 111 · Leans vented
Size and mounting
- Diameter
- 69.8mm
Other published values
- Cms
- 0.88mm/N
- Rms
- 0.11kg/s
† Calculated by bits from the published values
What this validation status means
Everything else Wavecor lists
LF · Primary · 3″
- BL
- 2.9T·m
- Fs
- 120Hz
- Re
- 6Ω
- Sd
- 22cm²
- Cms
- 0.88mm/N
- Mms
- 2g
- Qes
- 1.08
- Qms
- 13.7
- Qts
- 1
- Rms
- 0.11kg/s
- SPL
- 81.9dB
- Vas
- 0.6L
- Xmax
- 2.5mm
- Impedance
- 8Ω
- Calculated sensitivity †
- 81.9dB
- Voice coil
- 22mm
- Diameter
- 69.8mm
02
Compare
Same-size drivers, compared with the FR070OM02. Clear differences are green when better and red when worse.
This driverFR070OM02
Best price
–
Fs
120 Hz
Qts
1
Vas
0.6 L
BL
2.9 T·m
Xmax
2.5 mm
Sensitivity
81.9 dB
Power
–
HiViB3S
£15.45Fs80 Hz −33%, better
Qts0.93 −7%
Vas1.6 L +167%, worse
BL2.9 T·m –
Xmax3 mm +20%, better
Sensitivity80.4 dB −1.5
HiViB3N
£15.45Fs77 Hz −36%, better
Qts0.86 −14%, better
Vas1.7 L +183%, worse
BL3.1 T·m +7%
Xmax3 mm +20%, better
Sensitivity80.6 dB −1.3
Sica2.5 H 0.8 SL
£17.58Fs185 Hz +54%, worse
Qts0.92 −8%
Vas0.2 L −67%, better
BL2.8 T·m −3%
Xmax1.3 mm −48%, worse
Sensitivity82.6 dB +0.7
SB AcousticsSB65WBAC25-4
£25.12Fs115 Hz −4%
Qts0.68 −32%, better
Vas0.43 L −28%, better
BL2.9 T·m –
Xmax2.6 mm +6%
Sensitivity81.3 dB −0.6
Sica3 L 0.8 SL
£26.75Fs145 Hz +21%, worse
Qts1.01 –
Vas0.8 L +33%, worse
BL2.8 T·m −3%
Xmax1.5 mm −40%, worse
Sensitivity84.8 dB +2.9, better
WavecorFR070WA04
£33.41Fs114 Hz −5%
Qts0.87 −13%, better
Vas0.6 L –
BL2.9 T·m –
Xmax2 mm −20%, worse
Sensitivity81.9 dB –
WavecorFR070WA03
£33.41Fs121 Hz –
Qts0.92 −8%
Vas0.54 L −10%
BL2.3 T·m −21%, worse
Xmax2 mm −20%, worse
Sensitivity81.9 dB –
CelestionAN2075
£33.66Fs153 Hz +28%, worse
Qts0.84 −16%, better
Vas1.5 L +152%, worse
BL2.7 T·m −7%
Xmax2.3 mm −10%, worse
Sensitivity89.4 dB +7.5, better
CelestionAN2775
£35.00Fs123 Hz –
Qts0.96 −4%
Vas3.6 L +495%, worse
BL3.1 T·m +6%
Xmax2.3 mm −10%, worse
Sensitivity89.6 dB +7.7, better
Dayton AudioRS75T-8
£35.08Fs189 Hz +57%, worse
Qts0.95 −5%
Vas0.22 L −63%, better
BL2.6 T·m −11%, worse
Xmax1.3 mm −48%, worse
Sensitivity83.2 dB +1.3
PRV Audio3MR40-NDY-4
£36.80Fs153 Hz +28%, worse
Qts0.77 −23%, better
Vas0.6 L +5%
BL2.9 T·m –
Xmax1.4 mm −44%, worse
Sensitivity85.6 dB +3.7, better
WavecorWF090WA01
£41.14Fs115 Hz −4%
Qts0.81 −19%, better
Vas1.0 L +70%, worse
BL2.9 T·m –
Xmax2.8 mm +10%, better
Sensitivity84.3 dB +2.4, better
WavecorFR090WA01
£61.12Fs113 Hz −6%
Qts0.88 −12%, better
Vas1.1 L +78%, worse
BL2.8 T·m −5%
Xmax2.3 mm −10%, worse
Sensitivity83.8 dB +1.9
WavecorFR090WA02
£61.12Fs109 Hz −9%
Qts0.85 −15%, better
Vas1.1 L +90%, worse
BL3.4 T·m +17%, better
Xmax2.3 mm −10%, worse
Sensitivity83.7 dB +1.8
WavecorFR084WA01
£61.71Fs113 Hz −6%
Qts0.82 −18%, better
Vas1.1 L +78%, worse
BL2.9 T·m –
Xmax2 mm −20%, worse
Sensitivity84.1 dB +2.2, better
SEASH1600-04 FU10RB
£80.34Fs102 Hz −15%, better
Qts0.91 −9%
Vas1 L +67%, worse
BL2.7 T·m −6%
Xmax2 mm −20%, worse
Sensitivity81.2 dB −0.7

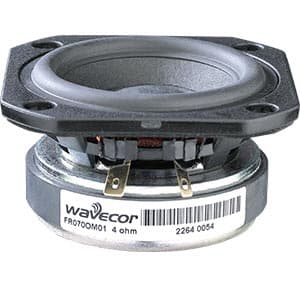

WavecorFR070OM01
No current priceFs116 Hz −3%
Qts0.83 −17%, better
Vas0.6 L –
BL2.3 T·m −21%, worse
Xmax2.5 mm –
Sensitivity82.3 dB –
WavecorFR084OM01
No current priceFs115 Hz −4%
Qts0.92 −8%
Vas1.1 L +80%, worse
BL2.8 T·m −5%
Xmax2.3 mm −10%, worse
Sensitivity84.1 dB +2.2, better
LavoceFSN020.72
No current priceFs210 Hz +75%, worse
Qts0.92 −8%
Vas0.18 L −70%, better
BL3.2 T·m +10%, better
Xmax2.3 mm −8%
Sensitivity83.6 dB +1.7

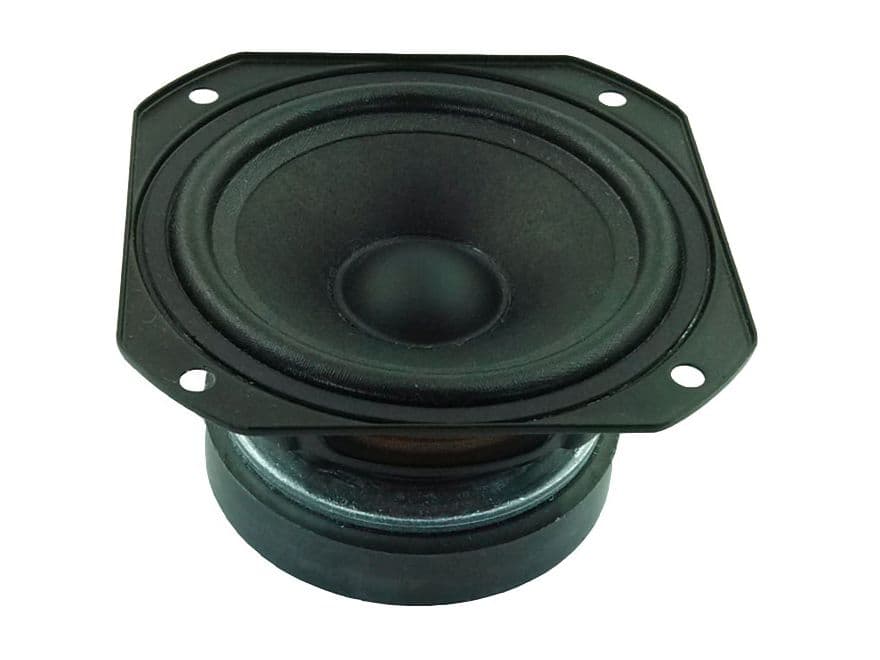

PeerlessTC9FD00-04
No current priceFs170 Hz +42%, worse
Qts1 –
Vas0.74 L +23%, worse
BL2.3 T·m −20%, worse
Xmax2.9 mm +17%, better
Sensitivity86.4 dB +4.5, better
Dayton AudioCE67PR-4
No current priceFs218 Hz +82%, worse
Qts0.92 −8%
Vas0.11 L −82%, better
BL3.2 T·m +11%, better
Xmax2.2 mm −12%, worse
Sensitivity82.1 dB –
CIARECXE104
No current priceFs119 Hz –
Qts0.93 −7%
Vas2.4 L +297%, worse
BL3.0 T·m –
Xmax2.1 mm −16%, worse
Sensitivity87.2 dB +5.3, better
WavecorFR084OM02
No current priceFs117 Hz –
Qts1.06 +6%
Vas1.1 L +80%, worse
BL3.4 T·m +17%, better
Xmax2.3 mm −10%, worse
Sensitivity83.6 dB +1.7
Dayton AudioCFC100-8
No current priceFs107 Hz −11%, better
Qts0.78 −22%, better
Vas0.75 L +25%, worse
BL3.9 T·m +34%, better
Xmax2.5 mm –
Sensitivity81.6 dB –
LavoceFSN020.71F
No current priceFs212 Hz +77%, worse
Qts0.82 −18%, better
Vas0.22 L −63%, better
BL3.2 T·m +12%, better
Xmax2.4 mm −4%
Sensitivity85.5 dB +3.6, better
CIARECW100Z
No current priceFs107 Hz −11%, better
Qts0.78 −22%, better
Vas1.9 L +217%, worse
BL3.0 T·m +3%
Xmax2.1 mm −16%, worse
Sensitivity85.3 dB +3.4, better
Dayton AudioCFC100-4
No current priceFs94 Hz −22%, better
Qts0.60 −40%, better
Vas0.8 L +39%, worse
BL3.1 T·m +9%
Xmax2.5 mm –
Sensitivity81.7 dB –
WavecorFR055OM02
No current priceFs135 Hz +13%, worse
Qts1.06 +6%
Vas0.35 L −42%, better
BL2.5 T·m −14%, worse
Xmax1 mm −60%, worse
Sensitivity80.5 dB −1.4
HiViM3N
No current priceFs91 Hz −24%, better
Qts0.80 −20%, better
Vas1.5 L +150%, worse
BL3 T·m +3%
Xmax3 mm +20%, better
Sensitivity82.4 dB +0.5
