Overview
LF Driver
Sica
Sica 2.5 H 0.8 SL

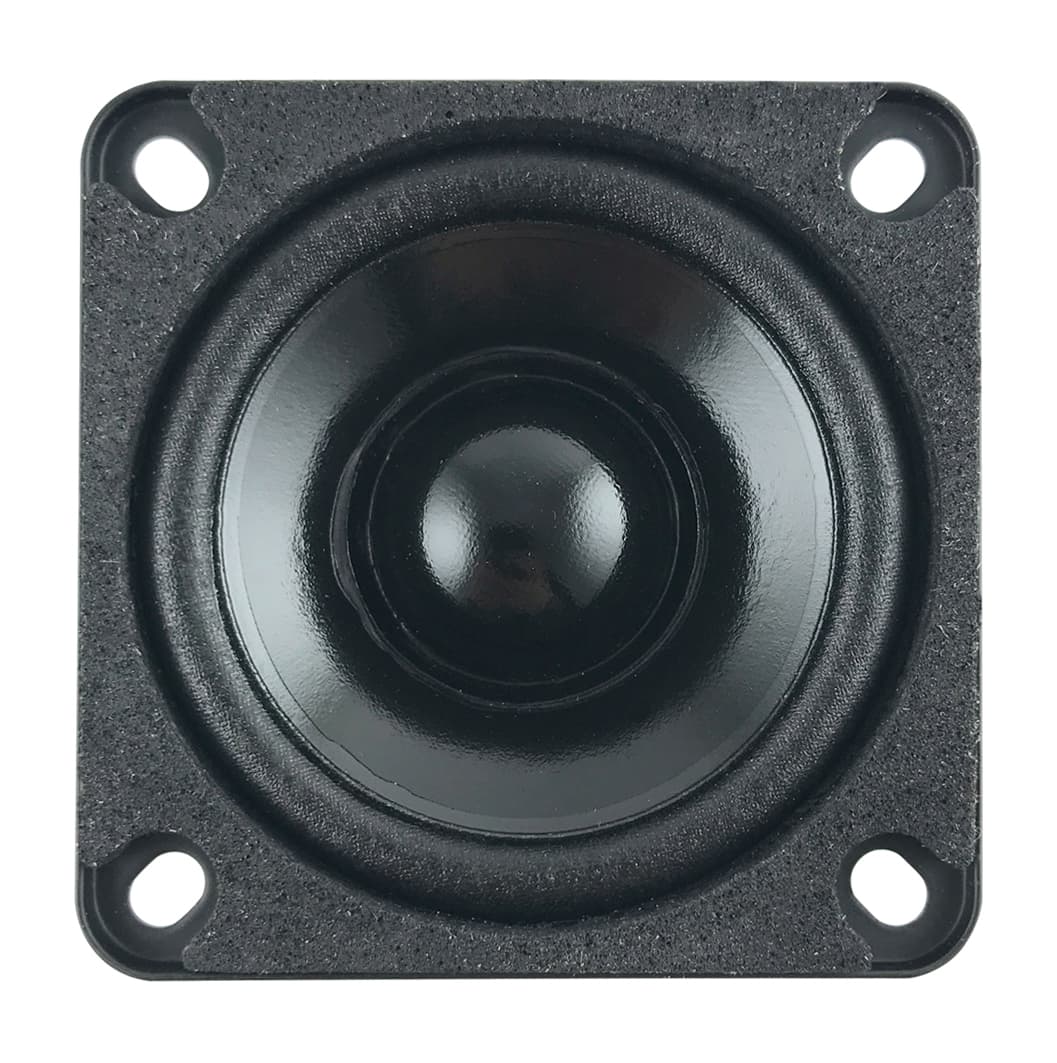

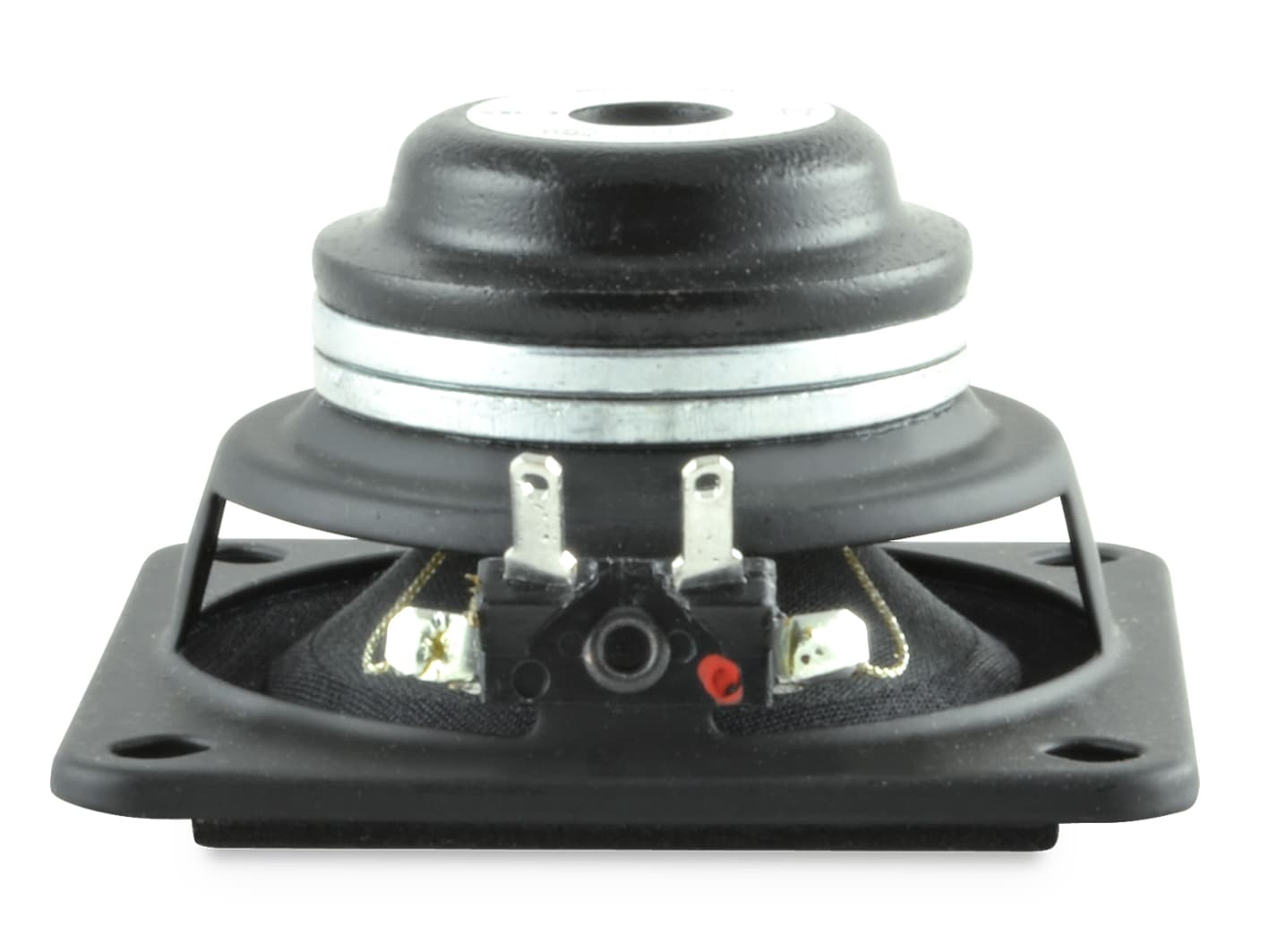

Sica 2.5 H 0.8 SL is a 2.5" 8 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 185Hz, Qts 0.92, Vas 0.2L, Xmax 1.3mm, sensitivity 82.6dB, plus 2cm³ Vd and 167 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2.5"
Impedance
8Ω
RMS Power
20W
Sensitivity
82.6dB
85.6dBmanufacturer; using T/S-derived value (3.0dB delta).
EBP
167
Vented alignment
Vd
2cm³
T/S Parameters
Valid
Fs185Hz
Qts0.92
Qes1.11
Qms5.2
Vas0.2L
Re5.0Ω
Le0.12mH
BL2.8Tm
Sd19cm²
Mms2g
Xmax1.3mm
SPL83dB
Power20W
Impedance8Ω
Voice Coil20mm
Flux Density1.30T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.1kg
Diameter66.0mm
Overall Depth36.6mm
Cutout Diameter61.0mm
Bolt Circle Diameter75.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
2.5 H 0.8 SL
2.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
6 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
82%
Similarity
£42.98
Dayton Audio
RS75T-8
3"
Xmax1.3mm0%
Qts0.95+3%
BL2.6Tm-8%
Vas0.2L+10%
Qes1.13+2%
Image unavailable
62%
Similarity
Wavecor
FR055WA01
2"
Xmax1.4mm+4%
Qts0.91-1%
BL2.1Tm-25%
Vas0.3L+35%
Qes1.01-9%
55%
Similarity
Sica
2 H 0.8 SL
2"
Xmax1.4mm+8%
Qts0.81-12%
BL2.6Tm-7%
Vas0.1L-50%
Qes1-10%
53%
Similarity
£37.82
Dayton Audio
RS75-8
3"
Xmax1.3mm0%
Qts1.07+16%
BL2.5Tm-9%
Vas0.1L-43%
Qes1.35+22%
48%
Similarity
£22.62
Dayton Audio
RS75-4
3"
Xmax1.1mm-15%
Qts0.83-10%
BL2Tm-28%
Vas0.1L-30%
Qes0.97-13%
39%
Similarity
Peerless
HVS-60N18PG02-04
2.5"
Xmax1.6mm+22%
Qts1.1+20%
BL1.9Tm-33%
Vas0.2L+19%
Qes1.5+35%
