Overview
LF DriverFR series
Visaton
Visaton FR 8 WP
Visaton FR 8 WP is a 3.5" 4 ohm LF driver rated at 15W RMS. The validated T/S data includes Fs 158Hz, Qts 0.88, Vas 0.4L, Xmax 3mm, sensitivity 82.8dB, plus 9cm³ Vd and 119 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £14.98.
Size
3.5"
Impedance
4Ω
RMS Power
15W
Sensitivity
82.8dB
84.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
119
Vented alignment
Vd
9cm³

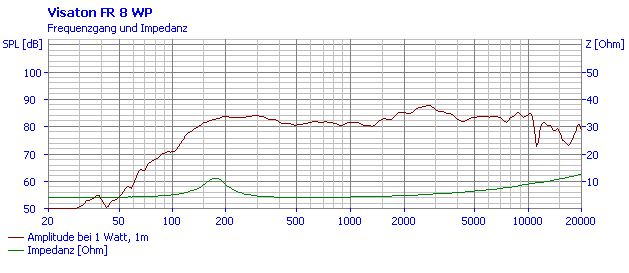

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsSource file SHA-256 a8057bacf15c…Medium confidence767 selected pixels of 1,596 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsSource file SHA-256 a8057bacf15c…Medium confidence380 selected pixels of 651
T/S Parameters
Valid
Fs158Hz
Qts0.88
Qes1.33
Qms2.6
Vas0.4L
Re4.1Ω
Le0.30mH
BL2.8Tm
Sd30cm²
Mms3g
Xmax3.0mm
SPL83dB
Power15W
Impedance4Ω
F Low100Hz
F High20000Hz
Voice Coil20mm
Flux Density1.00T
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorspartsexpress
Updated 11 Sept 2026· 4Ω
Source: ex VAT
£16.14
inc VAT
10 in stock
soundimports
Updated 11 Sept 2026· 4Ω
Source: inc VAT
£19.72
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
partsexpress
£14.98
Avg £15.56£0.58 below avg (-3.7%)
inc VAT·17 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.2kg
Diameter80.0mm
Cutout Diameter74.0mm
