Overview
LF Driver
Tang Band

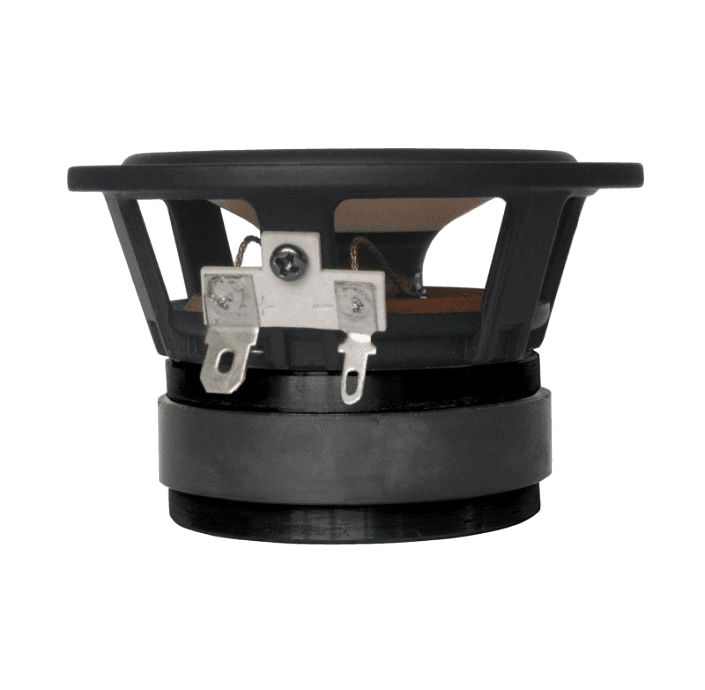

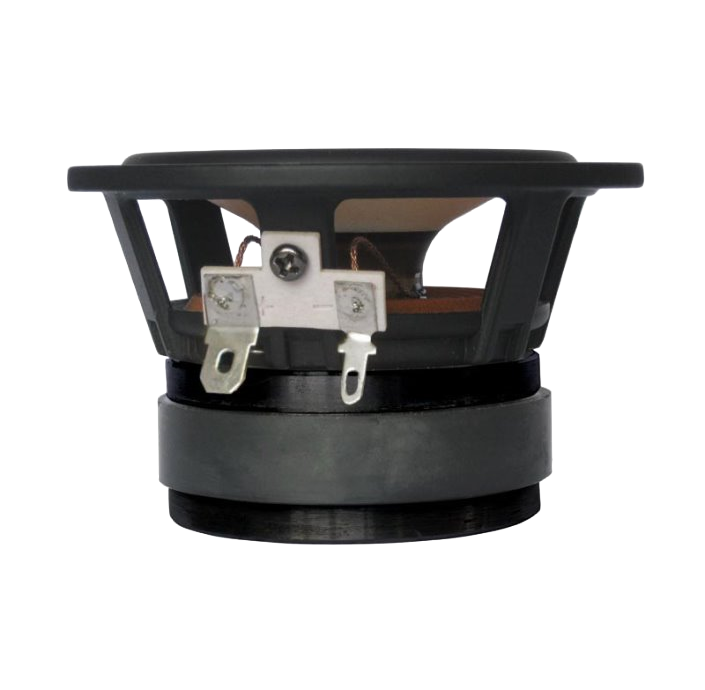

Tang Band W3-532SQF
Tang Band W3-532SQF is a 3" 8 ohm LF driver rated at 12W RMS. The validated T/S data includes Fs 100Hz, Qts 0.72, Vas 1.5L, Xmax 0.5mm, sensitivity 84.5dB, plus 2cm³ Vd and 115 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
8Ω
RMS Power
12W
Sensitivity
84.5dB
86.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
115
Vented alignment
Vd
2cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl213 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
213 plotted pointsMedium confidence619 selected pixels of 2,518
T/S Parameters
Valid
Fs100Hz
Qts0.72
Qes0.87
Qms4.4
Vas1.5L
Re6.6Ω
Le0.07mH
BL3.2Tm
Sd32cm²
Mms2g
Xmax0.5mm
SPL85dB
Power12W
Impedance8Ω
