Overview
LF Driver
Sica

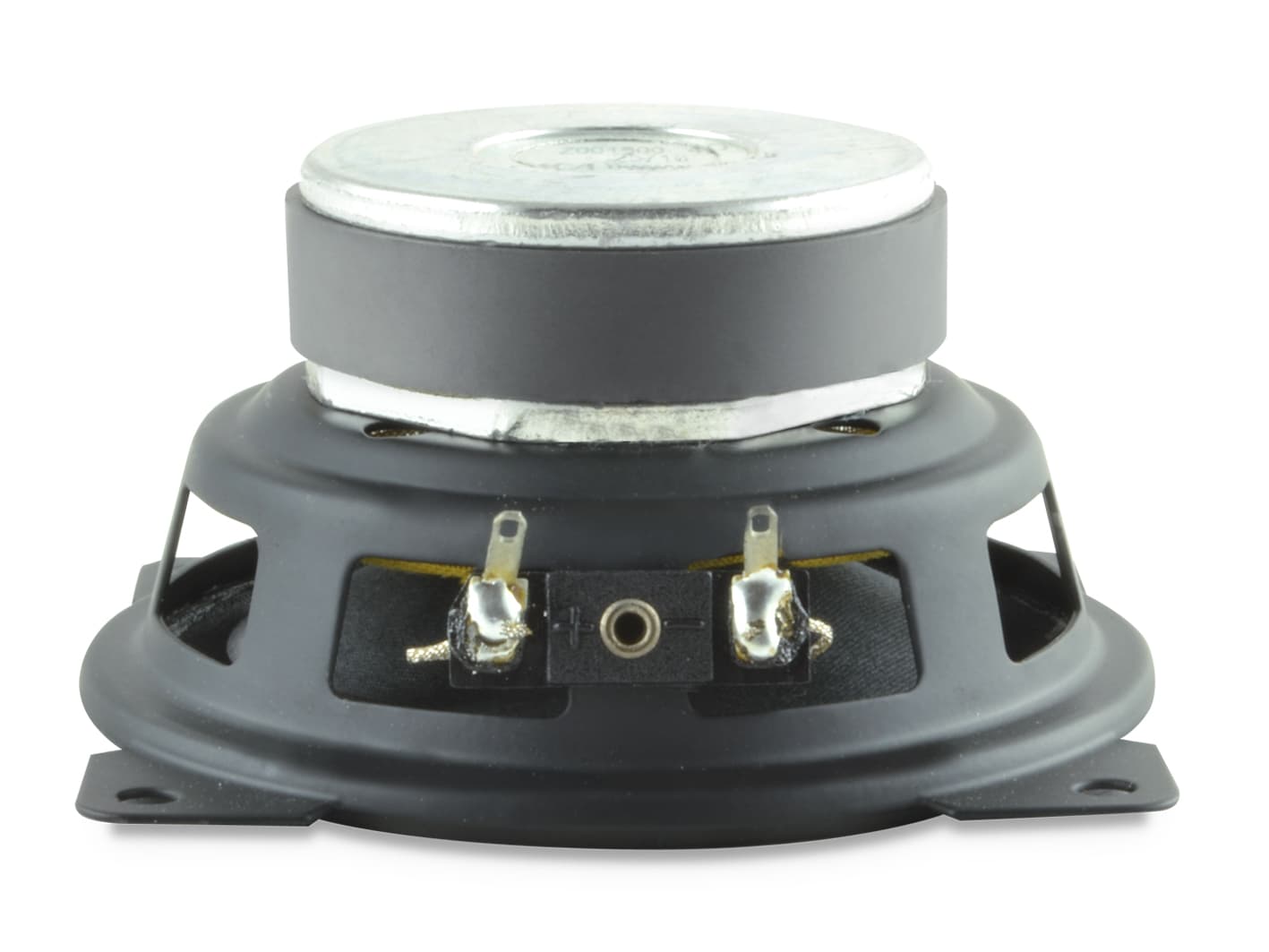

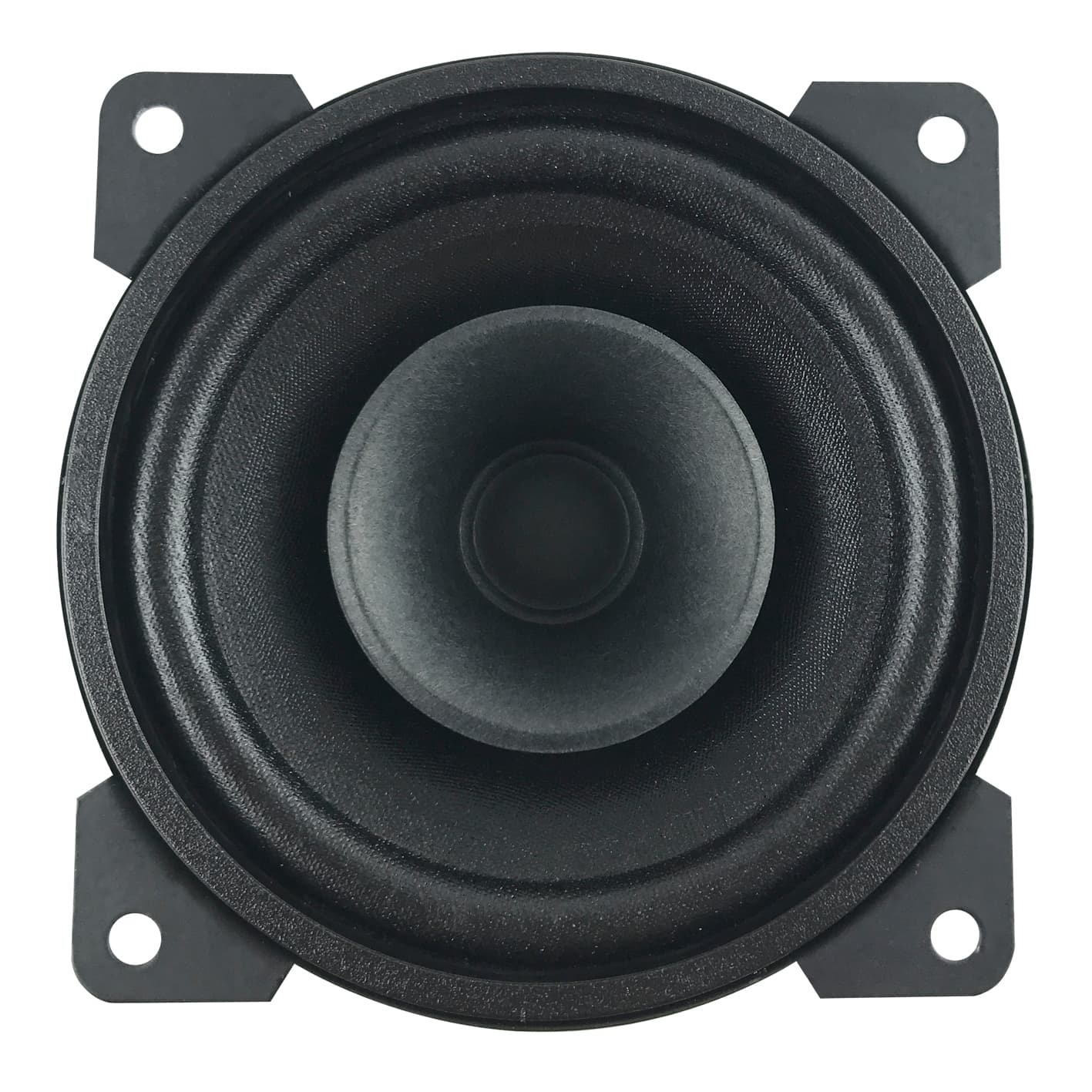

Sica 4 D 0.8 CS
Sica 4 D 0.8 CS is a 4" 4 ohm LF driver rated at 35W RMS. The validated T/S data includes Fs 140Hz, Qts 0.92, Vas 1.2L, Xmax 1.3mm, sensitivity 86.5dB, plus 6cm³ Vd and 119 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
RMS Power
35W
Sensitivity
86.5dB
87.5dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
119
Vented alignment
Vd
6cm³
T/S Parameters
Valid
Fs140Hz
Qts0.92
Qes1.18
Qms4.2
Vas1.2L
Re3.0Ω
Le0.14mH
BL2.6Tm
Sd44cm²
Mms3g
Xmax1.3mm
SPL87dB
Power35W
Impedance4Ω
Voice Coil20mm
Flux Density1.10T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.4kg
Diameter100.0mm
Overall Depth50.0mm
Cutout Diameter90.0mm
Bolt Circle Diameter116.0mm
