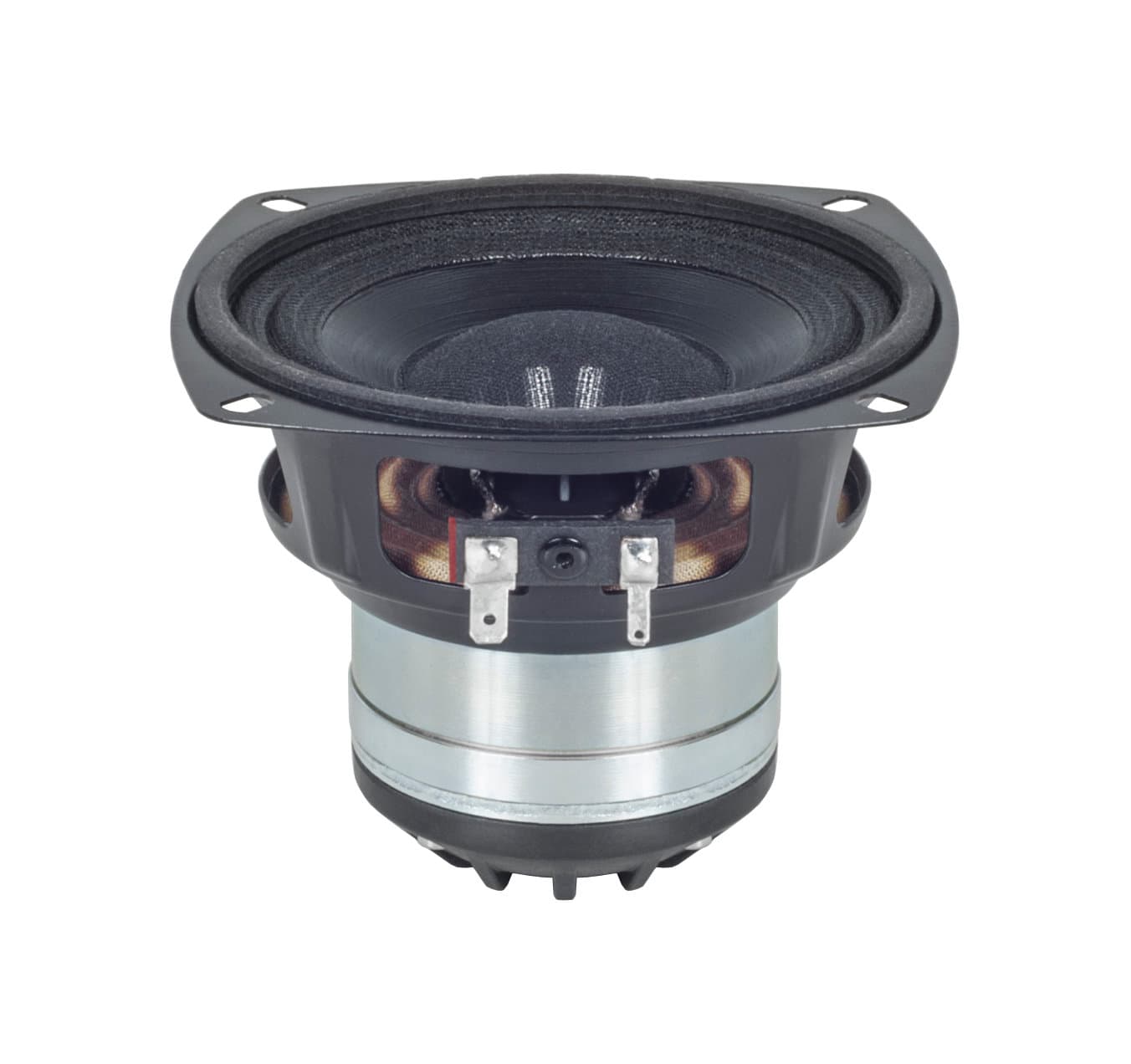

4-inch LF driver · 4MCX series · 34 mm voice coil · 100 W
B&C 4MCX36 8Ω
8 Ω
No current price
- Fs
- 150Hz
- Xmax
- 3mm
- SPL
- 86dB
- Pe
- 100W
- BL
- 5.3T·m
- Vd
- 17cm³
- Qts
- 0.91
- Vas
- 0.8L

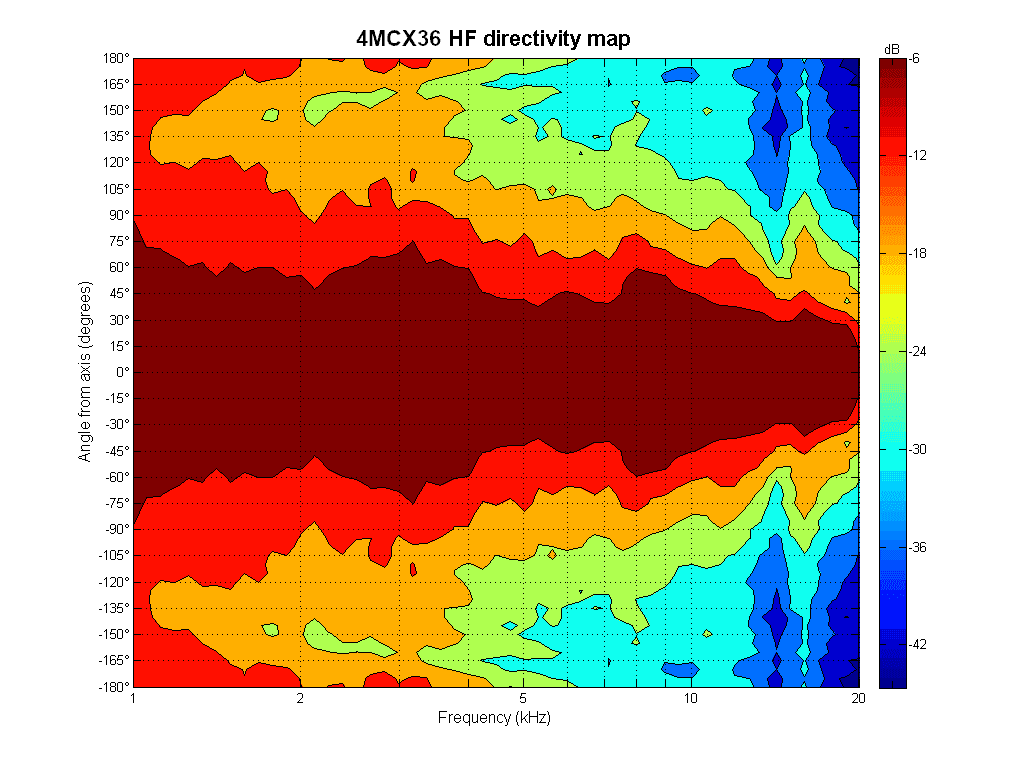

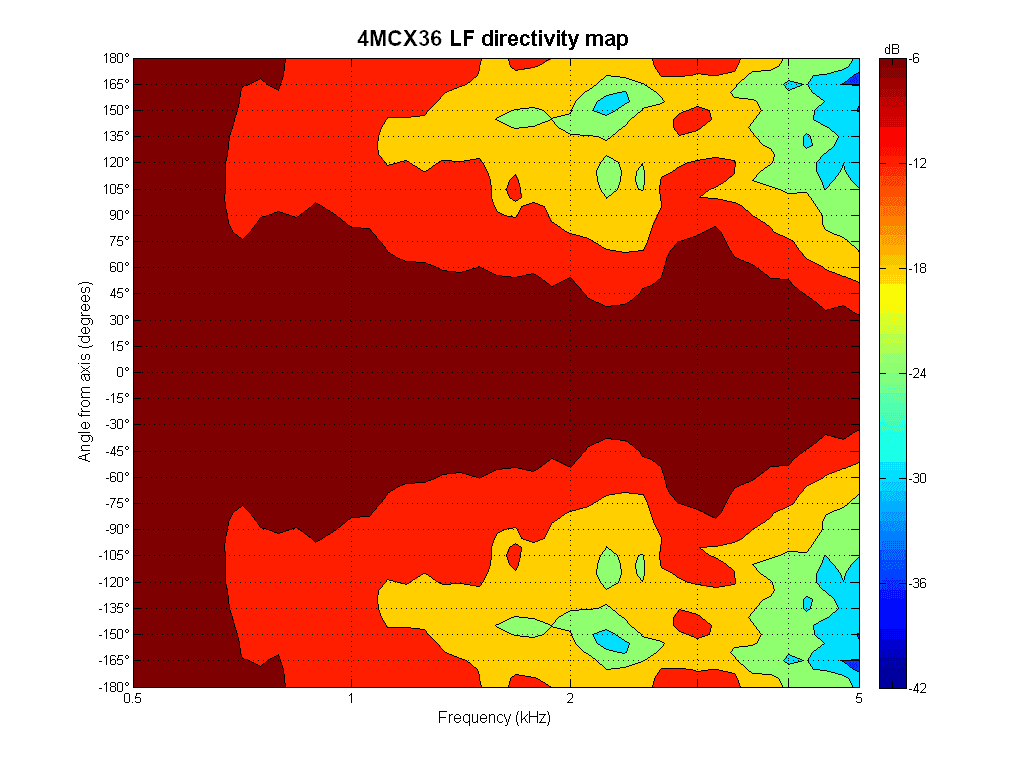

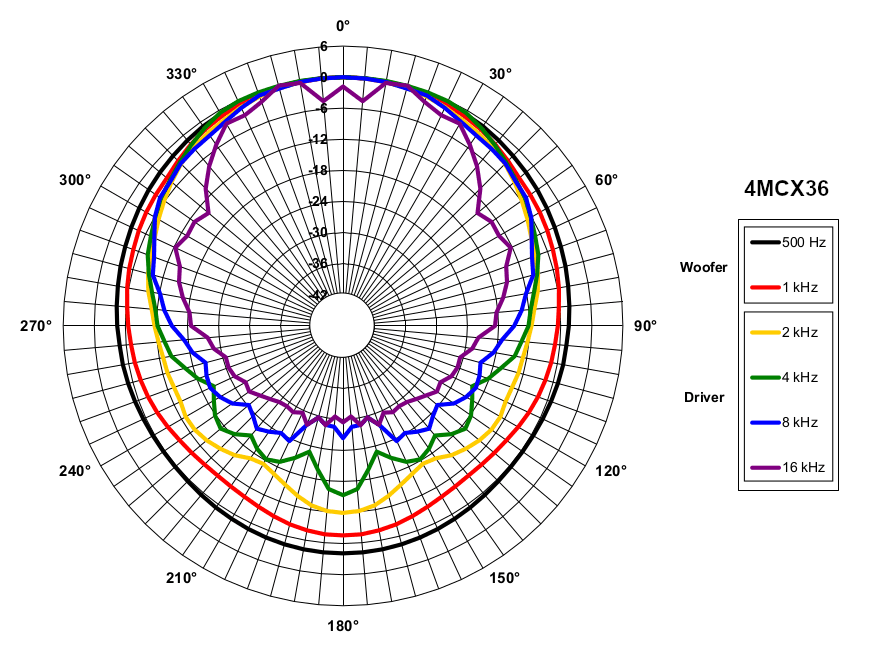

Published graphs
B&C 4MCX36 is a 4-inch 8 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 150 Hz, Qts 0.91, Vas 0.8 L, Xmax 3 mm, sensitivity 85.6 dB, plus 17 cm³ Vd and 125 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 150Hz
- Qts
- 0.91
- Qes
- 1.20
- Qms
- 3.9
- Vas
- 0.8L
- Re
- 5.6Ω
- Le
- 0.87mH
Motor and cone
- BL
- 5.3T·m
- Sd
- 56cm²
- Mms
- 6g
- Xmax
- 3mm
- Vd †
- 17cm³
- Voice coil
- 34mm
- Flux density
- 0.74T
Power and response
- Sensitivity †
- 85.6dB
- Manufacturer sensitivity
- 87dB
- Power
- 100W
- Nominal power
- 100W
- Impedance
- 8Ω
- Min. impedance
- 6.8Ω
- EBP †
- 125 · Leans vented
Sensitivity shows 85.6 dB, calculated from the T/S values. B&C publishes 87.0 dB, 1.4 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Specifications LF unit
- BL
- 5.3T·m
- Fs
- 150Hz
- Le
- 0.87mH
- Re
- 5.6Ω
- Sd
- 56cm²
- Mms
- 6g
- Qes
- 1.20
- Qms
- 3.9
- Qts
- 0.91
- SPL
- 85.6dB
- Vas
- 0.8L
- Xmax
- 3mm
- Power
- 100W
- Impedance
- 8Ω
- Flux density
- 0.74T
- Sensitivity
- 87dB
- Nominal power
- 100W
- Calculated sensitivity †
- 85.6dB
- Manufacturer sensitivity
- 87dB
- Min. impedance
- 6.8Ω
- Voice coil
- 34mm
- Bl
- 5.27 Tm
- Fs
- 150 Hz
- Le
- 0.87 mH
- Re
- 5.6 Ω
- Sd
- 56 cm² (8.68 in²)
- Ebp
- 125 Hz
- Mms
- 6.2 g
- Qes
- 1.2
- Qms
- 3.9
- Qts
- 0.91
- Vas
- 0.8 dm³ (0.03 ft³)
- Η0
- 0.22 %
- Xvar
- 3 mm
- Sensitivity
- 87 dB
- Flux density
- 0.74 T
- Winding depth
- 11 mm (0.43 in)
- Former material
- Glass Fibre
- Nominal diameter
- 100 mm (4 in)
- Winding material
- Copper
- Minimum impedance
- 6.8 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 6 mm (0.24 in)
- Voice coil diameter
- 34 mm (1.3 in)
- Woofer cone treatment
- WP Waterproof Front Side
- Nominal power handling
- 100 W
- Continuous power handling
- 200 W
HF · Specifications HF unit
- Le
- 0.14mH
- SPL
- 102dB
- Power
- 25W
- Impedance
- 16Ω
- Flux density
- 1.65T
- Sensitivity
- 102dB
- Nominal power
- 25W
- Manufacturer sensitivity
- 102dB
- Min. impedance
- 10.2Ω
- Voice coil
- 36mm
- Crossover
- 2000Hz
- Inductance
- 0.14 mH
- Sensitivity
- 102 dB
- Flux density
- 1.65 T
- Nominal diameter
- 100 mm (4 in)
- Winding material
- Aluminium
- Minimum impedance
- 10.2 Ω
- Nominal impedance
- 16 Ω
- Diaphragm material
- HT Polymer
- Voice coil diameter
- 36 mm (1.42 in)
- Recommended crossover
- 2 kHz
- Nominal power handling
- 25 W
- Continuous power handling
- 50 W
