Overview
LF DriverFE series
FaitalPRO

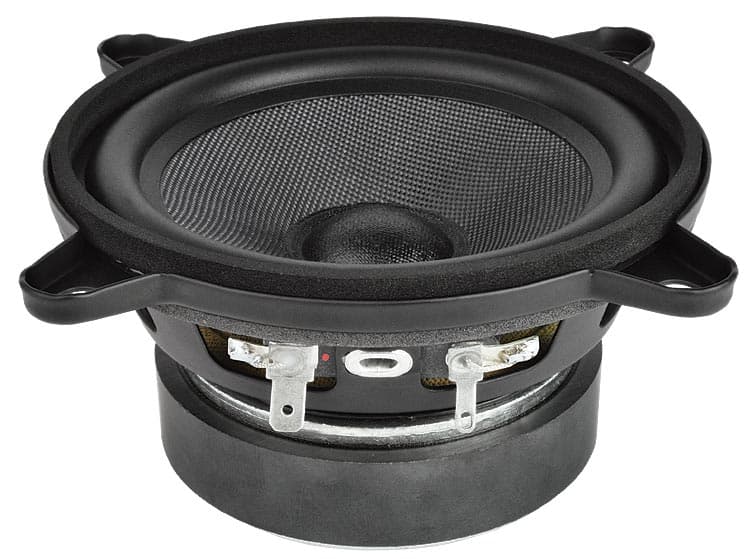

FaitalPRO 4FE35
FaitalPRO 4FE35 is a 4" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 100Hz, Qts 0.83, Vas 2.4L, Xmax 2.7mm, sensitivity 85.7dB, plus 14cm³ Vd and 96 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £16.00.
Size
4"
Impedance
8Ω
RMS Power
30W
Sensitivity
85.7dB
91.0dBmanufacturer; using T/S-derived value (5.3dB delta).
EBP
96
Either alignment
Vd
14cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees180 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
180 plotted pointsMedium confidence462 selected pixels of 585 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,056 selected pixels of 1,056 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,169 selected pixels of 1,169
T/S Parameters
Valid
Fs100Hz
Qts0.83
Qes1.04
Qms4.2
Vas2.4L
Re6.5Ω
Le0.10mH
BL3.9Tm
Sd52cm²
Mms4g
Xmax2.7mm
SPL86dB
Power30W
Impedance8Ω
F Low90Hz
F High20000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£16.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter129.8mm
Overall Depth58.3mm
Cutout Diameter91.5mm
Bolt Circle Diameter115.3mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
4FE35
4"
Best current price
£16.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
11 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
40%
Similarity
42% cheaper£9.23
Lavoce
FSF030.70
3"
Lower price
Xmax2.1mm-23%
Qts0.77-7%
BL3.5Tm-11%
Vas1.2L-51%
Qes0.89-14%
72%
Similarity
24% cheaper£12.18
Lavoce
FSF041.00
4"
Lower price
Xmax2.2mm-19%
Qts0.85+2%
BL4.3Tm+9%
Vas1.6L-35%
Qes1.07+3%
29%
Similarity
36% more£21.72
Lavoce
FSN030.71
3"
Higher price
Xmax2.1mm-23%
Qts0.67-19%
BL3.8Tm-2%
Vas1L-57%
Qes0.74-29%
58%
Similarity
106% more£32.88
Eminence
ALPHA 4-4
4"
Higher price
Xmax2.6mm-5%
Qts0.63-24%
BL4.1Tm+6%
Vas1.8L-27%
Qes0.7-33%
41%
Similarity
172% more£43.50
Celestion
AN3510
3.5"
Higher price
Xmax2.3mm-18%
Qts0.65-22%
BL4.6Tm+17%
Vas1.9L-22%
Qes0.74-29%
65%
Similarity
200% more£47.92
Eminence
ALPHA 4-8
4"
Higher price
Xmax2.6mm-5%
Qts0.75-10%
BL4.9Tm+27%
Vas1.9L-19%
Qes0.84-19%
81%
Similarity
Visaton
FRS 10 WP - 4 OHM
4"
Xmax3mm+10%
Qts0.91+10%
BL3.8Tm-3%
Vas2L-17%
Qes1.02-2%
68%
Similarity
Visaton
FRS 10 WP - 8 OHM
4"
Xmax3mm+10%
Qts0.98+18%
BL4.3Tm+10%
Vas1.9L-21%
Qes1.12+8%
65%
Similarity
Peerless
TC10FG00-04
4"
Xmax2.7mm-1%
Qts0.65-22%
BL3.4Tm-14%
Vas1.7L-29%
Qes0.9-13%
64%
Similarity
CIARE
CW100Z
4"
Xmax2.1mm-23%
Qts0.78-6%
BL3Tm-23%
Vas1.9L-21%
Qes1.1+6%
59%
Similarity
Wavecor
WF090WA02
3.5"
Xmax2.8mm+1%
Qts0.76-8%
BL3.5Tm-10%
Vas1.1L-52%
Qes0.87-16%
