Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespVisaton FR 10 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverFR series
Visaton

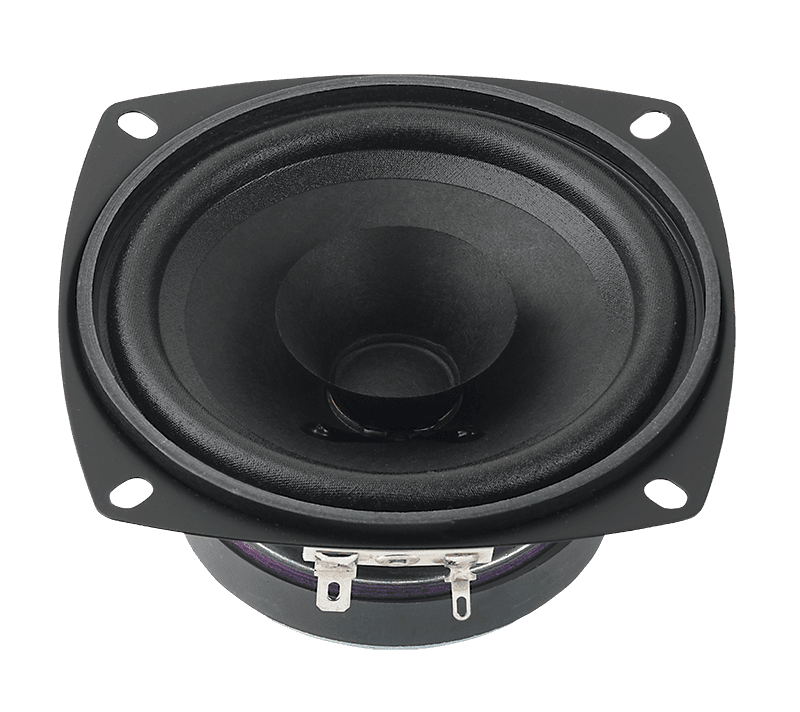

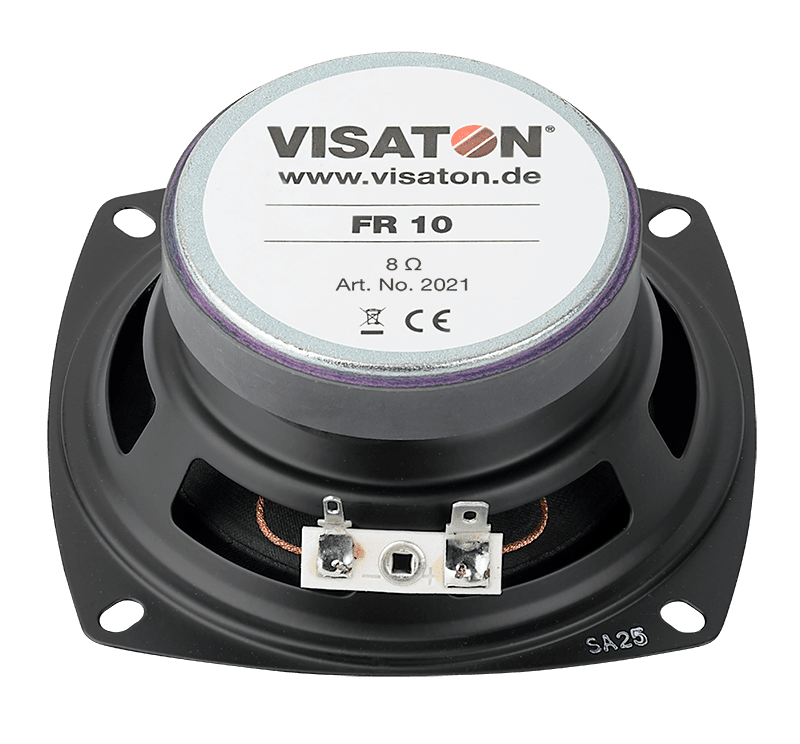

Visaton FR 10
Visaton FR 10 is a 4" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 90Hz, Qts 0.67, Vas 2.3L, Xmax 4mm, sensitivity 84.5dB, plus 20cm³ Vd and 95 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £13.85.
Size
4"
Impedance
8Ω
RMS Power
30W
Sensitivity
84.5dB
86.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
95
Either alignment
Vd
20cm³
T/S Parameters
Valid
Fs90Hz
Qts0.67
Qes0.95
Qms2.3
Vas2.3L
Re7.2Ω
Le0.20mH
BL4.6Tm
Sd50cm²
Mms6g
Xmax4.0mm
SPL85dB
Power30W
Impedance8Ω
F Low80Hz
F High20000Hz
Voice Coil20mm
Flux Density0.95T
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorSoundImports
Updated 28 Sept 2026· 8Ω
Source: inc VAT
£15.44
inc VAT
4 in stock
Best current price
Updated 28 Sept 2026
RumoH
£13.85
Avg £14.65
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.4kg
Diameter100.0mm
Cutout Diameter100.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
FR 10
4"
Best current price
£13.85
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
50%
Similarity
6% cheaper£13.02
Peerless
SDS-100F25CP09-04
4"
Lower price
Xmax5mm+26%
Qts0.53-21%
BL4.7Tm+3%
Vas2L-14%
Qes0.58-39%
76%
Similarity
£13.85
Visaton
FR 10 - 4 OHM
4"
Xmax4mm0%
Qts0.54-19%
BL4.6Tm0%
Vas2.3L0%
Qes0.7-26%
51%
Similarity
8% more£15.02
PRV Audio
4MR60-4
4"
Higher price
Xmax2.9mm-28%
Qts0.68+1%
BL3.4Tm-26%
Vas3.3L+42%
Qes0.75-21%
72%
Similarity
76% more£24.34
Peerless
HDS-P830992
4"
Higher price
Xmax5mm+25%
Qts0.66-1%
BL4.8Tm+5%
Vas1.4L-40%
Qes0.94-1%
61%
Similarity
118% more£30.17
Dayton Audio
RS100-8
4"
Higher price
Xmax3.5mm-12%
Qts0.58-13%
BL4.2Tm-9%
Vas1.4L-38%
Qes0.76-20%
60%
Similarity
118% more£30.17
Dayton Audio
RS100P-8
4"
Higher price
Xmax3.7mm-7%
Qts0.54-19%
BL4Tm-14%
Vas1.8L-21%
Qes0.71-25%
49%
Similarity
118% more£30.17
Dayton Audio
RS100-4
4"
Higher price
Xmax4mm0%
Qts0.53-21%
BL3.2Tm-31%
Vas1.4L-37%
Qes0.66-31%
77%
Similarity
126% more£31.36
Dayton Audio
ND105-4
4"
Higher price
Xmax4mm0%
Qts0.61-9%
BL4.5Tm-2%
Vas2L-14%
Qes0.66-31%
73%
Similarity
126% more£31.36
Dayton Audio
ND105-8
4"
Higher price
Xmax4mm0%
Qts0.66-1%
BL5.4Tm+18%
Vas3L+29%
Qes0.74-22%
61%
Similarity
148% more£34.37
Peerless
GBS-115N25AL01-04
4.5"
Higher price
Xmax4.8mm+21%
Qts0.63-6%
BL4.5Tm-2%
Vas1.8L-22%
Qes0.77-19%
70%
Similarity
398% more£69.00
Celestion
TFX0412
4"
Higher price
Xmax4mm0%
Qts0.59-12%
BL5.4Tm+17%
Vas2.2L-5%
Qes0.67-30%
26%
Similarity
515% more£85.18
Wavecor
WF118WA06
4.5"
Higher price
Xmax3mm-25%
Qts0.55-18%
BL5.6Tm+22%
Vas3.5L+52%
Qes0.59-38%
