LF DriverWF series
Visaton

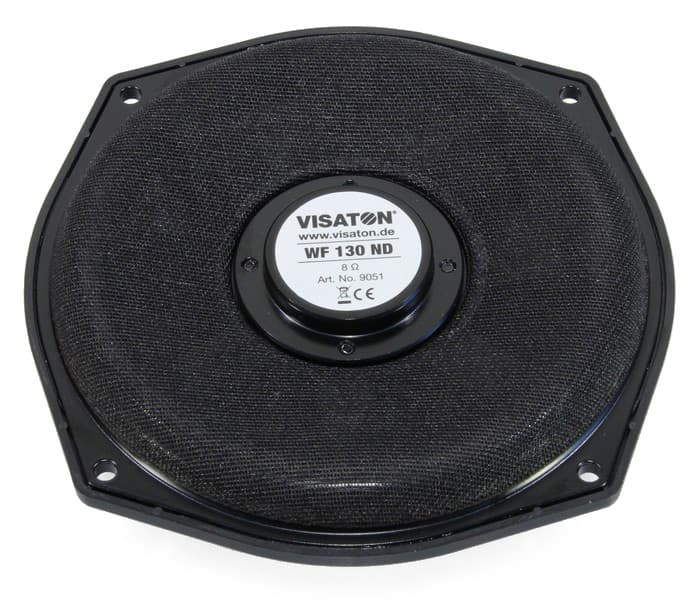

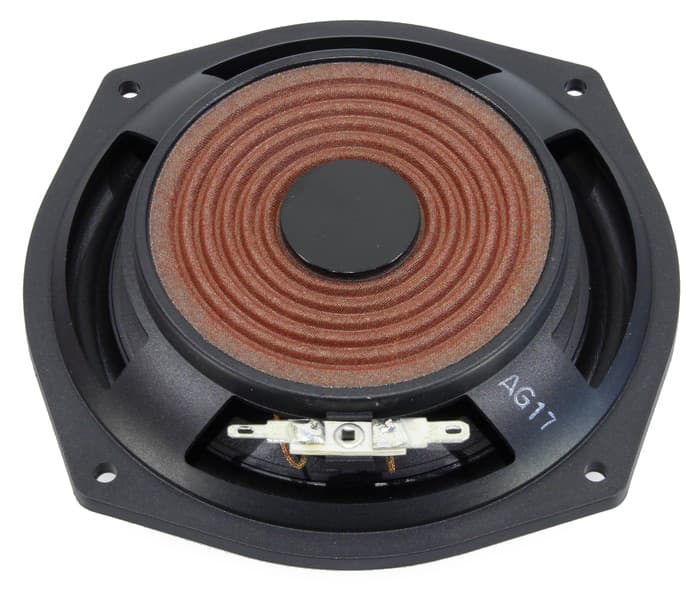

Visaton WF 130 ND
Rated 5.0 out of 53 ratings at 2 shopsVisaton WF 130 ND is a 5" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 46Hz, Qts 0.69, Vas 10.6L, Xmax 8.1mm, sensitivity 82.7dB, plus 76cm³ Vd and 52 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £103.00.
Size
5"
Impedance
8Ω
RMS Power
40W
Sensitivity
82.7dB
84.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
52
Either alignment
Vd
76cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
impedance240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence391 selected pixels of 391
T/S Parameters
Valid
Fs46Hz
Qts0.69
Qes0.89
Qms3.0
Vas10.6L
Re6.7Ω
Le0.76mH
BL5.4Tm
Sd94cm²
Mms12g
Xmax8.1mm
SPL83dB
Power40W
Impedance8Ω
F High10000Hz
Voice Coil26mm
Flux Density1.17T
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorsSoundImports
Updated 28 Sept 2026
Source: inc VAT
£111.81
inc VAT
2 in stock
Impact Audio
Updated 28 Sept 2026· 8Ω
Source: ex VAT · 20%
£121.14
inc VAT
In stock
Best current price
Updated 28 Sept 2026
Thomann
£103.00
Avg £111.98£8.98 below avg (-8.0%)
inc VAT·In stock
Reviews
How ratings workRated 5.0 out of 5from 3 ratings at 2 shops
- Read reviews on ThomannThomannRated 5.0 out of 5 · 2 ratings · Checked 28 Sep 2026
- Read reviews on SoundImportsSoundImportsRated 5.0 out of 5 · 1 rating · Checked 28 Sep 2026
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.3kg
Diameter130.0mm
Cutout Diameter123.0mm
