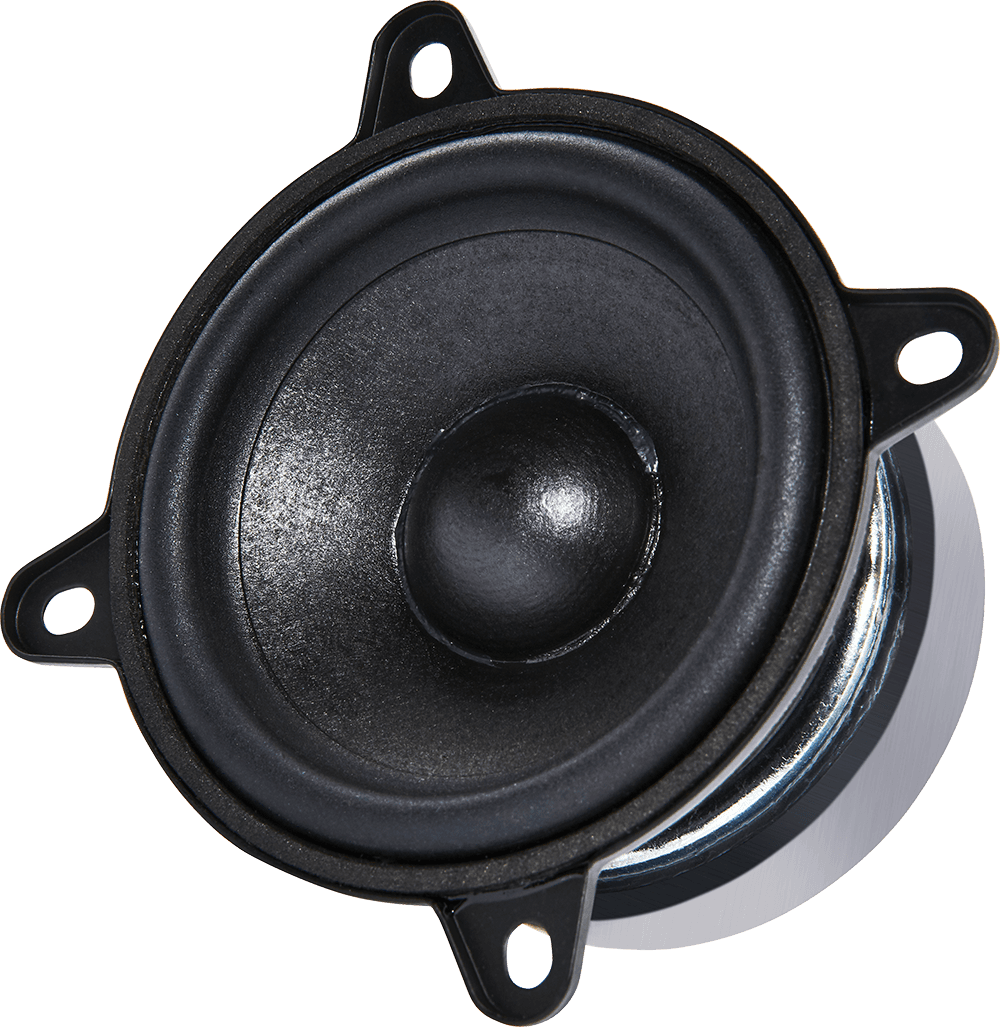

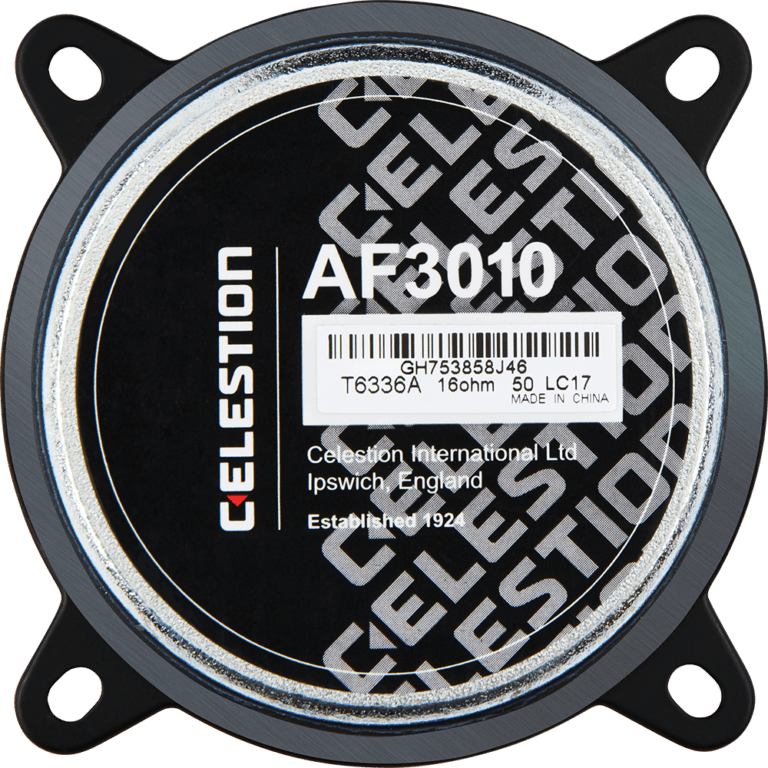

3-inch LF driver · AF3010 series · 25 mm voice coil · 35 W
Celestion AF3010 16Ω
16 Ω · 120–18000 Hz
No price for delivery to the UK
- Fs
- 129Hz
- Xmax
- 2.8mm
- SPL
- 84dB
- Pe
- 35W
- BL
- 6.0T·m
- Vd
- 9cm³
- Qts
- 0.74
- Vas
- 0.67L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence501 selected pixels of 505

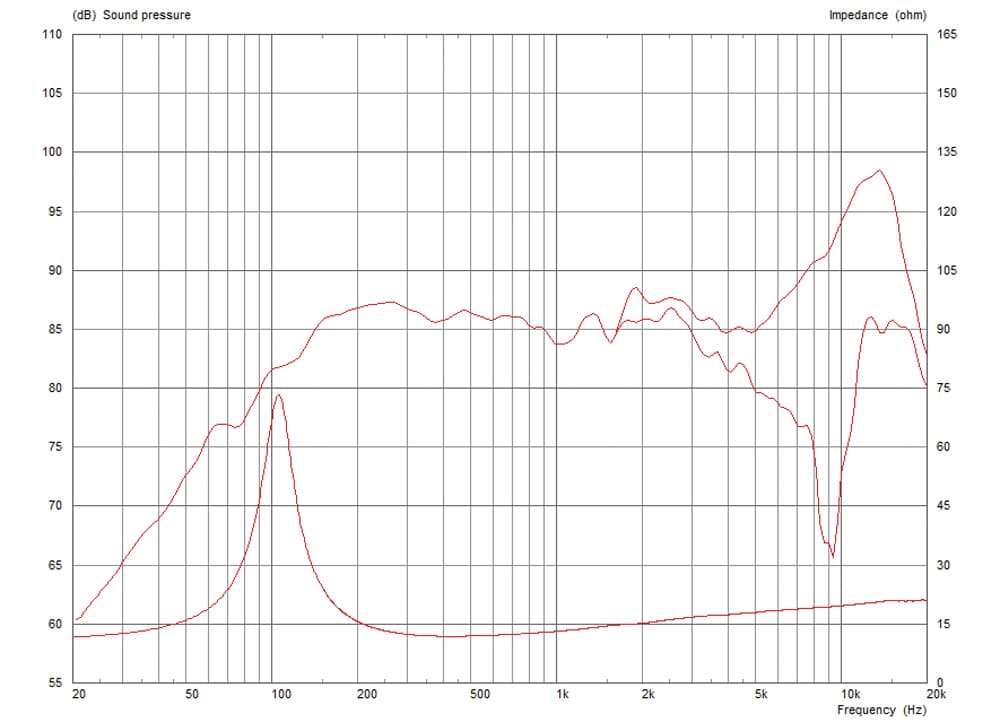

Published graphs
Celestion AF3010 is a 3-inch 16 ohm LF driver rated at 35 W RMS. The validated T/S data includes Fs 129 Hz, Qts 0.74, Vas 0.7 L, Xmax 2.8 mm, sensitivity 84.3 dB, plus 9 cm³ Vd and 153 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £25.11.
The published T/S values agree with each other
Thiele/Small
- Fs
- 129Hz
- Qts
- 0.74
- Qes
- 0.84
- Qms
- 6.1
- Vas
- 0.7L
- Re
- 10.5Ω
- Le
- 0.26mH
Motor and cone
- BL
- 6.0T·m
- Sd
- 33cm²
- Mms
- 4g
- Xmax
- 2.8mm
- Vd †
- 9cm³
- Voice coil
- 25mm
Power and response
- Sensitivity †
- 84.3dB
- Manufacturer sensitivity
- 87dB
- Power
- 35W
- Impedance
- 16Ω
- Range
- 120–18000Hz
- EBP †
- 153 · Leans vented
Size and mounting
- Diameter
- 81mm
- Cutout
- 72mm
- Bolt circle
- 93mm
- Depth
- 57mm
- Weight
- 0.6kg
Other published values
- Cms
- 0.43mm/N
- Rms
- 0.47kg/s
- Power Program
- 70
Sensitivity shows 84.3 dB, calculated from the T/S values. Celestion publishes 87.0 dB, 2.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 3″
- BL
- 6.0T·m
- Fs
- 129Hz
- Le
- 0.26mH
- Re
- 10.5Ω
- Sd
- 33cm²
- Cms
- 0.43mm/N
- Mms
- 4g
- Qes
- 0.84
- Qms
- 6.1
- Qts
- 0.74
- Rms
- 0.47kg/s
- SPL
- 84.3dB
- Vas
- 0.7L
- Xmax
- 2.8mm
- Power
- 35W
- Impedance
- 16Ω
- Sensitivity
- 87dB
- Low limit
- 120Hz
- Power Program
- 70
- Calculated sensitivity †
- 84.3dB
- High limit
- 18000Hz
- Manufacturer sensitivity
- 87dB
- Voice coil
- 25mm
- Weight
- 0.6kg
- Diameter
- 81mm
- Depth
- 57mm
- Cutout
- 72mm
- Bolt circle
- 93mm
02
Compare
Same-size drivers, compared with the AF3010. Clear differences are green when better and red when worse.
This driverAF3010
Best price
£25.11
Fs
129 Hz
Qts
0.74
Vas
0.7 L
BL
6.0 T·m
Xmax
2.8 mm
Sensitivity
84.3 dB
Power
35 W
Dayton AudioPCS115-4
£9.71 · 61% less, betterFs88 Hz −32%, better
Qts0.79 +7%
Vas1.8 L +164%, worse
BL3.6 T·m −40%, worse
Xmax2.8 mm –
Sensitivity82.6 dB −1.7
Dayton AudioPC68-4
£11.26 · 55% less, betterFs117 Hz −9%
Qts0.65 −12%, better
Vas0.7 L +4%
BL2.4 T·m −60%, worse
Xmax2 mm −27%, worse
Sensitivity83.1 dB −1.2
Dayton AudioCE81PF-8
£12.52 · 50% less, betterFs97 Hz −25%, better
Qts0.81 +9%
Vas1.0 L +49%, worse
BL3.7 T·m −38%, worse
Xmax2.7 mm –
Sensitivity82.1 dB −2.2, worse
REDCATT41FR
£12.52 · 50% less, betterFs134 Hz +4%
Qts0.75 –
Vas1.3 L +94%, worse
BL4.8 T·m −20%, worse
Xmax1.1 mm −60%, worse
Sensitivity87.9 dB +3.6, better

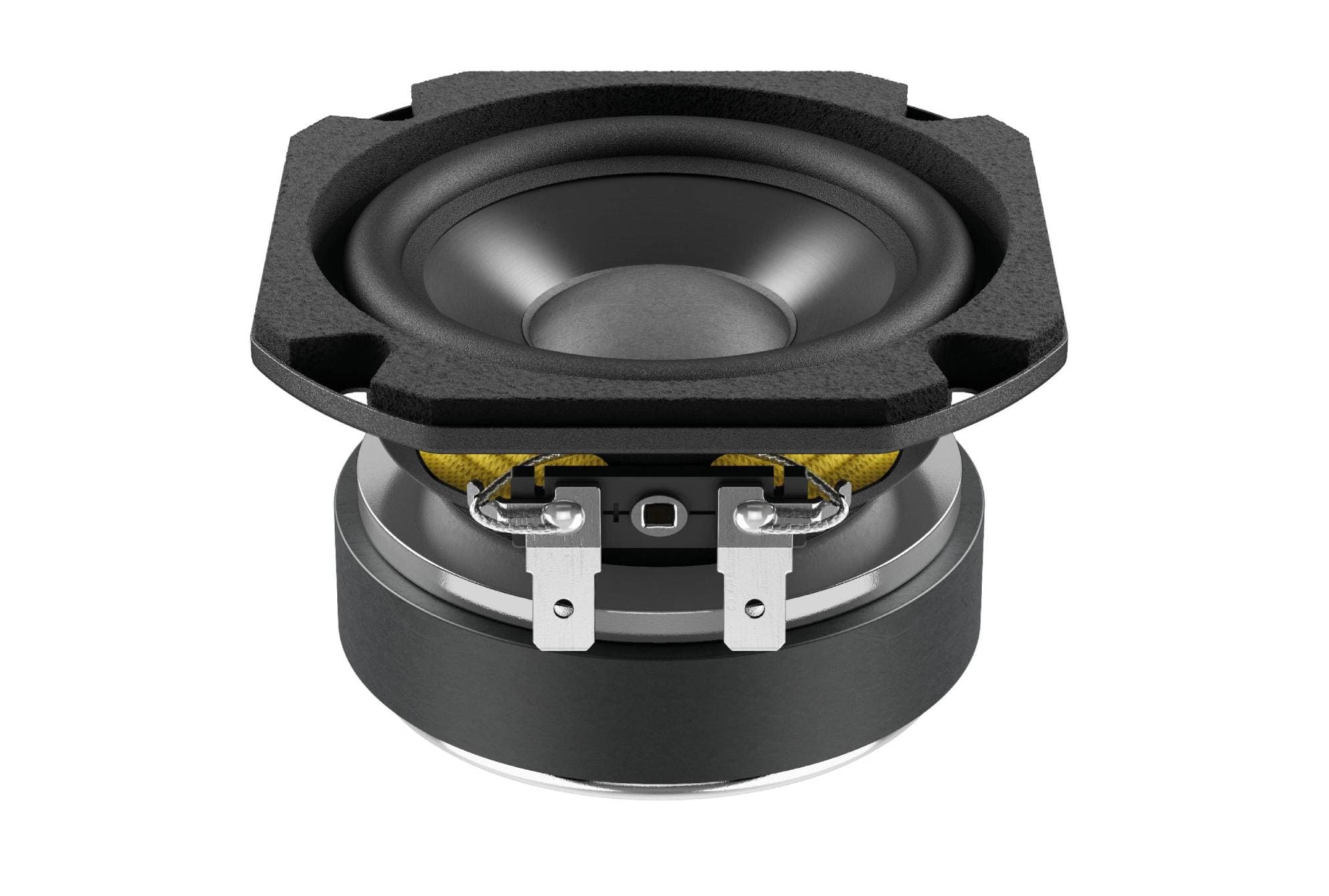

LavoceWSF030.70
£13.56 · 46% less, betterFs112 Hz −13%, better
Qts0.61 −18%, better
Vas0.9 L +33%, worse
BL4.7 T·m −22%, worse
Xmax3.3 mm +20%, better
Sensitivity84.5 dB –

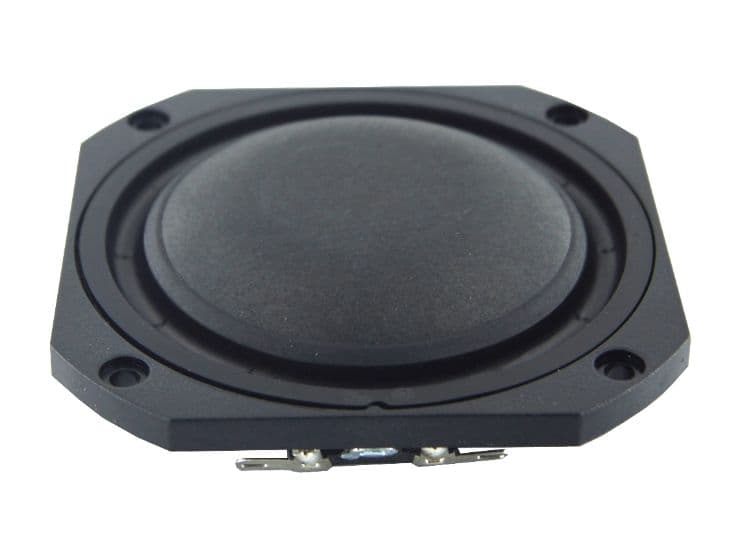

PeerlessGBS-85N25PR07-04
£14.59 · 42% less, betterFs130 Hz –
Qts0.70 −5%
Vas0.47 L −31%, better
BL4.5 T·m −25%, worse
Xmax3.0 mm +7%
Sensitivity83.1 dB −1.2
PeerlessPLS-P830986
£14.59 · 42% less, betterFs110 Hz −15%, better
Qts0.80 +8%
Vas0.8 L +24%, worse
BL3.5 T·m −42%, worse
Xmax3.4 mm +23%, better
Sensitivity82.7 dB −1.6
PRV Audio4MR60-4
£14.89 · 41% less, betterFs90 Hz −30%, better
Qts0.68 −8%
Vas3.3 L +387%, worse
BL3.4 T·m −43%, worse
Xmax2.9 mm +4%
Sensitivity87 dB +2.7, better
REDCATT25NFR
£19.63 · 22% less, betterFs123 Hz −5%
Qts0.71 −4%
Vas0.46 L −31%, better
BL4 T·m −33%, worse
Xmax2.6 mm −4%
Sensitivity82.3 dB −2, worse

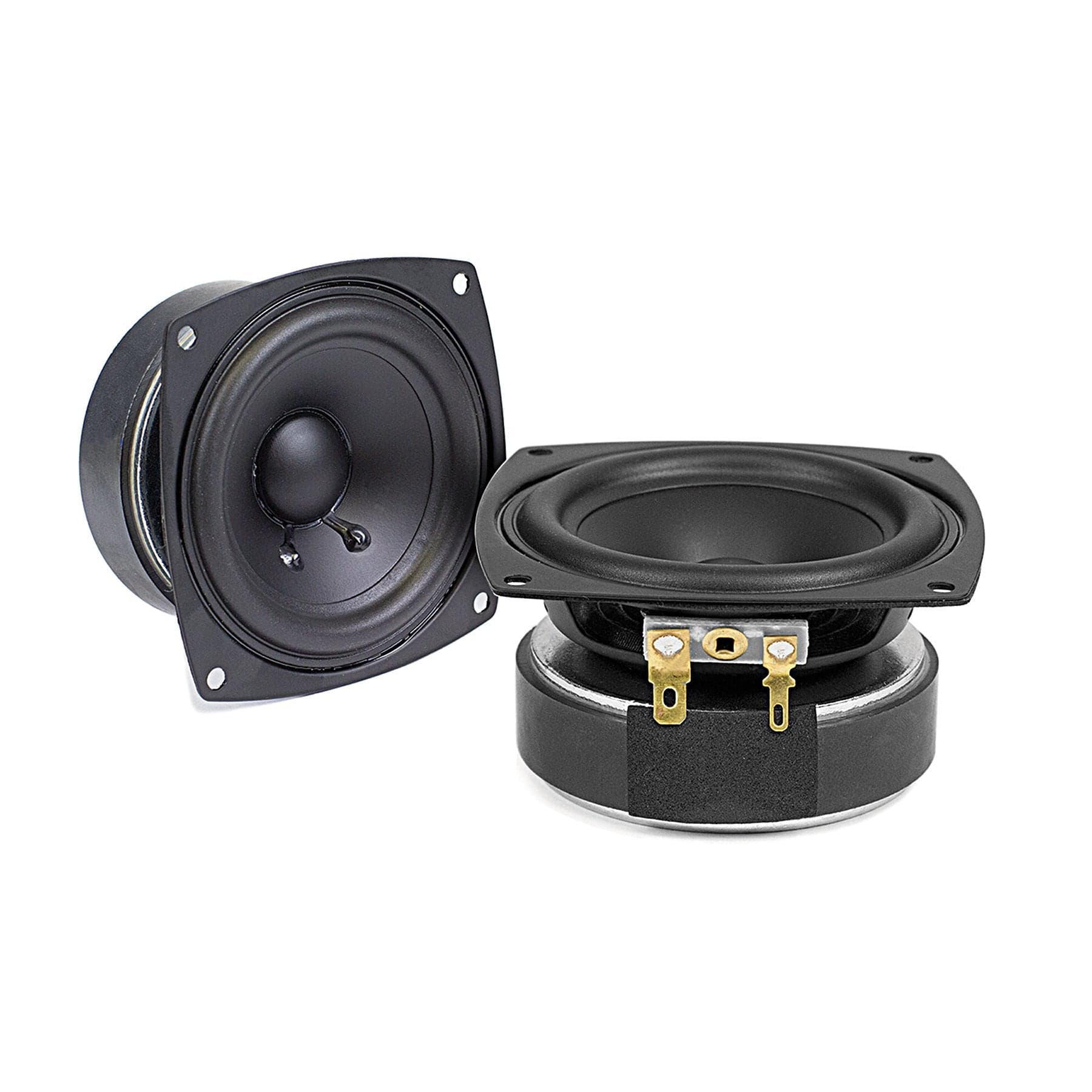

EminenceALPHA 3-32
£20.53 · 18% less, betterFs117 Hz −9%
Qts0.74 –
Vas1.0 L +46%, worse
BL6.5 T·m +8%
Xmax2.6 mm −5%
Sensitivity84.7 dB –
Dayton AudioPS95-8
£22.10 · 12% less, betterFs120 Hz −7%
Qts0.72 –
Vas0.9 L +40%, worse
BL3.8 T·m −36%, worse
Xmax2.5 mm −9%
Sensitivity85.1 dB +0.8
Dayton AudioDMA105-8
£22.10 · 12% less, betterFs72 Hz −44%, better
Qts0.63 −15%, better
Vas4.2 L +534%, worse
BL4.5 T·m −25%, worse
Xmax2.5 mm −9%
Sensitivity84.8 dB +0.5
SB AcousticsSB65WBAC25-4
£25.12 · Same priceFs115 Hz −11%, better
Qts0.68 −8%
Vas0.43 L −36%, better
BL2.9 T·m −52%, worse
Xmax2.6 mm −4%
Sensitivity81.3 dB −3, worse
Sica4 L 1 SL
£25.87 · 3% moreFs108 Hz −16%, better
Qts0.63 −15%, better
Vas1.2 L +79%, worse
BL5.1 T·m −15%, worse
Xmax2.4 mm −13%, worse
Sensitivity84.9 dB +0.6
CIAREHM100
£27.63 · 10% more, worseFs160 Hz +24%, worse
Qts0.70 −5%
Vas1.1 L +64%, worse
BL5.1 T·m −15%, worse
Xmax2.2 mm −20%, worse
Sensitivity88.7 dB +4.4, better
CelestionAF4010
£30.13 · 20% more, worseFs105 Hz −19%, better
Qts0.81 +9%
Vas2.1 L +218%, worse
BL6.0 T·m –
Xmax2.8 mm –
Sensitivity86.1 dB +1.8
PRV Audio3MR40-NDY-4
£36.80 · 47% more, worseFs153 Hz +19%, worse
Qts0.77 +4%
Vas0.6 L −6%
BL2.9 T·m −51%, worse
Xmax1.4 mm −49%, worse
Sensitivity85.6 dB +1.3
WavecorWF090WA01
£41.14 · 64% more, worseFs115 Hz −11%, better
Qts0.81 +9%
Vas1.0 L +52%, worse
BL2.9 T·m −52%, worse
Xmax2.8 mm –
Sensitivity84.3 dB –
Tang BandW3-2345S
£44.96 · 79% more, worseFs45 Hz −65%, better
Qts0.48 −35%, better
Vas0.64 L −4%
BL5.9 T·m –
Xmax7.7 mm +180%, better
Sensitivity72.2 dB −12.1, worse
WavecorWF090WA02
£57.10 · 127% more, worseFs109 Hz −15%, better
Qts0.76 –
Vas1.1 L +70%, worse
BL3.5 T·m −41%, worse
Xmax2.8 mm –
Sensitivity84.3 dB –
ScanspeakD8404/552000
£2,428.16 · 9570% more, worseFs280 Hz +117%, worse
Qts0.69 −7%
Vas0.27 L −60%, better
BL6.1 T·m –
Xmax2.4 mm −13%, worse
Sensitivity90.6 dB +6.3, better
EminenceALPHA 4-8
No current priceFs123 Hz −5%
Qts0.75 –
Vas1.9 L +190%, worse
BL4.9 T·m −17%, worse
Xmax2.6 mm −5%
Sensitivity88.4 dB +4.1, better
WavecorFR070OM01
No current priceFs116 Hz −10%, better
Qts0.83 +12%, worse
Vas0.6 L −10%, better
BL2.3 T·m −62%, worse
Xmax2.5 mm −9%
Sensitivity82.3 dB −2, worse
Dayton AudioCFC100-8
No current priceFs107 Hz −17%, better
Qts0.78 +5%
Vas0.75 L +12%, worse
BL3.9 T·m −35%, worse
Xmax2.5 mm −9%
Sensitivity81.6 dB −2.7, worse
Dayton AudioCFC100-4
No current priceFs94 Hz −27%, better
Qts0.60 −19%, better
Vas0.8 L +24%, worse
BL3.1 T·m −47%, worse
Xmax2.5 mm −9%
Sensitivity81.7 dB −2.6, worse
PeerlessPLS-75F25AL02-08
No current priceFs100 Hz −22%, better
Qts0.74 –
Vas1.1 L +61%, worse
BL3.6 T·m −40%, worse
Xmax3.4 mm +23%, better
Sensitivity83.1 dB −1.2
WavecorFR084WA02
No current priceFs109 Hz −15%, better
Qts0.79 +7%
Vas1.1 L +70%, worse
BL3.6 T·m −39%, worse
Xmax2.5 mm −9%
Sensitivity84 dB –
MonacorSP-4/60PRO
No current priceFs92 Hz −29%, better
Qts0.60 −19%, better
Vas3 L +348%, worse
BL5.8 T·m –
Xmax2.3 mm −16%, worse
Sensitivity87.5 dB +3.2, better
B&C4MCX36
No current priceFs150 Hz +16%, worse
Qts0.91 +23%, worse
Vas0.8 L +19%, worse
BL5.3 T·m −12%, worse
Xmax3 mm +9%
Sensitivity85.6 dB +1.3
