CIARE PA101

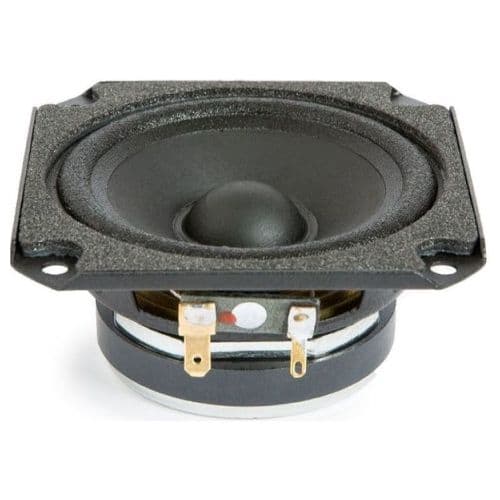

CIARE PA101 is a 4" 16 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 207Hz, Qts 1.03, Vas 0.5L, Xmax 3mm, sensitivity 87.1dB, plus 16cm³ Vd and 149 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
16Ω
RMS Power
120W
Sensitivity
87.1dB
88.5dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
149
Vented alignment
Vd
16cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence542 selected pixels of 1,133
T/S Parameters
Valid
Fs207Hz
Qts1.03
Qes1.39
Qms4.0
Vas0.5L
Re10.8Ω
Le0.08mH
BL6.7Tm
Sd52cm²
Mms4g
Xmax3.0mm
SPL87dB
Power120W
Power Nominal60W
Impedance16Ω
F Low150Hz
F High150Hz
Voice Coil25mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.8kg
Diameter102.0mm
Overall Depth53.0mm
Cutout Diameter91.0mm
Bolt Circle Diameter116.0mm
