LF Driver5NSM series
B&C

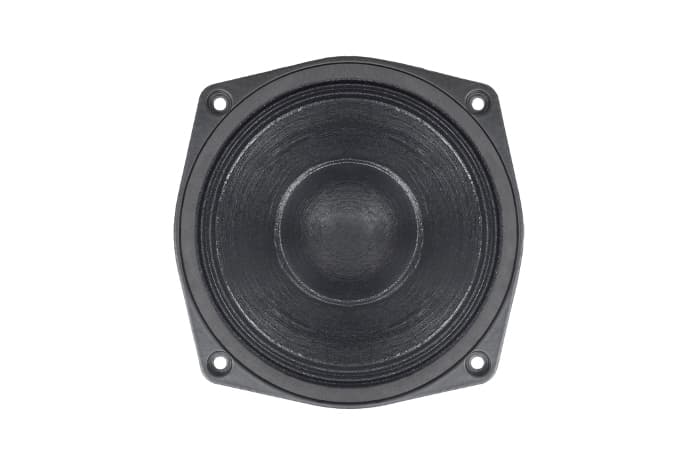

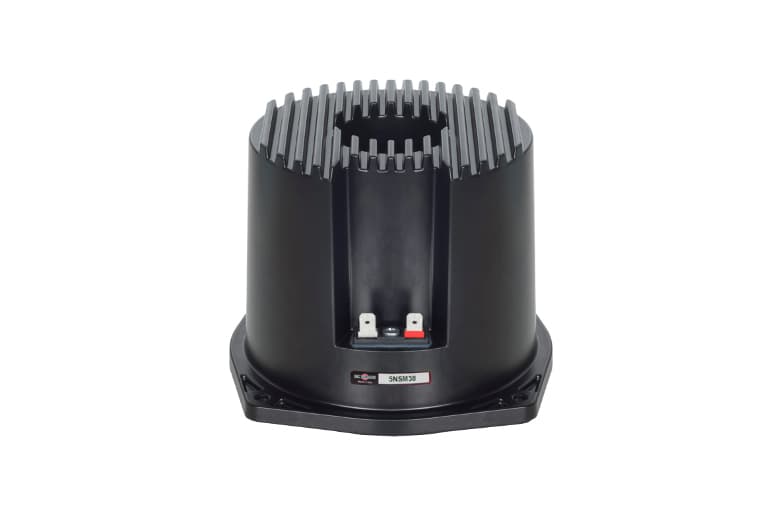

B&C 5NSM38
B&C 5NSM38 is a 5" 16 ohm LF driver rated at 110W RMS. The validated T/S data includes Fs 320Hz, Qts 0.94, Vas 0.4L, Xmax 2.2mm, sensitivity 92.5dB, plus 21cm³ Vd and 271 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £115.50.
Size
5"
Impedance
16Ω
RMS Power
110W
Sensitivity
92.5dB
99.0dBmanufacturer; using T/S-derived value (6.5dB delta).
EBP
271
Vented alignment
Vd
21cm³

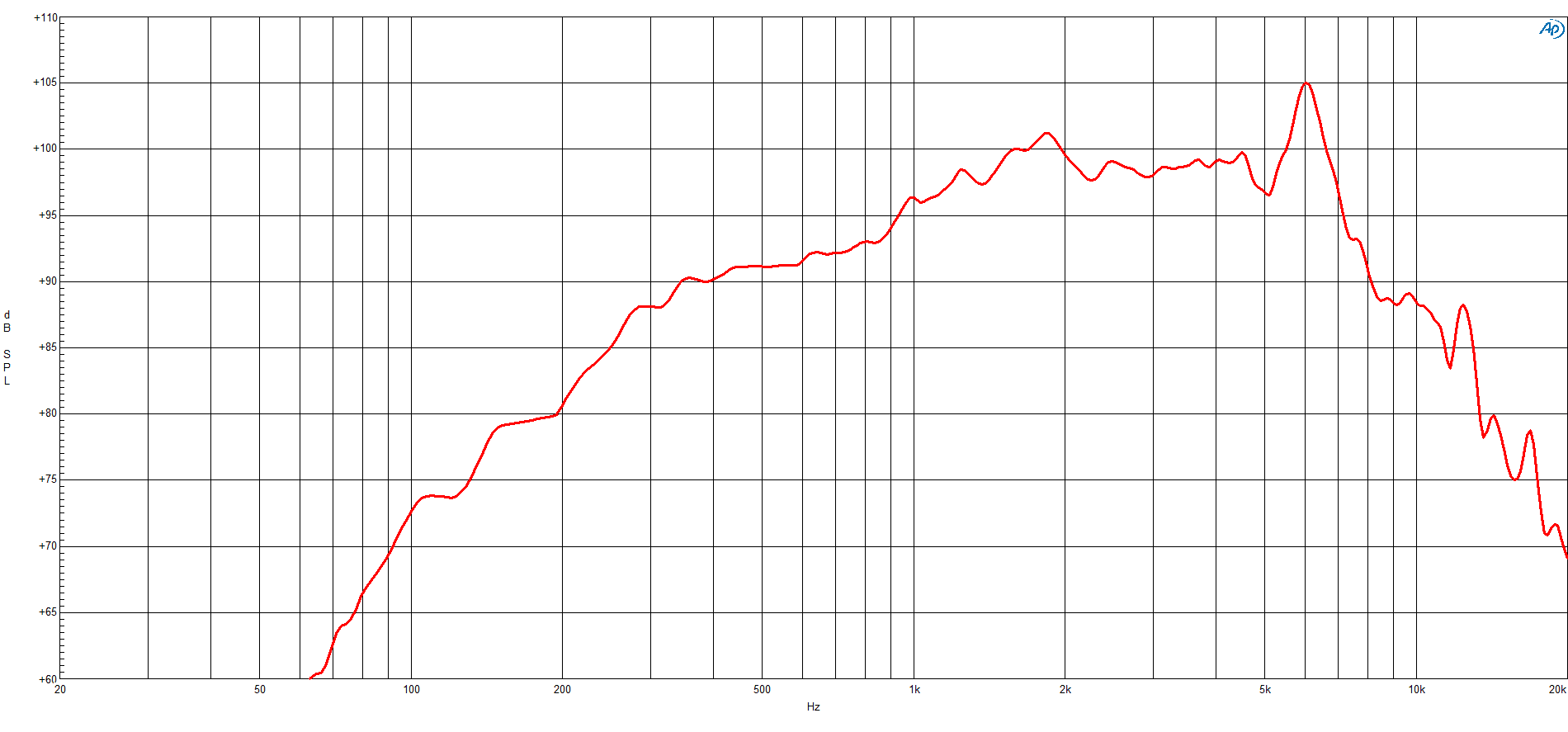

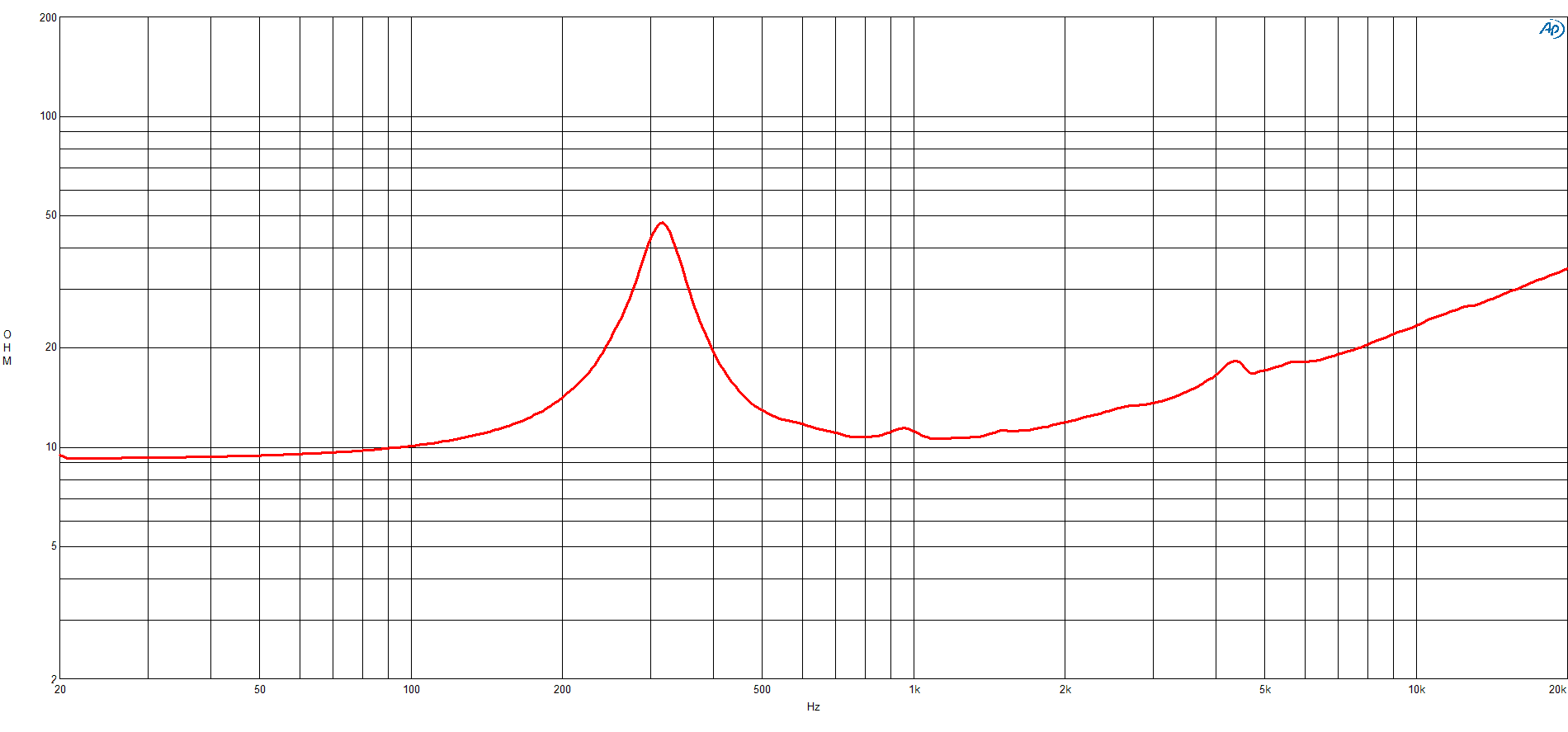

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs320Hz
Qts0.94
Qes1.18
Qms4.5
Vas0.4L
Re9.3Ω
Le0.20mH
BL11.7Tm
Sd95cm²
Mms9g
Xmax2.2mm
SPL93dB
Power110W
Power Nominal110W
Impedance16Ω
Min Impedance10.5Ω
F Low300Hz
F High3500Hz
Voice Coil38mm
Flux Density1.45T
Pricing & availability
Price definitionsPrice movement
Best current price
£115.50
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.4kg
Diameter157.0mm
Overall Depth108.0mm
Cutout Diameter122.0mm
Bolt Circle Diameter142.0mm
Additional Manufacturer Specs
Bl11.7 Tm
Fs320 Hz
Le0.2 mH
Re9.3 Ω
Sd95 cm² (14.73 in²)
Ebp271 Hz
Mms8.6 g
Qes1.18
Qms4.5
Qts0.94
Vas0.4 dm³ (0.01 ft³)
η00.98 %
ConeRCK005NSM3816
Xmax2.2 mm
Xvar3 mm
SpiderSingle
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth7.3 mm (0.29 in)
Surround ShapeDouble Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Ring
Nominal Diameter127 mm (5 in)
Winding MaterialAluminium
Magnetic Gap Depth6 mm (0.24 in)
Bolt Circle Diameter142 mm (5.6 in)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter122 mm (4.8 in)
Flange And Gasket Thickness9 mm (0.35 in)
Air Volume Occupied By Driver1.2 dm³ (0.04 ft³)
